Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > Horizontal Lathe Machine CH1440(60)K

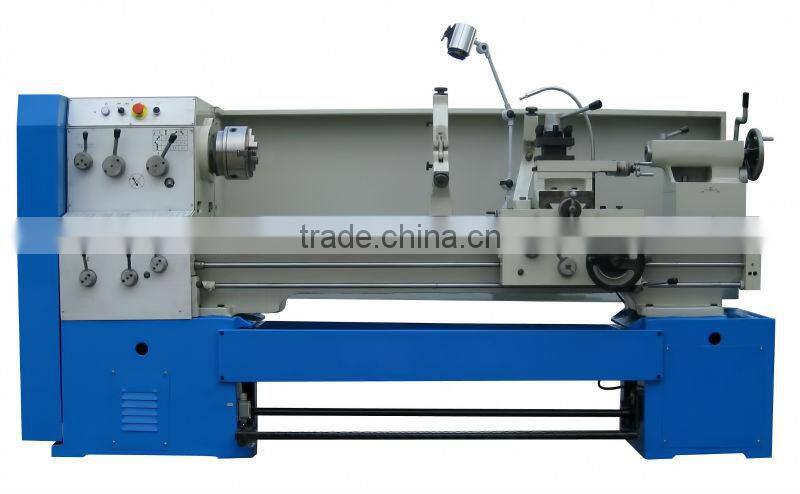

Horizontal Lathe Machine CH1440(60)K

Name: Horizontal Lathe Machine CH1440(60)K
Brand: HELI
SKU: 103161905
Availability: InStock

Horizontal Lathe Machine CH1440(60)K thumbnail-1

Horizontal Lathe Machine CH1440(60)K photo-1

Negotiable MOQ: 4 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Contact Supplier Request Quote Chat Now

Tengzhou Runfa Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Manual

Max. Swing Diameter 356

Place of Origin Shandong, China

Brand Name HELI

Model Number CH1440(60)K

Voltage 380V

Power(W) 2200

Dimension(L*W*H) 1900*750*1500

Weight 1350

Certification CE

After-sales Service Provided No overseas service provided

Specifications

Hardened and ground bed ways.
12 speeds all geared head stock.
3HP(2.4kW)three phase motor.
Foot brake giving rapid braking

Product Features: Hardened and ground bed ways. 12 speeds all geared head stock. 3HP(2.4kW)three phase motor. Foot brake giving rapid braking. Emergency stop button equipped on the front of headstock. Jog button for easy gear engagement and inching spindle. Extra safety switch shuts down machine automatically for changing belt or gear for threading cutting.

CHK series lathe technical parameters
Model		CH1440(60)K
CAPACITY	Max.swing over bed	356mm
	Max.swing over cross slide	210mm
	Max.swing over gap	508mm
	Effective length of gap	180mm
	Center Distance	1000,1500mm
	Bed Width	260mm
HEADSTOCK	Spindle hole	40mm
	Spindle nose	ISO-D4
	Spindle taper	MT5
	Spindle speed(Number)	(12steps)40-1800rpm
FEEDS	Longitudinal feeds range	37kinds 0.043-0.653mm/rev
	Cross feeds range	37kinds 0.024-0.359mm/rev
	Metric threads range	37kinds 0.4-7mm
	Inch threads range	28kinds 4-56inch
MAIN SCREW	Dia. of main screw	22mm
MAIN SCREW	Pitch of main screw	4mm or 8T.P.I
TAILSTOCK	Dia.of tailstock sleeve	45mm
	Taper of tailstock sleeve	MT3
	Max.travel of tailstock	120mm
MOTOR	Main drive motor	2.2KW
MOTOR	Coolant pump motor	40W
PACKING(LWH):
	1000mm	19075150cm
	1500mm	24575150cm
WEIGHT(N.W/G.W):
	1000mm	1150/1350kg
	1500mm	1350/1650kg
