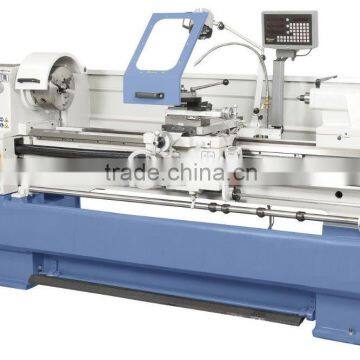

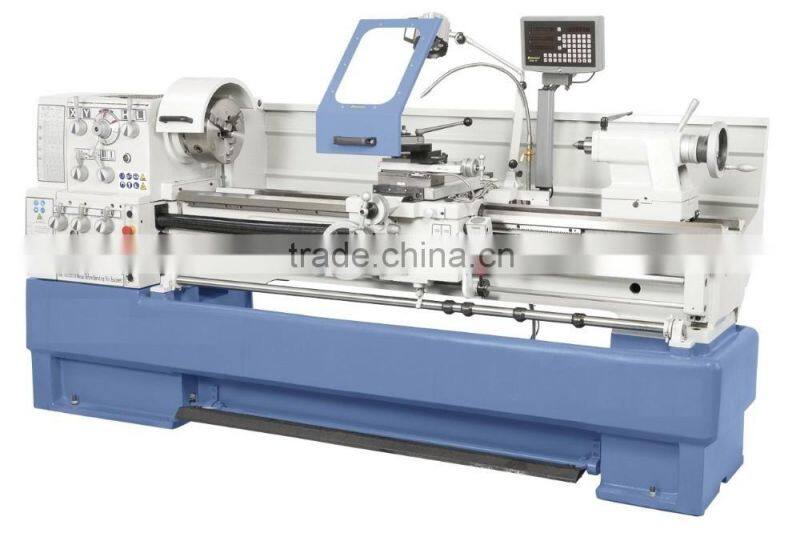

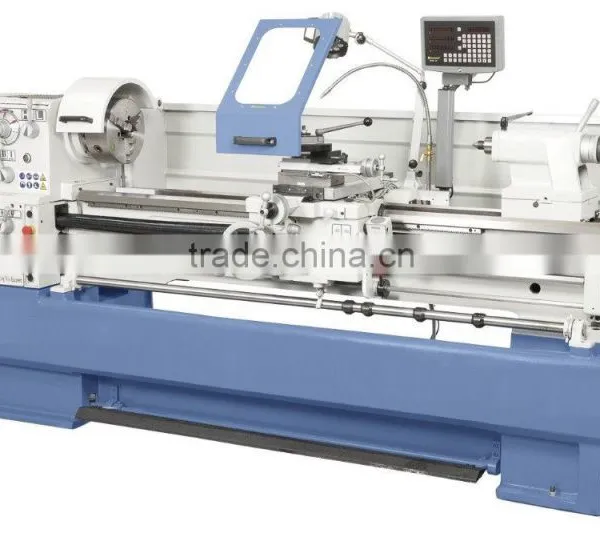

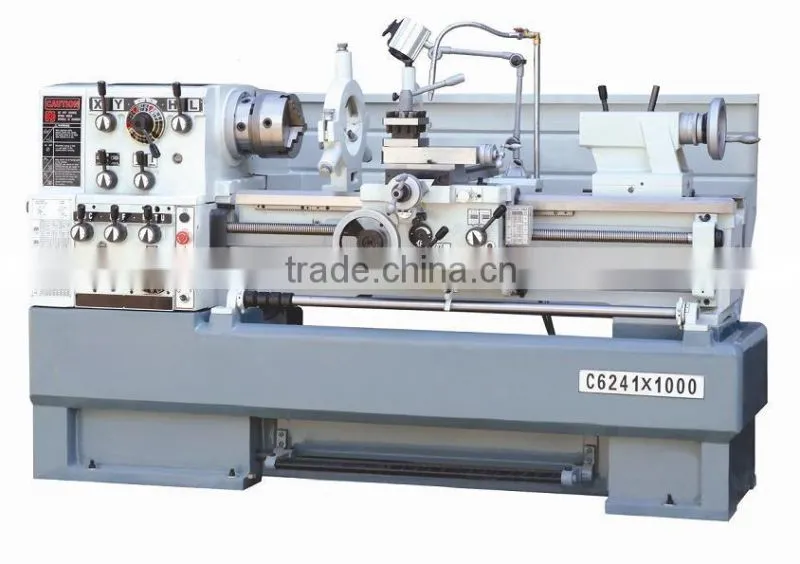

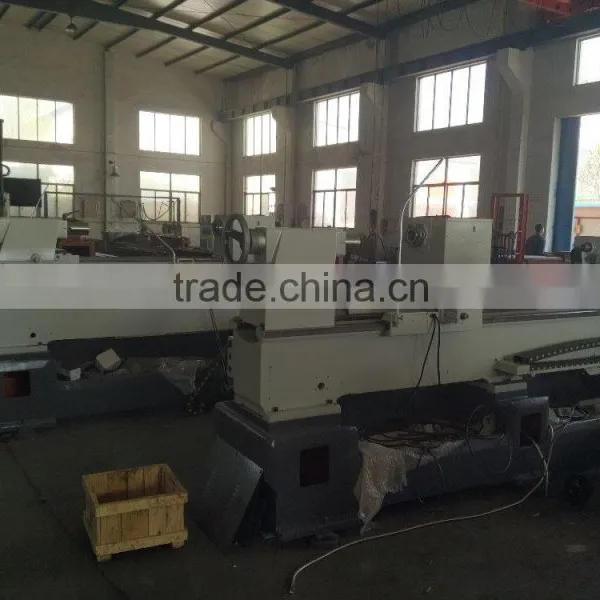

Horizontal Lathe Machine C6241/46/41V/46V

C6241/46/41V/46V/Features:

Precision ground and hardened bedways

The spindle is supported with precision roller bearings

Head stock gears are made of high quality steel ground and hardened

Integrated and segregate foot stand for optional

Variable speed model for optional

Specification

Model

C6241 C6246

Swing Over Bed

410mm(16 ) 460mm(18 )

Swing Over Cross Slide

224mm(8-13/16 ) 274mm(10-3/4 )

Swing In Gap

640mm(25-1/8 ) 690mm(27-1/8 )

Length Of Gap

155mm(6-1/8 )

Distance between centers

1000mm(40")/1500mm(60")/2000mm(80")

Bed Width

300mm(11-13/16 )

Spindle Nose

D1-6

Spindle Bore

58mm(2-1/4 )

Taper Of Spindle Bore

NO.6Morse

Range Of Spindle Speed

12changes25-2000r/min

Max. Travel Of Compound Rest

120mm(4-3/4 )

Max. Travel Of Cross Slide

290mm(11-3/8 )

Leadscrew Pitch Metric

6mm

Max. Section Of Tool

25mm×25mm(1×1 )

Longitudinal Feeds Range 42kinds

0.031-1.7mm/rev (0.0011 -0.0633 /rev)

Cross Feeds Range 42kinds

0.014-0.784mm (0.00033 -0.01873 )

Metric Threads Range

41kinds 0.1-14mm

Inch Threads Range

60kinds 2-112T.P.I

Diametrical Pitches Range

50kinds 4-112D.P.

Module Pitches Range

34kinds 0.1-7M.P.

Dia. Of Tailstock Sleeve

60mm(2-5/16 )

Travel Of Tailstock Sleeve

120mm(4-3/4 )

Morse Taper Of Tailstock Sleeve

NO. 4 Morse

Power Of Main Motor

4 or 5.5kw

Power Of Coolant Pump

90w
