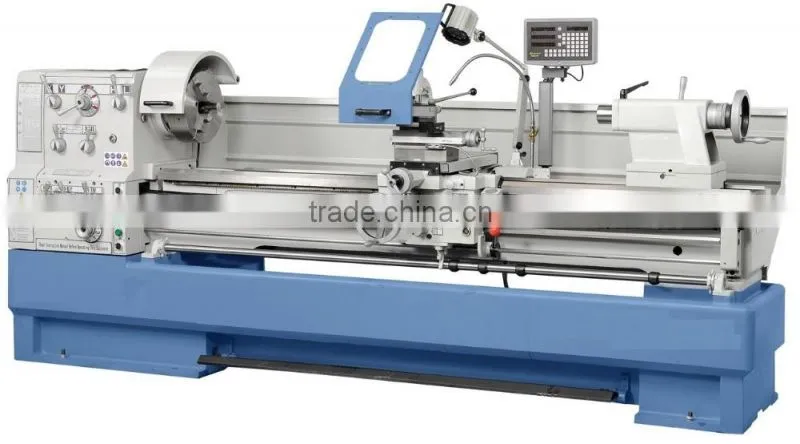

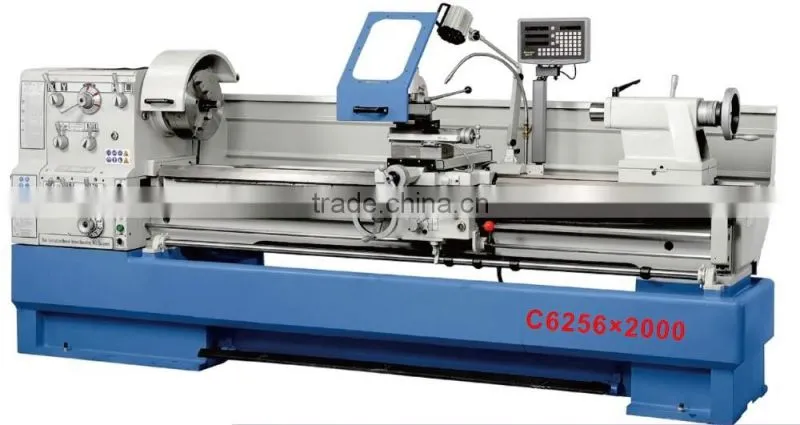

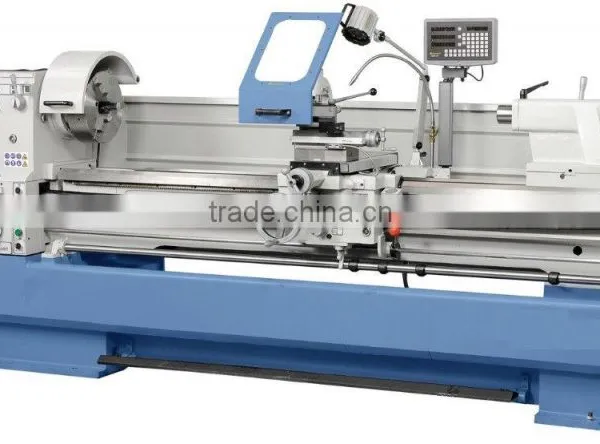

ENGINE LATHE C6251/56X1000/1500/2000/3000 HORIZONTAL LATHE MACHINE

Name: ENGINE LATHE C6251/56X1000/1500/2000/3000 HORIZONTAL LATHE MACHINE
Brand: HELI
SKU: 103161945

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Tengzhou Runfa Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Manual

Max. Swing Diameter 510/560 mm

Place of Origin Shandong, China

Brand Name HELI

Model Number C6251/56

Voltage 220V/380V/400V/440V

Power(W) 7.5kw

Dimension(L*W*H) 2340X1150X1460MM

Weight 2680 KG

Certification CE ISO

After-sales Service Provided No overseas service provided

Precision ground and hardened bedways

The spindle is supported with precision roller bearings

Head stock gears are made of high quality steel ground and hardened

Integrated and segregate foot stand for optional

Variable speed model for optional

Specification
Specification	C6251×1000/1500/2000/3000 C6256×1000/1500/2000/3000
Swing Over Bed	510mm(20”) 560mm(22”)
Swing Over Cross Slide	305mm(11-7/8”) 355mm(13-3/4”)
Swing In Gap	735mm(29”) 785mm(31”)
Length Of Gap	200mm(8”)
Max. Length Of Workpiece	1000mm(40”)/1500mm(60”)/2000mm(78”)/3000mm(118”)
Bed Width	350mm(13-3/4”)
Spindle Nose	D1-8 or A1-8
Spindle Bore	80mm(3-1/8”)
Taper Of Spindle Bore	NO.7Morse
Range Of Spindle Speed	12changes20-1600r/min 25-1600r/min(variable)
Max. Travel Of Cross Slide	280mm
Leadscrew diameter & thread	40mm(19/16'')x4T.P.I. or 6mm
Threads imperial pitches	2-112(60Nos)
Threads metric pitches	0.2-14(47Nos)
Specification	C6251×1000/1500/2000/3000 C6256×1000/1500/2000/3000
D iametral pitches DP/DP	4-112 D.P(50Nos)
M odule pitches MP/MP	0.1-7 M.P(39Nos)
Longitudinal feeds	0.0022''-0.0612'' /Rev (35Nos)
Cross feeds	0.00048''-0.01354''(35Nos)
Total travel of tailstock quill	180mm
Tails stock quill	75mm
Taper tailstock quill	M.T.No.5
Spindle drive motor 4P, 3PH	7.5kw
Coolant drive motor 2P, 3PH	90w
Overall dimention (LxWxH)	2340/2840/3340/4340X1150X1460 (mm)
Packing apace dimentions(LxWxH)	2400/2900/3400/4400X1150X1740(mm)
Net weight (KG)	2680Kg 2940Kg 2770Kg 3030Kg
Gross weight (KG)	3000Kg 3310Kg 3090Kg 3400Kg
