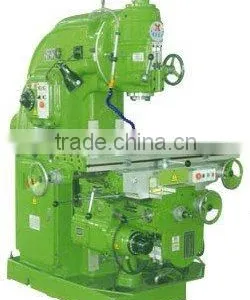

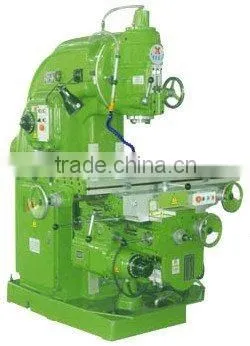

X5032 Vertical Knee Type Milling Machine
Negotiable
MOQ: 2 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HELI
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Universal Milling Machine X6336US$ 9,000 - 11,000MOQ: 1 Set -
X5036G Vertical Knee Type Milling MachineNegotiableMOQ: 2 Sets
-
X6332C Universal Radial Milling MachineNegotiableMOQ: 2 Sets
-
X6332B Turret Milling Machine[UNIVERSAL MILLING]NegotiableMOQ: 2 Sets
-
X6336A Vertical Knee-type Milling MachineNegotiableMOQ: 1 Set
Condition
New
Place of Origin
Shandong, China
Brand Name
HELI
Model Number
X5032
Type
Other, vertical or horizontal
CNC or Not
Normal
Specifications
The machine is used for cutting metals and nometals. It's suitable to drill, mill, bore and so onSPECIFICATION |
UNIT |
X5032 |
Table size |
mm |
320 x 1325 |
T-slot(No./width/distance |
mm |
3/18/70 |
Max. longitudinal travel(manual/automatic) |
mm |
700/680 |
Max. cross travel(manual/automatic) |
mm |
255/240 |
Max. vertical travel(manual/automatic) |
mm |
350/330 |
Rapid speed of worktable(X,Y,Z) |
mm/min |
2300/1540/770 |
Swivel angle of vertical milling head |
° |
±45 |
Spindle travel |
mm |
70 |
Distance between spindle centerline and plane of column guideway |
mm |
350 |
Spindle bore |
mm |
29 |
Spindle taper |
-- |
7:24 ISO 50 |
Distance between spindle nose and plane of worktable |
mm |
60/410 |
Spindle speed step |
-- |
18steps |
Range of spindle speed |
r.p.m |
30~1500 |
Feed range of worktable |
-- |
18steps |
Main motor power |
kw |
7.5 |
Feed motor power |
kw |
2.2 |
Overall size |
mm |
2294 x1770 x 1904 |
N.W/G.W |
kg |
2900/3200 |
