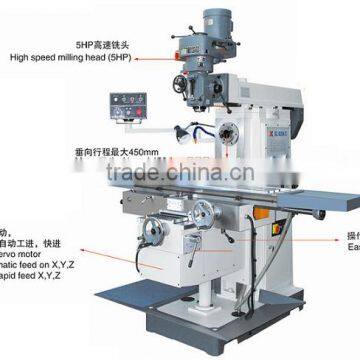

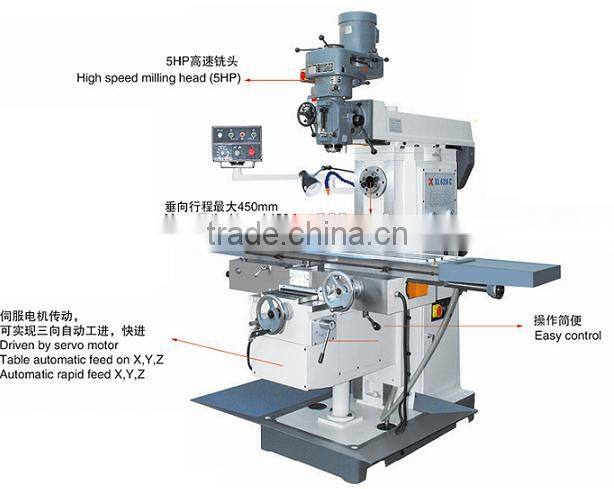

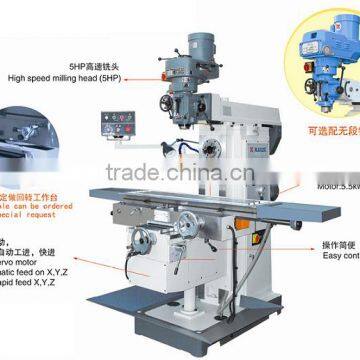

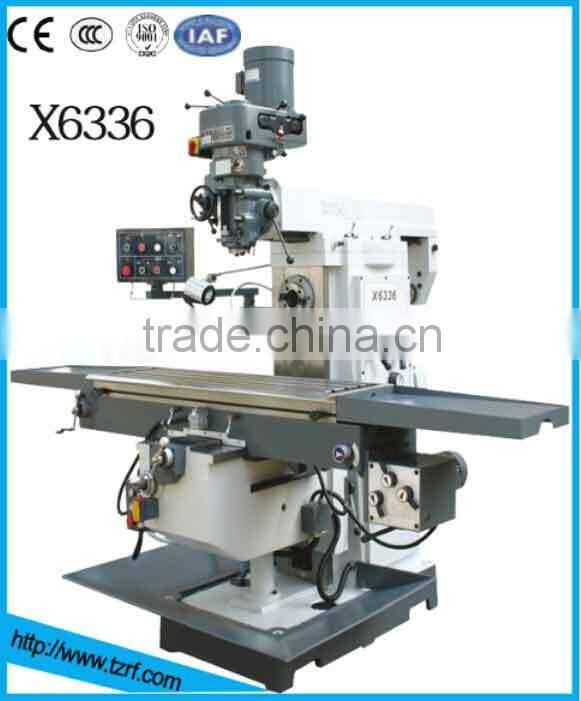

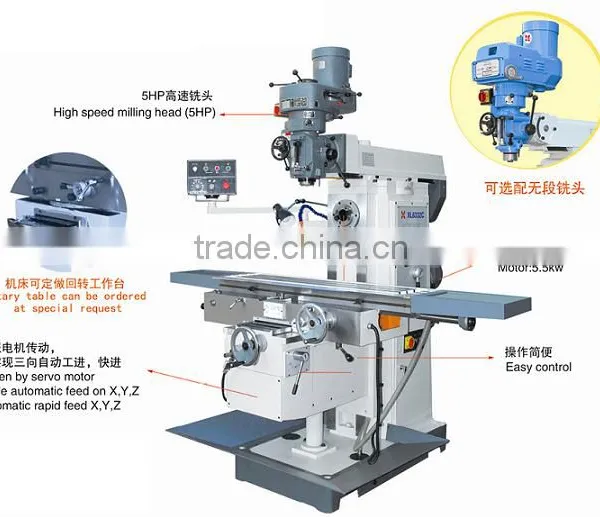

Universal Milling Machine X6336
- 50 Set / Sets per Month
- Qingdao
- T/T
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | HELI |
Model Number: | X6336 | Type: | Universal | CNC or Not: | Normal |
Voltage: | 220V/240V/380V | Power(W): | 3.7kw | Dimension(L*W*H): | 2220*1790*2360mm |
Weight: | 2300kg | Certification: | ISO9001:2008 | Warranty: | 13Months |
After-sales Service Provided: | No overseas service provided |
Product Description
The X6336 Universal Milling machine is used for cutting metals,it's an universal milling machine.Cylinder mill,round piece mill,shape mill and end mill can be installed on the conical hole of main pivot of the machine,which is suitable for processing plane surface,oblique plane,groove,hole,gear of all kinds of small,medium parts.User can select universal dividing head(a special auxiliary)to process groove of thread.The machine is an ideal processing equipment for machine manufacturing,mold,instrument,automobile motorcyole and other trades .
Main specification | X6336 |
Spindle taper | 7:24 ISO 50 |
Distance from spindle axis to table surface | 0-400 mm |
Distance from horizontal spindle axis to beam surface | 230 mm |
Range of spindle speed | 12(steps) 60~1800(H) 16(steps) 66~4540(V)r.p.m |
Table size | 1250 x 360 mm |
Table travel(horizontal/cross/vertical) | 1000/315/400 |
Speed of table feed (horizontal/cross) | 8(steps)15~370(rapid feed speed 540)mm/min |
Speed of table vertical lifting | 590 mm/min |
T-slot(number/width/spacing) | 3/18mm/80mm |
Main motor power | 3.7(V)/4(H) KW |
Power of table automatic feed | 750 W |
Power of lifter automatic feed | 1.1 KW |
Coolant pump motor power | 90 W |
Coolant pump flow | 25 L/min |
Overall dimension | 2220 x 1790 x 2360 mm |
Net weight | 2400 kg |
Packing&Shipping:
Machine model: X6336 universal milling machine
Type of package: Plywood case
Packing dimension: 2260X1800X2280mm (one set in one case)
N.W./G.W.: 2400/2450KGS
Suitable Container and quantity:
20' Standard Container: 3sets
40' Standard Container: 6sets
OUR SERVICES:
Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you as usual.
Technical support online service provided .
Technical files service provided.
Machine operation video provided
On-site training service provided.
Spare parts replacement and repair service provided.
All of the questions will be replied within 24 hours
FAQ:
Payment terms:
1. TT 30% advance payment before production, pay the balance before delivery
2. LC at sight
