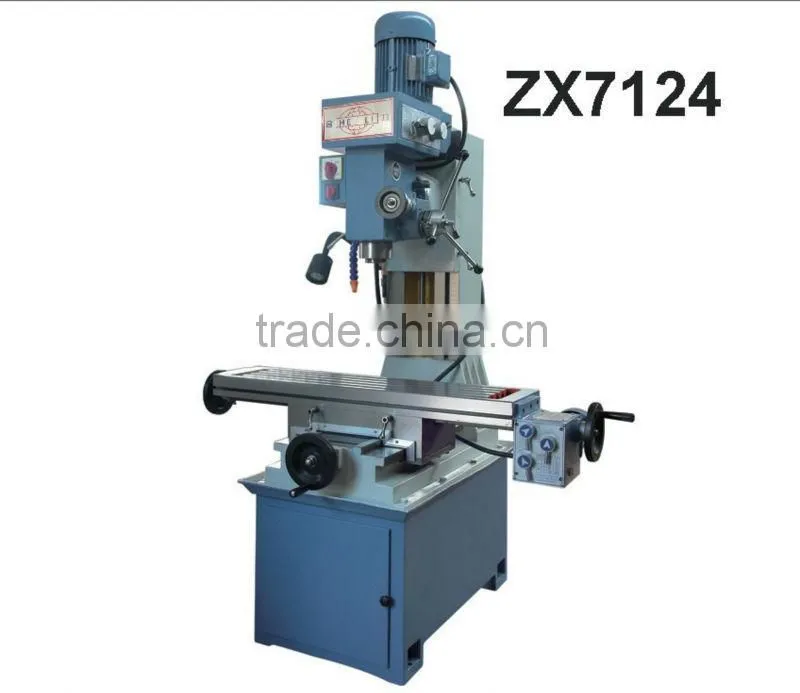

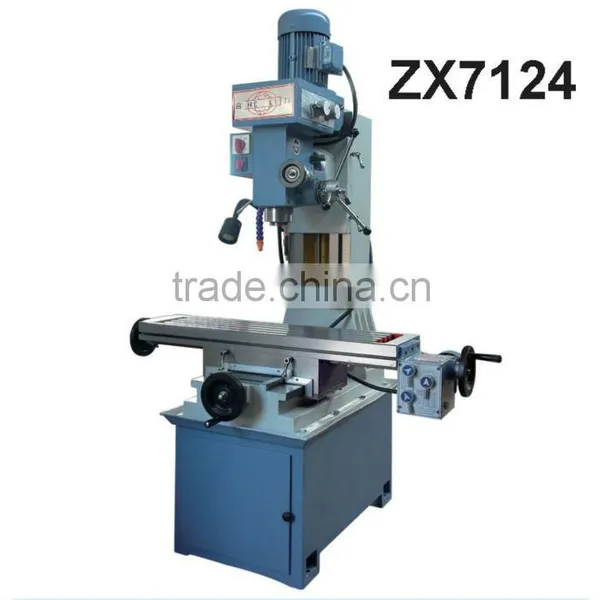

Small Milling Machine ZX7124
Negotiable
MOQ: 4 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HELI
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
X5032 Heavy Duty Vertical Milling MachineNegotiableMOQ: 1 Set -
X5032 Vertical Knee Type Milling MachineNegotiableMOQ: 2 Sets
-
Universal Milling Machine X6336US$ 9,000 - 11,000MOQ: 1 Set
-
X5036G Vertical Knee Type Milling MachineNegotiableMOQ: 2 Sets
-
X6332C Universal Radial Milling MachineNegotiableMOQ: 2 Sets
Condition
New
Place of Origin
Shandong, China
Brand Name
HELI
Model Number
ZX7124
Type
Vertical
CNC or Not
Normal
Voltage
380V/220V
Power(W)
3KW
Certification
ISO 2008
Warranty
12 months
After-sales Service Provided
No overseas service provided
Specifications
1.small overall dimension2.hardened worktable and guideway surface
3.high precise and more durable
4.ideal starter machine
Specification |
UNIT |
ZX7124 |
|
Spindle taper |
|
7:24 ISO 40 |
|
Distance between spindle nose and table surface |
mm |
60-500mm |
|
Distance between spindle axis and column guideway |
mm |
310mm |
|
Spindle speed range |
rpm |
8 steps 115-1750 rpm |
|
Table size |
mm |
1000mm x 240 mm |
|
Table travel(X,Y) |
mm |
550mm x 320mm |
|
Main motor power |
kw |
2.2kw(two- speed) |
|
Swivel angle of milling head |
° |
±45°
|
|
Overall dimension |
mm |
1300x1000x1700 |
|
N.W/G.W |
kg |
6000/650 |
|
