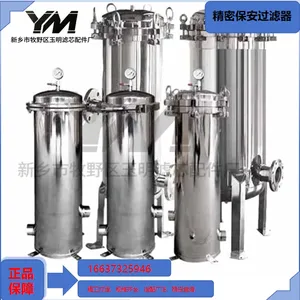

Precision Security Filter
1 Product Overview
Precision Security Filter (cartridge security filter) is a pressure-driven precision filtration unit installed upstream of high-pressure pumps & RO membrane modules as core protection equipment for pure water systems. Raw water containing impurities enters vessel tangentially. Fluid flows through cartridges from outside inward; suspended solids & colloids larger than nominal rating are trapped on outer surface, while purified fluid converges at cartridge center and flows toward downstream membranes.
Compared with multimedia filters & bag filters, it delivers higher filtration accuracy and stable outlet water quality. Micron-scale particle interception prevents expensive membrane elements from scratch damage. When contaminant accumulation causes differential pressure to rise to preset limit, shut down and replace cartridges to restore performance.Sanitary version features mirror polished dead-space-free interior for sterile water supply in pharmaceutical & electronics industry. High-flow variant adopts large diameter pleated cartridges to reduce cartridge quantity and minimize overall equipment footprint under equal flow demand.
2 Main Structural Composition

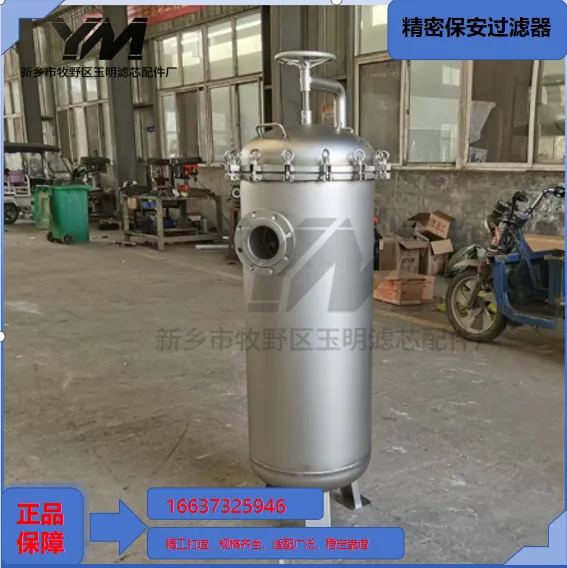

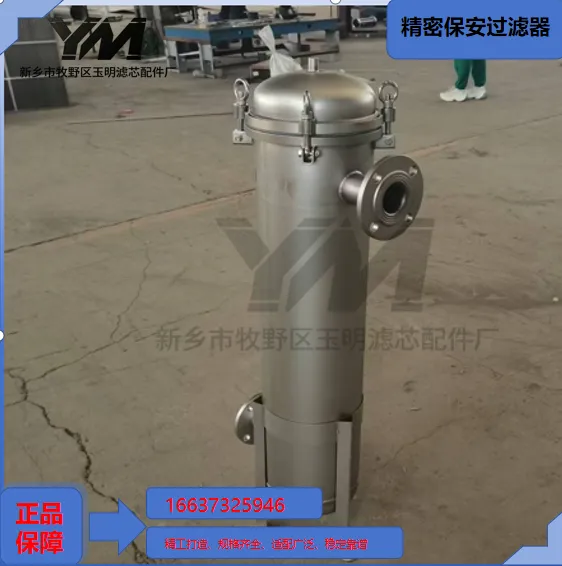

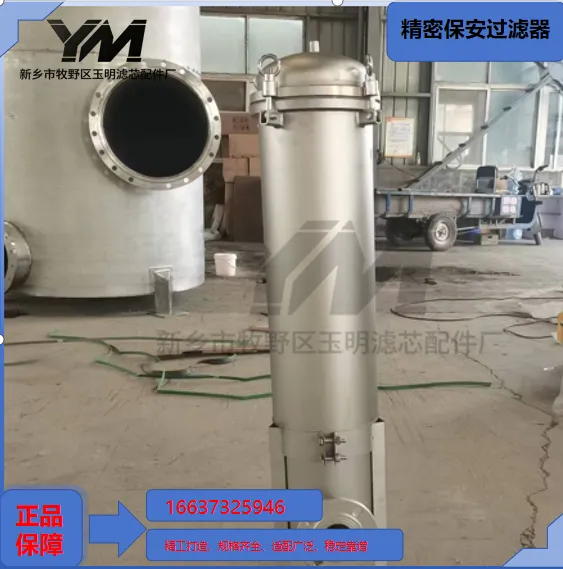

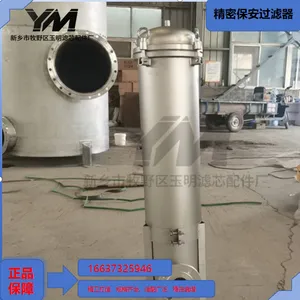

Vertical Pressure Vessel Housing AssemblyRoll-welded 304 / 316L stainless steel cylinder with elliptical heads, side inlet & outlet flanges and top service opening.
Cartridge Support Perforated Plate AssemblyThickened stainless steel positioning plate evenly distributes flow to balance loading on each cartridge and avoid localized overloading.
Standard Precision Filter CartridgesOptional PP melt-blown, PES pleated, PTFE chemical resistant & high-flow pleated cartridges (222 / 226 industry standard connection).
Top Air Vent & Bottom Blowdown AssemblyFloat auto vent continuously releases trapped air; straight-through drain ball valve discharges settled sediment rapidly.
DP Pressure Tapping PortReserved tapping for pressure gauge / DP transmitter to visualize clogging level.
Top Cover Locking MechanismQuick clamp or eyebolt sealed cover matched with high-temperature anti-ageing silicone gaskets.
Support Skirt & Lifting LugsIntegrated welded support legs; lifting lugs equipped for hoisting large-size units during installation.
3 Working Principle
Raw water carrying colloids & fine solid particles enters filter chamber and flows evenly to each vertically installed cartridge under system operating pressure.Fluid permeates from cartridge outer surface toward central channel. Micropores trap suspended solids, rust & organic flocs above rated filtration size. Clean medium converges and exits toward high-pressure pump & reverse osmosis system.Contaminant accumulation gradually reduces effective flow area and raises differential pressure. When DP reaches warning limit (0.08～0.10 MPa), shut down and replace cartridges to avoid element breakthrough which will send raw unfiltered water to damage downstream membranes.After cartridge replacement, seal top cover, purge air inside vessel and restart system for continuous filtration.

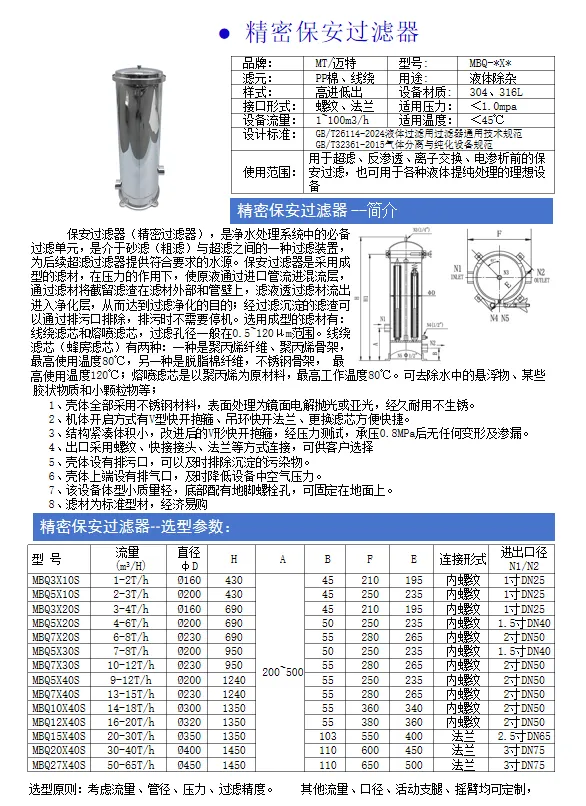

4 Basic Technical Parameters
Applicable medium: purified water, cooling circulating water, ethylene glycol solution, low-viscosity neutral process liquidHousing material: SUS304, SUS316L, SUS316L stainless steelNominal pressure: PN10, PN16 (custom high pressure up to 2.5 MPa)Operating temperature: 5～70℃ (jacketed heating version max 95℃)Available filtration rating: 0.22μm, 0.45μm, 1μm, 5μm, 10μm, 20μm, 50μmStandard cartridge configuration: 1 / 3 / 5 / 7 / 9 pcs (40 inch standard length)Nominal connection diameter: DN40 ~ DN150Installation: vertical inline flanged floor mountingRecommended DP replacement threshold: 0.08～0.10 MPaMax pressure drop at new cartridge rated flow: ≤0.02 MPa
5 Core Product Advantages
Micron precision interception protects RO / UF membranes and extends chemical cleaning intervals.
Quick-open cover enables tool-free fast cartridge replacement to shorten system downtime.
Mirror polished sanitary internal surface eliminates fouling dead zone for food & pharmaceutical sterile fluid service.
Wide range of cartridge material & rating options to suit weak acid, weak alkali & pure water media.
Compact vertical cylinder saves horizontal pipe rack space for projects with limited overhead clearance.
Uniform flow distribution balances cartridge loading and prevents unilateral rapid fouling.
Standard flange dimensions support direct retrofitting on existing pure water production lines.
Integrated vent, drain & DP monitoring simplify daily operation judgment.
Full stainless steel anti-corrosion construction avoids secondary rust contamination.

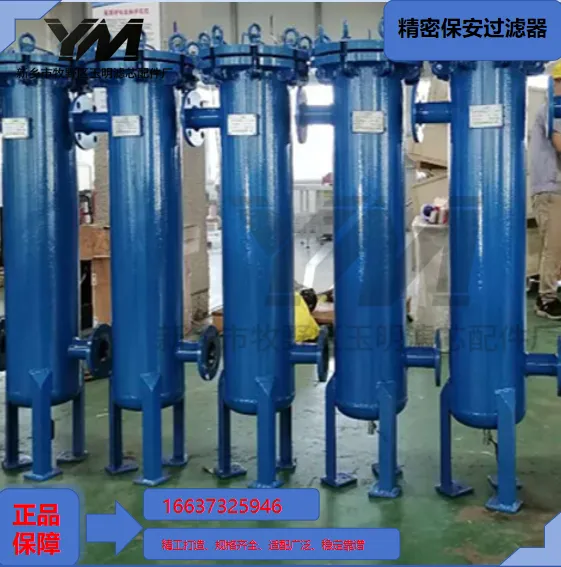

Multiple units can be installed in parallel for capacity expansion to satisfy large continuous water production lines.
6 Installation, Commissioning & Maintenance Specification
Install strictly following flow arrow marking; reverse inlet/outlet connection prohibited. Fit temperature-resistant gasket between flanges and tighten bolts evenly in diagonal sequence.Preferred installation position: straight pipe section upstream of high-pressure pump, avoid elbows & tees which create turbulent flow.Remove welding slag & metal debris inside vessel before commissioning; verify smooth operation of auto air vent without sticking.Record differential pressure trend during daily patrol and arrange cartridge replacement once DP exceeds warning value.Open vessel for full inspection of internal corrosion & plate deformation during annual overhaul, replace all silicone sealing gaskets simultaneously.Install multimedia filter / activated carbon filter as upstream pre-treatment if raw water persistently carries excessive suspended solids.Close isolation valves and drain residual water for long-term shutdown to keep interior dry & ventilated.
7 Common Faults & Solutions
DP rises rapidly, frequent cartridge replacement requiredCauses: excessive raw water turbidity; failed upstream pre-treatment; over-selected fine filter ratingSolutions: overhaul upstream pretreatment; add primary coarse filter; select larger micron cartridge rating
Visible fine particles persistently appear in outlet water (cartridge breakthrough)Causes: long-term operation over DP limit; failed cartridge sealing; cracked filter elementSolutions: replace complete cartridge set; recalibrate cartridge compression force; adopt reinforced support cartridges
Persistent seepage at top cover flangeCauses: aged deformed gasket; uneven bolt tension; distorted cover plateSolutions: install new silicone sealing set; retighten fasteners evenly diagonally; re-machine cover sealing surface if necessary
Poor air venting, frequent air lock & pump abnormal noiseCauses: blocked air vent; installed below pipeline high point; massive trapped air inside vesselSolutions: clean or replace auto air vent; relocate unit at pipeline peak; fully purge air before startup
Actual flow lower than design rated capacityCauses: multiple clogged cartridges; throttled inlet/outlet piping; partially closed pipeline valvesSolutions: replace all cartridges; enlarge inlet & outlet pipeline; fully open isolation gate valves
8 Standard Supply List & Optional Accessories
Standard Supply List
Vertical stainless steel pressure vessel, cartridge support perforated plate, standard filter cartridges, top cover locking assembly, auto air vent, bottom drain ball valve, DP monitoring assembly, inlet & outlet flanges, complete sealing parts, flow direction nameplate, operation manual.
Optional Accessories
Spare cartridges of different precision, DP transmitter alarm package, steam thermal insulation jacket, sanitary sterile sealing kit, high-flow pleated cartridge module, ANSI standard flange, explosion-proof electric drain control kit。
