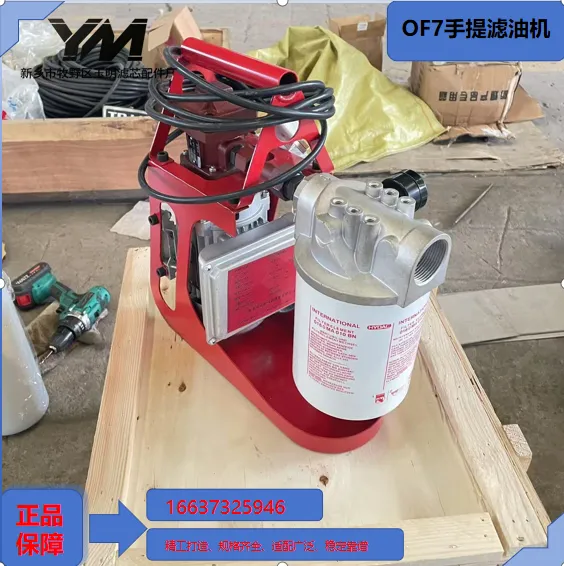

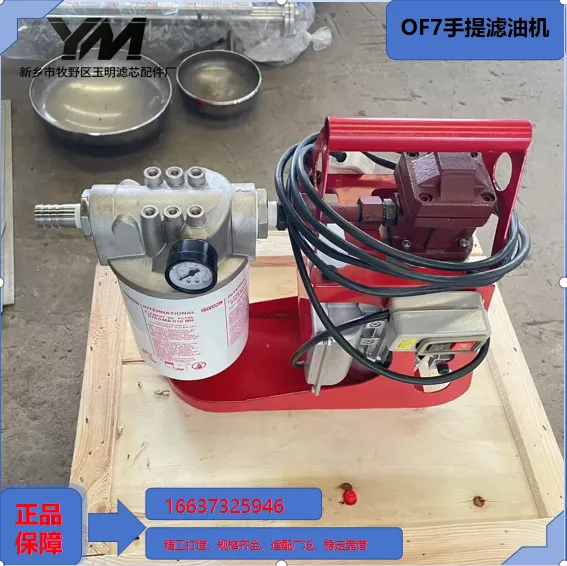

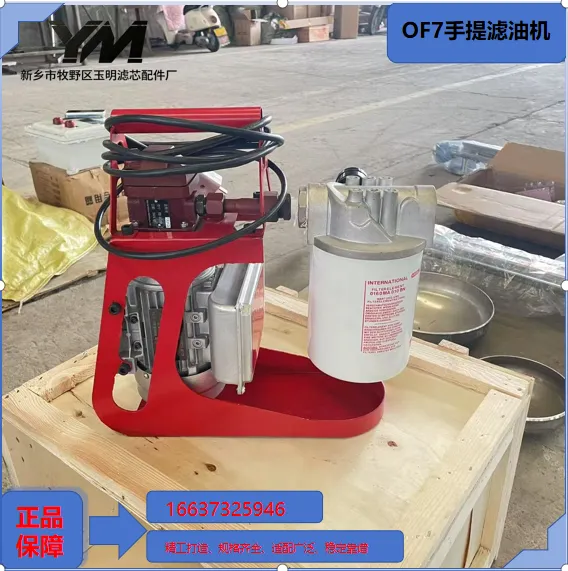

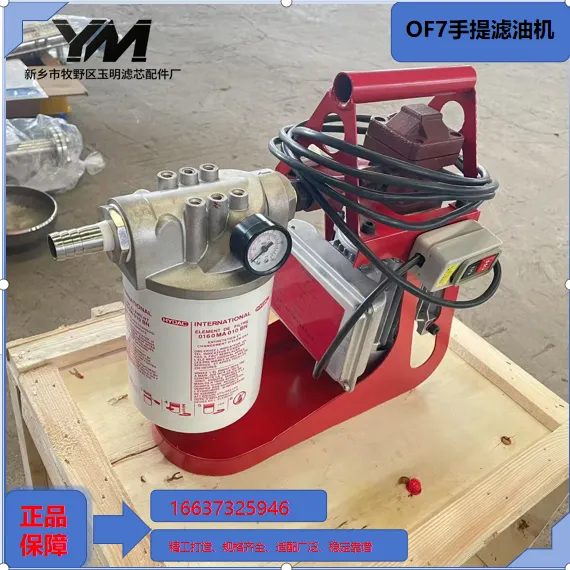

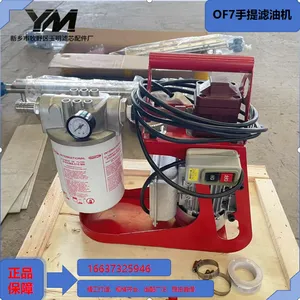

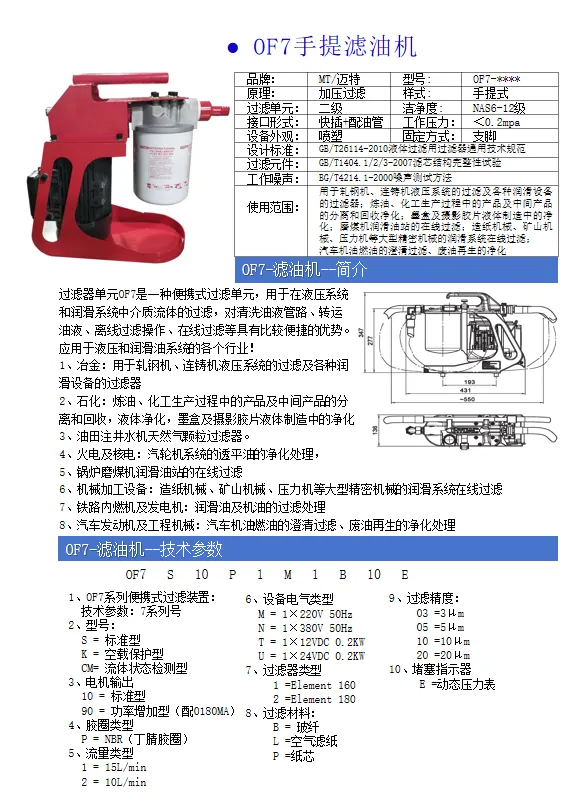

OF7 Portable Filtration Unit
1 Product Overview
OF7 Portable Filtration Unit is domestic alternative matching imported OF7 series handheld filter, a low-flow mobile offline oil filter. After startup, vane pump generates negative pressure to draw contaminated oil from tank. Fluid passes suction pre-strainer first, then flows into precision filter housing, solid particles are trapped on cartridge surface, clean oil circulates back continuously.Different from large trolley-type oil purifiers, it focuses on lightweight & portability for space-limited conditions. Widely adopted for filtered fresh oil filling, flushing during equipment commissioning and daily bypass purification for small hydraulic stations.Optional particle contamination sensor displays cleanliness grade in real time to avoid subjective judgment of filtration duration. High viscosity variant supports treatment of lubricants with poor ambient fluidity.
2 Main Structural Composition
Hand-held Frame AssemblyIntegrated carbon steel coated support with top carrying handle, stable gravity & anti-tip design.
Low-pulsation Vane Pump & Drive Motor AssemblyBuilt-in overflow relief valve, reinforced mechanical seal for long-term transportation of mineral oil and water-glycol fluid.
Spin-on Precision Filter HousingPressure-bearing housing with quick twist locking, tool-free cartridge replacement and built-in differential pressure tapping point.
Gradient Precision Filter Cartridge (Betamicron glass fiber medium)Multi-layer composite structure with high dirt holding capacity, resisting surface breakthrough & reverse contamination.
Suction Pre-protection StrainerDetachable external mesh intercepts welding slag and large particles to avoid pump damage.
Electric Control ModuleStart-stop switch, overload relay, ground terminal and reserved remote signal port.
Inlet & Outlet Hose with Suction Lance KitOil-resistant rubber hose, extended lance reaches tank bottom for complete oil extraction.
3 Working Principle
Power on and start unit, vane pump creates negative pressure to draw contaminated oil via suction hose. Medium firstly passes pre-strainer to separate large hard particles and protect pump internals.Pressurized oil enters spin-on housing and penetrates multi-layer glass fiber cartridge from outside inward. Solid contaminants larger than nominal filter rating are retained on outer surface of insert. Purified clean oil flows back to tank through outlet hose to maintain continuous circulation.Contaminant accumulation raises flow resistance and differential pressure. Shut down and replace cartridge once DP reaches warning threshold. Versions fitted with particle sensor collect contamination data simultaneously to visualize purification efficiency.Cut off power and close pipeline ball valve after circulation filtration, tidy hoses to complete operation.
4 Basic Technical Parameters
Applicable medium: mineral hydraulic oil, industrial lubricant, water-glycol fire-resistant hydraulic fluidHousing material: anti-corrosion coated carbon steelRated flow rate: 10 L/min, 15 L/minMax working pressure: ≤0.35 MPaViscosity range: standard 5～350 mm²/s; high viscosity extended up to 1000 mm²/sOptional filtration rating: 3μm, 5μm, 10μm, 20μmFluid temperature: 0～80℃Ambient temperature: -20～40℃Power supply: AC220V single-phase / AC380V three-phaseNet weight: ≈12.5～18 kgProtection class: IP54Installation: hand-held mobile type, no fixed foundation
5 Core Product Advantages
Lightweight hand-held design occupies less footprint than trolley filters, convenient operation inside compact machine rooms and cabins.
Spin-on quick-release housing speeds up cartridge replacement and cuts maintenance downtime.
Built-in overflow valve adapts to clogging status and prevents instant high pressure breaking filter inserts.
Standard flow rate perfectly matches medium & small hydraulic stations, avoiding excessive flow stirring sediment inside oil tank.
Flexible power option; basic model runs on common single-phase workshop socket, suitable for field emergency maintenance.
Supports filtered fresh oil filling independently, preventing external dust contaminating new oil during bare pipe refilling.
Complete expansion options including online cleanliness monitor & dry-run protection module for intelligent maintenance.
Low vibration & low noise enabling continuous multi-hour non-stop circulation in workshops.
Customizable hose length to fit high-low level tanks and closed pressure oil tanks.
Fully interchangeable cartridges with imported OF7 series, effectively lowering procurement & maintenance expenditure.
6 Installation, Commissioning & Maintenance Specification
Place on flat ground steadily to prevent tipping. Confirm tight hose connection and fully submerge suction lance below liquid surface before power-on.Jog test motor rotation on first startup; reverse rotation causes cavitation & dry suction. Prohibit long dry-running without fluid.Check pipeline leakage and housing oil seepage during daily patrol; record differential pressure trend to schedule cartridge replacement.Drain residual oil inside housing after each shift and clean hose surface.Disassemble & flush pump chamber and inspect mechanical seal ageing during annual overhaul, replace all O-rings simultaneously.Install upstream sediment pretreatment if medium contains heavy colloidal & asphaltic sludge.Drain all internal fluid before long-term storage and store in dry dust-free warehouse to slow seal ageing.
7 Common Faults & Solutions
Low suction flow, weak pump intakeCauses: air leakage in suction line; low tank liquid level; excessive fluid viscosity; clogged inlet strainerSolutions: tighten hose joints; replenish oil level; heat medium properly; clean pre-filter mesh
Rapid DP rise, fast cartridge cloggingCauses: heavy wear debris from host equipment; over-selected fine filter rating; emulsified oil carrying colloidSolutions: inspect abrasion of gears & bearings; select larger micron insert; add dehydration unit for emulsified oil
Frequent motor overload trippingCauses: excessive viscosity under low temperature; hard debris jammed inside pump; low setting current of thermal relaySolutions: extend pre-circulation time; disassemble & clear pump cavity; reset overload protection current
Persistent leakage at filter housing flangeCauses: aged deformed gasket; uneven tightening torque; damaged housing threadSolutions: install new oil-resistant sealing gasket; tighten cover evenly diagonally; repair or replace filter housing
Continuous abnormal noise & heavy vibrationCauses: air intake cavitation; worn pump vanes; uneven ground supportSolutions: locate & seal air leakage points; overhaul & replace pump cartridge; adjust placement for horizontal balance
8 Standard Supply List & Optional Accessories
Standard Supply List
Hand-held frame assembly, vane pump motor unit, spin-on filter housing, standard precision filter cartridge, differential pressure assembly, inlet & outlet hoses, suction lance, complete sealing parts, operation manual.
Optional Accessories
Spare cartridges with different precision, CS1000 oil contamination sensor, dry-run protection kit, extended delivery hoses, explosion-proof electric control kit, FKM high-temperature sealing set, self-sealing quick coupling set.
