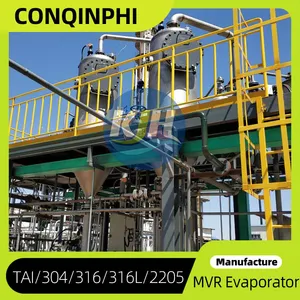

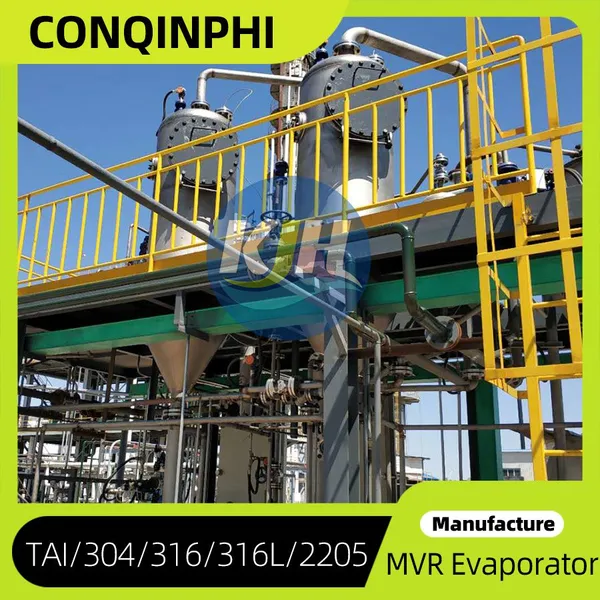

Help CenterIndustrial Skid-mounted Evaporator PLC Touch Screen, 200L/H Capacity, 304 Stainless Steel, IP54 Enclosure
Product Spotlights
Related Products
-
Skid-mounted Evaporator for Wastewater Treatment, 380V, 1000L/H, 316L Stainless Steel, Automatic OperationUS$ 2700 - 855000MOQ: 1 Combo -
Skid-mounted Evaporator 380V 60Hz, 1500L/H, 316 Stainless Steel, Heat Exchanger Type, Automatic DrainageUS$ 2700 - 855000MOQ: 1 Combo
-
Compact Skid-mounted Evaporator With 316L Stainless Steel, Temperature Control, 380V 3-Phase, 1000L/HUS$ 2700 - 855000MOQ: 1 Combo
-
Skid-mounted Evaporator With Factory Warranty, Mill Test Report, 304 SS, PLC Control, 200L/H, CE Standard CompliantUS$ 2700 - 855000MOQ: 1 Combo
-
≥0.5t/H Skid-mounted Forced Circulation Double-effect MVR Crystallization EvaporatorUS$ 830 - 738000MOQ: 1 Combo
As a leading manufacturer with over 9 years of experience, Qingdao Conqinphi Environmental Technology Group Co., Ltd. proudly presents the Industrial Skid-mounted Evaporator PLC Touch Screen, 200L/H Capacity, 304 Stainless Steel, IP54 Enclosure. This evaporator is engineered to deliver efficient and reliable liquid concentration and wastewater volume reduction in demanding industrial environments. Its compact skid-mounted design, combined with advanced PLC touch screen control, offers operators a seamless and intelligent solution for managing evaporation processes.
Our factory, spanning 10,000-30,000 square meters and employing 201-300 skilled professionals, ensures that every unit meets rigorous quality standards. With an annual export value exceeding US$10 million and serving markets across North America, South America, Europe, Asia, and Africa, we have built a reputation for durable and high-performance environmental equipment. This evaporator is built to last, featuring 304 stainless steel construction for corrosion resistance and IP54 protection for reliable operation in harsh conditions.
Whether you need to treat industrial wastewater, concentrate chemical solutions, or recover valuable resources, this skid-mounted evaporator provides a flexible and efficient solution. Its user-friendly PLC touch screen interface allows for easy monitoring and adjustment of parameters, reducing manual intervention and improving overall process control.
Key Features & Benefits
- PLC Touch Screen Control: Intuitive interface for real-time monitoring, parameter setting, and data logging. Operators can easily adjust temperature, vacuum, and feed rate, optimizing energy consumption and evaporation efficiency.
- 304 Stainless Steel Construction: All wetted parts are made of high-quality 304 stainless steel, providing excellent resistance to corrosion, oxidation, and chemical attack. This ensures long service life even with aggressive feed streams.
- IP54 Enclosure Rating: The electrical control cabinet is protected against dust and water splashes, making it suitable for outdoor or harsh industrial environments. This enhances reliability and reduces maintenance downtime.
- 200 L/H Capacity: Designed for moderate-volume applications, this evaporator handles up to 200 liters per hour of feed liquid. It is ideal for small to medium-sized industrial plants, wastewater treatment facilities, and chemical processing units.
- Skid-mounted Design: The entire system is pre-assembled on a sturdy skid frame, allowing for easy transportation, installation, and relocation. This plug-and-play design minimizes on-site construction and commissioning time.
- Energy Efficient Operation: The evaporator utilizes advanced heat exchange technology and optional vacuum system to reduce boiling point and save energy. Customizable parameters help achieve optimal performance for different liquid types.
- Low Maintenance: With fewer moving parts and a robust design, the system requires less frequent maintenance. The PLC also provides diagnostic alerts and maintenance reminders.
- Wide Application Range: Suitable for concentrating various industrial wastewaters, including those from food processing, pharmaceuticals, chemical manufacturing, and metal finishing. Can also be used for product recovery or solvent recycling.
Technical Specifications
| Parameter | Value |
| Evaporation Capacity | 200 L/H (at standard conditions) |
| Material of Construction | 304 Stainless Steel (wetted parts) |
| Enclosure Protection | IP54 |
| Control System | PLC with Touch Screen (HMI) |
| Power Supply | 380V/50Hz (customizable) |
| Operating Temperature | Up to 100°C (depending on vacuum) |
| Vacuum Level | -0.085 MPa (optional) |
| Dimensions (approx.) | 2000 x 1500 x 2000 mm (customizable) |
| Weight (approx.) | 800 kg |
Why Choose Qingdao Conqinphi?
With a state-of-the-art factory covering 10,000-30,000 square meters and a dedicated team of 201-300 employees, we have been delivering high-quality environmental solutions since 2015. Our annual export value of US$10-50 million reflects the trust of global customers in North America, Europe, Asia, Africa, and beyond. We hold multiple certifications including ISO9001, HACCP, and others, ensuring that our products meet international standards.
This skid-mounted evaporator is designed for reliability and ease of operation. The PLC touch screen system stores recipe settings, enabling repeatable results. The 304 stainless steel construction guarantees hygiene and corrosion resistance, while the IP54 enclosure protects the electronics in demanding environments. Whether you need to reduce waste volume, recover valuable byproducts, or comply with environmental regulations, this evaporator is a cost-effective choice.
We offer complete after-sales support, including technical documentation, remote troubleshooting, and spare parts availability. Our team can also customize the system to match your specific feed characteristics and space constraints. Contact us today to discuss your evaporation requirements and receive a tailored solution.
Frequently Asked Questions
-
Q: What types of liquids can this evaporator handle?
A: It is suitable for water-based solutions, industrial wastewater, chemical liquids, and food processing effluents. For highly corrosive or viscous liquids, please consult us for material compatibility. -
Q: Is the 200 L/H capacity fixed or adjustable?
A: The capacity is rated at 200 L/H under standard conditions. You can adjust feed rate and temperature via the PLC to achieve different evaporation rates depending on liquid properties. -
Q: Does the system require a vacuum pump?
A: It can operate under atmospheric pressure, but an optional vacuum pump can be integrated to lower boiling points and improve efficiency for heat-sensitive liquids. -
Q: What is the power consumption?
A: Power consumption depends on heating method (electric, steam, or thermal oil). Typical electric heating for this size is around 30-50 kW. Contact us for detailed energy data. -
Q: How easy is it to install and commission?
A: The skid-mounted design makes installation straightforward. You only need to connect utilities (power, feed, condensate) and set up the PLC. Our team provides remote commissioning support. -
Q: What maintenance is required?
A: Regular cleaning of heat exchange surfaces, check of seals and gaskets, and periodic calibration of sensors. The PLC includes maintenance reminders to simplify schedules. -
Q: Can I get a custom design for my specific application?
A: Yes, we offer customization options such as different materials (316 SS, titanium), alternative heating sources, special control logic, and skid size modifications. Contact our sales team. -
Q: What certifications do you have for this product?
A: Our factory is certified to ISO9001, HACCP, OHSAS18001, and others. The evaporator itself is manufactured under these quality systems. Specific certifications for pressure vessels or electrical components can be provided upon request.
For more information or to request a quotation, please reach out to our sales team. We look forward to partnering with you to solve your wastewater challenges.
