Ball Mill for Copper Ore Grinding Plant

Ball Mill for Copper Ore Grinding Plant thumbnail-1
Ball Mill for Copper Ore Grinding Plant thumbnail-2
Ball Mill for Copper Ore Grinding Plant thumbnail-3
Ball Mill for Copper Ore Grinding Plant thumbnail-4
Ball Mill for Copper Ore Grinding Plant thumbnail-5
Ball Mill for Copper Ore Grinding Plant photo-1
Ball Mill for Copper Ore Grinding Plant photo-2
Ball Mill for Copper Ore Grinding Plant photo-3
Ball Mill for Copper Ore Grinding Plant photo-4
Ball Mill for Copper Ore Grinding Plant photo-5

Product Spotlights

High wear-resistant lining plate, heavy-duty steel structure, long service life, low failure rate, minimal maintenance demand, robust gear transmission, heavy-duty steel ball gradation, anti-corrosion treatment, stable long-term operation
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Trademark:
Staurk
Origin:
China
Contact Supplier Request Quote Chat Now
Henan Staurk Machinery Co.,Ltd
Gold Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjing Shanghai
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Trademark Staurk
Origin China

Product Introduction
This high torque ball mill for ore grinding is a professional heavy-duty grinding equipment tailored for various hard ore processing scenarios. It adopts a high-torque reinforced transmission structure, covering full-series specifications from small test units to large industrial continuous grinding systems. It can stably drive the cylinder to start and run under full load conditions, and efficiently complete the grinding operation of high-hardness ores such as iron ore, copper ore and multi-metal associated ore, which is the core grinding equipment to ensure the stable operation of the ore processing plant.

Working Principle
The high-torque pure copper motor drives the large-load reduction gear set and the thickened main shaft to output strong and stable torque, driving the heavy cylinder to rotate smoothly at a low constant speed. It drives the built-in graded high-chromium wear-resistant steel balls to rise to the optimal height along the thickened liner and then fall in a parabolic trajectory. The hard ore is continuously fed into the cylinder, and is fully crushed and ground by the strong impact force of the steel balls and the continuous grinding effect between the media. The ground pulp that meets the beneficiation fineness requirements is stably discharged through the discharge port, completing the high-efficiency grinding process under full load.

Core Features
This product has multiple targeted advantages for ore grinding scenarios. The super-high torque output can easily realize full-load direct start, avoiding the equipment damage caused by frequent start and stop, and greatly reducing the failure rate. The low-speed and high-torque operation mode makes the grinding force more uniform, significantly improving the grinding efficiency of high-hardness ore. The heavy-duty reinforced transmission structure has strong bearing capacity and long service life, and can adapt to 24-hour uninterrupted high-load operation. It can be widely adapted to the grinding operations of various metal ores, with strong versatility.

Technical Specifications


Model Cylinder RPM (r/min) Ball Load (t) Feeding Size (mm) Discharging Size (mm) Capacity (t/h) Motor Model Power (kW) Weight (t)
MQG600*1800 45.5 0.5 ≤ 10 0.074-0.5 0.2-0.5 Y160M-6 7.5 2.5
MQG900*1800 38 1.8 ≤ 20 0.074-0.6 0.8-2 Y180L-6 15 5.8
MQG900*3000 37.4 2.7 ≤ 20 0.074-0.3 0.8-3 Y200L2-6 22 7.5
MQG1200*2400 32 4.8 ≤ 25 0.074-0.6 1.5-4 Y225M-6 30 9.8
MQG1200*4500 30 5.2 ≤ 25 0.074-0.6 1.5-6 Y280S-6 45 13.2
MQG1300*4000 36 5.8 ≤ 25 0.074-0.6 2-6 Y280S-8 45 14.8
MQG1500*3500 28.8 8.3 ≤ 25 0.074-0.6 3-6 YR280M-8 90 17.6
MQG1500*4500 28.8 10 ≤ 25 0.074-0.4 4-8 JR125-8 95 22.3
MQG1500*5700 28.8 12 ≤ 25 0.074-0.4 5-10 JR126-8 110 26.7
MQG1500*6400 28.8 13 ≤ 25 0.074-0.4 8-12 JR127-8 130 29.2
MQG1830*3600 24.5 12 ≤ 25 0.074-0.4 5-10 JR127-8 130 31.4
MQG1830*5400 24.5 15 ≤ 25 0.074-0.4 5-20 JR137-8 210 33.6
MQG1830*6400 24.5 19 ≤ 25 0.074-0.4 6-25 JR137-8 210 36.5
MQG1830*7000 24.5 20 ≤ 25 0.074-0.4 8-30 JR138-8 245 39.6
MQG2100*3600 24.1 21 ≤ 25 0.074-0.6 8-20 YR355L1-8 210 43.2
MQG2100*4500 24.57 26 ≤ 25 0.074-0.6 8-35 JR138-8 280 53.6
MQG2200*3600 21.8 22 ≤ 25 0.074-0.6 9-25 JR138-8 245 47.8
MQG2200*4500 21.4 27 ≤ 25 0.074-0.6 10-30 JR138-8 280 54.7
MQG2200*7500 21.8 35 ≤ 25 0.074-0.6 10-40 JR158-8 380 68.4
MQG2200*9000 21.4 36 ≤ 25 0.074-0.6 10-45 JR1510-8 475 76.5
MQG2400*3600 21.26 26 ≤ 25 0.074-0.6 10-40 JR138-8 280 63.8
MQG2400*7000 21.8 36 ≤ 25 0.074-0.6 10-45 JR1510-8 475 82.4
MQG2400*8000 21.8 42 ≤ 25 0.074-0.6 13-50 JR630-8 560 85.7
MQG2400*10000 21 65 ≤ 25 0.074-0.6 15-60 YR560-8 710 88.6
MQG2600*8000 19.6 52 ≤ 25 0.074-0.6 16-70 JR1512-8 630 97.8
MQG2700*3600 21.4 39 ≤ 25 0.074-0.4 13-75 JR158-8 380 86.8
MQG2700*4500 21.4 43 ≤ 25 0.074-0.4 13-90 JR1510-8 475 91.8
MQG3000*5400 19 58 ≤ 25 0.074-0.6 - TDMK-30 630 119.7
MQG3000*9000 18.3 78 ≤ 25 0.074-0.4 20-90 YR1000-8/1180 1000 152.4
MQG3000*11000 18 100 ≤ 25 0.074-0.6 30-90 YR6306-8 1120 166.7
MQG3200*3600 18.6 56.5 ≤ 25 0.074-0.6 20-80 YR6302-8 630 127.4
MQG3200*4500 18.6 65 ≤ 25 0.074-0.6 20-90 YR6302-8 800 138.6
MQG3200*5400 18 72 ≤ 25 0.074-0.6 30-100 YR1000-8 1000 146.7
MQG3200*9000 18 85 ≤ 25 0.074-0.6 30-100 YR6302-8 1250 168.6
MQG3600*4500 18 86 ≤ 25 0.074-0.6 30-100 YR6302-8 1250 158.7
MQG3600*6000 18 117 ≤ 25 0.074-0.6 45-180 - 14000 195.6
MQG4000*6000 16.9 145 ≤ 25 0.074-0.6 60-230 - 1800 221.7
MQG4500*6000 15.6 180 ≤ 25 0.074-0.6 80-300 - 2300 269.6

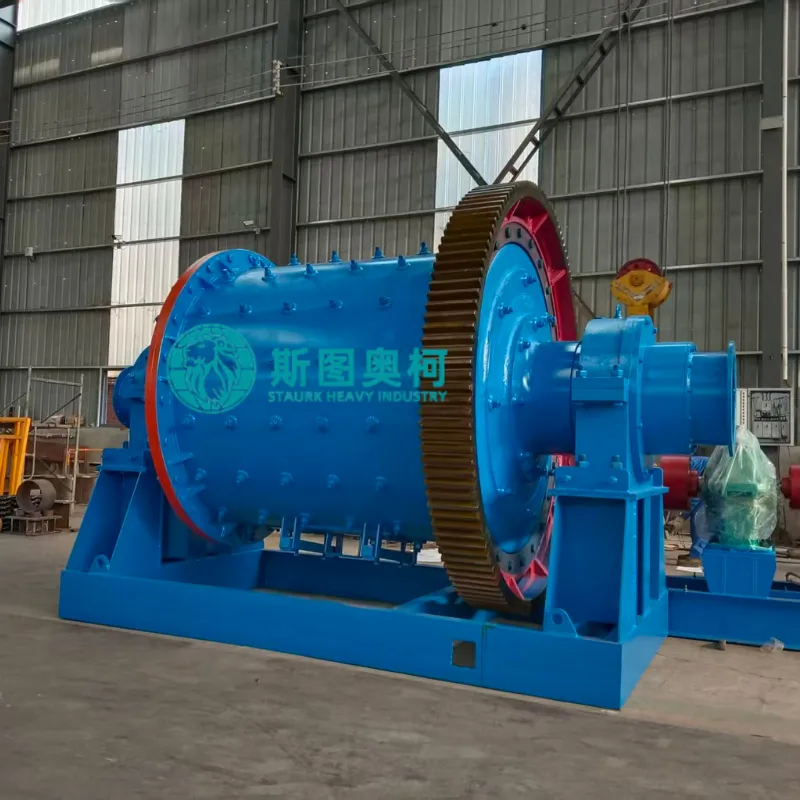

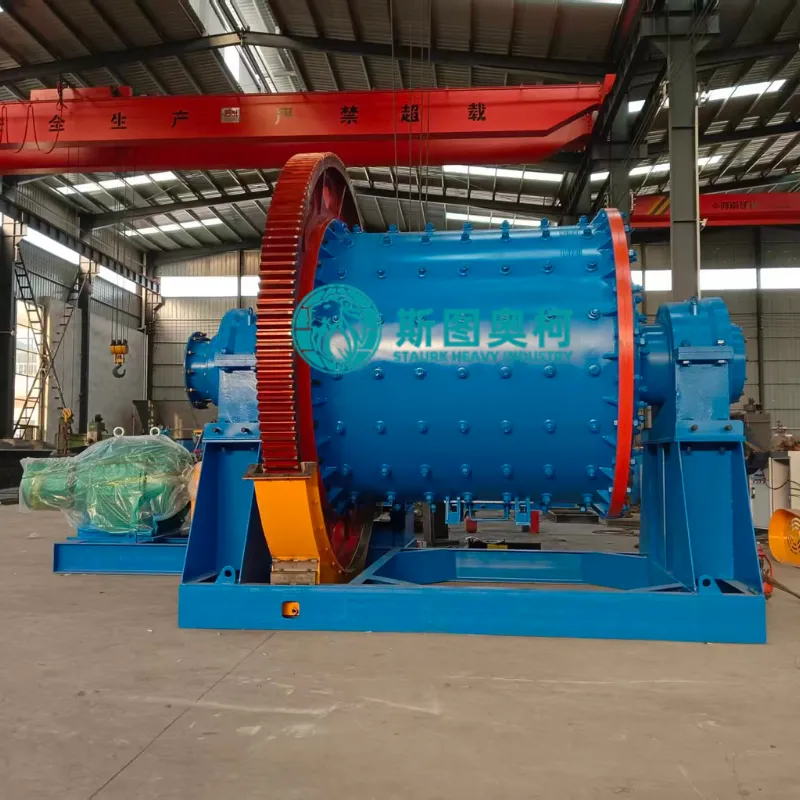

未命名的设计3未命名的设计2
