UV CIPP Liner
|
|

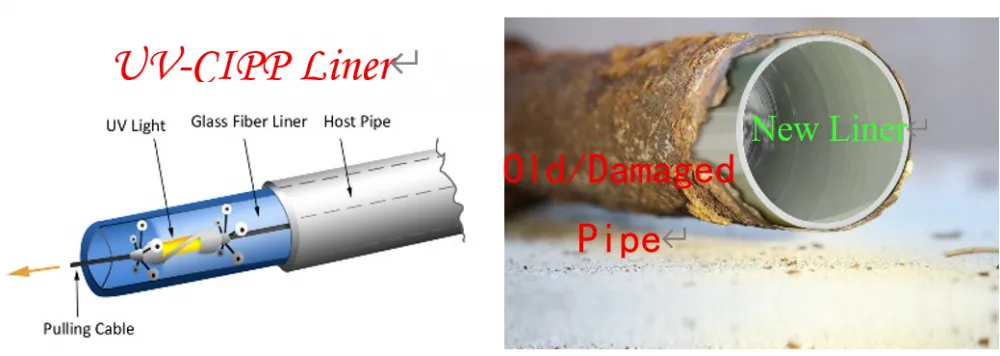

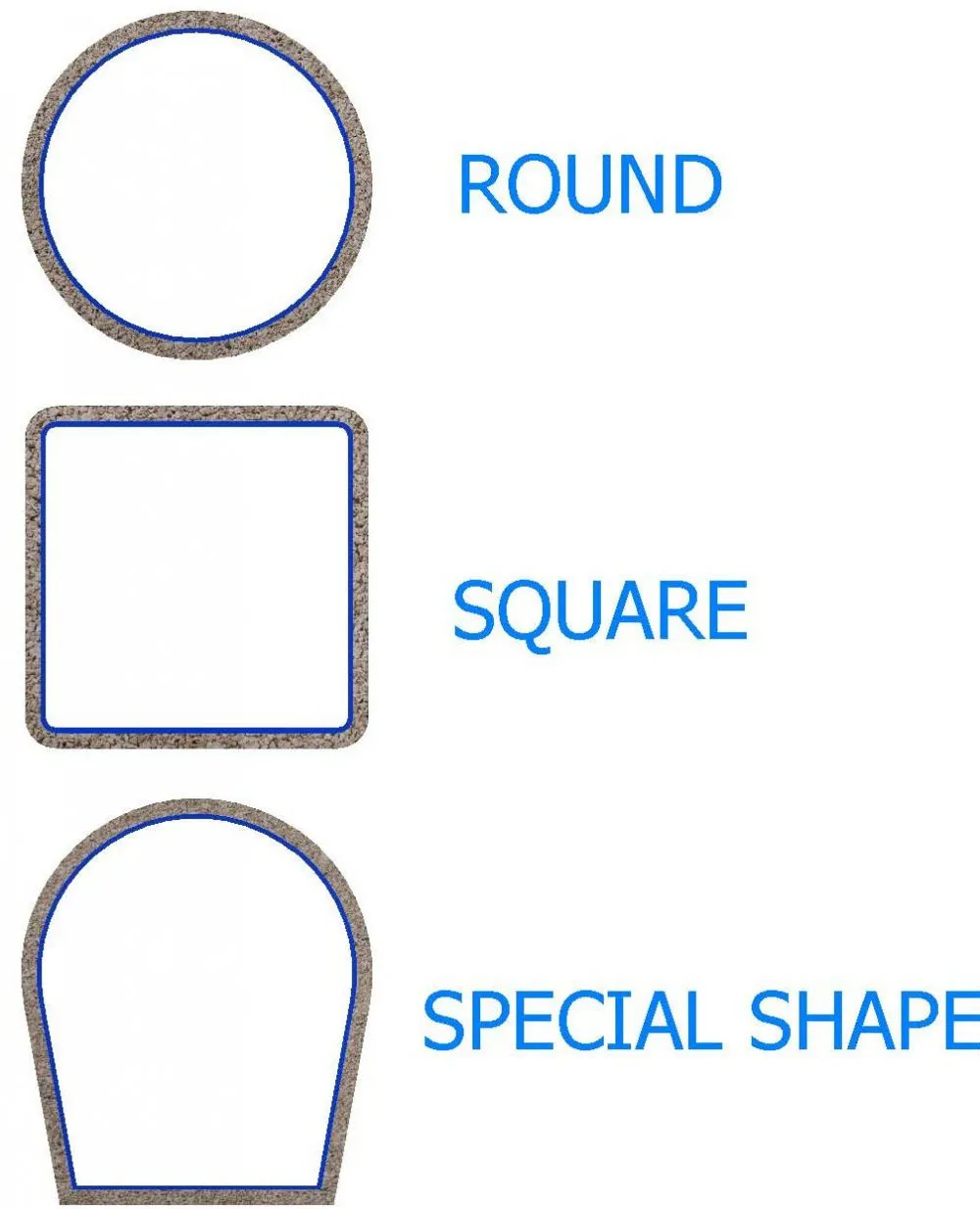

UV-CIPP liner is the most versatile and cost-effective trenchless pipe and culvert rehabilitation material on the market today. We can supply the UV CIPP liner from 6″ (150mm) to over 95″ (2,400mm).

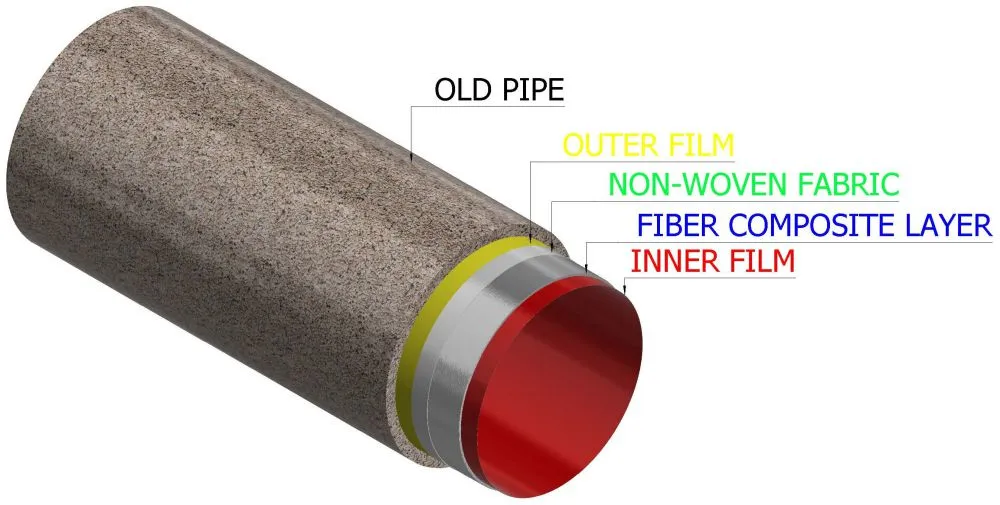

UV CIPP liner is constructed with a puncture-resistant and removable inner film, high grade and corrosion-resistant composite layer of E-CR-Glass fiberglass and high quality UV resins, vapour permeable membrane, UV-resistant film.

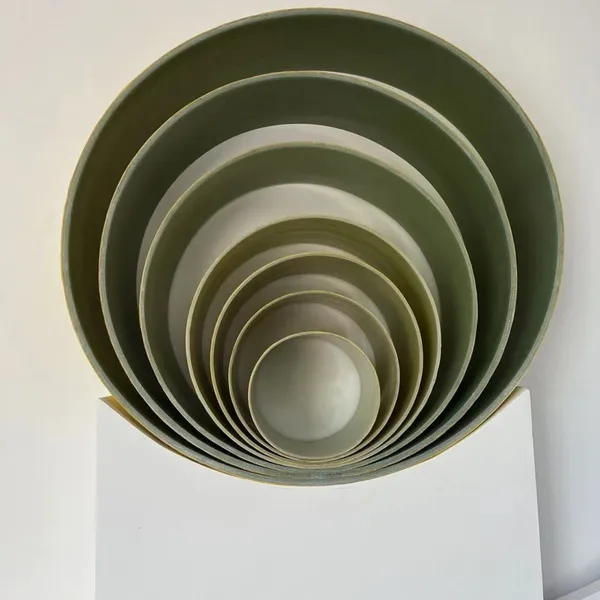

The finished product is proven to extend the life of the pipe for another 50 to 100 years!
Diameter |
6″ (150mm)- 95″ (2,400mm) |
Thickness |
3-22mm |
Density Based on DIN EN ISO 1183-2 |
1.64 g/cm³ ± 0.2 g/cm³ |
Glass Content Based on DIN EN ISO 1172 |
55% ± 5% (mass related) |
Weight per unit area of glass per mm wall thickness |
890 g/m2 ± 15% |
24 h – tendency to creep according to DIN EN ISO 899-2 |
≤ 10% |
E-Module short-term E01 |
16.600 N/mm2 |
Flexural Strength |
>300 N/mm2 |
Retention rate for 50 years Design ASTM F 1216 |
81.28% |
|
|
|
