UV CIPP liner hose production machine
YONGKE designs and manufactures custom UV CIPP fiberglass liner wet out machine and associated dry liner machine. These turnkey solutions can significantly reduce the cost of UV CIPP fiberglass liner, ensure it competitive with other heat cured CIPP technologies. YONGKE offers four sizes of wet out liner machine and all come with the our many years experiences and know-how.
What is UV CIPP Liner
Cured-in-place pipe lining, or CIPP, is a most fast, effective and efficient trenchless solution for rehabilitating damaged underground drains, sewer and portal water pipe lines without the excavation for yard, pavement or driveway.
The UV CIPP liner is made from glass fibre matrix, polyester resin or vinyl ester resin, Nonwoven fabrica, UV protection film,etc and cured by UV light.
. The advantage of rehabilitating damaged pipe with UV CIPP glass fiber liner is as follows:
Cost-Effective
Rehabilitating damaged pipe with UV CIPP liner due to its installation is very fast and procedure is simple.
The following features will explain why it is the cost-effective of UV CIPP lining
Size ange: The size of UV CIPP liner is from 8”(50mm) to 94” (2400mm), and wall thicknesses is from 2 mm to 22mm.
Fast and efficient
UV CIPP lining is a fast and efficient trenchless pipe rehabilitating technology.
Renovation of pipelines that are inaccessible for traditional excavation methods
Unlike traditional methods, UV CIPP lining does not require the excavation of ground, pavement or driveway.
Long-service life: more than 50-year
Various applications: It can repair the duct-iron pipe, concrete pipe and plastic pipe with very think wall CIPP liner what is made from glass fiber fabric and high strength resin in the lining material increases liner strength, small shrinkage.
Smooth surface, very low friction improves flow capacity.
No traffic disruption
Immediately used after installation.
|
|

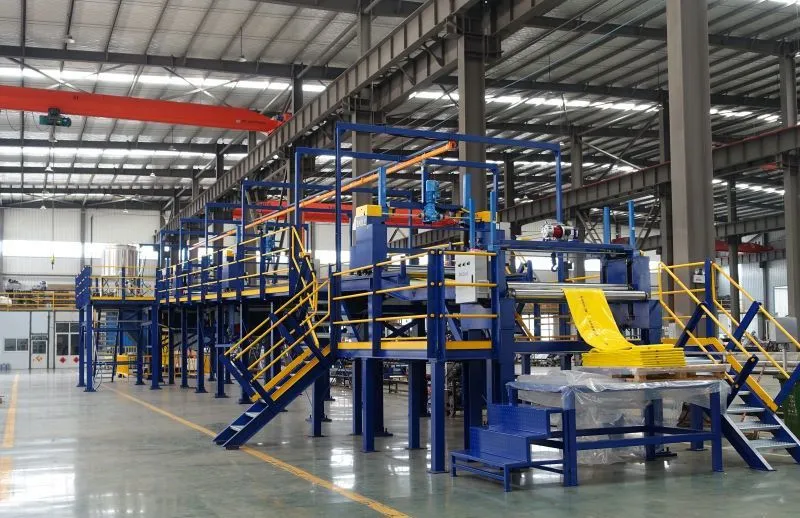

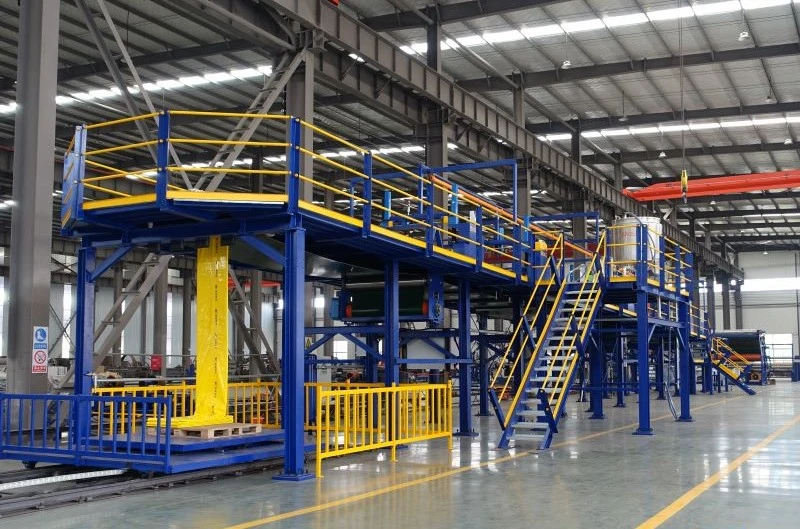

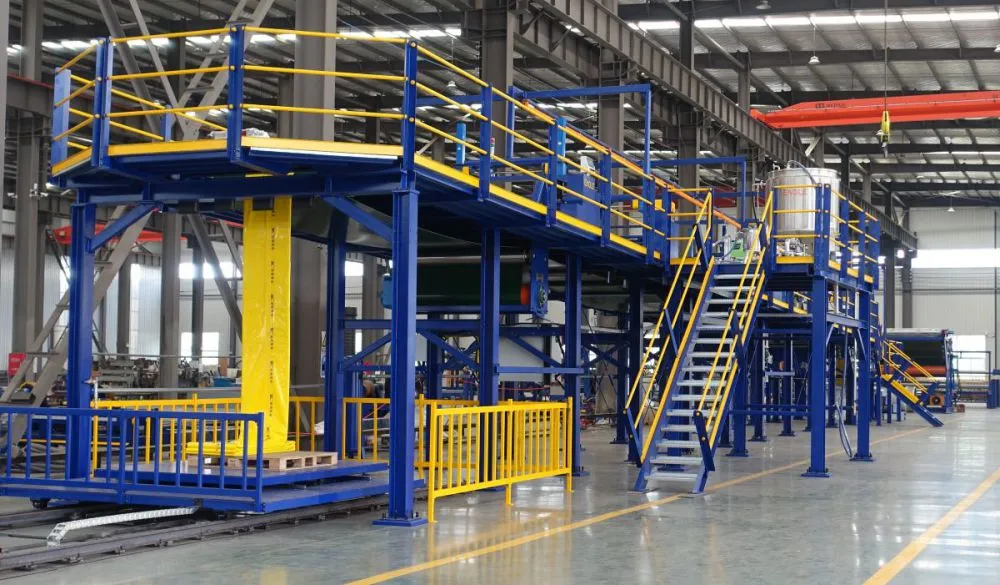

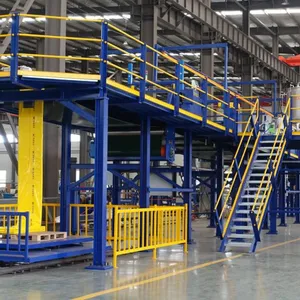

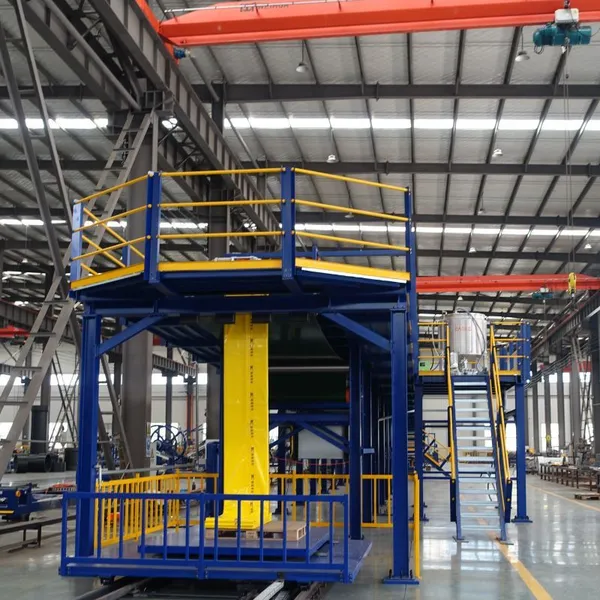

UV CIPP liner production line includes dry UV CIPP liner machine and wet liner impregnation machine:

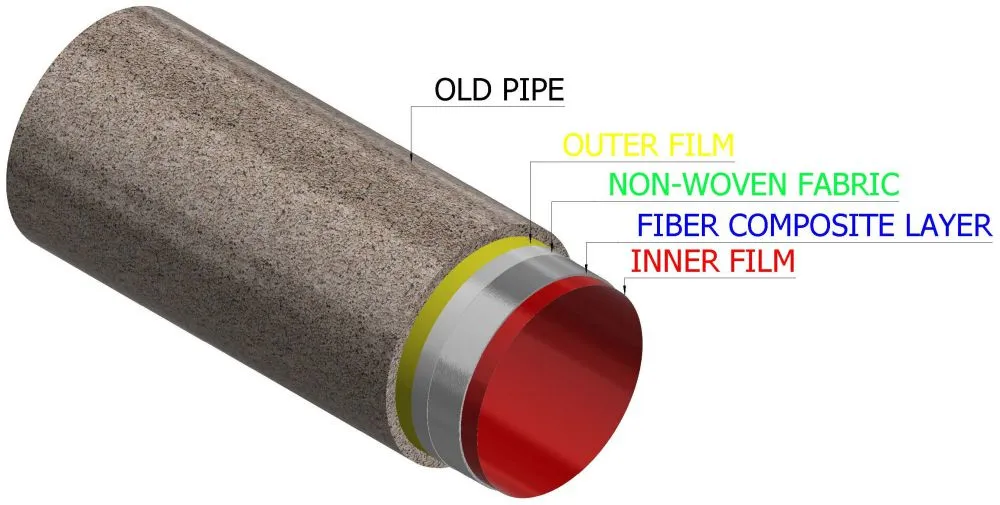

Dry UV CIPP liner machine automatically lay and fold the material into round tube with several layer fiber glass material, including the inner film, outer film, non-woven fabric, fiber glass matrix and Kevlar rope.

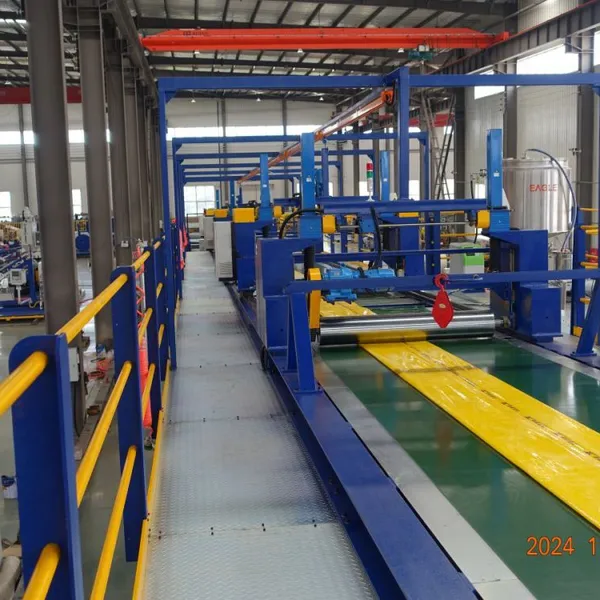

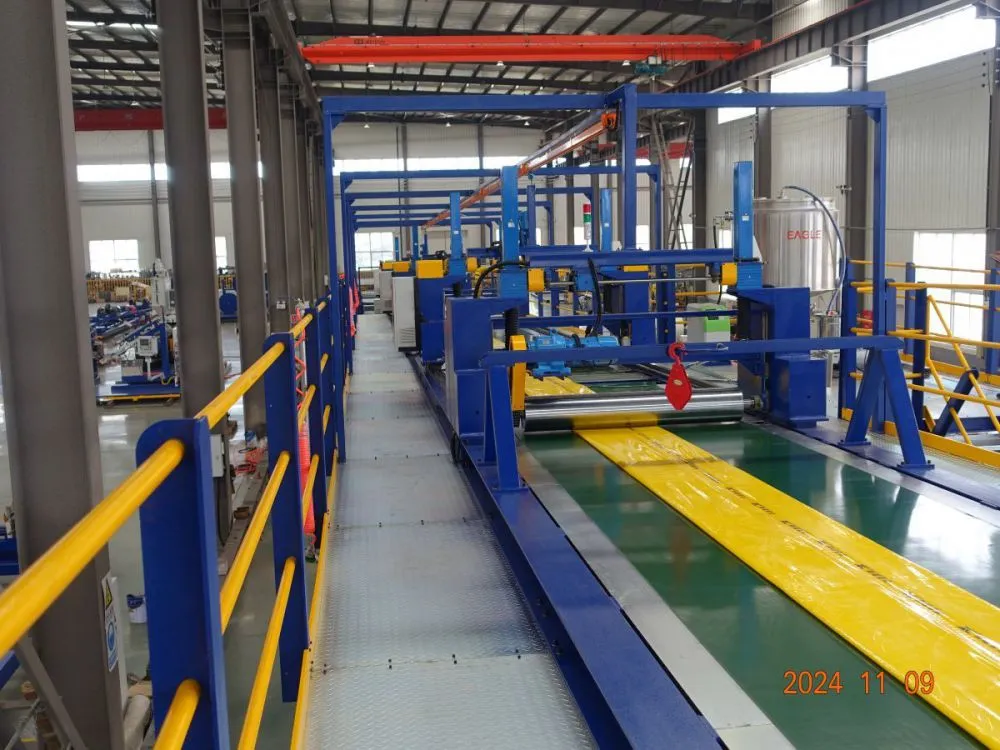

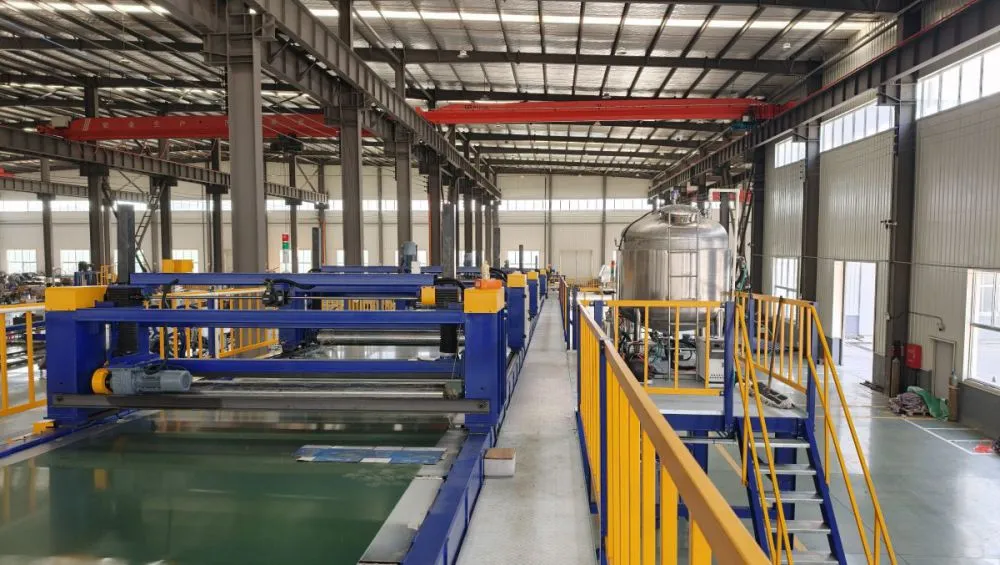

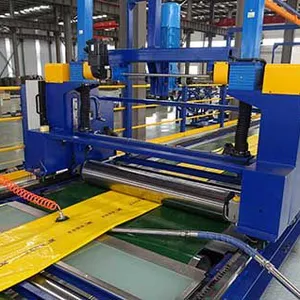

The UV CIPP liner impregnation machine use the vacuum system of the resin injection unit to filling the resin to dryer liner what is vacuum before the unsaturated polyester resin is filled. The mixture of unsaturated polyester resin and thickener is poured through the glue injection gun in the resin mixing and injection system, and the unsaturated polyester resin is fully and evenly impregnated with glass fiber cloth by roller extrusion, and the sealing treatment is carried out immediately after the glue filling is completed.

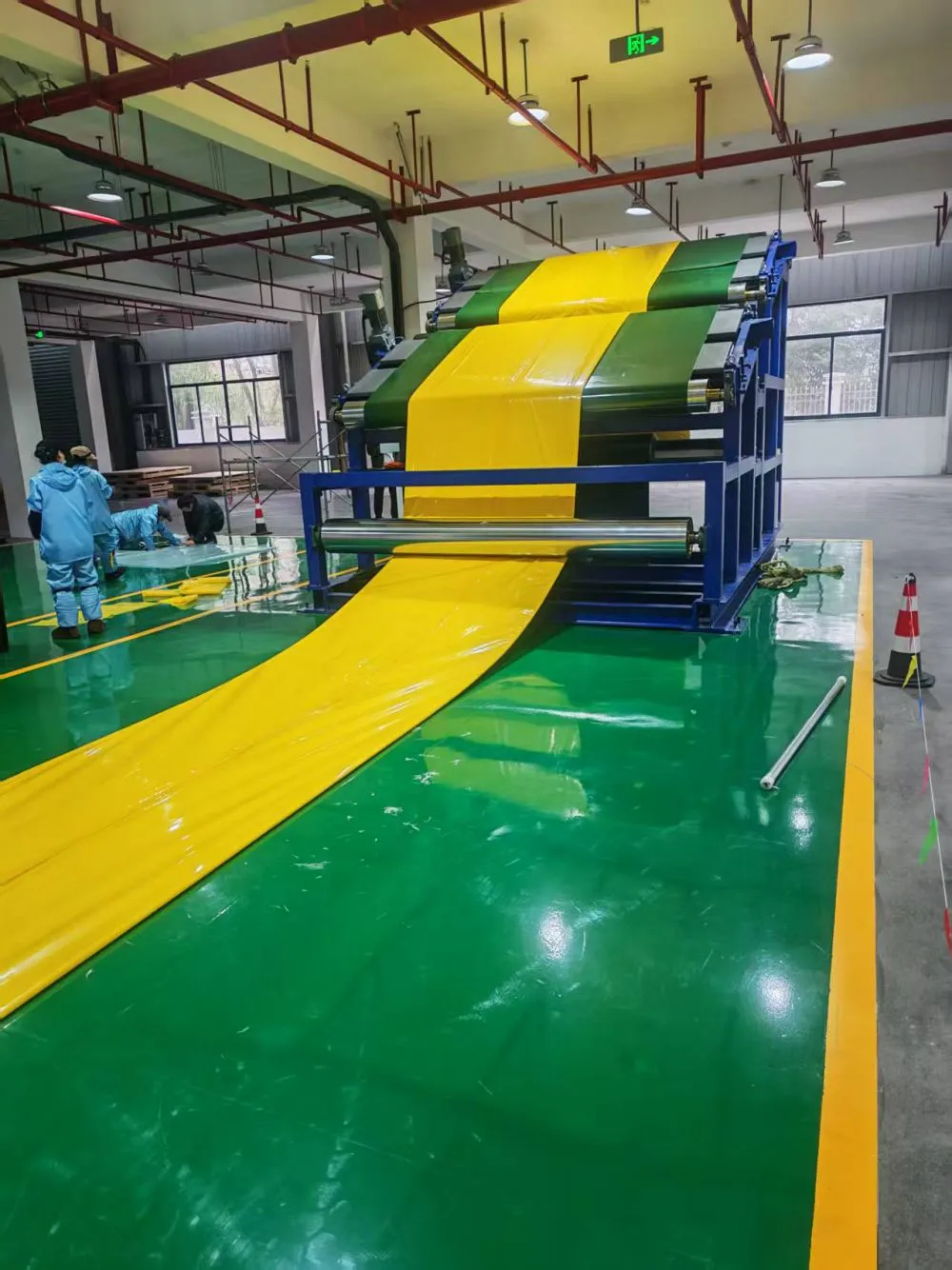

The automatic rolling-pressing system to roll the UV CIPP liner with unsaturated polyester resin uniform with setting thickness.
The finished product will be inspected and folded into wooden box.
