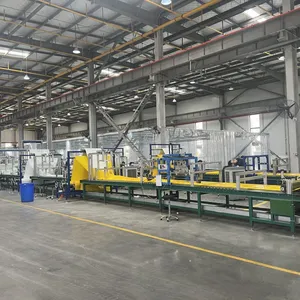

As a specialized manufacturer of pipeline rehabilitation equipment since 2010, Qingdao Yongke Machinery Co., Ltd. introduces its advanced High Efficiency UV CIPP Fiberglass Liner Production Line. This system is engineered to address the growing global demand for efficient, high-quality wastewater pipe repair solutions. Our line empowers manufacturers to produce durable, UV-cured fiberglass Cured-In-Place-Pipe (CIPP) liners with superior consistency and output, transforming raw materials into reliable rehabilitation products ready for deployment.
Operating from our 10,000-30,000 square meter facility in Qingdao, we combine over a decade of manufacturing expertise with a commitment to quality management systems (ISO9001, ISO14000, OHSAS18001) to deliver robust industrial equipment. This production line is a cornerstone for businesses supplying the infrastructure maintenance sector, enabling them to meet project timelines with a reliable, in-house manufacturing capability.
Core Product Features & Technical Advantages:
- Optimized UV Curing Process: The integrated UV curing chamber ensures precise and controlled curing of the fiberglass resin matrix, leading to liners with consistent mechanical properties and dimensional stability. This method offers advantages over traditional thermal curing, including faster cycle times and potentially lower energy consumption.

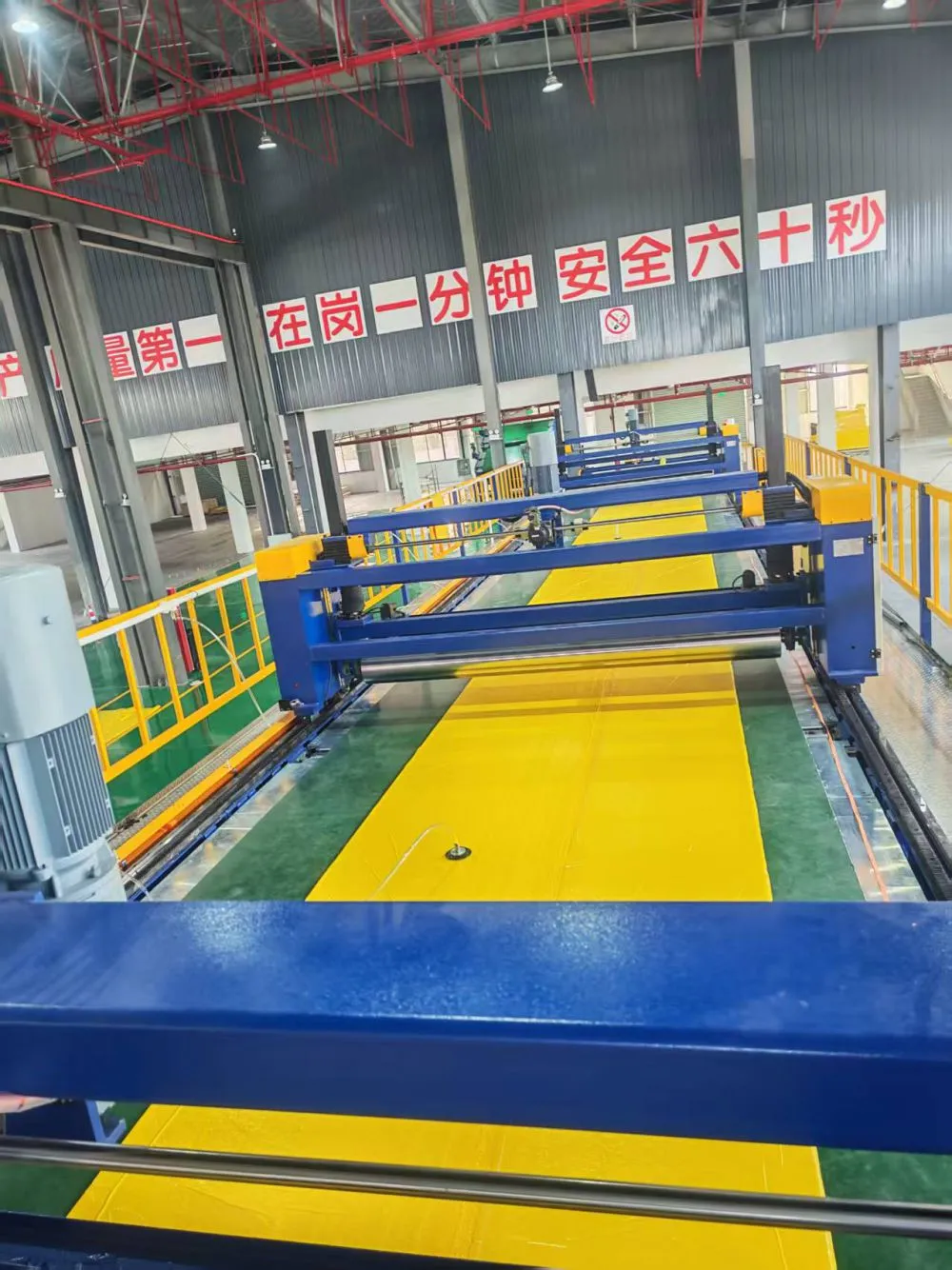

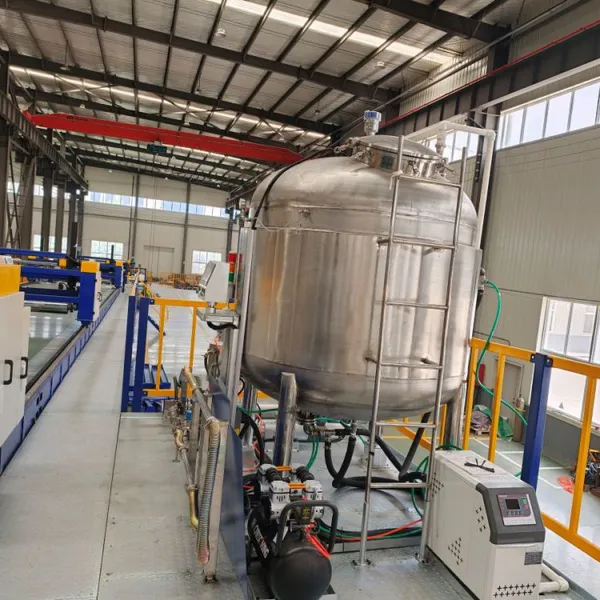

- High-Efficiency Impregnation System: The line features a precision impregnation tank designed for uniform saturation of the fiberglass fabric with resin. This step is critical for achieving a liner free of dry spots or weak zones, ensuring the final product meets performance specifications for pressure and corrosion resistance.
- Automated Control & Monitoring: A PLC-based control system manages key parameters such as resin temperature, UV intensity, curing time, and material feed rates. This automation minimizes human error, enhances repeatability, and allows for detailed process logging.
- Scalable & Customizable Design: The production line is designed to accommodate various liner diameters and lengths, catering to different pipeline rehabilitation projects. Configuration options are available to match specific output volume requirements.
- Durable Construction: Built with high-grade steel and specialized components for handling fiberglass and resins, the equipment is designed for longevity and continuous operation in a manufacturing environment.
- Integrated Material Handling: The system includes components for efficient handling of the fiberglass roll, impregnated liner, and cured product, streamlining the workflow from start to finish.
Key Technical Specifications & Parameters:
| Parameter Category | Description / Typical Range |
| Liner Diameter Range | Customizable, commonly from 100mm to 1000mm |
| Liner Length Production Capacity | Configurable based on system size and layout |
| UV Curing Power & Control | Adjustable UV lamp array with intensity monitoring |
| Resin Impregnation Tank Capacity | Designed for efficient saturation; size customizable |
| Control System | PLC with human-machine interface (HMI) |
| Power Requirements | Available upon request based on final configuration |
| Overall Dimensions | Customizable layout to fit factory space |
Benefits for Your Business:
- Enhanced Product Quality: Consistent, automated processes yield CIPP liners with reliable thickness, resin distribution, and cured properties, meeting stringent project specifications.
- Increased Production Output: The high-efficiency design reduces cycle times per liner, enabling you to scale production to meet larger contract demands.
- Reduced Operational Variance: Automation minimizes dependence on highly skilled manual labor for critical steps, reducing training overhead and process variability.
- Improved Cost Control: Efficient material usage and reduced curing times contribute to lower per-unit production costs over time.
- Market Competitiveness: Owning a dedicated, high-quality production line allows you to offer faster turnaround and guaranteed supply to your clients in the wastewater repair sector.
- Technical Support & Knowledge: As the manufacturer, we provide operational guidance and support based on our experience in building such equipment.
Trust & Proven Capability:
Qingdao Yongke Machinery is not a newcomer. Established in 2010, our decade-plus of operation signifies stability and accumulated expertise. Our significant factory size (10,000-30,000 sqm) and workforce of 51-100 people demonstrate our capacity to undertake substantial manufacturing projects and provide reliable post-sales support. Our annual export value of US$1-1.5 Million reflects successful engagement with a diverse global client base across North America, South America, Europe, Asia, Africa, and Oceania. Shipments originate efficiently from the port of Qingdao.
Our adherence to ISO9001 (Quality Management), ISO14000 (Environmental Management), and OHSAS18001 (Occupational Health & Safety) standards underpins our manufacturing discipline. This commitment translates into production lines that are built with quality control in mind, offering you a dependable asset for your own manufacturing operations.
Investing in this High Efficiency UV CIPP Fiberglass Liner Production Line means investing in control, quality, and scalability for your wastewater pipe repair material business. It represents a strategic move to secure your supply chain and enhance your value proposition to infrastructure contractors and municipalities worldwide.
Frequently Asked Questions (FAQ)
Q1: What is the primary advantage of UV curing in this production line compared to other methods?
A: UV curing offers a faster and often more energy-efficient curing cycle for the resin. It allows for precise control over the curing process, which can lead to more consistent material properties in the final liner and may enable production of liners with specific performance characteristics.
Q2: Can this line produce liners for pipes of different diameters?
A: Yes, the production line is designed to be customizable. Key components like the impregnation path and curing chamber can be configured or adjusted to accommodate a range of liner diameters, typically from smaller municipal lines to larger industrial conduits.
Q3: How automated is the operation? What level of manual intervention is required?
A: The core processes of resin impregnation and UV curing are managed by an automated PLC control system. Material loading and final product handling may involve manual or semi-automated steps, depending on the specific configuration chosen. The goal is to minimize manual intervention in critical quality-determining stages.
Q4: What kind of training or support is provided for operating this equipment?
A: As the manufacturer, we provide operational manuals and can offer on-site or remote training sessions for your technical staff. Support is available for initial setup, process optimization, and routine maintenance queries.
Q5: Is the production line suitable for different types of resins or fiberglass fabrics?
A: The line is designed primarily for the production of UV-curable resin systems with fiberglass fabric. While it is optimized for common materials in CIPP manufacturing, compatibility with specific, alternative resin/fabric combinations should be discussed during the configuration phase to ensure optimal performance.
Q6: What is the typical lead time for delivery and installation after order placement?
A: Lead time depends on the final customized configuration and current production schedule. A detailed timeline will be provided upon request based on your specific requirements. We coordinate shipping from Qingdao port to facilitate timely delivery.
Q7: How does this equipment contribute to consistent liner quality?
A> Consistency is achieved through automated control of key variables: resin saturation uniformity, UV exposure intensity and duration, and material feed rates. This reduces human error and environmental fluctuations, resulting in liners with repeatable thickness, strength, and cure level.
Q8: Can the production output rate be increased in the future?
A: The scalable design allows for certain upgrades or parallel line additions to increase overall output. The initial configuration can be planned with future expansion in mind, supporting business growth.
