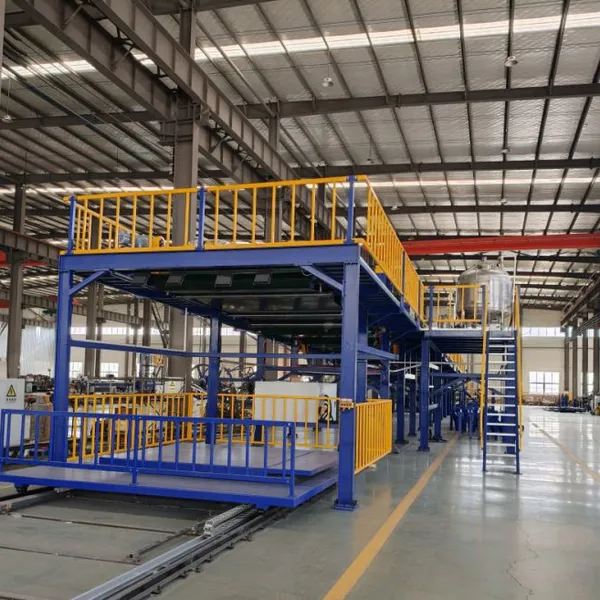

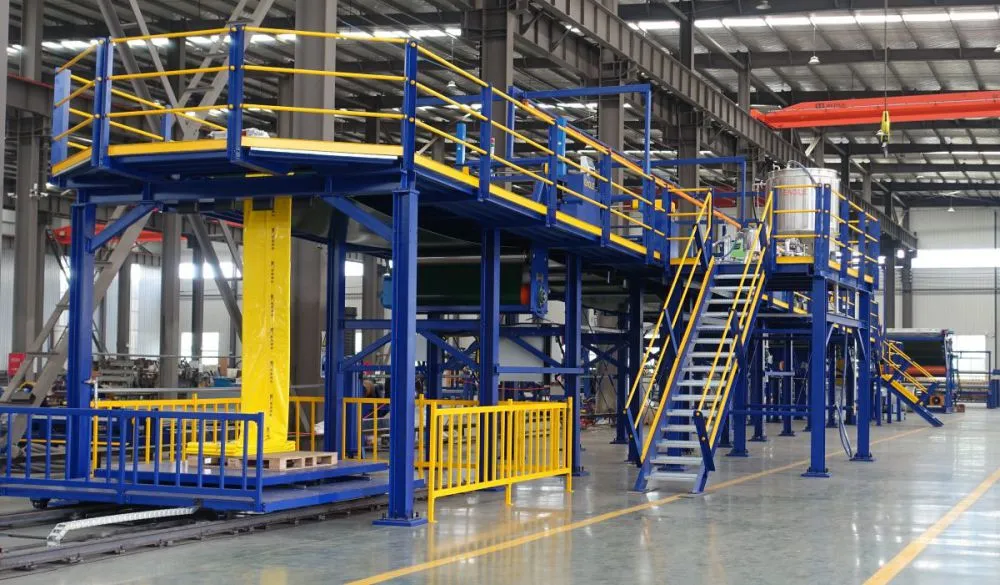

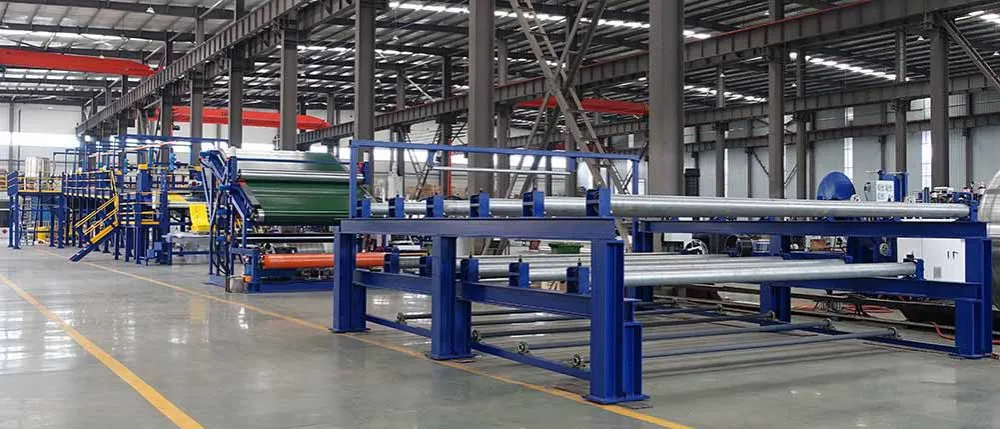

UV CIPP glass fiber liner hose production line
This production line adopts the latest technology to produce the UV CIPP (Cured In Place Pipe) fibre glass liner hose. The online fully automatic and high precision resin metering and mixing system, fully automatic powerful vacuum system, ultra-flat impregnation and flatting system to ensure the high production speed, fully impregnation of fiber and resin, uniform thickness and lower resin consumption.

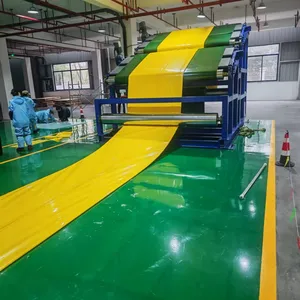

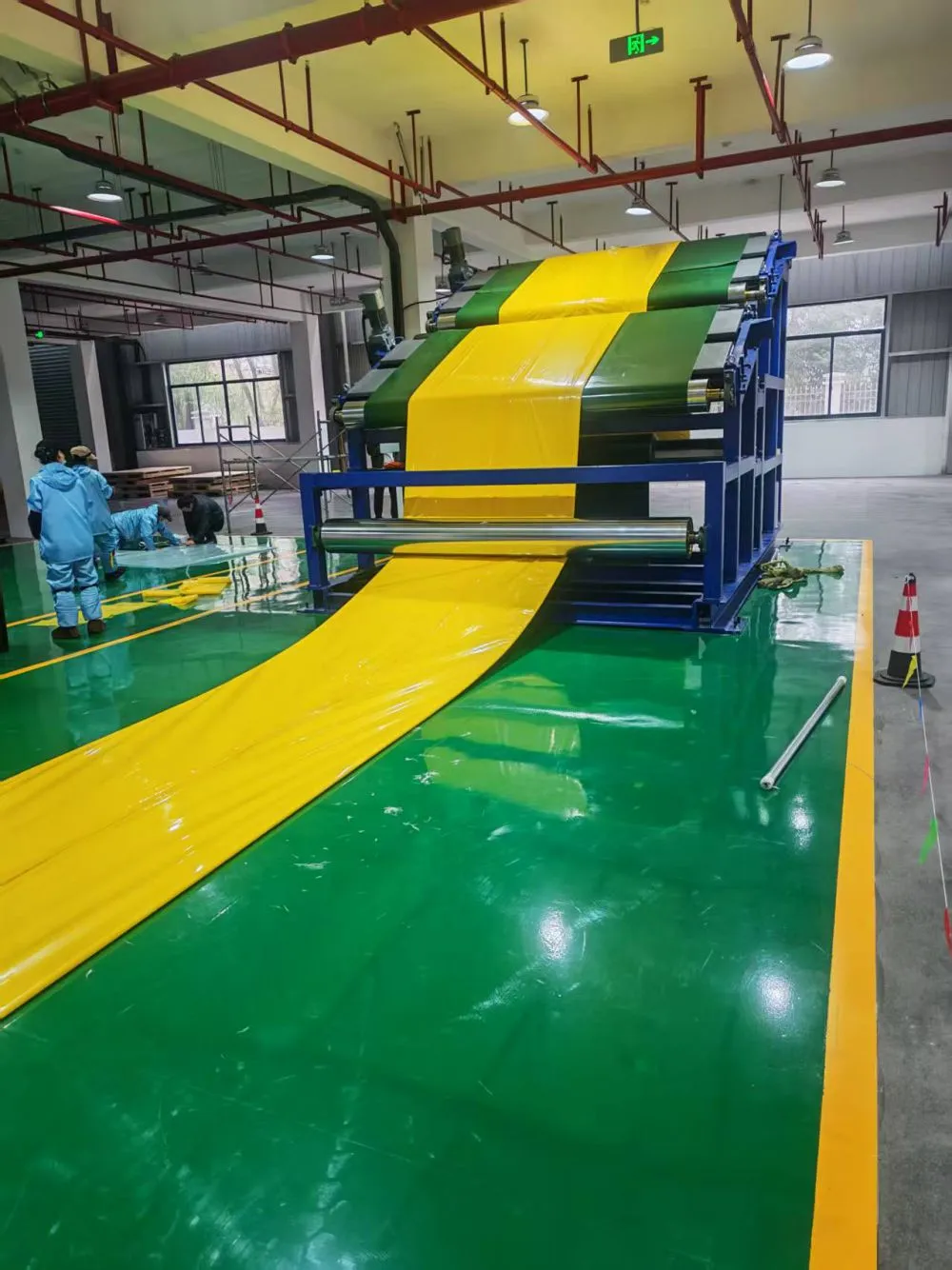

（1）Dry Liner Production
The dry UV CIPP liner machine fold inner film, multi-layer fiber glass matrix fabric, non-woven fabric and outer film into dry liner hose automatically.

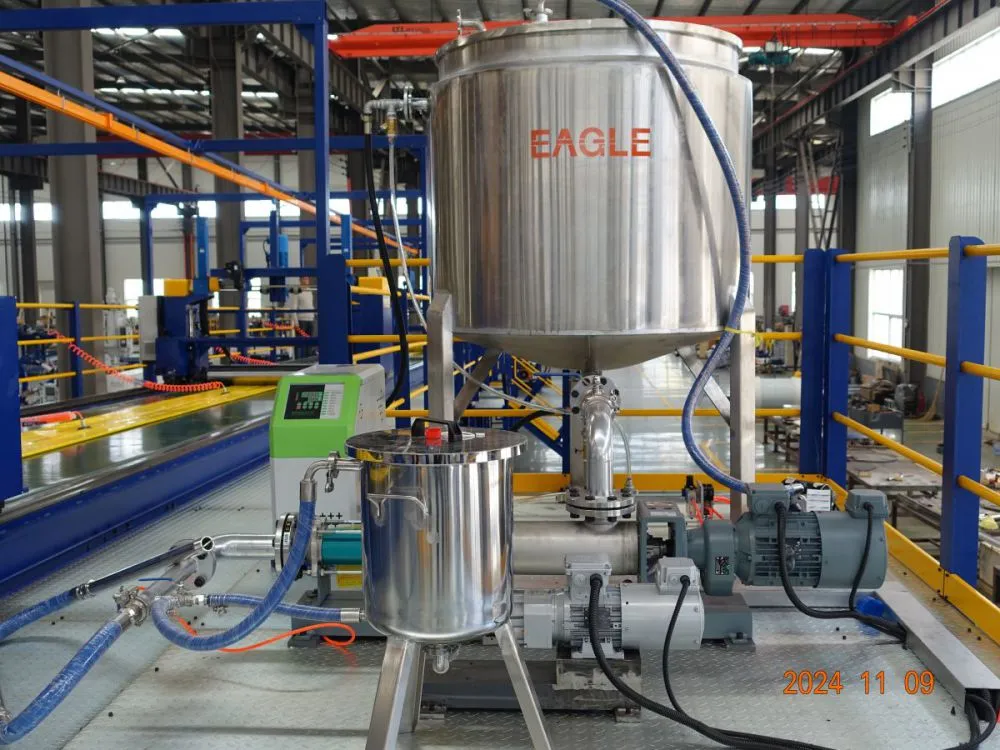

（2）High precision and automatic dosing and mixing system
The system is equipped individual raw material supplying unit, and water heating constant temperature tank to keep stable the resin viscosity. The resin and additives is metered, mixed and injected simultaneouslyto the dry UV CIPP liner hose high precisely by full closed high precision metering pump .
|
|

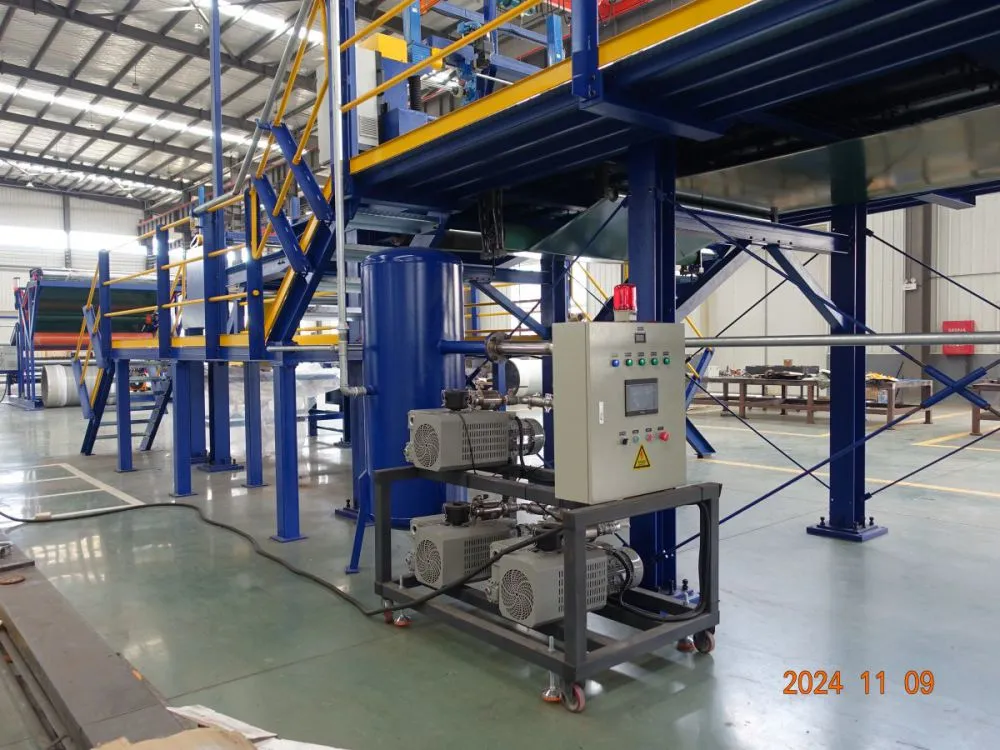

3）Powerful vacuum and resin injection
Fully automatic powerful vacuum pump system what is equipped several vacuum pumps what works automatically and are controlled by PLC. This system guarantee the vacuum of dry UV CIPP liner hose before resin injection, also improve the impregnation of fiber and resin.

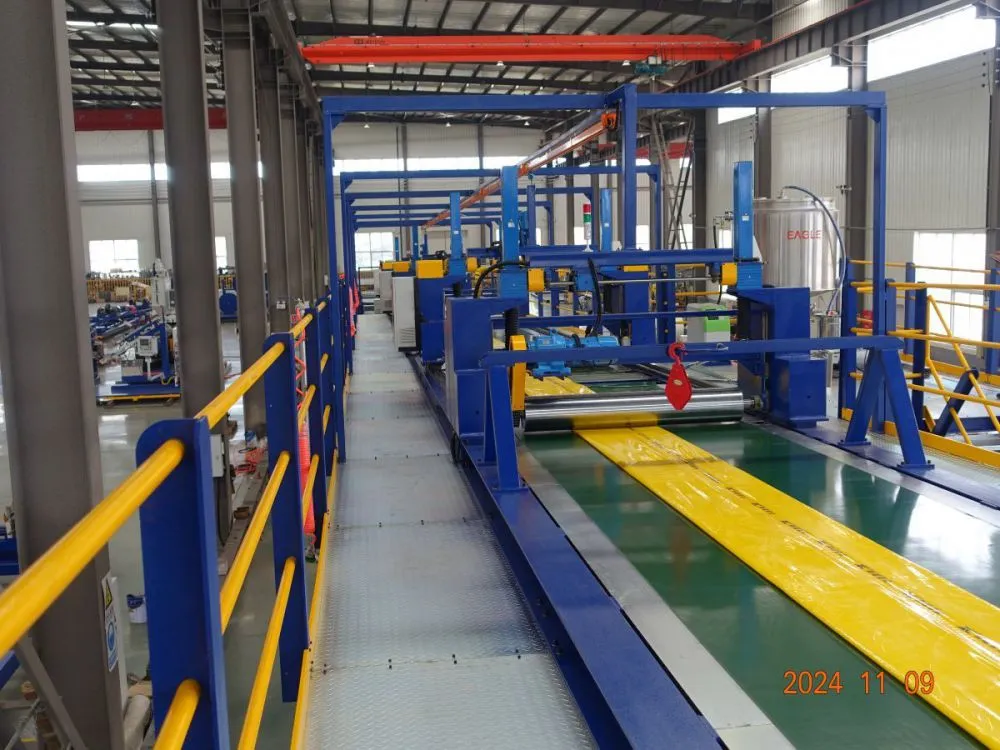

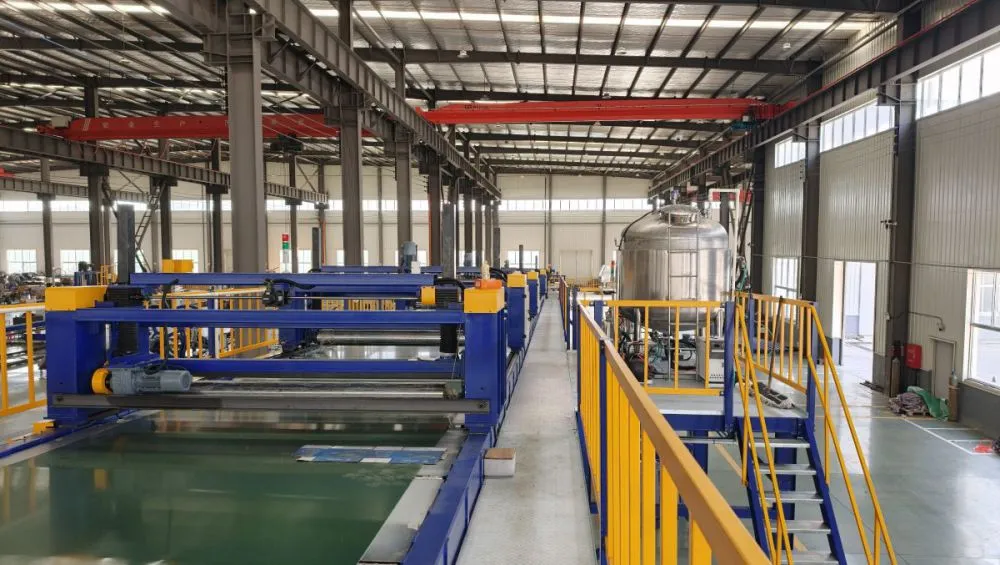

（4）UV CIPP Liner Flatten
With ultra-flat platform and multi automatic flatten trolleys to flatten the fiber liner with resin in order to make the liner thickness uniform and fully impregnated.
（5）Folding and package
Qualified finished product will be folded in the wooden package.
