Product Introduction
HCNJ-104 Ultra-small Sensor is a new type of torque sensor developed by Beijing Haibohua Technology Co., Ltd. on the basis of the dedicated technology for strain bridges. It is suitable for various torque measurement occasions requiring small size and high rotation speed. This product outputs a frequency signal of 5 - 15kHz or a current signal of 4 - 20mA, which is suitable for long-distance transmission. This dynamic torque sensor has a small size, is easy to install and use, and has strong signal anti-interference ability. It is an ideal product to replace imported torque sensors.
Product Features
Small size, light weight, and easy to install;
It can measure both static torque and rotating torque;
High detection accuracy, good stability, and strong anti-interference ability;
It can continuously measure forward and reverse torques without repeated zero adjustment;
There are no wearing parts such as slip rings, and it can run at high speed for a long time;
The strain elastomer has high strength and can withstand 150% of the load;
It has strong anti-interference ability and can be installed in any position and any direction;
The sensor part can be used independently without the secondary instrument and can directly form a torque measurement device with the measurement board card, PLC or DCS.

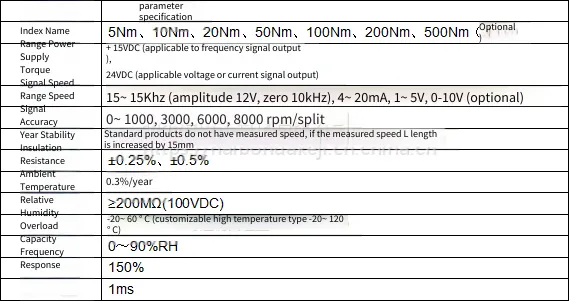

Technical Parameters
Application Fields
Detect the output torque and power of rotating power equipment such as motors and internal combustion engines;
Detect the load torque and input power of equipment such as motors, wind turbines, pumps, mixers, reducers, transmissions, winches, propellers, and drilling machinery;
Detect the torque during the working process of various machining centers and automatic machine tools;
Detect the torque and efficiency transmitted by various rotating power equipment systems;
It can detect the rotation speed and shaft power while detecting the torque;
It can be used to manufacture viscometers, electric, pneumatic, and hydraulic torque wrenches.

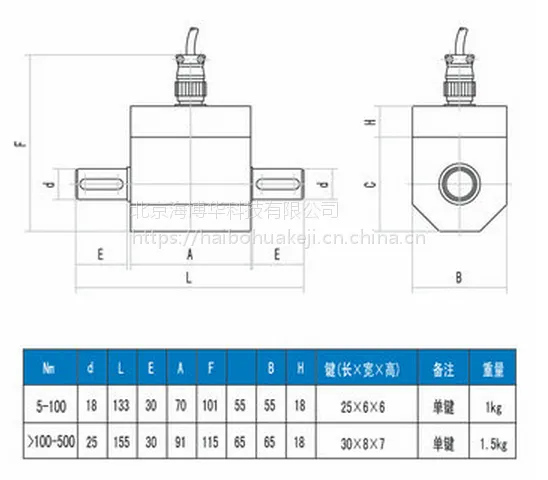

Schematic diagram of the structure
-
Schematic diagram of installation
Installation method
1. The sensors in this series do not have a mounting base. You need to use springs, pull ropes or fixing clips to fix the housing to prevent the housing and the signal output wires from rotating with the shaft.
2. Other installation, electrical connection methods and precautions are carried out according to the standard sensors.
Common signal types and supporting products
1. The torque frequency signal can be directly transmitted to a computer or PLC for processing.
2. When paired with the XSKM torque display or XSY torque display, the torque value can be directly displayed.
3. When paired with the HN-201 Torque, Rotation Speed and Power Meter in this series, the torque, rotation speed and power values can be directly displayed. Functions: Zero reset as standard; Two-channel 4 - 20mA signal conversion for torque and rotation speed, RS485 communication is optional.
4. When paired with the F/I or F/V single-channel signal conversion module or dual-channel signal conversion module, the frequency signal can be converted into common analog signals such as 4 - 20mA or 1 - 5V, which facilitates the customer's signal acquisition.
5. By selecting the professional data acquisition card and supporting software of Beijing Haibohua Technology Co., Ltd., functions such as acquisition, storage, printing and playback of signals such as torque and rotation speed can be realized.

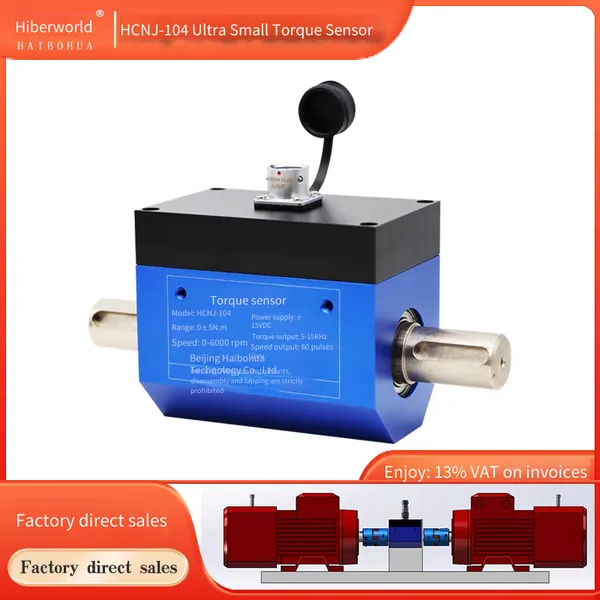

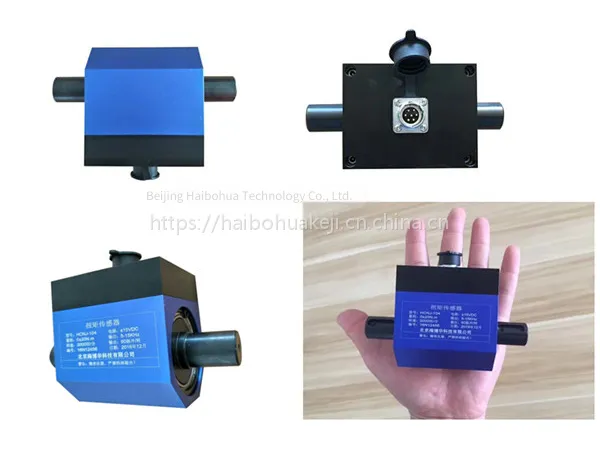

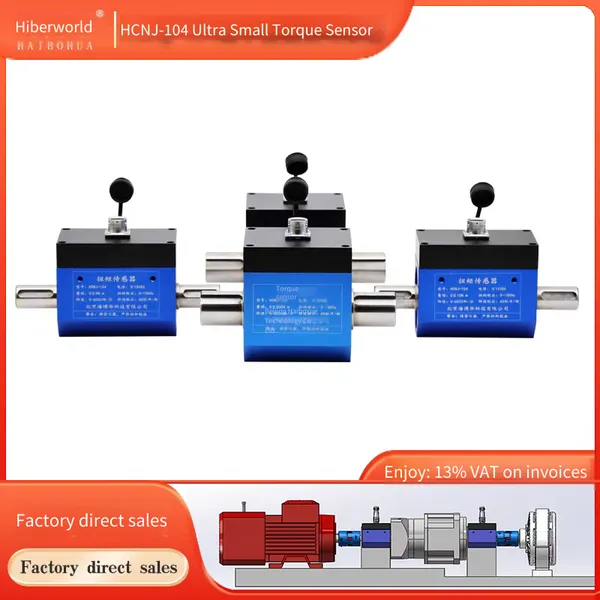

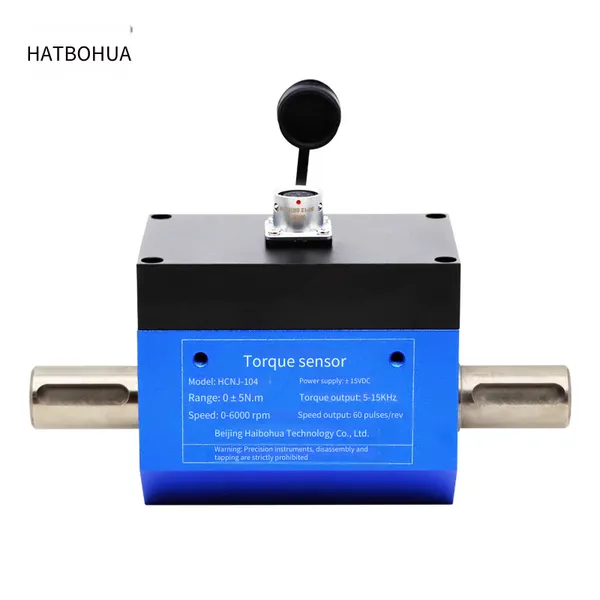

Actual product photos

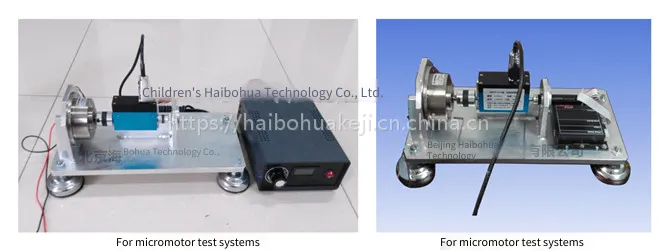

On-site usage photos of the product
