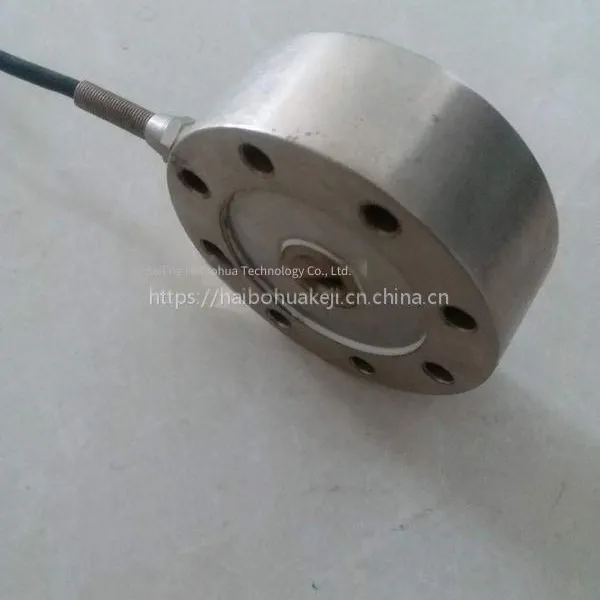

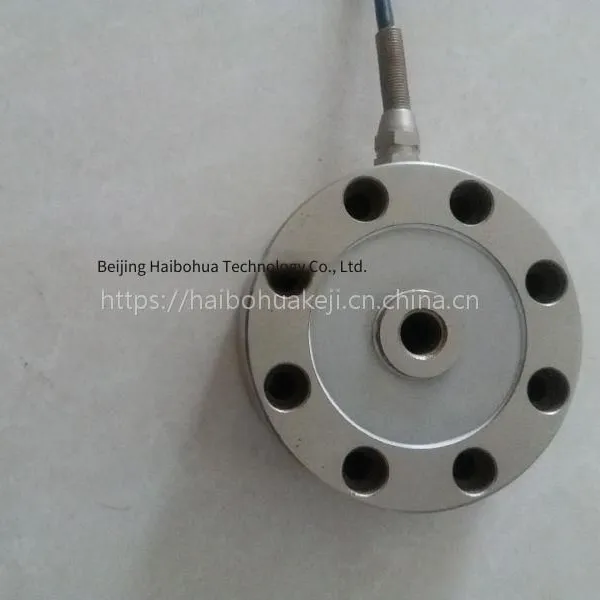

Help CenterHchl-202 Load Cell, Spoke Type Tension and Compression Sensor, Customizable
Related Products
-
Hcnj-101 Dynamic Torque Sensor for Torque and Rotational Speed Measurement, Non-contact Rotary Torque SensorUS$ 523.08 - 553.85MOQ: 1 Set -
Torque Sensor Dedicated for Bottle Valve Loading and Unloading Machine and Gas Cylinder DetectionUS$ 569.23 - 584.62MOQ: 1 Piece
-
Factory Direct Sales of Wireless Pressure Transmitters and Wireless Temperature Transmitters, Capable of Transmitting up to 3000 MetersNegotiableMOQ: 0 Unit
-
3051 Capacitive Differential Pressure Transmitter, Pressure Transmitter With Capacitive Liquid Crystal Display and Hart ProtocolUS$ 215.38 - 230.77MOQ: 1 Piece
-
3051 Differential Pressure Transmitter, Single Flange lt Type, With hc Diaphragm or Tantalum Diaphragm, Hart Protocol, Beijing Haibo HuaUS$ 261.54MOQ: 1 Piece
Uses and Features of HCHL-202 Load Cell
Anti-eccentric load, low height, fully sealed, complete specifications
Suitable for platform scales, truck scales, rail scales, and measurement and control of material level in silos.

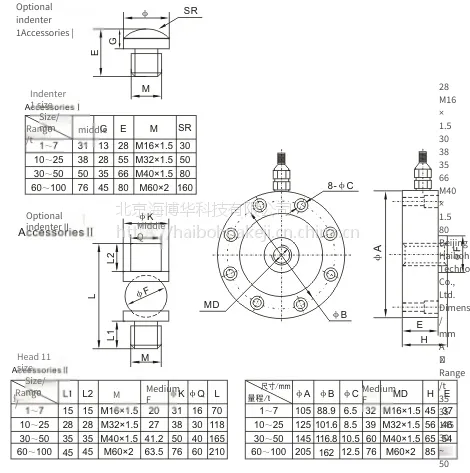

Range, Specifications, Appearance and Installation Dimensions
1,2,3,5,10,20,30,50,60,100t
Technical Parameters
Rated Load |
1～100t |
Comprehensive accuracy |
0.05 (linearity + hysteresis + repeatability) |
Sensitivity |
2.0 mV/V |
Creep |
±0.05 ％F·S/30min |
Zero output |
±1 ％F·S |
Influence of zero point temperature |
±0.05 ％F·S/10℃ |
Influence of output temperature |
±0.05 ％F·S/10℃ |
Operating temperature |
-20℃～+65℃ |
Input impedance |
380±10 Ω or 750±15 Ω |
Output impedance |
350±3 Ω or 700±5 Ω |
Insulation resistance |
〉5000 MΩ |
Safe overload |
150％ F·S |
Bridge supply voltage |
Recommended 10VDC |
Material |
Alloy steel or stainless steel |
Wiring method |
Power supply (+) Red wire Power supply (-) Green wire |
Output (+) Yellow wire Output (-) White wire |
