Motor Test and Measurement System is designed for motor performance tests. It measures performance parameters of the motor such as voltage, current, torque, speed, input and output power, and efficiency. It can print test reports and draw various performance curves.

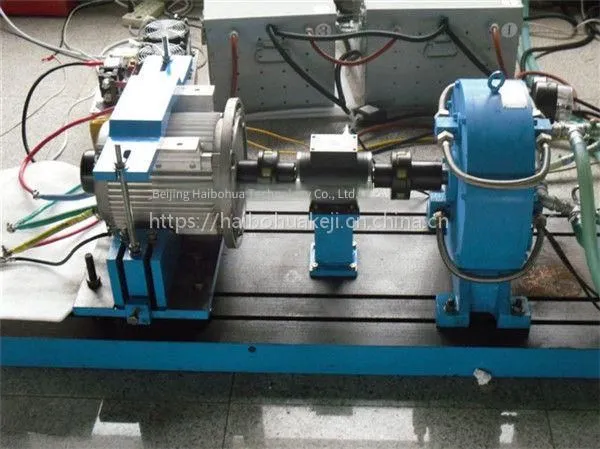

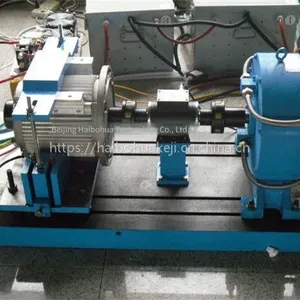

The torque and speed sensor measures the output torque and speed of the motor. The load uses a magnetic powder brake (or an eddy current dynamometer. This system takes the magnetic powder brake as an example). A power transducer is used to convert the voltage and current into standard voltage signals, which are then collected by the computer.
Measurement items that the system can complete: Input voltage, current, output torque, speed, and efficiency calculation of the motor. The output report and curve format can be customized according to national standards or user requirements. The system is built on a computer. All sensor output signals are directly connected to the computer through various acquisition cards (torque, speed, and power measurement cards, A/D cards). The control signals are directly used to control the mechanism actions by the computer through various control cards (I/O cards, D/A cards).
System Functions
1. The system can conduct the following tests on the motor: No-load test: Current, voltage, speed; Load test: Current, voltage, torque, speed, input power, output power; Efficiency; Locked-rotor test: Current, voltage, torque.
2. The system can test specific points of various motors.
3. The system can display the voltage, current, input power, torque, speed, output power, and efficiency of the motor in real time.
4. The system can automatically identify and display positive and negative torques.
5. The system can set upper and lower limit alarms for current, voltage, torque, and speed respectively, and the alarm values can be set arbitrarily.
6. The system can continuously store the test data or store selected points according to the user's wishes.
7. In the "selected point measurement" mode, the system can display the collected data and curves in real time.
8. The system can draw curves of torque - current, voltage, speed, power, and efficiency based on the test results.
9. The system has a memory function for the settings of various parameters, and only needs to be input once.
10. Data editing and modification are allowed, and the system has a historical data playback function.
11. The system can print the test results (data and curves) through a printer.
12. The entire functions of the system can be operated through both menus and shortcut keys.
13. The system runs in the WINDOWS environment, and the entire interface is vivid and beautiful.
