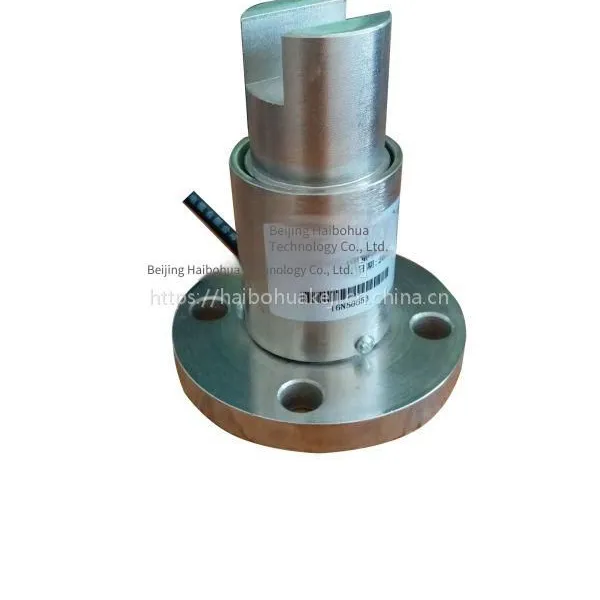

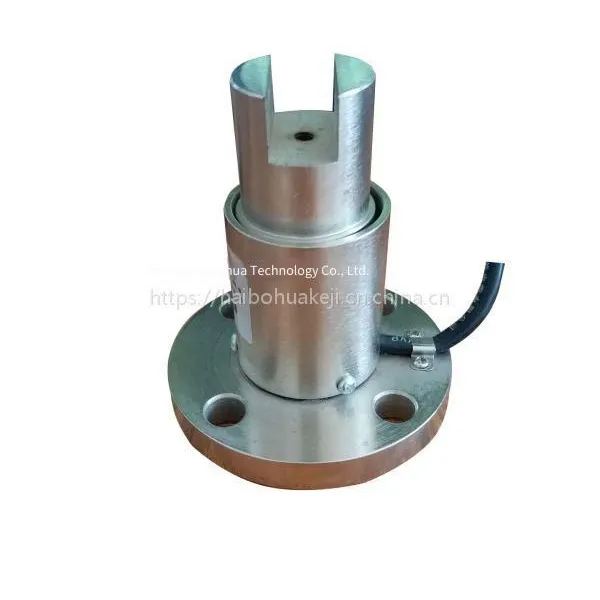

This model of static torque sensor adopts the principle of resistance strain, featuring high accuracy, stable and reliable performance, a wide range of measuring ranges, and convenient installation and use. HCNJ - 102B Static Torque Sensor The connection methods at both ends can be selected as flange connection, square key connection, and key (through - slot) connection according to on - site requirements.
Product Features
Suitable for the measurement and control of static torque or non - continuous rotating torque force values;
High detection accuracy, good stability, and strong anti - interference ability;
Small size, light weight, and easy to install;
Integrated design of the inner shaft and the shell;
Continuous measurement of static torque can be carried out without repeated zero - adjustment;

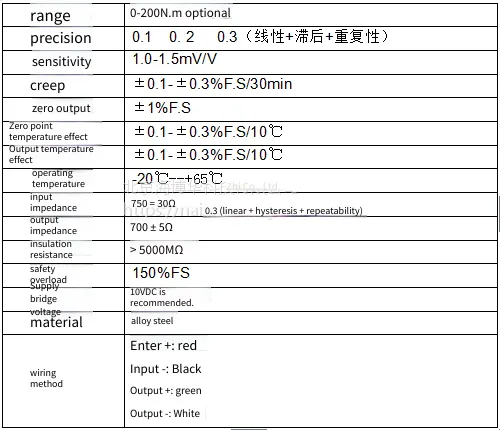

Technical Parameters
Application Fields
Torque wrenches, steering gears, electric actuators, valves, bearings, testing machines and other torque detection occasions where the rotation angle is less than 360 degrees.

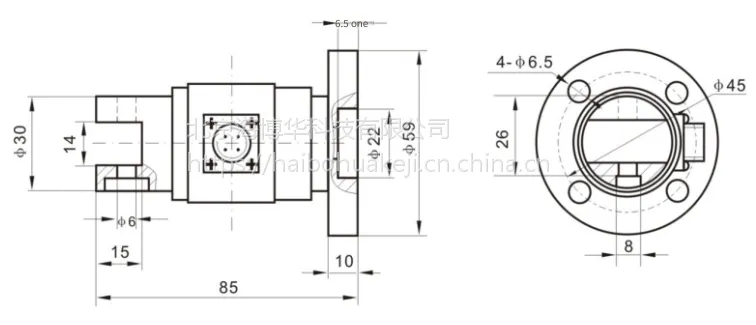

Structural Outline Drawing
Note: The dimensions in this drawing are for reference only. The detailed dimensions shall be subject to the order!
Installation Method
1. Fix the flange end of the sensor, and connect the other end to the device under test to apply force.
2. The rotation angle of the sensor should not be greater than 360 degrees.
Common Signal Types and Supporting Products:
1. The torque signal can be directly transmitted to a computer or PLC for processing.
2. It can be paired with the XSE5 torque display to directly show the torque value. Basic functions: zero setting, 2-point alarm. Extended functions: 4-20mA transmission output, RS232 or RS485 communication interface.
3. It can be paired with a signal conversion module to convert the signal into standard current or voltage signals such as 4-20mA, 0-5V, 1-5V, ±5V, which is convenient for customers to collect.
4. Select the professional data acquisition card and supporting software of Beijing Haibohua Technology Co., Ltd. to realize functions such as display, storage and printing of measured values and curves.
