150KN.m Hydraulic Torque Wrench Test Bench
The torque of the hydraulic torque wrench is 150KN.m, used to detect the static torque of the hydraulic wrench
Schematic diagram of the structure of the hydraulic torque wrench:
Main configuration of the hydraulic torque wrench test bench:
This test bench is mainly composed of an installation platform, a static torque sensor, a torque measuring spindle, a support base, an instrument cabinet, a torque measuring instrument, an industrial computer, and special test software.
Introduction to the equipment functions:
1. Use the static torque sensor as the detection element. The torque measuring instrument displays the detected parameters and sends them to the industrial computer at the same time.
2. Combine the tested coupling machine, drive shaft, static torque sensor, and bearing seat together. The structure is compact and easy to use. This equipment fixes the tested support base and the bearing seat integrally, and the force is more scientific.
3. It can detect the counterclockwise one - way torque of the torque wrench.
4. The equipment is equipped with an instrument cabinet, installed with an industrial computer data acquisition system, and equipped with customized software. It can automatically collect the torque output of the tested part, generate a torque - time relationship curve, generate a report, and store and print.

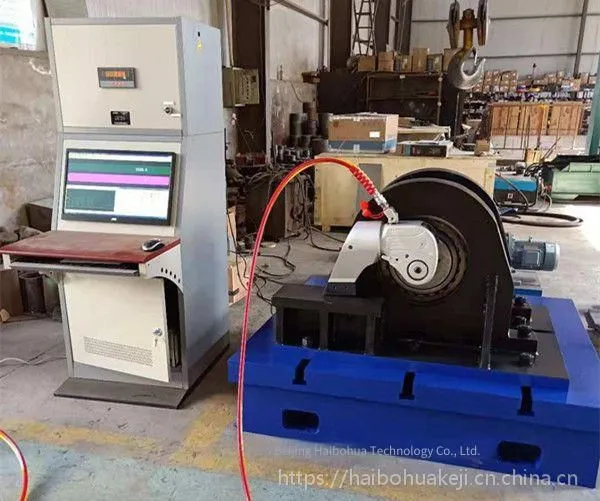

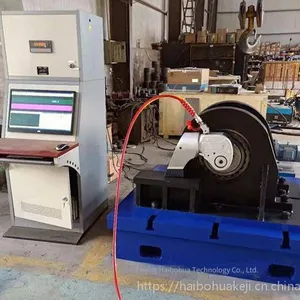

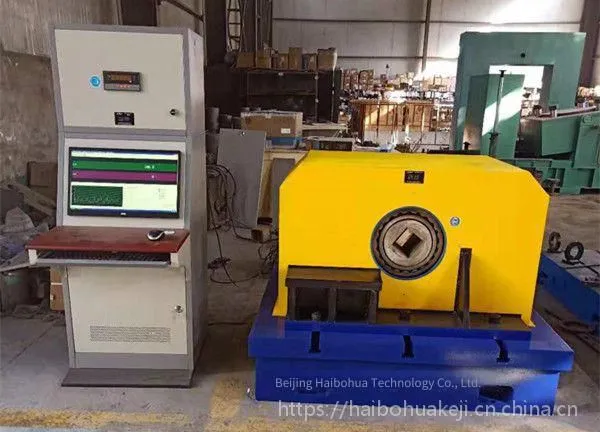

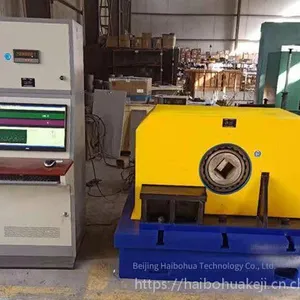

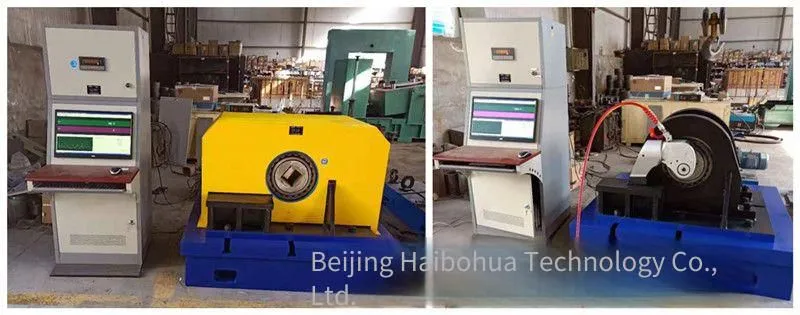

Picture of the hydraulic torque wrench test bench
