Product introduction of the universal shaft torque sensor:

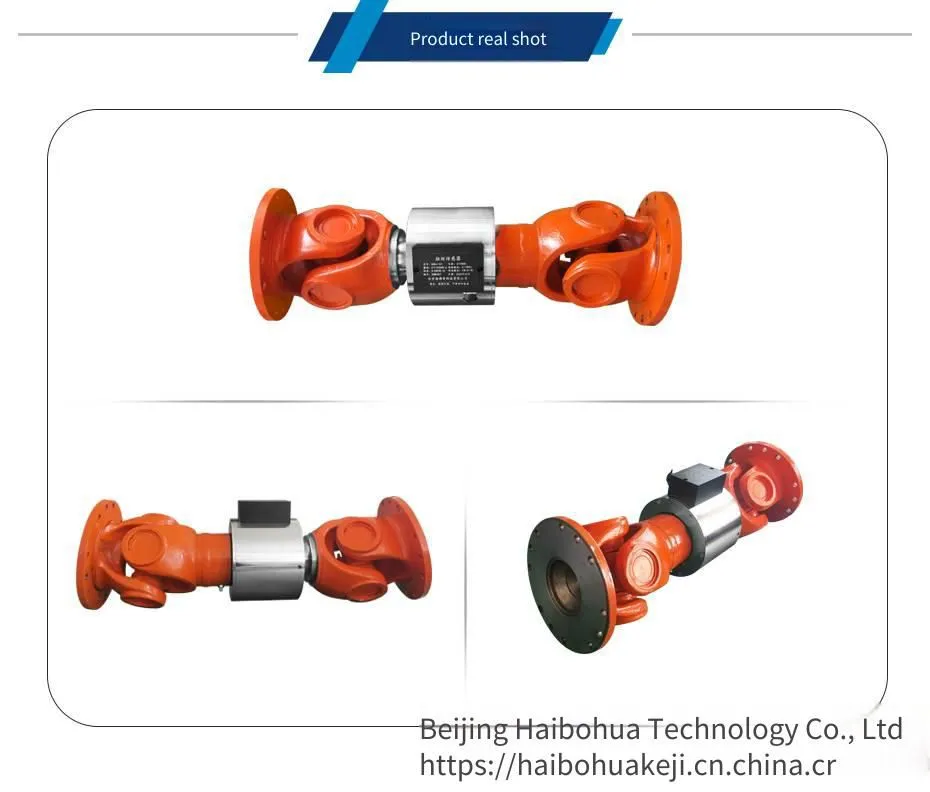

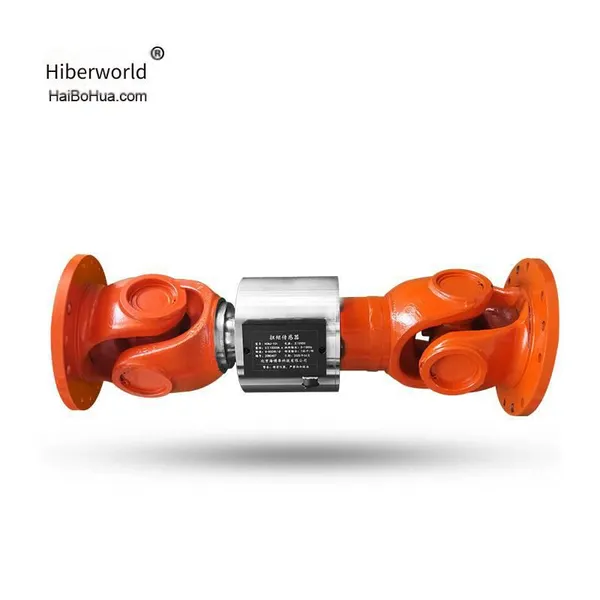

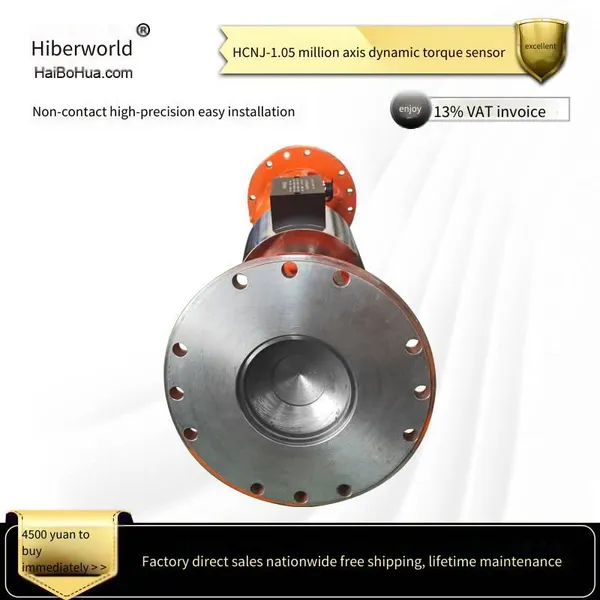

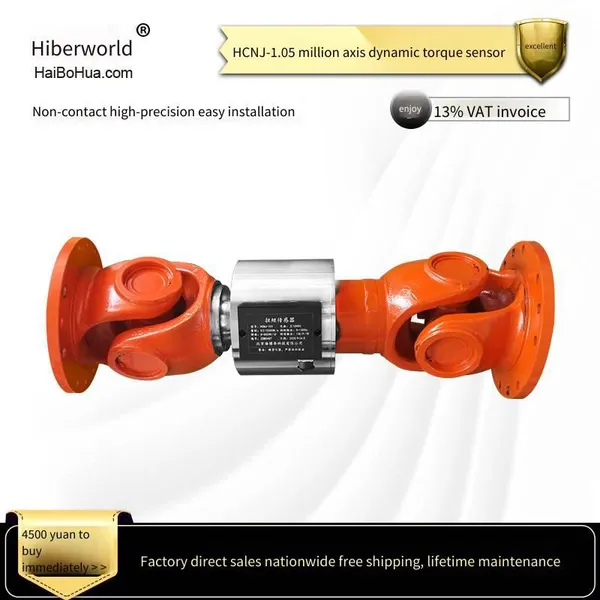

The HCNJ-105 universal shaft torque sensor is an intrinsically safe and explosion-proof type. It is mainly designed to solve the problems in the oilfield drilling process, such as drill pipe breakage caused by excessive torque and inaccurate measurement of the turntable torque and other factors that
often affect the drilling production. The sensor is directly made on the universal shaft and equipped with a control system to monitor the working conditions of the drilling rig in real time. Since the launch of the universal shaft sensor, it has been
well-received by oilfield users for its high measurement accuracy, convenient installation and use, and good long-term stability.
Product features:
1. The measurement position and method can fully reflect the real situation of the turntable torque;
2. The process is mature, with high measurement accuracy and good long-term stability;
3. It can directly output a 4 - 20mA analog current signal with strong anti-interference ability;
4. It can measure both static torque and rotating torque, as well as forward and reverse torques;
5. It can continuously measure forward and reverse torques without repeated zero adjustment and can operate for a long time; Dimensions
Technical parameters:
Range: 0 - ±5k - 50kNm
Power supply: 24V DC or ±15VDC
Torque signal: 4～20mA or 5 - 15kHz (optional)
Speed range: 0～1000, 3000 r/min
Speed signal: 60 pulses/rev, 30 pulses/rev (optional)
Accuracy: ±0.25%, ±5% per year
Stability: 1% per year
Insulation resistance: ≥200MΩ (100VDC)
Ambient temperature: -20~60℃
Relative humidity: 0~90%RH
Overload capacity: 150%
Frequency response: 100μs
Explosion-proof grade: ExiaⅡCT6

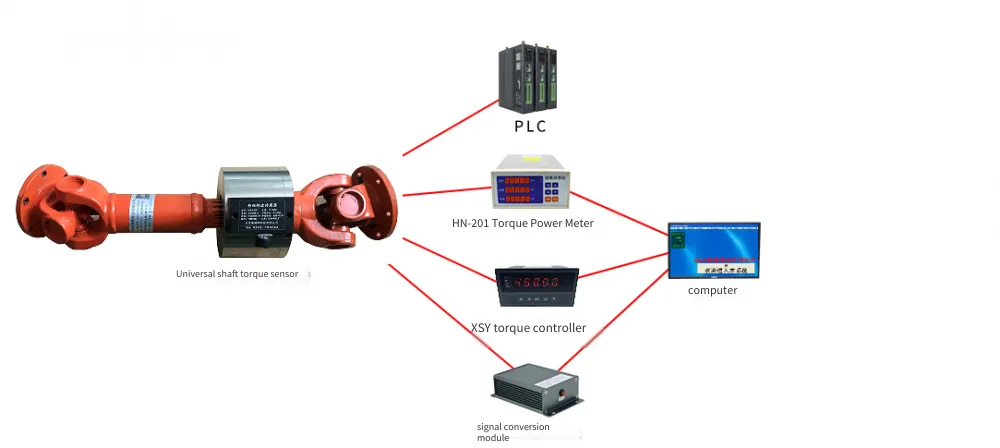

Product matching:
1. The torque frequency signal can be directly transmitted to a computer or PLC for processing.
2. The torque sensor is matched with XSKM or XSY torque display instrument (single-display torque meter), which directly displays the torque value and has an alarm function for two upper and lower limits.
3. When matched with the HN-201 torque, rotational speed and power meter (triple-display instrument), it directly displays the torque, rotational speed and power values. Functions: Zeroing as standard; Two-way 4 - 20mA transmission for torque and rotational speed,
RS485 communication is optional.
4. When matched with single or dual-channel F/I or F/V signal conversion modules, the frequency signal can be converted into common analog signals such as 4 - 20mA or 0 - 5V, which is convenient for customers to collect signals (wiring is as follows).
5. By selecting the professional M400 data acquisition software of Beijing Haibohua Technology Co., Ltd., functions such as acquisition, display, curve plotting, storage, printing and playback on the computer can be realized.
Beijing Haibohua Technology Co., Ltd. specializes in the production of torque sensors, motor test benches, reducer test benches, valve actuator test benches and other related products. Welcome to call for consultation: Niu Yunxia from the sales department, phone number 13161456023
