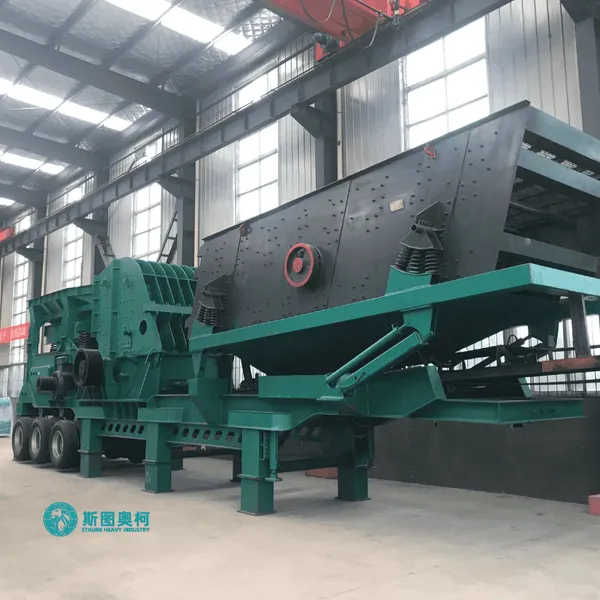

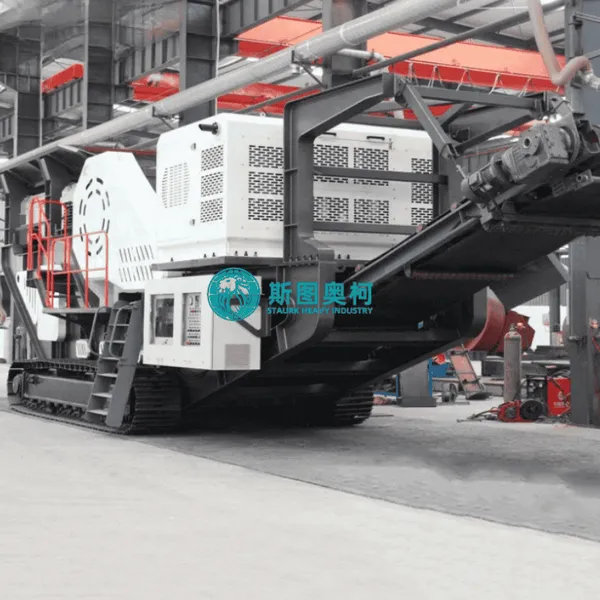

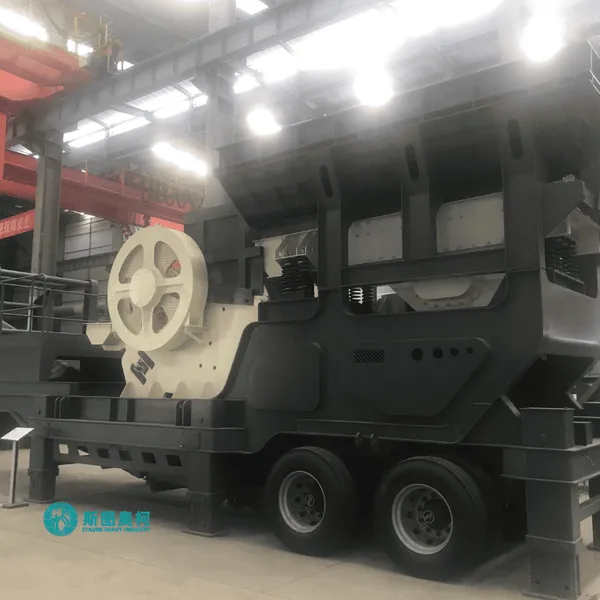

Help CenterTrack-mounted And Wheel-mounted Mobile Crushing Station Portable Crushing Station for Mining Quarry & Construction Waste
Related Products
-
Mobile Crushing Plant, Portable Crusher, Mobile CrusherNegotiableMOQ: 1 Set -
Log Washer For Heavy Clay & Sticky Materials Mining & Mineral Processing EquipmentNegotiableMOQ: 1 Set
-
Jigger Gravity Jigging Machine for Alluvial Gold & Heavy Minerals ProcessingNegotiableMOQ: 1 Set
-
Wet Dry Type Magnetic Separator For Mining & Industrial Mineral ProcessingNegotiableMOQ: 1 Set
-
Leaching Tank for Gold Mining Carbon-In-Leach (CIL)&Carbon-In-Pulp (CIP) Processing PlantNegotiableMOQ: 1 Set
Mobile crushing station Manufactured Henan Staurk Machinery Co.,Ltd
Product Introduction
Mobile crushing stations are flexible and convenient, with strong mobility, which can save a lot of infrastructure and relocation costs; It can crush materials on site and move with the advancement of the raw material mining face, thereby greatly reducing the transportation cost of materials. The mobile crushing and screening equipment includes primary crushing stations, secondary crushing and screening stations, belt conveyors, etc. Each level of crushing station is an independent working unit that can fulfill its different responsibilities.
2. Application

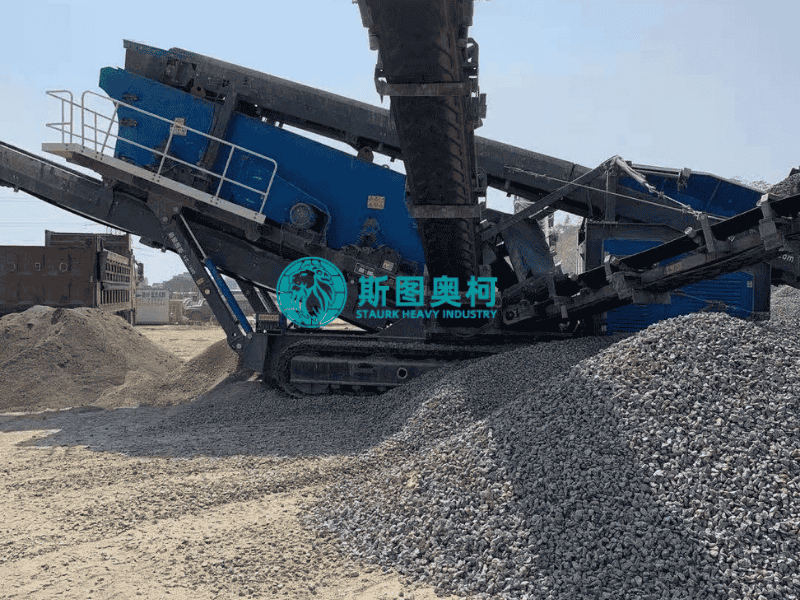

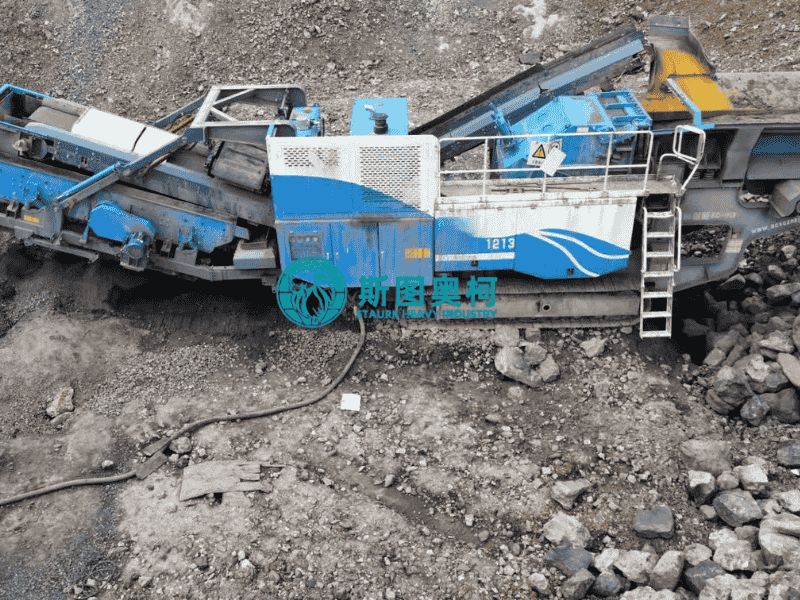

Widely used in quarries, sand fields, coal fields, and mining sites
3. Working Principle
The workflow can be divided into four stages: 1 Feeding and pre screening: The material is loaded into the feeder by a loader or dump truck, and the vibrating feeder evenly feeds the material into the crushing host. Some models have added pre screening function in the feeding process, which directly screens out fine materials that do not need to be crushed, improving efficiency. two Crushing stage: Taking counterattack crushing as an example, after the material enters the crushing chamber, the high-speed rotating rotor drives the plate hammer to collide with the material, and at the same time, the material collides multiple times with the counterattack plate, achieving "stone hitting stone" laminated crushing. three Screening and circulation: The crushed material is transported by a belt conveyor to a vibrating screen, where the sieve separates the material into different specifications. The coarse materials that do not meet the standards are returned to the crusher for secondary processing through the return belt, forming a closed-loop cycle to ensure uniform particle size of the finished product. four Finished product output: Qualified materials are stored by conveyors or directly loaded onto trucks for transportation. Some high-end models support multi-level crushing and screening linkage, such as jaw crusher+counterattack crusher combination, to achieve integrated operation of coarse crushing and fine crushing.
4. Advantages
①. Reliable performance ②. Wide application range ③. Integrated design, easy maintenance ④. Small footprint, easy to use, fully functional and highly automated.
5. Technical Specifications
Option 1: 50 TPH Limestone Aggregate Production Line (Soft Rock)
Feeding: ZSW-420×110 (Vibrating Feeder)
Primary Crushing: PE600×900 Jaw Crusher
Secondary Crushing: PF1214 Impact Crusher
Screening: 2YK1848 Triple-deck Vibrating Screen
Conveying: B650×20m Belt Conveyors (3 units)
Option 2: 80 TPH Granite Aggregate Production Line (Hard Rock)
Feeding: GZD600×2000 (Vibrating Feeder)
Primary Crushing: PE750×1060 Jaw Crusher
Secondary Crushing: HPT200 Multi-cylinder Hydraulic Cone Crusher
Screening: 3YK2460 Four-deck Circular Vibrating Screen
Conveying: B800×25m Belt Conveyors (4 units)
Optional Upgrades: Dust suppression system and enclosed workshop housing.
Please contact us for detailed scheme design, Henan Staurk Machinery Co.,Ltd
6.Our Solutions
