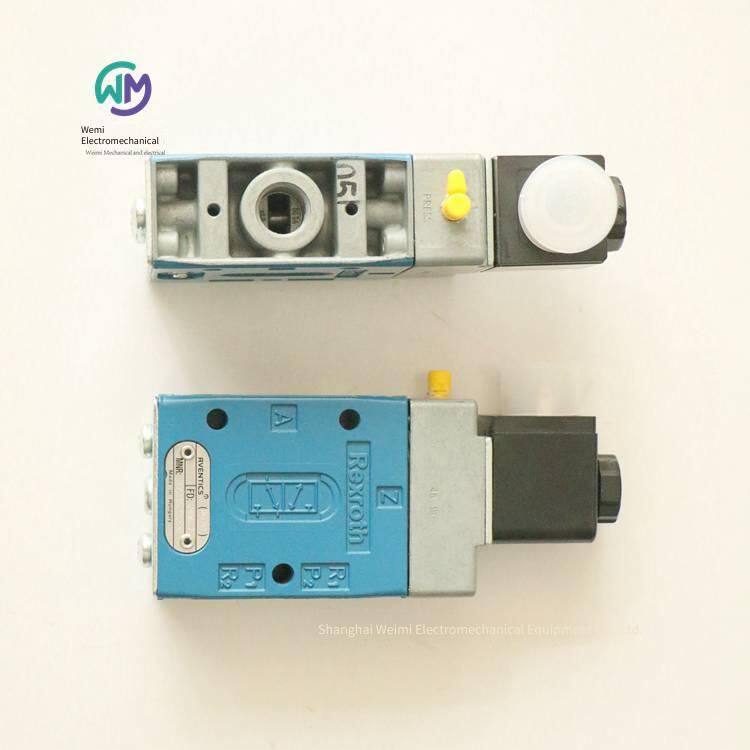

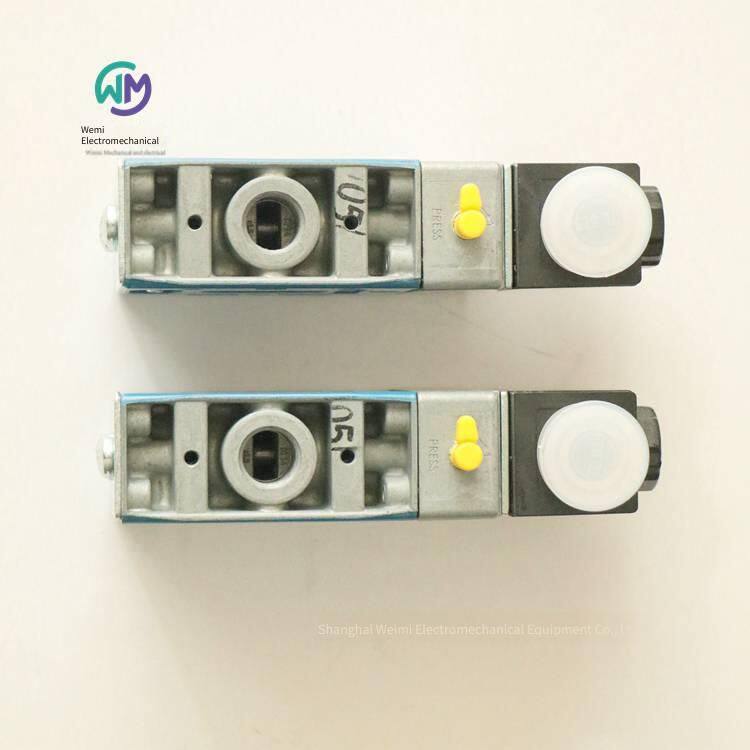

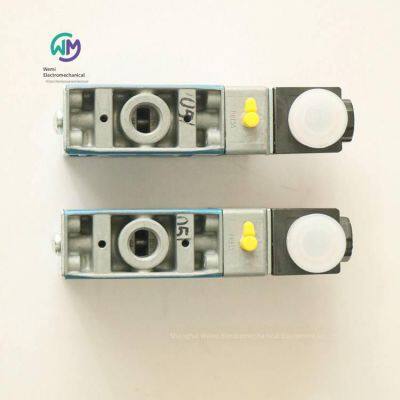

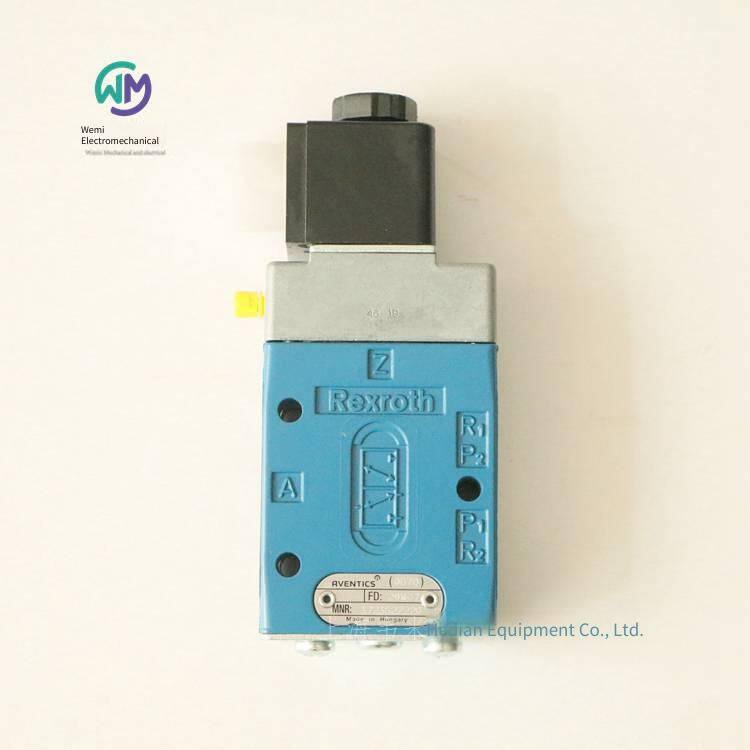

Main engine ahead starting control solenoid valve 3723522220, brand AVENTICS; It is the main product of Shanghai Weimi Mechanical & Electrical Equipment Co., Ltd. Sales hotline: 13524123009; Contact person: Lei Qing; Real product photos, original genuine products, in-stock inventory, affordable price; We sincerely welcome new and old customers to consult and purchase!
AVENTICS pneumatic components:
Cylinders and drive devices: Standard cylinders, miniature cylinders, round cylinders, compact cylinders, short-stroke cylinders and thin cylinders, profile cylinders, tie-rod cylinders, cylinder valve units, rodless cylinders, guided cylinders, double-piston cylinders, rotary drive devices, bellows cylinders, cylinders with distance sensors, diaphragm cylinders, cylinder accessories, cylinder mounting parts (bolts, flange mounting parts, foot mounting parts, U-shaped mounting parts, rear eyelets, bearing brackets, nuts for cylinder mounting parts, rocking plug fixing devices, intermediate flanges), piston rod connectors (flexible coupling connectors, U-shaped joints, universal heads, piston rod extensions, special nuts for piston rods), modular sealing systems, locking units (clamping units), guiding units, industrial buffers, handling connection components, magnetic proximity sensors, displacement measurement sensors.
Valves and valve systems: Single valves, mechanical valves, pneumatic valves, electronic valves, solenoid valves, two-way two-position directional control valves, two-way three-position directional control valves, two-way four-position directional control valves, two-way five-position directional control valves, three-way five-position directional control valves, valve islands, fieldbuses, electrical connection technologies (round plugs, valve connectors, multi-pole plugs, cable junction boxes, bridge connectors), standard valves and valve systems, pressure regulating valves, manual pressure regulating valves, screw-in pressure regulating valves, precision pressure regulating valves, precision filter pressure regulating valves, relief valves, safety valves, flow control valves, one-way throttle valves, throttle valves, ball valves and shut-off valves, logic valves, one-way valves and check valves, quick exhaust valves
Compressed air treatment: Maintenance units and components, air source treatment unit two-piece sets, air source treatment unit three-piece sets, condensate separators, air distribution blocks, shut-off valves, filters, precision filters, activated carbon filters, spray lubricators, oil separators, oil mist lubricators, precision oil mist lubricators, oil injection units, oil injection valves, precision pressure regulating valves, precision filter pressure regulating valves, pressure regulating valves, filter pressure regulating valves, diaphragm dryers, pre-filters, pressure gauges, air cups, compressed air containers, greases and oils, lubricating oils, engine oils.
Vacuum technology: Ejectors, vacuum generators, compact vacuum generators, vacuum grippers, non-contact conveying systems, vacuum accessories (vacuum in-line filters, spare filters, vacuum butterfly filters, air cups, adapters, angle joints, flow valves, spring push rods, silencers, vacuum control devices), pneumatic grippers.
Sensors: Magnetic proximity sensors, displacement measurement sensors, electronic pressure sensors, mechanical pressure sensors, flow monitors, pneumatic proximity sensors, inductive proximity sensors, speed/timers, workpiece position detection devices, sensor mounting parts (sensor fixing devices, sensor holders), electrical connection technology (circular plugs, circular socket connectors, valve connectors, cables with junction boxes).
Connection technology: Pneumatic connection technology, quick-connect fittings, threaded connectors with lock nuts, plastic hoses, plastic tube clamping parts, T-shaped clips for compressed air rails, hose clips for textile tubes, support sleeves, hose cutters, Y-shaped connections, T-shaped connections, X connections, straight-through connectors, elbows, quick tube connectors, rotor connections, connection accessories (sealed threads and connectors, air distribution blocks and air distribution block strips, seals), silencers, electrical connection technology, valve connectors (junction boxes), circular plugs, multi-core plugs, contact bridges (bridge connectors, contact bridges, with cables).
AVENTICS Pressure Regulating Valve, Series NL2-RGS 0821302440
NL2-RGS-G038-GAU-MAN-100-SS
The AVENTICS NL series air source treatment units are suitable for all fields: as single components or grouped air source treatment units for centralized or decentralized compressed air preparation, in compact or heavy-duty versions, for high or low temperature environments. This series provides a complete and customizable compressed air preparation technology. It includes the option of combining each component into the product series to achieve the desired functions, and the components can be adjusted according to application requirements.
Specifications
Function: Standard pressure regulator
Component: Pressure regulating valve
Interface: G 3/8
Nominal flow rate Qn: 2000 l/min
Pressure gauge: With pressure gauge
Installation position: Any
Regulator type: Diaphragm pressure regulating valve
Pressure adjustment range min.: 0.5 bar
Pressure adjustment range max.: 10 bar
Minimum operating pressure: 0.5 bar
Maximum operating pressure: 16 bar
Minimum ambient temperature: -10 °C
Maximum ambient temperature: 60 °C
Operation: Mechanical
Adjustment function: With secondary exhaust
Regulator type: Can be assembled into blocks
Pressure delivery: Single
Sealing method, sealing type: Unlockable
Medium: Compressed air, neutral gas
Recommended primary filtration: 5 μm
Weight: 0.41 kg
Material: Housing - Die-cast zinc
Material - Front panel: Acrylonitrile synthetic material
Sealing material: Acrylic resin
Features
Easy to assemble
Provide manual, semi-automatic or fully automatic condensate discharge
Provide transparent liquid reservoir
Staggered tooth type, easy to maintain
AVENTICS Bellows Cylinder, Series BCP 1923061000
BCP-SB-231-079-0NR-ST-G034
AVENTICS BCP Series Bellows Cylinders, standard models with fixed flange steel covers and natural rubber bellows. The heat-resistant bellows are made of epichlorohydrin rubber (ECO). The corrosion-resistant version features a stainless steel cover (V2A).
Specifications
1 bellows
Structural feature: Bellows cylinder with cover
Operating principle: Single-acting, not compressed back
Compressed air connection: G 3/4
Top cover diameter: 141 mm
Maximum allowable tilt angle: 15 °
Maximum effective stroke: 79 mm
Minimum radial installation space: 245 mm
Minimum force: 6900 N
Maximum force: 14700 N
Minimum operating pressure: 0 bar
Maximum operating pressure: 8 bar
Minimum ambient temperature: -40 °C
Maximum ambient temperature: 70 °C
Medium: Compressed air
Fixing force decreases when the temperature exceeds 50 °C
Pressure for determining piston thrust: 6 bar
Weight: 1.9 kg
Material of bellows: Natural rubber / Butadiene rubber
Material of cover plate: Steel
Surface of cover plate: Galvanized
Features
Bellows cylinder with crimping plate
Can generate strong force in a small installation space
Allow angular movement and axial offset
Resistant to strong corrosion and high temperature
Test safety up to 24 bar
AVENTICS Coil, Series CO1 1824210223
CO1-FORM_A-024DC-4,4W-30mm
The AVENTICS CO1 series is a complete set of electromagnetic coils, some with cables and some without, suitable for AVENTICS pneumatic valve series.
Specifications
Coil width: 30 mm
Maximum ambient temperature: 50 °C
Standardized circuit interface: EN 175301-803, Type A
Protection class: IP65
Duty cycle: ED100 %
Compatibility catalog: 15
Electrical connection: 2 multi-core plugs
Number of poles: 3-pin
Operating voltage: DC24 V
Voltage deviation: DC -10% / +10%
Voltage deviation: AC 50 Hz -10% / +10%
Voltage deviation: AC 60 Hz -10% / +10%
Power consumption: DC 4.4 W
Weight: 0.11 kg
Shell material: Thermoplastic rubber
Features
Coil widths: 15, 22 and 30 mm
Electrical connections: M8, form A, form B, form BI, Form C
ATEX
Operating voltages: 12, 24, 48, 110, 220 VDC or 24, 110, 230 VAC
AVENTICS Circular plug, Series CON - RD 1834484166
CON - RD - FS - M8 - 3 - 3000 - PUR - OW - 3
The AVENTICS CON - RD series cables provide circular plug connectors for connection types such as M8x1, M12x1 or 7/8 - 16UNC. They come in various cable lengths and are mainly suitable for our M8x1 or M12x1 connected valves and electronic systems such as AES and G3.
Specifications
Structural feature: Circular plug
Cable: With cable
Maximum operating voltage: AC 48 V DC
Maximum operating voltage: DC 48 V AC
Electrical connection 1, Type: Multi - pin plug
Electrical connection 1, Thread size: M8x1
Electrical connection 1, Number of poles: 3 - pin
Electrical connection 1, Coding: A - coding
Cable lead: Straight
Cable lead: Hinged manifold joint 180°
Electrical connection 2, Type: Open cable terminal
Number of cores: 3
Shielding: Unshielded
Cable length: 3 m
Certification: UL (Underwriters Laboratories)
Protection class: IP67
Minimum ambient temperature: -25 °C
Maximum ambient temperature: 85 °C
Current, maximum value: 4 A
Conductor cross - section: 0.24 mm2
Cable diameter: -4.5 mm
Weight: 0.087 kg
Material: Shell - Polyurethane
Material: Cable sheath - Polyurethane
Features
Circular plug connector with connecting cable
M8x1, M12x1, M23, 7/8"
Y-type cable
AVENTICS E/P pressure regulating valve, Series ED12 R414000730
ED12-000-100-010-2M12C
The AVENTICS ED12 series provides proportional pressurization function. The individually controlled exhaust valve enables dynamic control for very demanding applications.
Specifications
Structural feature: Poppet valve
Certificate: CE certification
Minimum operating pressure: 0.5 bar
Maximum operating pressure: 12 bar
Minimum ambient temperature: 5 °C
Maximum ambient temperature: 50 °C
Medium: Compressed air
Rated flow Qn: 2600 l/min
Control method: Analog
Operating voltage: DC24 V
Hysteresis:
Installation position: α = 0 ... 90° ±β = 0 ... 90°
Permissible pulsation: 5%
Power consumption: max. 1400 mA
Protection class: IP65
Electrical connection: Multi-core plug
Electrical connection: M12
Electrical connection: 5-pin
Signal connection (input and output bits)
Signal connection: Multi-pin plug
Signal connection: M12
Signal connection: 5-pin
Setpoint input: 0 ... 10 V
Pressure adjustment range min.: 0 bar
Pressure adjustment range max.: 10 bar
Features
Robust poppet valve technology
Very high control accuracy and high dynamics
Suitable for various applications
High air flow
AVENTICS safety valve, Series RV1 R412007542
RV1-G012-0.4 BAR
Specifications
Compressed air interface 1: G 1/2
Type of compressed air interface 1: External thread
Fixing method: Screwable
Compressed air interface 2: Model not collected
Structural feature: Poppet valve
Valve opening pressure: 0.4 bar
Rated flow Qn from 1 to 2: 1115 l/min
Minimum operating pressure: 0 bar
Maximum operating pressure: 20 bar
Minimum ambient temperature: -20 °C
Maximum ambient temperature: 100 °C
Medium: Compressed air
Certificate: CE certification
Material: Housing - Brass
Sealing material: Fluorine - rubber
AVENTICS E/P Pressure Regulating Valve, Series ED05 5610141310
ED05-000-060-420-2DICA
The AVENTICS ED05 series ensures sensitive pressure control by integrating digital control electronics and innovative proportional valve technology. The durable poppet valve technology, large opening cross - section, and soft - sealed valve group make the valve highly resistant to contamination.
Specifications
Structural feature: Poppet valve
Certificate: CE certification
Minimum operating pressure: 0 bar
Maximum operating pressure: 11 bar
Minimum ambient temperature: 0 °C
Maximum ambient temperature: 70 °C
Compressed air inlet: G 1/4
Compressed air outlet: G 1/4
Compressed air exhaust connection: G 1/4
Medium: Compressed air
Nominal flow rate Qn: 1000 l/min
Control method: Analog
Operating voltage: DC24 V
Hysteresis:
Installation position: α = 0 - 90°, β = 0 - 90°
Permissible pulsation: 5%
Protection class: IP65
Electrical connection: Multi - core plug
Electrical connection: ISO 15217, Type C
Signal connection (input and output bits)
Signal connection: Multi - core plug
Signal connection: ISO 15217, Type C
Actual value output: 4 ... 20 mA
Setpoint input: 4 ... 20 mA
Pressure regulation range min.: 0 bar
Features
Customized on - demand pressure control
Durable poppet valve technology ensures a long service life
High flow rate, suitable for various tasks
High - dynamic direct - acting technology
No wear - prone pilot valves or diaphragms
Various electrical connection options
AVENTICS E/P Pressure Regulating Valve, Series ED07 R414000776
ED07-000-160-420-2M12B
The AVENTICS ED07 series provides proportional pressurization function, and the individually controlled exhaust valve enables dynamic control for very demanding applications.
Specifications
Structural feature: Poppet valve
Certificate: CE certification
Minimum operating pressure: 0.5 bar
Maximum operating pressure: 18 bar
Low ambient temperature: 5 °C
High ambient temperature: 50 °C
Medium: Compressed air
Nominal flow rate Qn: 1300 l/min
Control mode: Analog
Operating voltage: DC24 V
Hysteresis: 0.04 bar
Installation position: α = 0 ... 90° ±β = 0 ... 90°
Permissible pulsation: 5%
Power consumption: max.1400 mA
Protection class: IP65
Electrical connection: Multi-core plug
Electrical connection: M12
Electrical connection: 5-pin
Signal connection (input and output bits)
Signal connection: Multi-pin plug
Signal connection: M12
Signal connection: 5-pin
Actual value output: 4 ... 20 mA
Setpoint input: 4 ... 20 mA
Pressure adjustment range: min.0 bar
Features
Robust poppet valve technology
Very high control accuracy and high dynamics
Suitable for various applications
High air flow
AVENTICS Air manifold, for series ED05 5610141002
ED05-IND-XXX-ASS-1-FACH
Specifications
Structural feature: Valve base plate disassembly strip
Type: 1x
Medium: Compressed air
Weight: 0.573 kg
Material: Housing - Aluminum
AVENTICS E/P Pressure regulating valve, series ED05 5610141300
ED05-000-060-020-2DICA
The AVENTICS ED05 series ensures sensitive pressure control by integrating digital control electronics and innovative proportional valve technology. The robust poppet valve technology, large opening cross-section, and soft-sealed valve group make the valve highly resistant to contamination.
Specifications
Structural feature: Poppet valve
Certificate: CE certification
Minimum operating pressure: 0 bar
Maximum operating pressure: 11 bar
Low ambient temperature: 0 °C
High ambient temperature: 70 °C
Compressed air interface - Inlet: G 1/4
Compressed air interface - Outlet: G 1/4
Compressed air connection - Exhaust: G 1/4
Medium: Compressed air
Nominal flow rate Qn: 1000 l/min
Control mode: Analog
Operating voltage: DC24 V
Hysteresis:
Installation position: α = 0-90°, β = 0-90°
Permissible pulsation: 5%
Protection class: IP65
Electrical connection: Multi-core plug
Electrical connection: ISO 15217, Type C
Signal connection (input and output bits)
Signal connection: Multi-core plug
Signal connection: ISO 15217, Type C
Actual value output: 0 ... 20 mA
Setpoint input: 0 ... 20 mA
Pressure adjustment range: min. 0 bar
Features
Customized on-demand pressure control
Durable poppet valve technology ensures a long service life
Large flow rate, suitable for various tasks
High dynamic direct-acting technology
No wearable pilot valves or diaphragms
Various electrical connection options
AVENTICS E/P pressure regulating valve, Series ED05 R414002004
ED05-000-060-420-1M12A
The AVENTICS ED05 series ensures sensitive pressure control by integrating digital control electronics and innovative proportional valve technology. The durable poppet valve technology, large opening cross-section, and soft-sealed valve group make the valve highly resistant to contamination.
Specifications
Structural feature: Poppet valve
Certificate: CE certification
Minimum operating pressure: 0 bar
Maximum operating pressure: 11 bar
Minimum ambient temperature: 0 °C
Maximum ambient temperature: 70 °C
Compressed air interface - inlet: G 1/4
Compressed air interface - outlet: G 1/4
Compressed air connection - exhaust: G 1/4
Medium: Compressed air
Nominal flow rate: Qn 1000 l/min
Control mode: Analog
Operating voltage: DC24 V
Hysteresis:
Installation position: α = 0-90°, β = 0-90°
Permissible pulsation: 5%
Protection class: IP65
Electrical connection: Through the signal interface
Signal connection (input and output bits)
Signal connection: Multi-core plug
Signal connection: M12
Signal connection: 5-pin
Actual value output: 4 ... 20 mA
Setpoint input: 4 ... 20 mA
Pressure adjustment range: min. 0 bar
Features
Customized on-demand pressure control
Durable poppet valve technology ensures a long service life
Large flow rate, suitable for various tasks
High dynamic direct-acting technology
No wear-prone pilot valves or diaphragms
Various electrical connection options
AVENTICS E/P Pressure Regulating Valve, Series ED05 5610141330
ED05-000-060-010-2DICA
The AVENTICS ED05 series ensures sensitive pressure control by integrating digital control electronics and innovative proportional valve technology. The durable poppet valve technology, large opening cross-section, and soft-sealed valve group make the valve highly resistant to contamination.
Specifications
Structural feature: Poppet valve
Certification: CE certification
Minimum operating pressure: 0 bar
Maximum operating pressure: 11 bar
Minimum ambient temperature: 0 °C
Maximum ambient temperature: 70 °C
Compressed air interface - Inlet: G 1/4
Compressed air interface - Outlet: G 1/4
Compressed air connection - Exhaust: G 1/4
Medium: Compressed air
Rated flow rate Qn: 1000 l/min
Control method: Analog
Operating voltage: DC24 V
Hysteresis:
Installation position: α = 0-90°, β = 0-90°
Permissible pulsation: 5%
Protection class: IP65
Electrical connection: Multi-core plug
Electrical connection: ISO 15217, Type C
Signal connection (input and output bits)
Signal connection: Multi-core plug
Signal connection: ISO 15217, Type C
Actual value output: 0 ... 10 V
Setpoint input: 0 ... 10 V
Pressure adjustment range min.: 0 bar
Features
Customized on-demand pressure control
Durable poppet valve technology ensures a long service life
Large flow rate, suitable for various tasks
High dynamic direct-acting technology
No wear-prone pilot valves or diaphragms
Various electrical connection options
AVENTICS Manual Pressure Regulating Valve R431002823
CONTROLAIR-HD-2-FX-(0-65)
Specifications
Structural feature: Poppet valve
Operating element: Lever
Structural features HD-2-FX
Compressed air interface, inlet: 1/4 NPT
Compressed air interface, outlet: 1/4 NPT
Type: Compressed air interface, outlet internal thread
Minimum operating pressure: 0.1 bar
Maximum operating pressure: 14 bar
Pressure adjustment range, min.: 0.1 bar
Pressure adjustment range, max.: 4.5 bar
Minimum ambient temperature: -40 °C
Maximum ambient temperature: 70 °C
Minimum medium temperature: -40 °C
Maximum medium temperature: 70 °C
Medium: Compressed air
Rated flow Qn: 900 l/min
Hysteresis:
Weight: 2.3 kg
Material: Shell - Aluminum die - casting
Seal material: Acrylic resin
Material of pedal: Aluminum die - casting
AVENTICS Manual pressure regulating valve R431002833
CONTROLAIR - HD - 2 - X - (0 - 125)
Specifications
Structural feature: Poppet valve
Operating element: Lever
Structural features HD - 2 - X
Compressed air interface, inlet: 1/4 NPT
Compressed air interface, outlet: 1/4 NPT
Type: Compressed air interface, outlet internal thread
Minimum operating pressure: 0.1 bar
Maximum operating pressure: 14 bar
Pressure adjustment range, min.: 0.1 bar
Pressure adjustment range, max.: 8.6 bar
Minimum ambient temperature: -40 °C
Maximum ambient temperature: 70 °C
Minimum medium temperature: -40 °C
Maximum medium temperature: 70 °C
Medium: Compressed air
Rated flow Qn: 900 l/min
Hysteresis:
Weight: 2.3 kg
Material: Shell - Aluminum die - casting
Seal material: Acrylic resin
Material of pedal: Aluminum die - casting
AVENTICS 2 - way 3 - position directional control valve, Series A - Pilotair R431005003
PILOTAIR - 2 - HA - 2
Specifications
Operation: Manual
Compressed air interface, outlet: 1/4″
Minimum operating pressure: 0 bar
Maximum operating pressure: 13.7 bar
Manual control device, locking type
Sealing principle: Soft seal
Structural feature: Poppet valve
Type: 2-HA-2
Minimum control pressure: 0 bar
Maximum control pressure: 17.3 bar
Maximum input pressure: 1308.72 bar
Minimum ambient temperature: -40 °C
Maximum ambient temperature: 71 °C
Minimum medium temperature: -40 °C
Maximum medium temperature: 71 °C
Medium: Compressed air
Minimum oil content in compressed air:.,0 mg/m3
Maximum oil content in compressed air: 1 mg/m3
Particle size: max.50 μm
Compressed air interface, inlet: 1/4
Weight: 0.91 kg
Material: Housing - Aluminum die-casting
Features
Qn = 1308.72 l/min
Mechanical or manual operation
AVENTICS 2/3-way directional control valve, Series A-Pilotair R431005733
PILOTAIR-2-HA-3
Specifications
Operation: Manual
Rated flow Qn: 1308.72 l/min
Compressed air interface, outlet: 1/4
Minimum operating pressure: 0 bar
Maximum operating pressure: 13.7 bar
Sealing principle: Soft seal
Structural feature: Poppet valve
Type: 2-HA-3
Minimum control pressure: 0 bar
Maximum control pressure: 17.2 bar
Minimum ambient temperature: -40 °C
Maximum ambient temperature: 71 °C
Minimum medium temperature: -40 °C
Maximum medium temperature: 71 °C
Medium: Compressed air
Minimum oil content in compressed air:.,0 mg/m3
Maximum oil content in compressed air: 1 mg/m3
Particle size: max.50 μm
Compressed air interface, inlet: 1/4
Weight: 1.81 kg
Material: Housing - Aluminum die-casting
Features
Qn = 1308.72 l/min
Mechanical or manual operation
AVENTICS 2/5-way directional control valve, Series CERAM, Size 2 R432002447
CERAM-ISO2-5/2SR-SS-I-L/COIL
Specifications
Electronic operation
Rated flow Qn 2400 l/min
Reversing principle 5/2
Minimum operating pressure 0 bar
Maximum operating pressure 10.3 bar
Operating element Single coil
Sealing principle Ceramic
Pilot Internal
Standard ISO 5599-1
Width of pre-control valve 30 mm CNOMO
Size ISO 2
Base valve with wire box, base valve without coil
Valve connector No valve connector
Connection type Base plate connection
Reset device With air spring reset
Combination principle (locking principle) Single base plate principle
Can be assembled into blocks Can be assembled into blocks
Minimum control pressure 2 bar
Maximum control pressure 10.3 bar
Minimum ambient temperature -15 °C
Maximum ambient temperature 66 °C
Minimum medium temperature -15 °C
Maximum medium temperature 66 °C
Medium Compressed air
Standard, compressed air connection according to ISO 5599-1
Features
Maximum Qn is 1.1 Cv … 7.5 Cv
AVENTICS 2/5-way reversing valve, Series CERAM, Size 1 R432006474
CERAM-ISO1-5/2DS-24VDC-I
Specifications
Electronic operation
Rated flow Qn 1100 l/min
Reversing principle 5/2
Minimum operating pressure 2 bar
Maximum operating pressure 10.3 bar
Operating voltage DC 24 V
Voltage deviation DC -10% / +10%
Manual control device Locking type
Electrical connection Type Multi-core plug
Electrical connection Size EN 175301-803, Type A
Operating element Double coil
Sealing principle Ceramic
Standard ISO 5599-1
Width of pre-control valve 30 mm CNOMO
Size ISO 1
Valve connector No valve connector
Connection type Base plate connection
Combination principle (locking principle) Single base plate principle
Can be assembled into blocks Can be assembled into blocks
Minimum control pressure 2 bar
Maximum control pressure 10.3 bar
Minimum ambient temperature -15 °C
High ambient temperature: 66 °C
Minimum medium temperature: -15 °C
Maximum medium temperature: 66 °C
Features
Max. Qn: 1.1 Cv … 7.5 Cv
Aventics 2/3-way directional control valve, Series 579 5790600220
V579-3/2NC-DA08-024DC-04-RV1
The Aventics Series 490/579/589 features a robust polymer housing and can be installed either individually or modularly. It has a wide voltage range and is connected with quick pneumatic connectors.
Specifications
Operating electronics
Rated flow Qn: 850 l/min
Reversing principle: 3/2
Configuration: NC
Compressed air interface outlet: 8x1
Minimum operating pressure: 2 bar
Maximum operating pressure: 8 bar
Operating voltage: DC24 V
Voltage deviation: DC -10% / +10%
Manual control device: Lockable
Electrical connection type: Multi-core plug
Electrical connection size: ISO 15217, Type C
Sealing principle: Soft seal
Pilot: Internal
Valve structure form: Poppet valve
Connection type: Pipe connection
Reset device: Spring return
Combination principle (locking principle): Intake valve
Can be assembled into blocks: Can be assembled into blocks
Minimum ambient temperature: -15 °C
Maximum ambient temperature: 50 °C
Minimum medium temperature: -15 °C
Maximum medium temperature: 50 °C
Medium: Compressed air
Particle size max.: 5 μm
Features
Integrated connection
Available for individual or modular assembly
Wide voltage range
Series suitable for industrial environments
Main engine ahead starting control solenoid valve 3723522220
Send Inquiry to This Supplier
You May Also Like
-
Italian Duplomatic Gear Pump Gp20113r97f20nUS$ 369.23 - 376.92MOQ: 1 Unit
-
Duplomatic Proportional Enlarged Version Ueik-11/51-24US$ 569.23 - 584.62MOQ: 1 Piece
-
Duplomatic Throttle Valve Ers4m-sb/40US$ 243.08 - 246.15MOQ: 1 Piece
-
Rexroth Four-way Servo Valve 4ws2em10-52/75b11et315k8dvUS$ 3615.38 - 3661.54MOQ: 1 Piece
-
Italian Duplomatic Pressure Reducing Valve Z4m5-i/50US$ 223.08 - 227.69MOQ: 1 Piece
-
Rexroth Hydraulic Proportional Directional Valve R900927235 4wree10v50-23/g24k31/a1vUS$ 1600 - 1630.77MOQ: 1 Piece
-
German Rexroth Electro-hydraulic Directional Control Valve 4weh16g72/6eg24n9k4US$ 553.85 - 561.54MOQ: 1 Piece
-
Rexroth Proportional Flow Valve Amplifier Board Vt-vrpa1-151-12/v0/0US$ 738.46 - 769.23MOQ: 1 Piece
-
Rexroth Four-way Proportional Valve 4wrz25e325-73/6eg24n9ek4/d3mUS$ 2384.62 - 2461.54MOQ: 1 Piece
-
Rexroth Throttle Valve Z2fs16-8-31/sUS$ 476.92 - 492.31MOQ: 1 Piece
