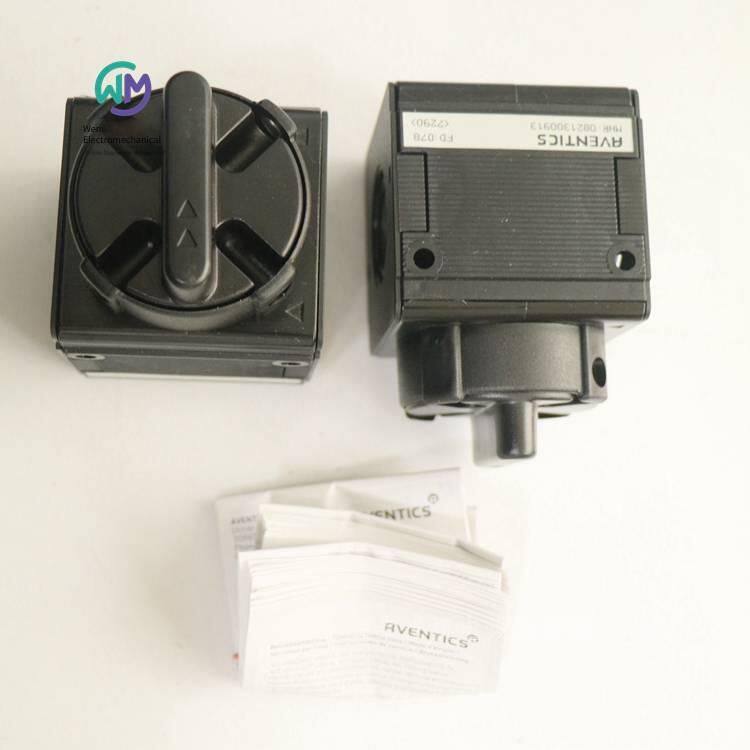

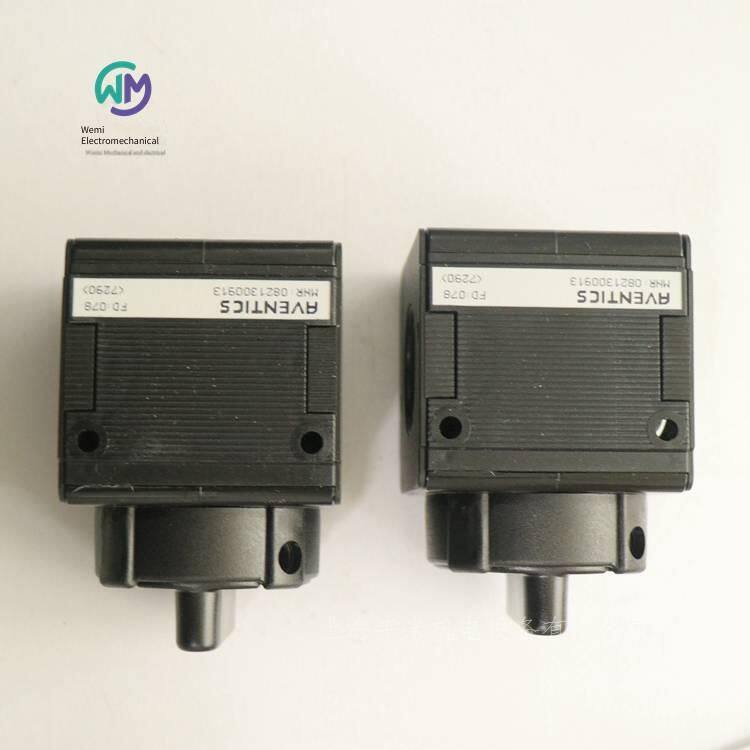

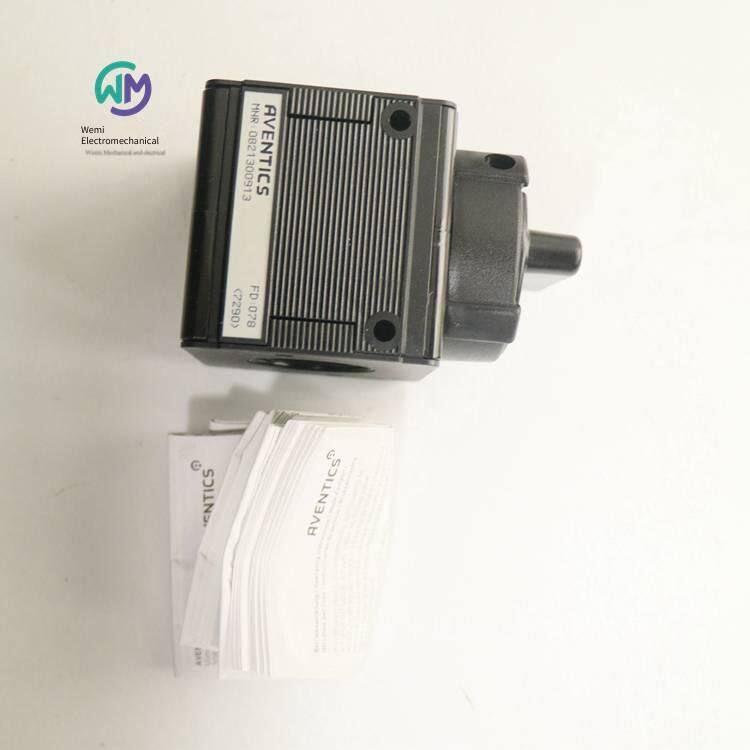

Aventics Air Source Shut - off Valve 0821300913

AVENTICS Air Source Shut-off Valve 0821300913, the main product of Shanghai Weimi Mechanical & Electrical Equipment Co., Ltd. Sales hotline: 13524123009; Contact person: Lei Qing; Product real-shot pictures, original genuine products, in-stock inventory, affordable prices; Warmly welcome new and old customers to consult and purchase!

AVENTICS 2/3-way Shut-off Valve, mechanically operated, Series NL4-BAV 0821300913

NL4-SOV-G034-SOM-MAN-SS

The AVENTICS NL Series Air Treatment Units are suitable for all fields: as individual components or grouped air treatment units for centralized or decentralized compressed air preparation, in compact or heavy-duty versions for high or low temperature environments. This series offers a complete and customizable compressed air preparation technology. It includes the option to combine each component into the product series to achieve the desired functions, and the components can be adjusted according to the application requirements.

Specifications

Operation: Mechanical

Compressed air interface, outlet: G 3/4

Minimum operating pressure: 0 bar

Maximum operating pressure: 16 bar

Operating element: Tubular end

Sealing principle: Metal seal

Certificate: Suitable for ATEX

ATEX: Suitable for ATEX

Structural feature: Ball valve

Version: 3/2

Closing method, closing type: Locking type

Closing method, closing type: For padlock

Minimum ambient temperature: -10 °C

Maximum ambient temperature: 60 °C

Minimum medium temperature: -10 °C

Maximum medium temperature: 60 °C

Medium: Neutral gas, compressed air

Compressed air interface type: Internal thread

Compressed air interface, inlet: G 3/4

Compressed air connection, exhaust: G 1/2

Nominal flow rate Qn 1 direction: 211000 l/min

Nominal flow rate Qn 2 direction: 3110 l/min

Weight: 0.82 kg

Material: Housing - Die-cast zinc

Seal material: Acrylic resin

Features

Easy to assemble

Manual, semi-automatic or fully automatic condensate drainage is available

Transparent reservoir is available

Staggered teeth design, easy to maintain

AVENTICS Filter-Regulator, Series NL4-FRE 0821300382

NL4-FRE-G034-GAU-100-SSS-HO-05,00

The AVENTICS NL series air source treatment unit is suitable for all fields: as a single component or a group of air source treatment units, used for centralized or decentralized compressed air preparation, in compact or robust versions, for high or low temperature environments. This series provides a complete and customizable compressed air preparation technology. It includes the option of combining each component into the product series to achieve the desired function, and the components can be adjusted according to application requirements.

Specifications

Component: Filter - Pressure Regulator

Air cup: Metal container with observation window

Interface: G 3/4

Nominal flow rate Qn: 6900 l/min

Filter pore diameter: 5 μm

Condensate removal: Semi-automatic, opens when pressure is lost

Pressure gauge: With pressure gauge

Minimum operating pressure: 1.5 bar

Maximum operating pressure: 16 bar

Minimum ambient temperature: -10 °C

Maximum ambient temperature: 60 °C

Pressure adjustment range min.: 0.5 bar

Pressure adjustment range max.: 10 bar

Sealing method, sealing type: Non-lockable

Structural feature: One-piece

Structural feature: Can be assembled into blocks

Pressure delivery: Single

Installation position: Vertical

Regulator model: Diaphragm pressure regulator

Adjustment function: With secondary exhaust

Filter element: Replaceable

Volume of the filter's condensate cup: 50 cm3

Maximum compressed air class achievable according to ISO 8573-1:2010 standard: 6 : 7 : -

Medium: Compressed air, neutral gas

Weight: 1.41 kg

Features

Easy to assemble

Provides manual, semi-automatic or fully automatic condensate drainage

Provides transparent liquid reservoir

Staggered teeth type, easy to maintain

AVENTICS Filter - Pressure Regulator, series NL4-FRE 0821300385

NL4-FRE-G034-GAU-100-SSS-AO-05,00

The AVENTICS NL series air source treatment unit is suitable for all fields: as a single component or a group of air source treatment units, used for centralized or decentralized compressed air preparation, in compact or robust versions, for high or low temperature environments. This series provides a complete and customizable compressed air preparation technology. It includes the option of combining each component into the product series to achieve the desired function, and the components can be adjusted according to application requirements.

Specifications

Components: Filter - Pressure Regulator

Air cup: Metal container with an observation window

Interface: G 3/4

Nominal flow rate Qn: 6900 l/min

Filter pore diameter: 5 μm

Automatic condensate removal, opens without pressure

Pressure gauge: Equipped with a pressure gauge

Minimum operating pressure: 1.5 bar

Maximum operating pressure: 16 bar

Minimum ambient temperature: -10 °C

Maximum ambient temperature: 60 °C

Pressure adjustment range min.: 0.5 bar

Pressure adjustment range max.: 10 bar

Sealing method, sealing type: Non-lockable

Structural feature: One-piece

Structural feature: Can be assembled into blocks

Pressure delivery: Single

Installation position: Vertical

Regulator model: Diaphragm pressure regulator

Adjustment function: With secondary exhaust

Filter cartridge: Replaceable

Capacity of the filter's condensate cup: 50 cm3

Maximum compressed air class achievable according to ISO 8573-1:2010 standard: 6 : 7 : -

Medium: Compressed air, neutral gas

Weight: 1.47 kg

Features

Easy to assemble

Manual, semi-automatic or fully automatic condensate drainage is available

Transparent liquid reservoir is provided

Staggered tooth type, easy to maintain

AVENTICS Filter - Pressure Regulator, Series NL4-FRE 0821300237

NL4-FRE-G012-GAU-100-PBS-AO-05,00

The AVENTICS NL series air preparation units are suitable for all fields: as single components or combined air preparation units, for centralized or decentralized compressed air preparation, in compact or heavy-duty versions, for high or low temperature environments. This series offers a complete and customizable compressed air preparation technology. It includes the option to combine each component into the product series to achieve the desired functions, and the components can be adjusted according to application requirements.

Specifications

Components: Filter - Pressure Regulator

Air cup: Container made of PC material, equipped with a protective basket made of metal

Interface: G 1/2

Nominal flow rate Qn: 6900 l/min

Filter pore diameter: 5 μm

Automatic condensate removal, opens without pressure

Pressure gauge: Equipped with a pressure gauge

Minimum operating pressure: 1.5 bar

Maximum operating pressure: 16 bar

Minimum ambient temperature: -10 °C

High ambient temperature: 60 °C

Pressure adjustment range: min. 0.5 bar

Pressure adjustment range: max. 10 bar

Sealing method, sealing type: Standard closed, with electric key

Structural feature: One-piece

Structural feature: Can be assembled into blocks

Pressure delivery: Single

Installation position: Vertical

Regulator model: Diaphragm pressure regulating valve

Adjustment function: With secondary exhaust

Filter element: Replaceable

Capacity of the filter's water collection cup: 50 cm3

According to ISO 8573 - 1:2010 standard, the maximum compressed air grade that can be achieved: 6 : 7 : -

Medium: Compressed air, neutral gas

Weight: 2.17 kg

Features

Easy to assemble

Provide manual, semi - automatic or fully automatic condensate drainage

Provide transparent liquid reservoir

Staggered tooth type, easy to maintain

AVENTICS Filter - Pressure Regulator, Series AS2 - FRE R412006176

AS2 - FRE - G014 - GAN - 080 - PBP - AO - 05,00

The AVENTICS AS2 series is a general - purpose modular and multi - functional air source treatment unit. This series offers compact size, high efficiency, lightness and ease of use. The AVENTICS AS series ensures reliability, safety and efficiency by simplifying assembly and maintenance work.

Specifications

Components: Filter - Pressure Regulator

The air cup is a container made of PC material, equipped with a protective basket made of PA material

Interface: G 1/4

Nominal flow rate Qn: 2100 l/min

Filter pore diameter: 5 μm

Condensate removal: Fully automatic, open without pressure

Pressure gauge: Without pressure gauge

Minimum operating pressure: 1.5 bar

Maximum operating pressure: 16 bar

Low ambient temperature: - 10 °C

High ambient temperature: 50 °C

Pressure adjustment range: min. 0.5 bar

Pressure adjustment range: max. 8 bar

Sealing method, sealing type: For padlock

Structural feature: One - piece

Structural feature: Can be assembled into blocks

Pressure delivery: Single

Installation position: Vertical

Regulator model: Diaphragm pressure regulating valve

Adjustment function: With secondary exhaust

Filter element: Replaceable

Capacity of the filter's water collection cup: 28 cm3

According to ISO 8573 - 1:2010 standard, the maximum compressed air grade that can be achieved: 6 : 7 : -

Medium: Compressed air, neutral gas

Weight: 0.347 kg

Features

The products in this series feature a modular design, allowing different functional modules to be combined as needed.

The compact size saves space.

Reduces energy consumption.

Lightweight.

Easy-to-use design.

Special safety components ensure reliability and safety.

Simplifies assembly and reduces maintenance work.

AVENTICS Filter-Regulator, Series AS2-FRE R412006185

AS2-FRE-G038-GAN-080-PBP-AO-05,00

The AVENTICS AS2 series is a versatile modular multi-functional air source treatment unit. This series offers a compact size, high efficiency, light weight, and easy operation. The AVENTICS AS series ensures reliability, safety, and efficiency by simplifying assembly and maintenance work.

Specifications

Components: Filter-Regulator

The air cup is a container made of PC material, equipped with a protective basket made of PA material.

Interface: G 3/8

Nominal flow rate Qn: 2600 l/min

Filter pore diameter: 5 μm

Automatic condensate removal, opens without pressure.

Pressure gauge: Without pressure gauge

Minimum operating pressure: 1.5 bar

Maximum operating pressure: 16 bar

Minimum ambient temperature: -10 °C

Maximum ambient temperature: 50 °C

Pressure adjustment range min.: 0.5 bar

Pressure adjustment range max.: 8 bar

Closing method, closing type: For padlock

Structural feature: One-piece

Structural feature: Can be assembled into blocks

Pressure delivery: Single

Installation position: Vertical

Regulator model: Diaphragm pressure regulator

Adjustment function: With secondary exhaust

Filter element: Replaceable

Volume of the filter's condensate cup: 28 cm3

According to the ISO 8573-1:2010 standard, the maximum achievable compressed air class is 6 : 7 : -

Medium: Compressed air, neutral gas

Weight: 0.347 kg

Features

The products in this series feature a modular design, allowing different functional modules to be combined as needed.

The compact size saves space.

Reduces energy consumption.

Lightweight.

Easy-to-use design.

Special safety components ensure reliability and safety.

Simplifies assembly and reduces maintenance work.

AVENTICS Filter-Regulator, Series AS2-FRE R412006193

AS2-FRE-G014-GAN-100-PBP-HO-05.00

The AVENTICS AS2 series is a general-purpose modular and multi-functional air source treatment unit. This series offers a compact size, high efficiency, light weight, and easy operation. The AVENTICS AS series ensures reliability, safety, and efficiency by simplifying assembly and maintenance work.

Specifications

Component: Filter-Regulator

The air cup is a container made of PC material, equipped with a protective basket made of PA material.

Interface: G 1/4

Nominal flow rate Qn: 2100 l/min

Filter pore diameter: 5 μm

Condensate removal: Semi-automatic, opens when pressure is lost

Pressure gauge: Without pressure gauge

Minimum operating pressure: 1.5 bar

Maximum operating pressure: 16 bar

Minimum ambient temperature: -10 °C

Maximum ambient temperature: 50 °C

Pressure adjustment range min.: 0.5 bar

Pressure adjustment range max.: 10 bar

Sealing method, sealing type: For padlock

Structural feature: One-piece

Structural feature: Can be assembled into blocks

Pressure delivery: Single

Installation position: Vertical

Regulator model: Diaphragm pressure regulator

Adjustment function: With secondary exhaust

Filter element: Replaceable

Volume of the filter's condensate cup: 28 cm3

Maximum compressed air class achievable according to ISO 8573-1:2010 standard: 6 : 7 : -

Medium: Compressed air, neutral gas

Weight: 0.304 kg

Features

The products in this series are modularly designed and can combine different functional modules as needed.

The compact size saves space.

Reduces energy consumption.

Light weight.

Easy-to-use design.

Special safety components, reliable and safe.

Simplifies assembly and reduces maintenance workload.

AVENTICS Filter-Regulator, Series AS2-FRE R412006201

AS2-FRE-G014-GAU-080-PBP-AO-05,00

The AVENTICS AS2 series is a general-purpose modular and multi-functional air source treatment unit. This series offers a compact size, high efficiency, light weight, and easy operation. The AVENTICS AS series ensures reliability, safety, and efficiency by simplifying assembly and maintenance work.

Specifications

Components: Filter - Pressure Regulator

Air cup: A container made of PC material, equipped with a protective basket made of PA material

Interface: G 1/4

Rated flow rate Qn: 2100 l/min

Filter pore diameter: 5 μm

Condensate removal: Fully automatic, opens without pressure

Pressure gauge: Equipped with a pressure gauge

Minimum operating pressure: 1.5 bar

Maximum operating pressure: 16 bar

Minimum ambient temperature: -10 °C

Maximum ambient temperature: 50 °C

Pressure adjustment range min.: 0.5 bar

Pressure adjustment range max.: 8 bar

Sealing method and type: For padlock

Structural feature: One-piece

Structural feature: Can be assembled into blocks

Pressure delivery: Single

Installation position: Vertical

Regulator model: Diaphragm pressure regulator

Adjustment function: With secondary exhaust

Filter cartridge: Replaceable

Capacity of the filter's condensate cup: 28 cm3

According to ISO 8573 - 1:2010 standard, the maximum achievable compressed air class is 6 : 7 : -

Medium: Compressed air, neutral gas

Weight: 0.437 kg

Features

The products in this series are modularly designed, and different functional modules can be combined as needed.

Compact size saves space.

Reduces energy consumption.

Lightweight.

Easy-to-use design.

Special safety components, reliable and safe.

Simplifies assembly and reduces maintenance workload.

AVENTICS Filter - Pressure Regulator, Series AS2 - FRE R412006202

AS2 - FRE - G014 - GAU - 080 - PBP - AC - 05,00

The AVENTICS AS2 series is a general - purpose modular and multi - functional air source treatment unit. This series offers a compact size, high efficiency, light weight, and easy operation. The AVENTICS AS series ensures reliability, safety, and efficiency by simplifying assembly and maintenance work.

Specifications

Components: Filter - Pressure Regulator

Air cup: A container made of PC material, equipped with a protective basket made of PA material

Interface: G 1/4

Rated flow rate Qn: 2100 l/min

Filter pore diameter: 5 μm

Condensate removal: Fully automatic, closes without pressure

Pressure gauge: Equipped with a pressure gauge

Minimum operating pressure: 1.5 bar

Maximum operating pressure: 16 bar

Low ambient temperature: -10 °C

High ambient temperature: 50 °C

Pressure adjustment range: min. 0.5 bar

Pressure adjustment range: max. 8 bar

Sealing method, sealing type for padlock

Structural feature: an integrated one

Structural feature: can be assembled into blocks

Pressure delivery: single

Installation position: vertical

Regulator model: Diaphragm pressure regulating valve

Adjustment function: with secondary exhaust

Filter element is replaceable

Volume of the filter's water collection cup: 28 cm3

According to ISO 8573-1:2010 standard, the maximum compressed air class that can be achieved is 6 : 7 : -

Medium: Compressed air, neutral gas

Weight: 0.437 kg

Features

The products in this series are modularly designed and can combine different functional modules as needed.

Compact size saves space.

Reduces energy consumption.

Lightweight.

Easy-to-use design.

Special safety components, reliable and safe.

Simplifies assembly and reduces maintenance workload.

AVENTICS Filter - Pressure Regulating Valve, Series AS2-FRE R412006203

AS2-FRE-G038-GAN-100-PBP-HO-05.00

The AVENTICS AS2 series is a general-purpose modular multi-functional air source treatment unit. This series offers compact size, high efficiency, light weight and easy use. The AVENTICS AS series ensures reliability, safety and efficiency by simplifying assembly and maintenance work.

Specifications

Components: Filter - Pressure Regulating Valve

The air cup is a container made of PC material, equipped with a protective basket made of PA material.

Interface: G 3/8

Nominal flow rate Qn: 2600 l/min

Filter pore diameter: 5 μm

Condensate removal: semi-automatic, opens when pressure is lost

Pressure gauge: Without pressure gauge

Minimum operating pressure: 1.5 bar

Maximum operating pressure: 16 bar

Low ambient temperature: -10 °C

High ambient temperature: 50 °C

Pressure adjustment range: min. 0.5 bar

Pressure adjustment range: max. 10 bar

Sealing method, sealing type for padlock

Structural feature: an integrated one

Structural feature: can be assembled into blocks

Pressure delivery: single

Installation position: vertical

Regulator model: Diaphragm pressure regulating valve

Adjustment function with secondary exhaust

The filter element is replaceable

The volume of the filter's water collection cup is 28 cm3

According to the ISO 8573-1:2010 standard, the maximum compressed air class that can be achieved is 6 : 7 : -

Medium: Compressed air, neutral gas

Weight: 0.523 kg

Features

The products in this series are modularly designed and can combine different functional modules as needed

The compact size saves space

Reduce energy consumption

Lightweight

Easy-to-use design

Special safety components, reliable and safe

Simplify assembly and reduce maintenance work

AVENTICS Filter - Pressure Regulator, Series AS2-FRE R412006210

AS2-FRE-G038-GAU-080-PBP-AO-05,00

The AVENTICS AS2 series is a general-purpose modular multi-functional air source treatment unit. This series offers a compact size, high efficiency, light weight, and easy use. The AVENTICS AS series ensures reliability, safety, and efficiency by simplifying assembly and maintenance work.

Specifications

Components: Filter - Pressure Regulator

The air cup is a container made of PC material, equipped with a protective basket made of PA material

Interface: G 3/8

Nominal flow rate Qn: 2600 l/min

Filter pore diameter: 5 μm

Automatic removal of condensate, opens without pressure

Pressure gauge: Equipped with a pressure gauge

Minimum operating pressure: 1.5 bar

Maximum operating pressure: 16 bar

Minimum ambient temperature: -10 °C

Maximum ambient temperature: 50 °C

Pressure adjustment range min.: 0.5 bar

Pressure adjustment range max.: 8 bar

Sealing method, sealing type: For padlock

Structural feature: An integral one

Structural feature: Can be assembled into blocks

Pressure delivery: Single

Installation position: Vertical

Regulator model: Diaphragm pressure regulator

Adjustment function with secondary exhaust

The filter element is replaceable

The volume of the filter's water collection cup is 28 cm3

According to the ISO 8573-1:2010 standard, the maximum compressed air class that can be achieved is 6 : 7 : -

Medium: Compressed air, neutral gas

Weight: 0.437 kg

Features

The products in this series are modularly designed and can combine different functional modules as needed

Compact size saves space

Reduces energy consumption

Lightweight

Easy-to-use design

Dedicated safety components, reliable and safe

Simplifies assembly and reduces maintenance workload

AVENTICS Filter-Regulator, Series AS2-FRE R412006215

AS2-FRE-G038-GAU-080-SSS-HO-05.00

The AVENTICS AS2 series is a versatile modular and multi-functional air supply treatment unit. This series offers a compact size, high efficiency, light weight, and easy operation. The AVENTICS AS series ensures reliability, safety, and efficiency by simplifying assembly and maintenance work.

Specifications

Component: Filter-Regulator

Air cup: Metal container with observation window

Interface: G 3/8

Nominal flow rate Qn: 2600 l/min

Filter pore diameter: 5 μm

Condensate removal: Semi-automatic, opens when pressure is lost

Pressure gauge: With pressure gauge

Minimum operating pressure: 1.5 bar

Maximum operating pressure: 16 bar

Minimum ambient temperature: -10 °C

Maximum ambient temperature: 50 °C

Pressure adjustment range min.: 0.5 bar

Pressure adjustment range max.: 8 bar

Sealing method, sealing type: For padlock

Structural feature: One-piece

Structural feature: Can be assembled into blocks

Pressure delivery: Single

Installation position: Vertical

Regulator model: Diaphragm pressure regulator

Adjustment function: With secondary exhaust

Filter element: Replaceable

Filter sump volume: 28 cm3

Maximum compressed air class achievable according to ISO 8573-1:2010 standard: 6 : 7 : -

Medium: Compressed air, neutral gas

Weight: 0.596 kg

Features

The products in this series are modularly designed and can be combined with different functional modules as needed.

Compact size saves space

Reduces energy consumption

Lightweight

Easy-to-use design

Dedicated safety components, reliable and safe

Simplifies assembly and reduces maintenance workload

AVENTICS Filter-Regulator, Series AS3-FRE R412007176

AS3-FRE-G038-GAN-080-PBP-AO-05.00

The AVENTICS AS3 series is a general-purpose, modular, and multi-functional air source treatment unit. This series offers a compact size, high efficiency, light weight, and easy operation. The AVENTICS AS series ensures reliability, safety, and high efficiency by simplifying assembly and maintenance work.

Specifications

Components: Filter - Pressure Regulator

The air cup is a container made of PC material, equipped with a protective basket made of PA material.

Interface: G 3/8

Nominal flow rate Qn: 5100 l/min

Filter pore diameter: 5 μm

Automatic condensate removal, opens without pressure

Pressure gauge: Without pressure gauge

Minimum operating pressure: 1.5 bar

Maximum operating pressure: 16 bar

Minimum ambient temperature: -10 °C

Maximum ambient temperature: 50 °C

Pressure adjustment range min.: 0.5 bar

Pressure adjustment range max.: 8 bar

Sealing method, sealing type: For padlock

Structural feature: One-piece

Structural feature: Can be assembled into blocks

Pressure delivery: Single

Installation position: Vertical

Regulator model: Diaphragm pressure regulator

Adjustment function: With secondary exhaust

Filter element: Replaceable

Volume of the filter's condensate cup: 49 cm3

According to ISO 8573-1:2010 standard, the maximum compressed air class that can be achieved is 6 : 7 : -

Medium: Compressed air, neutral gas

Weight: 0.635 kg

Features

This modular and multi-functional series of products can integrate various functions.

The compact size saves space.

Reduces energy consumption.

Light weight.

Easy-to-use design.

Special safety components, reliable and safe.

Simplifies assembly and reduces maintenance workload.

AVENTICS Filter - Pressure Regulator, Series AS3-FRE R412007186

AS3-FRE-G012-GAN-080-PBP-AC-05.00

The AVENTICS AS3 series is a general-purpose, modular, and multi-functional air source treatment unit. This series offers a compact size, high efficiency, light weight, and easy operation. The AVENTICS AS series ensures reliability, safety, and high efficiency by simplifying assembly and maintenance work.

Specifications

Components: Filter - Pressure Regulator

The air cup is a container made of PC material, equipped with a protective basket made of PA material.

Interface: G 1/2

Nominal flow rate Qn: 5100 l/min

The pore diameter of the filter is 5 μm

Fully automatic condensate removal, closes without pressure

Pressure gauge: No pressure gauge

Minimum operating pressure: 1.5 bar

Maximum operating pressure: 16 bar

Minimum ambient temperature: -10 °C

Maximum ambient temperature: 50 °C

Pressure adjustment range: min. 0.5 bar

Pressure adjustment range: max. 8 bar

Sealing method, sealing type: For padlock

Structural feature: One-piece

Structural feature: Can be assembled into blocks

Pressure delivery: Single

Installation position: Vertical

Regulator model: Diaphragm pressure regulating valve

Adjustment function: With secondary exhaust

Filter element: Replaceable

The volume of the filter's condensate cup is 49 cm3

According to ISO 8573-1:2010 standard, the maximum compressed air class that can be achieved is 6 : 7 : -

Medium: Compressed air, neutral gas

Weight: 0.635 kg

Features

This modular multi-functional series of products can integrate various functions

Compact size saves space

Reduces energy consumption

Lightweight

Easy-to-use design

Special safety components, reliable and safe

Simplifies assembly and reduces maintenance workload

AVENTICS Filter - Pressure Regulator, Series AS3-FRE R412007197

AS3-FRE-G012-GAN-100-PBP-AO-05.00

The AVENTICS AS3 series is a general-purpose modular multi-functional air source treatment unit. This series offers compact size, high efficiency, light weight, and easy operation. The AVENTICS AS series ensures reliability, safety, and high efficiency by simplifying assembly and maintenance work.

Specifications

Components: Filter - Pressure Regulator

The condensate cup is a container made of PC material, equipped with a protective basket made of PA material

Interface: G 1/2

Nominal flow rate Qn: 5100 l/min

The pore diameter of the filter is 5 μm

Fully automatic condensate removal, opens without pressure

Pressure gauge: No pressure gauge

Minimum operating pressure: 1.5 bar

Maximum operating pressure: 16 bar

Minimum ambient temperature: -10 °C

Maximum ambient temperature: 50 °C

Pressure adjustment range: min. 0.5 bar

Pressure adjustment range: max. 10 bar

Sealing method, sealing type for padlocks

Structural feature: an integrated one

Structural feature: can be assembled into blocks

Single pressure delivery

Installation position: vertical

Regulator model: diaphragm pressure regulating valve

Adjustment function: with secondary exhaust

Filter element is replaceable

Capacity of the filter's water collection cup: 49 cm3

Maximum compressed air class achievable according to ISO 8573-1:2010 standard: 6 : 7 : -

Media: compressed air, neutral gas

Weight: 0.635 kg

Features

This modular multi-functional series of products can integrate various functions

Compact size saves space

Reduces energy consumption

Lightweight

Easy-to-use design

Special safety components, reliable and safe

Simplifies assembly and reduces maintenance workload

AVENTICS Filter - Pressure Regulator, Series AS3-FRE R412007200

AS3-FRE-G038-GAU-080-PBP-HO-05.00

The AVENTICS AS3 series is a general-purpose modular multi-functional air source treatment unit. This series offers compact size, high efficiency, lightness, and easy operation. The AVENTICS AS series ensures reliability, safety, and efficiency by simplifying assembly and maintenance work.

Specifications

Component: Filter - Pressure Regulator

Air cup: a container made of PC material, equipped with a protective basket made of PA material

Interface: G 3/8

Nominal flow rate Qn: 5100 l/min

Filter pore diameter: 5 μm

Removal of condensate: semi-automatic, opens when pressure is lost

Pressure gauge: equipped with a pressure gauge

Minimum operating pressure: 1.5 bar

Maximum operating pressure: 16 bar

Minimum ambient temperature: -10 °C

Maximum ambient temperature: 50 °C

Pressure adjustment range min.: 0.5 bar

Pressure adjustment range max.: 8 bar

Sealing method, sealing type for padlocks

Structural feature: an integrated one

Structural feature: can be assembled into blocks

Single pressure delivery

Installation position: vertical

Regulator model: diaphragm pressure regulating valve

Adjustment function: with secondary exhaust

Filter element is replaceable

Capacity of the filter's water collection cup: 49 cm3

Maximum compressed air class achievable according to ISO 8573-1:2010 standard: 6 : 7 : -

Medium: Compressed air, neutral gas

Weight: 0.658 kg

Features

This modular multi-functional series of products can integrate various functions.

Compact size saves space.

Reduces energy consumption.

Lightweight.

Easy-to-use design.

Dedicated safety components, reliable and safe.

Simplifies assembly and reduces maintenance workload.

AVENTICS Filter-Regulator, Series AS3-FRE R412007209

AS3-FRE-G012-GAU-080-PBP-HO-05.00

The AVENTICS AS3 series is a general-purpose modular multi-functional air source treatment unit. This series offers a compact size, high efficiency, light weight, and easy operation. The AVENTICS AS series ensures reliability, safety, and efficiency by simplifying assembly and maintenance work.

Specifications

Component: Filter-Regulator

The air cup is a container made of PC material, equipped with a protective basket made of PA material.

Interface: G 1/2

Nominal flow rate Qn: 5100 l/min

Filter pore diameter: 5 μm

Condensate removal: Semi-automatic, opens when pressure is lost.

Pressure gauge: With a pressure gauge.

Minimum operating pressure: 1.5 bar

Maximum operating pressure: 16 bar

Minimum ambient temperature: -10 °C

Maximum ambient temperature: 50 °C

Pressure adjustment range min.: 0.5 bar

Pressure adjustment range max.: 8 bar

Sealing method, sealing type: For padlock

Structural feature: One-piece

Structural feature: Can be assembled into blocks

Pressure delivery: Single

Installation position: Vertical

Regulator model: Diaphragm pressure regulator

Adjustment function: With secondary exhaust

Filter element: Replaceable

Volume of the filter's condensate cup: 49 cm3

According to ISO 8573-1:2010 standard, the maximum achievable compressed air class is 6 : 7 : -

Medium: Compressed air, neutral gas

Weight: 0.658 kg

Features

This modular multi-functional series of products can integrate various functions.

Compact size saves space.

Reduces energy consumption.

Lightweight.

Easy-to-use design.

Dedicated safety components, reliable and safe.

Simplifies assembly and reduces maintenance workload.

AVENTICS 2/3-way directional control valve, electrically operated, Series NL4-SOV 0821300932

NL4-SOV-G012-SOE-024-SS

The AVENTICS NL series air preparation units are suitable for all fields: as single components or grouped air preparation units for centralized or decentralized compressed air preparation, in compact or heavy-duty versions, for high or low temperature environments. This series provides a complete and customizable compressed air preparation technology. It includes the option to combine each component into the product series to achieve the desired functions, and the components can be adjusted according to application requirements.

Specifications

Operating electronics

Nominal flow rate Qn 4000 l/min

Compressed air connection G 1/2

Minimum operating pressure 2.5 bar

Maximum operating pressure 10 bar

Operating voltage DC 24 V

Sealing principle Soft seal

Pilot Internal

Connection type Pipe connection

Component 2/3-way directional control valve

Can be assembled into blocks Can be assembled into blocks

Structural feature Poppet valve

Minimum ambient temperature -10 °C

Maximum ambient temperature 60 °C

Medium Compressed air, neutral gas

Particle size max. 5 μm

Compressed air connection Exhaust G 1/2

Nominal flow rate Qn 1 direction 24000 l/min

Nominal flow rate Qn 2 direction 31600 l/min

Power consumption DC 4.8 W

Duty cycle 1

Standardized circuit interface ISO 6952

Protection class with interface IP65

Reverse polarity protection Reverse polarity protection

Electronic interface type 2 Multi-core plug

Features

Easy to assemble

Manual, semi-automatic or fully automatic condensate drainage available

Transparent reservoir available

Staggered teeth, easy to maintain

AVENTICS 2/3-way directional control valve, electrically operated, Series NL4-SOV 0821300937

NL4-SOV-G012-SOE-CON-SS

The AVENTICS NL series air preparation units are suitable for all fields: as single components or grouped air preparation units for centralized or decentralized compressed air preparation, in compact or heavy-duty versions, for high or low temperature environments. This series provides a complete and customizable compressed air preparation technology. It includes the option to combine each component into the product series to achieve the desired functions, and the components can be adjusted according to application requirements.

Specifications

Electronic operation

Nominal flow rate Qn 4000 l/min

Compressed air connection G 1/2

Minimum operating pressure 2.5 bar

Maximum operating pressure 10 bar

Sealing principle: Soft seal

Pilot: Internal

Connection type: Pipe connection

Component: Two-position three-way directional control valve

Can be assembled into blocks. Can be assembled into blocks.

Basic valve with wire box, pilot valve without coil

Structural feature: Poppet valve

Manual control device: Locking type

Minimum ambient temperature -10 °C

Maximum ambient temperature 60 °C

Medium: Compressed air, neutral gas

Particle size max. 5 μm

Compressed air connection, exhaust G 1/2

Nominal flow rate Qn 1 direction 24000 l/min

Nominal flow rate Qn 2 direction 31600 l/min

Duty cycle 1

Protection class with interface IP65

Reverse polarity protection: Reverse polarity protection

Electronic interface model 2 multi-core plug

Electrical connection 2, thread size ISO 6952, Type B

Features

Easy to assemble

Provide manual, semi-automatic or fully automatic condensate drainage

Provide transparent liquid reservoir

Staggered tooth type, easy to maintain

AVENTICS two-position three-way directional control valve, electrically operated, Series AS2-SOV R412006264

AS2-SOV-G014-PVN-DO16

The AVENTICS AS2 series is a general-purpose modular and multi-functional air source treatment unit. This series offers compact size, high efficiency, lightness and ease of use. The AVENTICS AS series ensures reliability, safety and efficiency by simplifying assembly and maintenance work.

Specifications

Electronic operation

Nominal flow rate Qn 2000 l/min

Compressed air connection G 1/4

Minimum operating pressure 2.5 bar

Maximum operating pressure 16 bar

Sealing principle: Soft seal

Connection type: Pipe connection

Component: Two-position three-way directional control valve

Can be assembled into blocks. Can be assembled into blocks.

Basic valve with wire box, base valve without pilot valve

Structural feature: Poppet valve

Minimum ambient temperature -10 °C

Maximum ambient temperature 50 °C

Medium: Compressed air, neutral gas

Particle size: max. 25 μm

Compressed air connection: Exhaust G 1/4

Rated flow Qn 1 direction: 22000 l/min

Rated flow Qn 2 direction: 3380 l/min

Weight: 0.219 kg

Material: Shell - Polyamide

Seal material: Acrylic resin

Material of threaded sleeve: Die - cast zinc

Material of front panel: Acrylonitrile synthetic material

Features

The products in this series are modularly designed and can combine different functional modules as needed.

The compact size saves space.

Reduce energy consumption.

Lightweight.

Easy - to - use design.

Special safety components, reliable and safe.

Simplify assembly and reduce maintenance workload.

AVENTICS? 2/3 - way directional control valve, electrically operated, Series AS2 - SOV R412006265

AS2 - SOV - G014 - 024

The AVENTICS AS2 series is a general - purpose modular and multi - functional air treatment unit. This series offers a compact size, high efficiency, lightness, and ease of use. The AVENTICS AS series ensures reliability, safety, and efficiency by simplifying assembly and maintenance work.

Specifications

Operation: Electronic

Rated flow Qn: 2000 l/min

Compressed air connection: G 1/4

Minimum operating pressure: 2.5 bar

Maximum operating pressure: 10 bar

Operating voltage: DC24 V

Sealing principle: Soft seal

Connection type: Pipe connection

Component: 2/3 - way directional control valve

Can be assembled into blocks Can be assembled into blocks

Basic valve with wire box Basic valve with pilot valve

Structural feature: Poppet valve

Minimum ambient temperature: - 10 °C

Maximum ambient temperature: 50 °C

Medium: Compressed air, neutral gas

Particle size: max. 25 μm

Compressed air connection: Exhaust G 1/4

Rated flow Qn 1 direction: 22000 l/min

Rated flow Qn 2 direction: 3380 l/min

Power consumption: DC2 W

Standardized circuit interface: ISO 15217

Protection class with interface: IP65

Reverse polarity protection: Reverse polarity protection

Electronic interface model: 2 multi - core plug

Electrical connection: 2, Thread size ISO 15217, Type C

Features

The products in this series are modularly designed and can combine different functional modules as needed.

The compact size saves space.

Reduce energy consumption.

Lightweight.

Easy-to-use design.

Special safety components, reliable and safe.

Simplify assembly and reduce maintenance workload.

AVENTICS? 2/3-way directional control valve, electrically operated, series AS2-SOV R412006268

AS2-SOV-G038-PVN-DO16

The AVENTICS AS2 series is a general-purpose modular multi-functional air source treatment unit. This series offers a compact size, high efficiency, light weight, and easy operation. The AVENTICS AS series ensures reliability, safety, and efficiency by simplifying assembly and maintenance work.

Specifications

Operating electronics

Nominal flow rate Qn 2000 l/min

Compressed air connection G 3/8

Minimum operating pressure 2.5 bar

Maximum operating pressure 16 bar

Sealing principle Soft seal

Connection type Pipe connection

Component 2/3-way directional control valve

Can be assembled into blocks Can be assembled into blocks

Base valve with wire box Base valve without pilot valve

Structural feature Poppet valve

Minimum ambient temperature -10 °C

Maximum ambient temperature 50 °C

Medium Compressed air, neutral gas

Particle size max. 25 μm

Compressed air connection Exhaust G 1/4

Nominal flow rate Qn 1 direction 2000 l/min

Nominal flow rate Qn 2 direction 380 l/min

Weight 0.219 kg

Material: Housing Polyamide

Seal material Acrylic resin

Material Threaded sleeve Die-cast zinc

Material Front panel Acrylonitrile synthetic material

Features

The products in this series are modularly designed and can combine different functional modules as needed.

The compact size saves space.

Reduce energy consumption.

Lightweight.

Easy-to-use design.

Special safety components, reliable and safe.

Simplify assembly and reduce maintenance workload.

AVENTICS air source shut-off valve 0821300913
