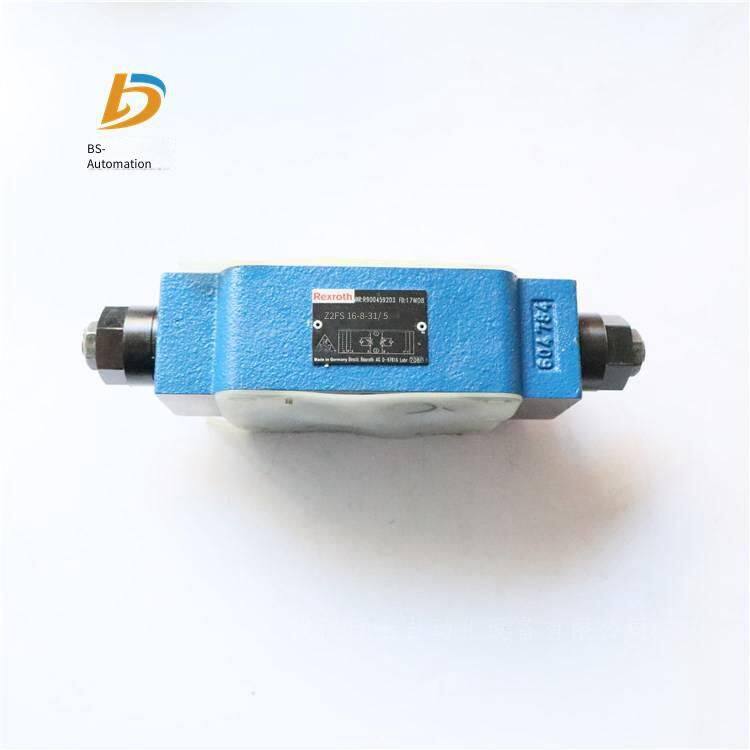

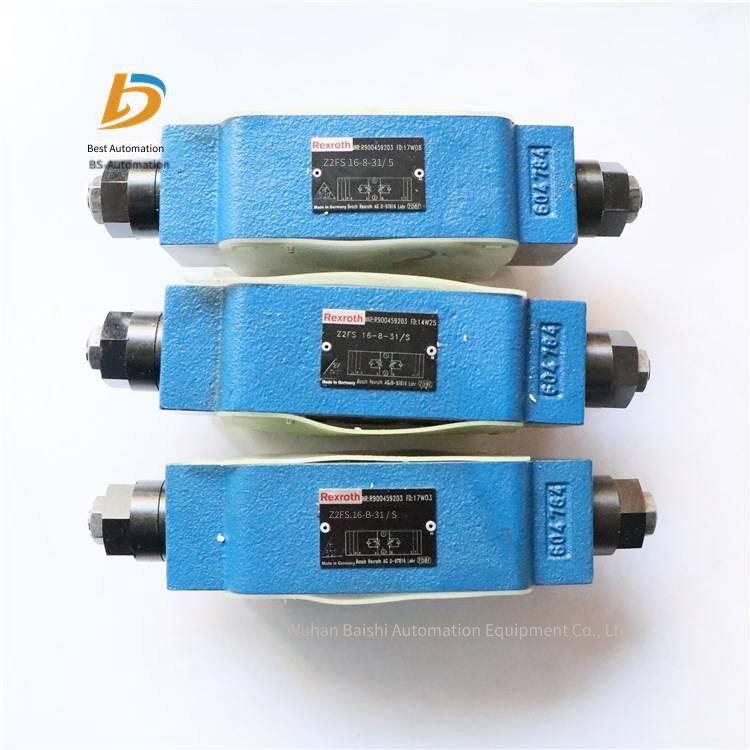

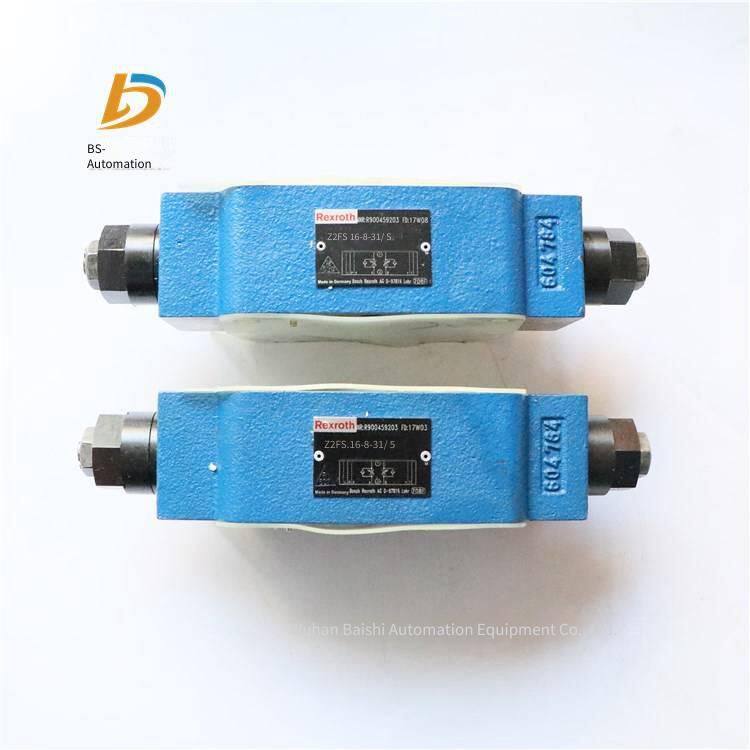

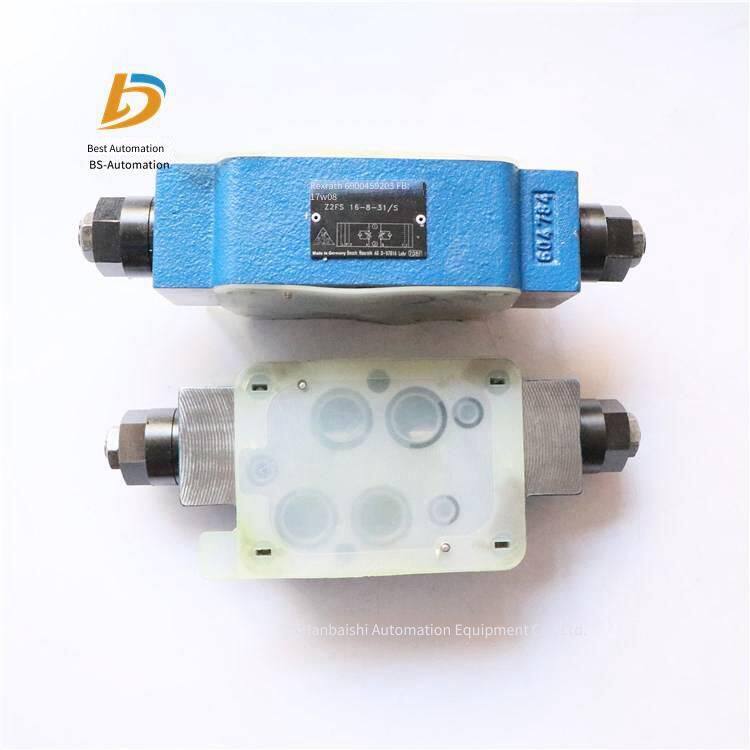

Rexroth throttle valve Z2FS16-8-31/S, the main product of Shanghai Weimi Mechanical & Electrical Equipment Co., Ltd. Sales hotline: 13524123009; Contact person: Lei Qing; Product real-shot pictures, original genuine products, in-stock inventory, affordable prices; We sincerely welcome new and old customers to consult and purchase!
Rexroth REXROTH one-way throttle valve
Z2FS16
Specification 16
Component series 3X
Maximum working pressure 350 bar
Maximum flow rate 250 l/min
Stack valve
The oil port mounting surface complies with ISO 4401-07-07-0-05
Limit the flow rate of 2 actuator ports
Adjustment method: The adjustment rod has an internal hexagonal hole
Throttle for oil inlet or return
The Z2FS16 valve is a one-way throttle valve with a stack valve plate design. It is used to limit the flow rate of one or two actuator ports.
Two symmetrically arranged one-way throttle valves can limit the flow rate in one direction (through the adjustable throttle spool) while allowing free backflow in the opposite direction.
If it is throttle for oil supply, the hydraulic oil will pass through the throttle point and be introduced into the actuator A2 through the channel A1. The throttle spool can be axially adjusted through the main shaft, thus allowing the adjustment of the throttle point.
At the same time, the hydraulic oil in the channel A1 is introduced to the piston side through the hole.
The active pressure and spring force keep the throttle spool in the throttle position.
The hydraulic oil flowing back from the actuator B2 moves the throttle spool, allowing the hydraulic oil to flow unobstructed through the one-way valve. Depending on the model ("S" or "S2"), the throttling effect may occur in the oil supply or discharge.
Flow rate limitation
To adjust the speed of the actuator, a one-way throttle valve should be installed between the directional valve and the base plate.
Order numbers and models of German Rexroth REXROTH throttle valves:
R900459203 Z2FS16-8-31/S
R900457256 Z2FS16-8-31/S2
Rexroth throttle valve Z2FS16-8-31/S
