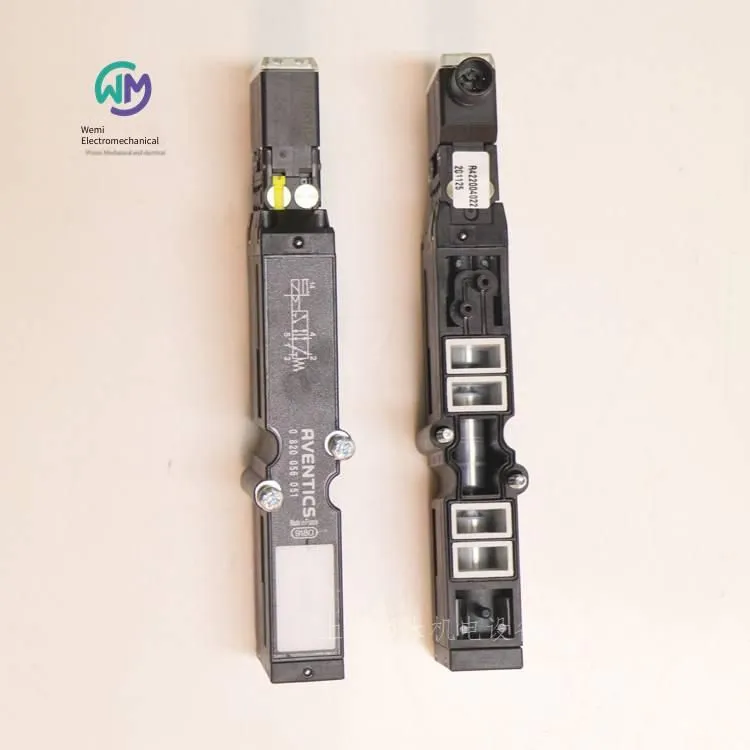

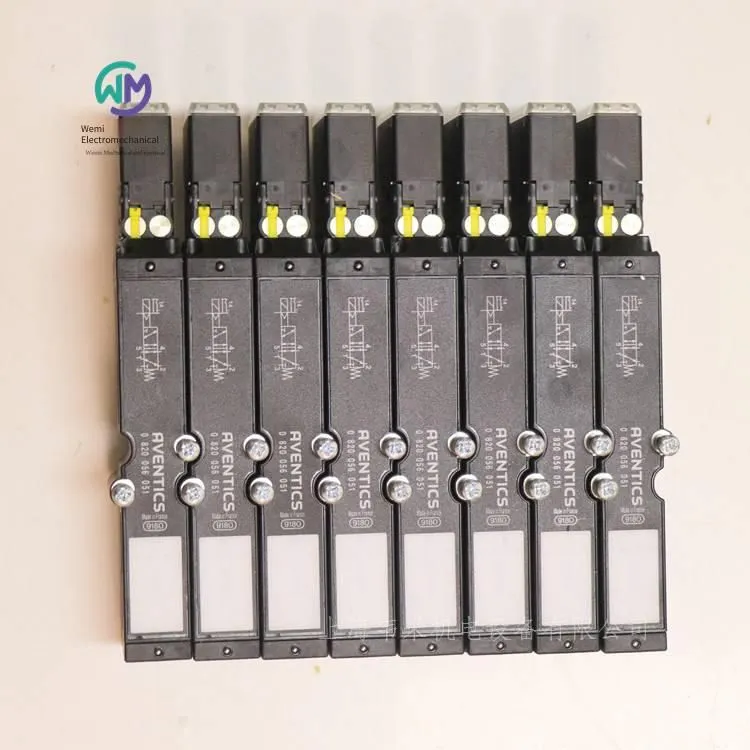

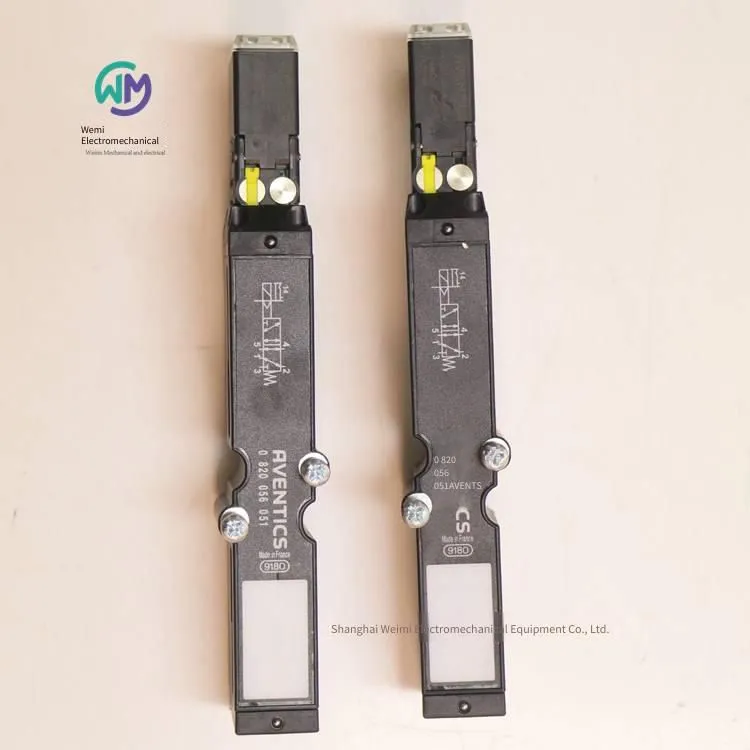

Aventics Valve Island Solenoid Valve 0820056051

AVENTICS Valve Island Solenoid Valve 0820056051, the main product of Shanghai Weimi Mechanical & Electrical Equipment Co., Ltd. Sales hotline: 13524123009; Contact person: Lei Qing; Product real-shot pictures, original genuine products, in-stock inventory, affordable prices; Warmly welcome new and old customers to consult and purchase!

AVENTICS 2/5-way directional control valve, Series HF02-LG 0820056051

HF02-5/2SR-024DC

The AVENTICS HF02-LG series belongs to a general and flexible valve group valve island system, with a variety of electric control schemes and pneumatic functions, enriching the product range of general valve systems, and its flow rate is up to 1400 l/min.

Specifications

Operating electronics

Nominal flow rate Qn 1400 l/min

Reversing principle 5/2

 Minimum operating pressure -0.9 bar

 Maximum operating pressure 10 bar

Operating voltage DC24 V

Voltage deviation DC -15% / +20%

Manual control device Locking type

Operating element Single coil

Sealing principle Soft seal

Pilot External, internal

Certificate of compliance UR (Underwriters Laboratories)

Width of pilot valve 16 mm

Valve structure type Spool valve, positive overlap

Connection type Base plate connection

Reset device Spring return

Combination principle (locking principle) Single base plate principle

Can be assembled into blocks Can be assembled into blocks

Control pressure Minimum 2.5 bar

 Maximum control pressure 10 bar

 Minimum ambient temperature 0 °C

 Maximum ambient temperature 50 °C

Medium temperature Minimum value 0 °C

Medium temperature Maximum value 50 °C

Medium Compressed air

Features

Modular design, can contain up to 32 valves and 32 coils

Flow rate up to 1400 l/min

Pilot valve of 0.35 W per coil

Plastic base plate reduces weight

Direct installation on the profile of the combination system

Multipol or fieldbus connection for strong connectivity

AVENTICS 2/3-way directional control valve, Series CD07-5772080220

Operating element Single coil

Reset type Spring return

Reversing principle 3/2

Structural features Spool valve, positive overlap

Housing Die-cast zinc, polyamide (nylon) reinforced with glass fiber

Seal material Acrylic resin

Standardized circuit interface EN 175301-803:2006

Protection class IP65

Number of cores 3-pin

Interface size EN 175301-803, Type A

Type Multi-core plug

Qn 1-2 1400 l/min

Qn 2-3 1400 l/min

Nominal flow rate Qn 1400 l/min

Compressed air Interface Inlet G 1/4

Compressed air Interface Outlet G 1/4

Operating voltage DC 24 V

Operation Electronic

Temperature resistance - 25 °C Low temperature resistance

Structural features  Spool valve, positive overlap

Operation  Electronic

Sealing principle  Soft seal

Control pressure Min./Max.  3 ... 10 bar

Medium  Compressed air

Particle size max.  50 μm

Oil content in compressed air  0 ... 1 mg/m3

Nominal flow rate Qn  1400 l/min

Nominal flow rate 1-2  1400 l/min

Nominal flow rate 2-3  1400 l/min

Compressed air connection  Complies with ISO 228-1 standard

Pilot exhaust, with directional pilot exhaust port

Standardized circuit interface, EN 175301-803:2006

Reverse polarity protection

Compatibility catalog, 13 14

Duty cycle, 100 %

Do not exceed the minimum control pressure, otherwise it will cause faulty circuits and possible valve failures!

The pressure must be at least 15 °C lower than the ambient and medium temperature, and the maximum allowable temperature is 3 °C.

The oil content of the compressed air must remain constant throughout the service life.

ATEX option: ATEX variants can be established by combining base valves without ATEX coils. ATEX marking: See the ATEX coil catalog table.

Optional valve: The input and output compressed air interfaces are interchangeable. This allows the valve to be used in either a normally closed or normally open operating mode.

AVENTICS 2/3-way directional valve, Series CD07-5772075302

Operating element: Single coil

Reset type: Spring return

Reversing principle: 3/2

Structural features: Spool valve, positive overlap

Housing: Die-cast zinc, polyamide (nylon) reinforced with glass fiber

Seal material: Acrylic resin

Standardized circuit interface: EN 175301-803:2006

Number of cores: 3-pin

Interface size: EN 175301-803, Type A

Type: Multi-core plug

Qn 1-2: 1400 l/min

Qn 2-3: 1400 l/min

Nominal flow rate Qn: 1400 l/min

Compressed air interface, inlet: G 1/4

Compressed air interface, outlet: G 1/4

Operation: Electronic

Temperature resistance: - 25 °C low temperature resistance

Structural features: Spool valve, positive overlap

Operation: Electronic

Sealing principle: Soft seal

Control pressure: Small/Large 3 ... 10 bar

Medium temperature range: See table

Medium: Compressed air

Particle size max.: 50 μm

Oil content in compressed air: 0 ... 1 mg/m3

Rated flow Qn: 1400 l/min

Rated flow 1-2: 1400 l/min

Rated flow 2-3: 1400 l/min

Compressed air connection: Complies with ISO 228-1 standard

Pilot exhaust: With directional pilot exhaust port

Standardized circuit interface: EN 175301-803:2006

Reverse polarity protection: Reverse polarity protection

Compatibility catalog: 13 14

Duty cycle: 100 %

Do not exceed the minimum control pressure, otherwise it will cause a faulty circuit and possible valve failure!

The pressure must be at least 15 °C lower than the ambient and medium temperature, and the allowable maximum temperature is 3 °C.

The oil content of the compressed air must remain constant throughout the service life.

ATEX optional: ATEX variants can be established by combining the base valve without an ATEX coil. ATEX mark: See the ATEX coil catalog table.

Optional valve: The input and output compressed air interfaces can be interchanged. This allows the valve to be used in either normally closed or normally open operation modes.

AVENTICS 2/5-way directional control valve, Series CD07-5776080220

Operating element: Single coil

Reset type: Spring return

Reversing principle: 5/2

Structural features: Spool valve, positive overlap

Housing: Die-cast zinc, polyamide (nylon) reinforced with glass fiber

Sealing material: Acrylic resin

Standardized circuit interface: EN 175301-803:2006

Protection level: IP65

Number of cores: 3-pin

Interface size: EN 175301-803, Type A

Type: Multi-core plug

Qn 1-2: 1200 l/min

Qn 2-3: 1200 l/min

Rated flow Qn: 1200 l/min

Compressed air interface (inlet): G 1/4

Compressed air interface (outlet): G 1/4

Operating voltage: DC 24 V

Operation: Electronic

Structural features: Spool valve, positive overlap

Operation: Electronic

Sealing principle: Soft seal

Control pressure (min/max): 3 ... 10 bar

Medium: Compressed air

Particle size (max.): 50 μm

Oil content in compressed air: 0 ... 1 mg/m3

Rated flow Qn: 1200 l/min

Rated flow 1-2: 1200 l/min

Rated flow 2-3: 1200 l/min

Compressed air connection: Complies with ISO 228-1 standard

Pilot exhaust: With directional pilot exhaust port

Standardized circuit interface: EN 175301-803:2006

Reverse polarity protection: Reverse polarity protection

Duty cycle: 100 %

Assembly on multi-circuit wiring board: P-wiring board, PRS-wiring board

Do not exceed the minimum control pressure, otherwise it will cause a faulty circuit and possible valve failure!

The pressure must be at least 15 °C lower than the ambient and medium temperature, and the allowable maximum temperature is 3 °C.

The oil content of the compressed air must remain constant throughout its service life.

AVENTICS 2/5-way directional control valve, Series CD07-5776270220

Operating element: Double coil

Reversing principle: 5/2

Structural features: Spool valve, positive overlap

Housing: Die-cast zinc, polyamide (nylon) reinforced with glass fiber

Seal material: Acrylic resin

Standardized circuit interface: EN 175301-803:2006

Protection class: IP65

Number of cores: 3-pin

Interface size: EN 175301-803, Type A

Type: Multi-core plug

Qn 1-2: 1200 l/min

Qn 2-3: 1200 l/min

Rated flow Qn: 1200 l/min

Compressed air interface - Inlet: G 1/4

Compressed air interface - Outlet: G 1/4

Operating voltage: DC 24 V

Operation: Electronic

Temperature resistance: -25 °C low temperature resistance

Structural features: Spool valve, positive overlap

Operation: Electronic

Sealing principle: Soft seal

Control pressure - Min/Max: 2 ... 10 bar

Min/Max ambient temperature: -25 ... 50 °C

Medium temperature range: -25 ... 50 °C

Medium: Compressed air

Particle size max.: 50 μm

Oil content in compressed air: 0 ... 1 mg/m3

Nominal flow rate Qn  1200 l/min

Nominal flow rate 1-2  1200 l/min

Nominal flow rate 2-3  1200 l/min

Compressed air connection  Complies with ISO 228-1 standard

Pilot exhaust  With directional pilot exhaust port

Standardized circuit interface  EN 175301-803:2006

Reverse polarity protection  Reverse polarity protection

Compatibility catalog  13 14

Duty cycle  100 %

Assembly on multi-circuit terminal board  P-terminal board PRS-terminal board

Do not exceed the minimum control pressure, otherwise it will cause faulty circuits and possible valve failures!

The pressure dew point must be at least 15 °C lower than the ambient and medium temperature, and the maximum allowable temperature is 3 °C.

The oil content of the compressed air must remain constant throughout the service life.

AVENTICS 2/5-way directional control valve, Series CD04-5777050220

Operating element Single coil

Reset type With air spring reset

Reversing principle 5/2

Structural features Spool valve, positive overlap

Housing Die-cast zinc, polyamide (nylon) reinforced with glass fiber

Seal material Acrylic rubber

Standardized circuit interface EN 175301-803:2006

Protection class IP65

Number of cores 3-pin

Interface size EN 175301-803, Type B

Type Multi-core plug

Qn 1-2 900 l/min

Qn 2-3 900 l/min

Nominal flow rate Qn 900 l/min

Compressed air Interface Inlet G 1/8

Compressed air interface outlet: G 1/8

Operating voltage: DC 24 V

Operation: Electronic

Structural features: Spool valve, positive overlap

Operation: Electronic

Sealing principle: Soft seal

Control pressure (min/max): 3 ... 10 bar

Low/high ambient temperature: -15 ... 50 °C

Medium temperature range: -15 ... 50 °C

Medium: Compressed air

Particle size max.: 50 μm

Oil content in compressed air: 0 ... 1 mg/m3

Nominal flow rate Qn: 900 l/min

Nominal flow rate 1-2: 900 l/min

Nominal flow rate 2-3: 900 l/min

Compressed air connection: Complies with ISO 228-1 standard

Pilot exhaust: With directional pilot exhaust port

Standardized circuit interface: EN 175301-803:2006

Protection class with interface: IP65

Compatibility catalog: 14

Duty cycle: 100 %

Assembly on multi-circuit terminal board: P-terminal board

Do not exceed the minimum control pressure, otherwise it will cause faulty circuits and possible valve failures!

The pressure must be at least 15 °C lower than the ambient and medium temperatures, and the maximum allowable temperature is 3 °C.

The oil content of the compressed air must remain constant throughout the service life.

AVENTICS 2/5-way directional control valve, Series HF03-LG-0820055051

Operating element: Single coil

Reset type: With spring return

Reversing principle: 5/2

Structural features: Spool valve, positive overlap

Housing: Polyamide (Nylon) with reinforced glass fiber

Seal material: Acrylic resin

 UR (Underwriters Laboratories)

Protection class: IP65

Nominal flow rate Qn: 850 l/min

Operating voltage: DC 24 V

For series: HF03-LG, CL03

Operation: Electronic

Structural features: Spool valve, positive overlap

Operation: Electronic

Pilot: External

Sealing principle: Soft seal

Combination principle (locking principle): Single base plate principle

Certificate: UR (Underwriters Laboratories)

Working pressure range: -0,9 ... 10 bar

Control pressure (min/max): 2,5 ... 10 bar

Low / high ambient temperature: 0 ... 50 °C

Medium temperature range: 0 ... 50 °C

Medium: Compressed air

Particle size max.: 5 μm

Oil content in compressed air: 0 ... 5 mg/m3

Nominal flow rate Qn: 850 l/min

Pilot exhaust: With centralized pilot exhaust

Protection class with interface: IP65

Protection circuit: Z-diode

Reverse polarity protection: Reverse polarity protection

LED status display: Yellow

Duty cycle: 100 %

Fixing bolts: Cross recessed DIN EN ISO 4757-Z1

Minimum tightening torque for bolts: 1,3 Nm

Weight  0.082 kg

The pilot type (internal or external) is not reflected inside the valve, but on the end plate of the valve island.

This pilot valve is certified by UL (Underwriters Laboratories).

Do not exceed the minimum control pressure, otherwise it will cause a faulty circuit and possible valve failure!

The pressure must be at least 15 °C lower than the ambient and medium temperature, and the allowable maximum temperature is 3 °C.

The oil content of the compressed air must remain constant throughout its service life.

AVENTICS Filter - Pressure Regulator, Series NL4-FRE-0821300350

Components: Filter - Pressure Regulator

Condensate removal: Semi-automatic, opens when pressure is lost

Secondary discharge: With secondary exhaust

Filter pore diameter: 5 μm

Pressure gauge: With pressure gauge

Shell: Die-cast zinc

Air cup: Polycarbonate

Seal material: Acrylic resin

 Suitable for ATEX

Nominal flow rate Qn: 6900 l/min

Compressed air connection: G 1/2

Structural features: One-piece, can be assembled into blocks

Components: Filter - Pressure Regulator

Installation position: Vertical

Certificate: Suitable for ATEX

Operating pressure range: 1.5 ... 16 bar

Minimum / maximum ambient temperature: -10 ... 60 °C

Medium temperature range: -10 ... 60 °C

Medium: Compressed air, neutral gas

Nominal flow rate Qn: 6900 l/min

Regulator model: Diaphragm pressure regulator

Adjustment function: With secondary exhaust

Adjustment range (min/max): 0.5 ... 10 bar

Pressure delivery  Simple

Capacity of the filter's water collection cup  50 cm3

Filter element  Replaceable

The pressure must be at least 15 °C lower than the ambient and medium temperature, and the allowable maximum temperature is 3 °C.

Close the pressure gauge interface at the rear of the pressure regulating valve with a sealing plug, and leave the front open. Sealing plugs can be additionally provided according to customer applications. Please order separately (see the attachment).

Suitable for use in Ex zones 1, 2, 21, 22

Please note: Containers made of polycarbonate are susceptible to solvent corrosion.

The change in the flow direction (from air supply on the left to air supply on the right) is done by a device rotating 180° on the vertical axis. For detailed information, please refer to the operation manual.

Due to the structural principle, it is also suitable for the separation of liquid oil or water.

AVENTICS three-position five-way directional control valve, Series CD07-5777770220

Operating element Double coil

Reset type Spring return

Reversing principle 5/3

Structural features Spool valve, positive overlap

Housing Die-cast zinc, polyamide (nylon) reinforced with glass fiber

Seal material Acrylic rubber

Standardized circuit interface EN 175301-803:2006

Protection class IP65

Number of cores 3-pin

Interface size EN 175301-803, Type A

Type Multi-core plug

Qn 1-2 1070 l/min

Qn 2-3 950 l/min

Nominal flow rate Qn 900 l/min

Compressed air Inlet port G 1/4

Compressed air Outlet port G 1/4

Operating voltage DC 24 V

Operation Electronic

Temperature resistance - 25 °C Low temperature resistance

Structural features: Spool valve, positive overlap

Operation: Electronic

Sealing principle: Soft seal

Control pressure: Small/Large 3 ... 10 bar

Medium: Compressed air

Particle size max.: 50 μm

Oil content in compressed air: 0 ... 1 mg/m3

Nominal flow rate Qn: 900 l/min

Compressed air connection: Complies with ISO 228-1 standard

Pilot exhaust: With directional pilot exhaust port

Standardized circuit interface: EN 175301-803:2006

Reverse polarity protection: Reverse polarity protection

Compatibility catalog: 13 14

Duty cycle: 100 %

ATEX option: ATEX variants can be established by combining base valves without ATEX coils. ATEX mark: Refer to the ATEX coil catalog table.

Assembly on multi-circuit wiring boards: P-wiring board, PRS-wiring board

Do not exceed the minimum control pressure, otherwise it will cause faulty circuits and possible valve failures!

The pressure must be at least 15 °C lower than the ambient and medium temperatures, and the maximum allowable temperature is 3 °C.

The oil content of the compressed air must remain constant throughout its service life.

0820056051 Rexroth pneumatic component 0820056051 is one of the key products supplied by Shanghai Weimi Mechanical & Electrical Equipment Co., Ltd. It has price advantages, short lead times, and fast delivery; we guarantee that the products are genuine original products from the factory, provide high-quality supply, and you can buy with confidence. Our company specializes in the operation of imported hydraulic and pneumatic spare parts and automation instruments; the main products include: hydraulic accessories, pneumatic components, piston pumps, gear pumps, vane pumps, solenoid valves, throttle valves, proportional valves, relief valves, directional control valves, flow valves; servo drives, servo modules, servo motors, probes, sensors, cables, power modules, encoders, proximity switches, etc. Products of regular models are available in stock. We sincerely welcome new and old customers to call for consultation and procurement!

0820056051 Rexroth pneumatic component 0820056051

Advantages of pneumatics

1. The pneumatic device has a simple and lightweight structure, and is easy to install and maintain. The medium is air, which is less flammable than hydraulic media, so it is safe to use.

2. The working medium is air, which is inexhaustible and free. The exhaust treatment is simple, non - polluting to the environment, and the cost is low.

3. It is very easy to adjust the output force and working speed. The action speed of the cylinder is generally less than 1M/S, which is faster than that of hydraulic and electrical methods.

4. It has high reliability and long service life. The effective action times of electrical components are about one million times, while the service life of general solenoid valves is more than 30 million times, and some valves with good quality exceed 200 million times.

5. By utilizing the compressibility of air, energy can be stored to achieve centralized air supply. Energy can be released in a short time to obtain a high - speed response in intermittent motion. Buffering can be realized. It has a strong adaptability to impact loads and overloads. Under certain conditions, the pneumatic device can have self - holding ability.

6. The all - pneumatic control has the ability to prevent fire, explosion, and moisture. Compared with the hydraulic method, the pneumatic method can be used in high - temperature occasions.

7. Compressed air can be supplied centrally and transported over long distances.

Rexroth Pneumatic Products (Rexroth Piston Rod Cylinders, Rexroth Rodless Cylinders, Rexroth Rotary Cylinders, Rexroth Cylinder Accessories, Rexroth Solenoid Valves, Rexroth Pneumatic Valves, Rexroth Flow Valves, Rexroth Throttle Valves, Rexroth Directional Control Valves, Rexroth Pressure Valves, etc.) Product Introduction A professional company dealing with Bosch - Rexroth pneumatic and hydraulic products. The company has a large number of in - stock goods. All the goods are imported from Hong Kong in their original packaging, with guaranteed quality and preferential prices! Welcome to inquire by letter or phone. Request a quotation! Please contact our company for information on Rexroth bearings of various models and Rexroth pneumatic and hydraulic products. We are dedicated to serving you!

Bosch - Rexroth Main Products:

Rexroth Pneumatic Products (Rexroth Piston Rod Cylinders, Rexroth Rodless Cylinders, Rexroth Rotary Cylinders, Rexroth Cylinder Accessories, Rexroth Solenoid Valves, Rexroth Pneumatic Valves, Rexroth Flow Valves, Rexroth Throttle Valves, Rexroth Directional Control Valves, Rexroth Pressure Valves, etc.).

    Shanghai Weimi Mechanical & Electrical Equipment Co., Ltd. is located in Jinqiao Yuzhou International, Pudong New Area, Shanghai. It is a trading company engaged in the business of imported hydraulic and pneumatic spare parts and automation instruments; focusing on the field of industrial transmission automation fluids in China. The main products include solenoid valves, piston pumps, CNC modules, servo motors, programmable controllers, sensors, pneumatic components, industrial instruments, etc. The operating brands include: Bosch Rexroth, ATOS, DUPLOMATIC, Bently, Parker, EATON VICKERS, B&R, Siemens low - voltage, Airtec pneumatic and other imported brands.

Product guarantee:

  1. Quality issues: Guaranteed by the original brand manufacturer, ensuring that the products are genuine and original.

  2. Delivery time issues: The product delivery time is short, ensuring on-time delivery (the in-stock part can be shipped on the same day).

  3. After-sales issues: Implemented in accordance with the standards of the brand's manufacturer, ensuring after-sales service.

  4. Safety issues: Shanghai Weimi Mechanical & Electrical Equipment Co., Ltd. has the qualification of a general taxpayer in Shanghai (search for the online query of the general taxpayer qualification in Shanghai). All products are issued with a 17% VAT invoice. For first-time cooperation customers: Before placing an order, qualification certificates and scanned copies of recently issued sales invoices can be provided for query.

Ordering process:

  1. The customer confirms the model of the product to be purchased and sends an inquiry form by fax to 021 - 51334670 or calls 021 - 61116913, 13296124913. Contact Lei Qing via QQ: 2896079243.

  2. We will query the price and delivery time according to the model in the inquiry form and prepare a detailed and formal quotation.

  3. After the customer receives the quotation and confirms that the model is correct, place an order for the product.

  4. The person in charge of the quotation prepares a sales contract according to the model and quantity provided by the customer.

  5. After the customer receives the contract, reviews and agrees, stamps and returns it, and remits the money to the company's bank account according to the sales amount in the contract.

  6. After our company's finance department confirms the receipt of the money, the salesperson arranges for the shipment (order) and notifies the customer to track the waybill.

The company adheres to the concept of "Reputation and Service First", and warmly welcomes new and old customers to call for inquiries, conduct on-site inspections, and negotiate business!

    Most domestic and foreign air source treatment units adopt a modular block structure, which is not only compact in size but also convenient for combination and maintenance.

    The positioning accuracy of the actuating elements has been improved, the stiffness has increased, the piston rod does not rotate, and it is more convenient to use. In order to improve the positioning accuracy of cylinders, cylinders with braking mechanisms and servo systems are becoming more and more popular. Cylinders with servo systems can still achieve a positioning accuracy of ±0.1mm even when the air supply pressure and the load change.

At international exhibitions, there are many cylinders with special-shaped cross - section cylinders and piston rods. Since the piston rod of this type of cylinder does not rotate, it can maintain a certain accuracy without additional guiding devices when applied to the main machine. In addition, many cylinders with various guiding mechanisms and cylinder sliding assemblies have been developed, such as cylinders with two guiding rods and double - piston - rod double - cylinder cylinders.

The shape of the cylinder barrel is no longer limited to circular, but also square, cross - shaped or other shapes. Guide grooves, installation grooves for sensors and switches are opened on the profiles, making it more convenient for users to install and use.

As a manufacturer of gearboxes and hydraulic systems, Rexroth, a transmission and control expert, provides system solutions for wind turbine manufacturers.

Bosch Rexroth is a globally leading expert in transmission and control technology. With rich experience in the fields of transmission, control, and mobile machinery, Bosch Rexroth provides customized solutions for more than 500,000 customers in over 80 countries around the world. It is a leader in the global industrial and factory automation, mobile machinery applications, and renewable energy application markets.

In 2008, Bosch Rexroth's global sales reached nearly 5.9 billion euros, and it had more than 35,300 professional employees.

Since 1978, Bosch Rexroth has started its business in China and established factories in Shanghai, Beijing, Changzhou, and Shenzhen.

  Classification of hydraulic components

　　Power components: Gear pumps, vane pumps, piston pumps, screw pumps;

　　Actuating components: Hydraulic cylinders, piston hydraulic cylinders, plunger hydraulic cylinders, swing hydraulic cylinders, combined hydraulic cylinders;

　　Hydraulic motors: Gear hydraulic motors, vane hydraulic motors, piston hydraulic motors;

　　Control components: Directional control valves, check valves, reversing valves;

　　Pressure control valves: Relief valves, pressure reducing valves, sequence valves, pressure relays, etc.;

　　Flow control valves: Throttle valves, speed control valves, flow dividing valves;

Authorized agent for selling BOSCH-REXROTH hydraulic components: Electronic units, pressure switches, pressure relays, hydraulic motors, gear pumps, pressure reducing valves, reversing valves, vane pumps, solenoid variable pumps, pilot-operated pressure reducing valves, piston pumps, solenoid valves, stacking valves, relief valves, proportional valves...

Rexroth 0820061471 Three-position five-way reversing valve, Series TC08

Rexroth 0820061423 Three-position five-way reversing valve, Series TC08

Rexroth 0820061422 Three-position five-way reversing valve, Series TC08

Rexroth R422100633 Three-position five-way reversing valve, Series TC08

Rexroth 0820061451 Three-position five-way reversing valve, Series TC08

Rexroth R422100627 Three-position five-way reversing valve, Series TC08

Rexroth 0820061401 Three-position five-way reversing valve, Series TC08

Rexroth R422100629 Three-position five-way reversing valve, Series TC08

Rexroth 0820061471 Three-position five-way directional control valve, Series TC08

Rexroth 0820061453 Three-position five-way directional control valve, Series TC08

Rexroth 0820061463 Three-position five-way directional control valve, Series TC08

Rexroth 0820061462 Three-position five-way directional control valve, Series TC08

Rexroth 0820061401 Three-position five-way directional control valve, Series TC08

Rexroth 0820061412 Three-position five-way directional control valve, Series TC08

Rexroth 0820061422 Three-position five-way directional control valve, Series TC08

Rexroth 0820061411 Three-position five-way directional control valve, Series TC08

Rexroth 0820061473 Three-position five-way directional control valve, Series TC08

Rexroth 0820061421 Three-position five-way directional control valve, Series TC08

Rexroth R422100633 Three-position five-way directional control valve, Series TC08

Rexroth 0820061411 Three-position five-way directional control valve, Series TC08

Rexroth R422100625 Three-position five-way directional control valve, Series TC08

Rexroth 0820061421 Three-position five-way directional control valve, Series TC08

Rexroth 0820061452 Three-position five-way directional control valve, Series TC08

Rexroth 0820061452 Three-position five-way directional control valve, Series TC08

Rexroth 0820061451 Three-position five-way directional control valve, Series TC08

Rexroth 0820061472 Three-position five-way directional control valve, Series TC08

Rexroth R422100627 Three-position five-way directional control valve, Series TC08

Rexroth 0820061461 Three-position five-way directional control valve, Series TC08

Rexroth R422100631 Three-position five-way directional control valve, Series TC08

Rexroth 0820061463 Three-position five-way directional control valve, Series TC08

Rexroth 0820061453 Three-position five-way directional control valve, Series TC08

Rexroth R422100635 Three-position five-way directional control valve, Series TC08

Rexroth 0820061402 Three-position five-way directional control valve, Series TC08

Rexroth 0820061423 Three-position five-way directional control valve, Series TC08

Rexroth 0820061462 Three-position five-way directional control valve, Series TC08

Rexroth 0820061403 Three-position five-way directional control valve, Series TC08

Rexroth R422100625 Three-position five-way directional control valve, Series TC08

Rexroth R422100635 Three-position five-way directional control valve, Series TC08

Rexroth 0820061413 Three-position five-way directional control valve, Series TC08

Rexroth 0820061412 Three-position five-way directional control valve, Series TC08

Rexroth 0820061402 Three-position five-way directional control valve, Series TC08

Rexroth R422100629 Three-position five-way directional control valve, Series TC08

Rexroth 0820061473 Three-position five-way directional control valve, Series TC08

Rexroth 0820061413 Three-position five-way directional control valve, Series TC08

Rexroth R422100631 Three-position five-way directional control valve, Series TC08

Rexroth 0820061472 Three-position five-way directional control valve, Series TC08

Rexroth 0820061461 Three-position five-way directional control valve, Series TC08

Rexroth R422100626 Three-position five-way directional control valve, Series TC08

Rexroth 0820061418 Three-position five-way directional control valve, Series TC08

Rexroth 0820061477 Three-position five-way directional control valve, Series TC08

Rexroth 0820061426 Three-position five-way directional control valve, Series TC08

Rexroth R422100634 Three-position five-way directional control valve, Series TC08

Rexroth 0820061428 Three-position five-way directional control valve, Series TC08

Rexroth 0820061466 Three-position five-way directional control valve, Series TC08

Rexroth 0820061476 Three-position five-way directional control valve, Series TC08

Rexroth 0820061457 Three-position five-way directional control valve, Series TC08

Rexroth 0820061427 Three-position five-way directional control valve, Series TC08

Rexroth 0820061456 Three-position five-way directional control valve, Series TC08

Rexroth 0820061416 Three-position five-way directional control valve, Series TC08

Rexroth 0820061407 Three-position five-way directional control valve, Series TC08

Rexroth 0820061456 Three-position five-way directional control valve, Series TC08

Rexroth R422100636 Three-position five-way directional control valve, Series TC08

Rexroth 0820061467 Three-position five-way directional control valve, Series TC08

Rexroth R422100632 Three-position five-way directional control valve, Series TC08

Rexroth R422100626 Three-position five-way directional control valve, Series TC08

Rexroth 0820061468 Three-position five-way directional control valve, Series TC08

Rexroth 0820061478 Three-position five-way directional control valve, Series TC08

Rexroth 0820061408 Three-position five-way directional control valve, Series TC08

Rexroth 0820061406 Three-position five-way directional control valve, Series TC08

0820056051 Rexroth pneumatic components 0820056051

    Multi-functionalization and compounding. To facilitate users and meet market needs, various small pneumatic systems composed of multiple pneumatic components and equipped with control devices have been developed. For example, a component for moving small items is formed by combining two cylinders with guides along the X-axis and Z-axis respectively. This component can move a 3kg heavy object, is equipped with a solenoid valve and a programmer, has a compact structure, occupies a small space, and the stroke can be adjusted. Another example is a loading and unloading module, which has seven different functional module forms and can complete the loading and unloading operations on a precision assembly line. Different modules can be arbitrarily combined according to the operation content. There is also a manipulator which is a combination of a swing cylinder with a small shape and a variable swing angle and a gripper. There are several types of grippers available for the gripper part.

Combined with electronic technology, a large number of sensors are used, and pneumatic components are intelligentized. Cylinders with switches are commonly used in China. The switches will be smaller in size and higher in performance, and can be embedded in the cylinder body; some also have two-color display, which can show the position error and make the system more reliable. Using sensors to replace flow meters and pressure gauges can automatically control the flow and pressure of compressed air, which can save energy and ensure the normal operation of the using device. Pneumatic servo positioning systems have products on the market. This system uses a three-position five-way pneumatic servo valve to compare the pre-determined positioning target with the detection data of the position sensor and implement negative feedback control. When the cylinder speed reaches 2m/s and the stroke is 300mm, the system positioning accuracy is ±0.1mm. Japan has successfully developed a new type of intelligent solenoid valve. This valve is equipped with a logic circuit with a sensor and is a product of the combination of pneumatic components and optoelectronic technology. It can directly receive the signals from the sensors. When the signals meet the specified conditions, it can complete the action by itself without passing through an external controller to achieve the control purpose. It has been applied on the conveyor belt of objects and can identify the size of the transported objects, allowing large items to be sent directly and small items to be diverted.

Higher safety and reliability. From the international standards of pneumatic technology in recent years, it can be seen that the standards not only put forward requirements for interchangeability but also emphasize safety.

0820056051 Rexroth pneumatic components 0820056051

Rexroth 0820061417 Three-position five-way directional valve, series TC08

Rexroth 0820061407 Three-position five-way directional valve, series TC08

Rexroth 0820061458 Three-position five-way directional valve, series TC08

Rexroth 0820061426 Three-position five-way directional valve, series TC08

Rexroth 0820061467 Three-position five-way directional valve, series TC08

Rexroth R422100630 Three-position five-way directional valve, series TC08

Rexroth 0820061417 Three-position five-way directional valve, series TC08

Rexroth R422100632 Three-position five-way directional valve, series TC08

Rexroth 0820061476 Three-position five-way directional valve, series TC08

Rexroth R422100636 Three-position five-way directional valve, series TC08

Rexroth 0820061418 Three-position five-way directional valve, series TC08

Rexroth R422100634 Three-position five-way directional valve, series TC08

Rexroth 0820061478 Three-position five-way directional valve, series TC08

Rexroth 0820061457 Three-position five-way directional valve, series TC08

Rexroth 0820061477 Three-position five-way directional valve, series TC08

Rexroth 0820061458 Three-position five-way directional valve, series TC08

Rexroth 0820061427 Three-position five-way directional valve, series TC08

Rexroth R422100626 Three-position five-way directional valve, series TC08

Rexroth R422100628 Three-position five-way directional valve, series TC08

Rexroth 0820061416 Three-position five-way directional valve, series TC08

Rexroth 0820061428 Three-position five-way directional valve, series TC08

Rexroth R422100630 Three-position five-way directional valve, series TC08

Rexroth R422100628 Three-position five-way directional control valve, Series TC08

Rexroth 0820061406 Three-position five-way directional control valve, Series TC08

Rexroth 0820061466 Three-position five-way directional control valve, Series TC08

Rexroth 0820061468 Three-position five-way directional control valve, Series TC08

Rexroth 0820061408 Three-position five-way directional control valve, Series TC08

Rexroth 0820060413 Two-position five-way directional control valve, Series TC08

Rexroth R422100615 Two-position five-way directional control valve, Series TC08

Rexroth 0820060412 Two-position five-way directional control valve, Series TC08

Rexroth 0820060471 Two-position five-way directional control valve, Series TC08

Rexroth 0820060461 Two-position five-way directional control valve, Series TC08

Rexroth 0820060423 Two-position five-way directional control valve, Series TC08

Rexroth 0820060402 Two-position five-way directional control valve, Series TC08

Rexroth 0820060422 Two-position five-way directional control valve, Series TC08

Rexroth R422100615 Two-position five-way directional control valve, Series TC08

Rexroth R422100619 Two-position five-way directional control valve, Series TC08

Rexroth 0820060411 Two-position five-way directional control valve, Series TC08

Rexroth 0820060402 Two-position five-way directional control valve, Series TC08

Rexroth 0820060403 Two-position five-way directional control valve, Series TC08

Rexroth 0820060463 Two-position five-way directional control valve, Series TC08

Rexroth 0820060453 Two-position five-way directional control valve, Series TC08

Rexroth R422100619 Two-position five-way directional control valve, Series TC08

Rexroth R422100621 Two-position five-way directional control valve, Series TC08

Rexroth 0820060412 Two-position five-way directional control valve, Series TC08

Rexroth R422100623 Two-position five-way directional control valve, Series TC08

Rexroth 0820060423 Two-position five-way directional control valve, Series TC08

Rexroth 0820060453 Two-position five-way directional control valve, Series TC08

Rexroth 0820060471 Two-position five-way directional control valve, Series TC08

Rexroth R422100617 Two-position five-way directional control valve, Series TC08

Rexroth 0820060401 Two-position five-way directional control valve, Series TC08

Rexroth 0820060463 Two-position five-way directional control valve, Series TC08

Rexroth R422100615 Two-position five-way directional control valve, Series TC08

Rexroth 0820060452 Two-position five-way directional control valve, Series TC08

Rexroth 0820060472 Two-position five-way directional control valve, Series TC08

Rexroth 0820060473 Two-position five-way directional control valve, Series TC08

Rexroth 0820060411 Two-position five-way directional control valve, Series TC08

Rexroth 0820060421 Two-position five-way directional control valve, Series TC08

Rexroth R422100621 Two-position five-way directional control valve, Series TC08

Rexroth R422100613 Two-position five-way directional control valve, Series TC08

Rexroth 0820060413 Two-position five-way directional control valve, Series TC08

Rexroth 0820060473 Two-position five-way directional control valve, Series TC08

Rexroth 0820060461 Two-position five-way directional control valve, Series TC08

Rexroth 0820060401 Two-position five-way directional control valve, Series TC08

Rexroth R422100623 Two-position five-way directional control valve, Series TC08

Rexroth 0820060403 Two-position five-way directional control valve, Series TC08

Rexroth 0820060462 Two-position five-way directional control valve, Series TC08

Rexroth 0820060462 Two-position five-way directional control valve, Series TC08

Rexroth 0820060472 Two-position five-way directional control valve, Series TC08

Rexroth 0820060421 Two-position five-way directional control valve, Series TC08

Rexroth 0820060413 Two-position five-way directional control valve, Series TC08

Rexroth 0820060422 Two-position five-way directional control valve, Series TC08

Rexroth 0820060451 Two-position five-way directional control valve, Series TC08

Rexroth R422100617 Two-position five-way directional control valve, Series TC08

Rexroth 0820060452 Two-position five-way directional control valve, Series TC08

Rexroth R422100613 Two-position five-way directional control valve, Series TC08

Rexroth 0820060416 Two-position five-way directional control valve, Series TC08

Rexroth 0820060457 Two-position five-way directional control valve, Series TC08

Rexroth 0820060416 Two-position five-way directional control valve, Series TC08

Rexroth R422100618 Two-position five-way directional control valve, Series TC08

Rexroth 0820060417 Two-position five-way directional control valve, Series TC08

Rexroth 0820060426 Two-position five-way directional control valve, Series TC08

Rexroth 0820060456 Two-position five-way directional control valve, Series TC08

Rexroth R422100614 Two-position five-way directional control valve, Series TC08

Rexroth R422100618 Two-position five-way directional control valve, Series TC08

Rexroth 0820060408 Two-position five-way directional control valve, Series TC08

Rexroth 0820060478 Two-position five-way directional control valve, Series TC08

Rexroth 0820060417 Two-position five-way directional control valve, Series TC08

Rexroth 0820060477 Two-position five-way directional control valve, Series TC08

Rexroth 0820060428 Two-position five-way directional control valve, Series TC08

Rexroth R422100620 Two-position five-way directional control valve, Series TC08

Rexroth 0820060428 Two-position five-way directional control valve, Series TC08

Rexroth 0820060427 Two-position five-way directional control valve, Series TC08

Rexroth R422100620 Two-position five-way directional control valve, Series TC08

Rexroth R422100624 2-position 5-way directional control valve, Series TC08

Rexroth R422100624 2-position 5-way directional control valve, Series TC08

Rexroth 0820060468 2-position 5-way directional control valve, Series TC08

Rexroth 0820060456 2-position 5-way directional control valve, Series TC08

Rexroth 0820060418 2-position 5-way directional control valve, Series TC08

Rexroth 0820060478 2-position 5-way directional control valve, Series TC08

Rexroth R422100614 2-position 5-way directional control valve, Series TC08

Rexroth 0820060407 2-position 5-way directional control valve, Series TC08

Rexroth 0820060458 2-position 5-way directional control valve, Series TC08

Rexroth 0820060467 2-position 5-way directional control valve, Series TC08

Rexroth 0820060466 2-position 5-way directional control valve, Series TC08

Rexroth 0820060406 2-position 5-way directional control valve, Series TC08

Rexroth R422100622 2-position 5-way directional control valve, Series TC08

Rexroth R422100616 2-position 5-way directional control valve, Series TC08

Rexroth 0820060418 2-position 5-way directional control valve, Series TC08

Rexroth 0820060406 2-position 5-way directional control valve, Series TC08

Rexroth 0820060427 2-position 5-way directional control valve, Series TC08

Rexroth 0820060466 2-position 5-way directional control valve, Series TC08

Rexroth 0820060407 2-position 5-way directional control valve, Series TC08

Rexroth 0820060408 2-position 5-way directional control valve, Series TC08

Rexroth R422100616 2-position 5-way directional control valve, Series TC08

Rexroth 0820060426 2-position 5-way directional control valve, Series TC08

Rexroth 0820060467 2-position 5-way directional control valve, Series TC08

Rexroth 0820060476 2-position 5-way directional control valve, Series TC08

Rexroth 0820060477 Two-position five-way directional control valve, Series TC08

Rexroth R422100622 Two-position five-way directional control valve, Series TC08

Rexroth 0820060457 Two-position five-way directional control valve, Series TC08

Rexroth 0820061022 Three-position five-way directional control valve, Series TC08

Rexroth 0820061052 Three-position five-way directional control valve, Series TC08

Rexroth 0820061062 Three-position five-way directional control valve, Series TC08

Rexroth 0820061023 Three-position five-way directional control valve, Series TC08

Rexroth 0820061013 Three-position five-way directional control valve, Series TC08

Rexroth 0820061063 Three-position five-way directional control valve, Series TC08

Rexroth 0820061022 Three-position five-way directional control valve, Series TC08

Rexroth 0820061011 Three-position five-way directional control valve, Series TC08

Rexroth 0820061061 Three-position five-way directional control valve, Series TC08

Rexroth 0820061012 Three-position five-way directional control valve, Series TC08

Rexroth 0820061022 Three-position five-way directional control valve, Series TC08

Rexroth 0820061023 Three-position five-way directional control valve, Series TC08

Rexroth 0820061072 Three-position five-way directional control valve, Series TC08

Rexroth R422000102 Three-position five-way directional control valve, Series TC08

Rexroth 0820061073 Three-position five-way directional control valve, Series TC08

Rexroth 0820061053 Three-position five-way directional control valve, Series TC08

Rexroth 0820061011 Three-position five-way directional control valve, Series TC08

Rexroth R422000098 Three-position five-way directional control valve, Series TC08

Rexroth 0820061021 Three-position five-way directional control valve, Series TC08

Rexroth 0820061072 Three-position five-way directional control valve, Series TC08

Rexroth 0820061021 Three-position five-way directional control valve, Series TC08

Rexroth 0820061003 Three-position five-way directional control valve, Series TC08

Rexroth 0820061063 Three-position five-way directional control valve, Series TC08

Rexroth 0820061071 Three-position five-way directional control valve, Series TC08

Rexroth 0820061062 Three-position five-way directional control valve, Series TC08

Rexroth 0820061013 Three-position five-way directional control valve, Series TC08

Rexroth 0820061071 Three-position five-way directional control valve, Series TC08

Rexroth 0820061073 Three-position five-way directional control valve, Series TC08

Rexroth 0820061051 Three-position five-way directional control valve, Series TC08

Rexroth R422000102 Three-position five-way directional control valve, Series TC08

Rexroth 0820061061 Three-position five-way directional control valve, Series TC08

Rexroth 0820061002 Three-position five-way directional control valve, Series TC08

Rexroth 0820061053 Three-position five-way directional control valve, Series TC08

Rexroth 0820061012 Three-position five-way directional control valve, Series TC08

Rexroth R422000100 Three-position five-way directional control valve, Series TC08

Rexroth R422000098 Three-position five-way directional control valve, Series TC08

Rexroth 0820061002 Three-position five-way directional control valve, Series TC08

Rexroth 0820061052 Three-position five-way directional control valve, Series TC08

Rexroth 0820061003 Three-position five-way directional control valve, Series TC08

Rexroth 0820061001 Three-position five-way directional control valve, Series TC08

Rexroth 0820061051 Three-position five-way directional control valve, Series TC08

Rexroth 0820061001 Three-position five-way directional control valve, Series TC08

Rexroth R422000099 Three-position five-way directional control valve, Series TC08

Rexroth 0820061122 Three-position five-way directional control valve, Series TC08

Rexroth 0820061112 Three-position five-way directional control valve, Series TC08

Rexroth 0820061151 3-position 5-way directional control valve, Series TC08

Rexroth R422000103 3-position 5-way directional control valve, Series TC08

Rexroth 0820061163 3-position 5-way directional control valve, Series TC08

Rexroth 0820061162 3-position 5-way directional control valve, Series TC08

Rexroth 0820061153 3-position 5-way directional control valve, Series TC08

Rexroth 0820061102 3-position 5-way directional control valve, Series TC08

Rexroth 0820061113 3-position 5-way directional control valve, Series TC08

Rexroth 0820061173 3-position 5-way directional control valve, Series TC08

Rexroth R422000101 3-position 5-way directional control valve, Series TC08

Rexroth 0820061113 3-position 5-way directional control valve, Series TC08

Rexroth 0820061101 3-position 5-way directional control valve, Series TC08

0820056051 Rexroth pneumatic component 0820056051

0820056051 Rexroth pneumatic component 0820056051
