AVENTICS Precision Oil Mist Lubricator 0821301411, the main product of Shanghai Weimi Mechanical & Electrical Equipment Co., Ltd. Sales hotline: 13524123009; Contact person: Lei Qing; Real product photos, genuine products from the original factory, in-stock inventory, affordable prices. We sincerely welcome new and old customers to consult and purchase!

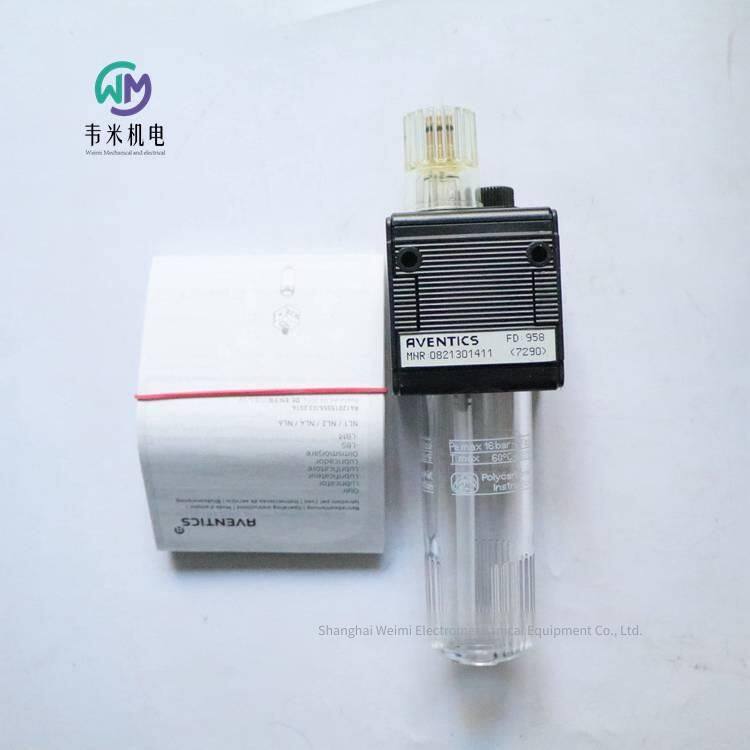

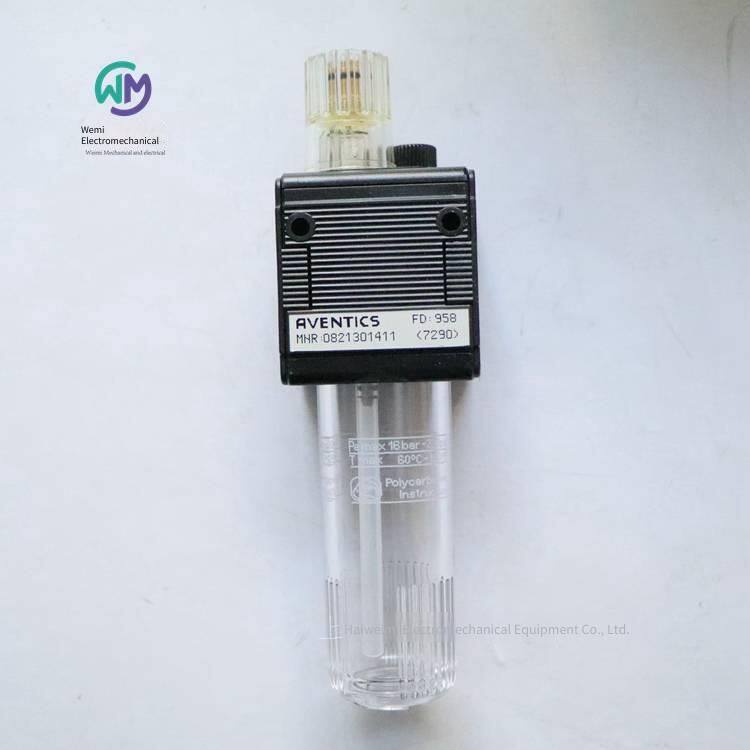

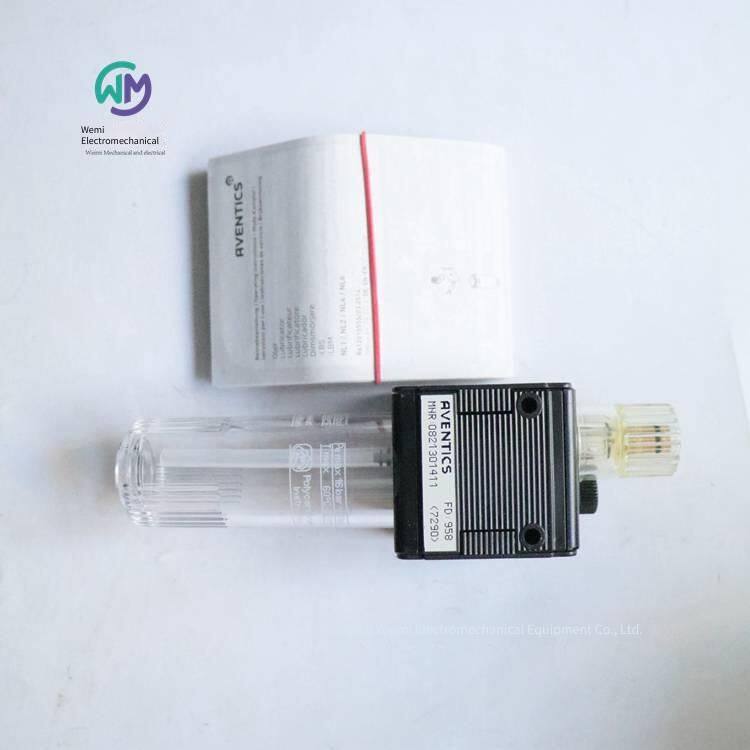

AVENTICS Precision Oil Mist Lubricator, Series NL2 - LBM 0821301411
NL2-LBM-G014-PNB-ON
The AVENTICS NL series air treatment units are suitable for all fields: as single components or assembled air treatment units, for centralized or decentralized compressed air preparation, and for high or low temperature environments. This series provides a complete and customizable compressed air preparation technology. It includes the option to combine each component into the product series to achieve the required functions, and the components can be precisely adjusted according to application requirements.
Specifications
Component: Precision Oil Mist Lubricator
Compressed air connection: G 1/4
Nominal flow rate Qn: 1300 l/min
Installation position: Vertical
Minimum operating pressure: 0.5 bar
Maximum operating pressure: 16 bar
Minimum ambient temperature: -10 °C
Maximum ambient temperature: 60 °C
Minimum medium temperature: -10 °C
Maximum medium temperature: 60 °C
Medium: Compressed air, neutral gas
Certificate: Suitable for ATEX
ATEX: Suitable for ATEX
Oil filling method: Manual oil filling
Volume of the oil mist lubricator's collection cup: 50 cm3
Gas cup: Container made of PC material, without a protective basket
Oil filling speed: 10 - 20 drops per minute at 1000 liters per minute
Function: Precision Oil Mist Lubricator
Function: Can be assembled into blocks
Material: Housing - Die-cast zinc
Material of the front panel: Acrylonitrile synthetic material
Material of the seals: Acrylic resin
Material of the gas cup: Polycarbonate
Features
Easy to assemble
Provide manual, semi-automatic or fully automatic condensate drainage
Provide transparent reservoirs
Staggered teeth design, easy to maintain
AVENTICS Pneumatic Components:
Cylinders and drive devices: Standard cylinders, micro cylinders, round cylinders, compact cylinders, short-stroke cylinders and thin cylinders, profile cylinders, tie-rod cylinders, cylinder valve units, rodless cylinders, guided cylinders, double-piston cylinders, rotary drive devices, bellows cylinders, cylinders with distance measuring sensors, diaphragm cylinders, cylinder accessories, cylinder mounting parts (bolts, flange mounting parts, foot mounting parts, U-shaped mounting parts, rear eyelets, bearing brackets, nuts for cylinder mounting parts, rocking plug fixing devices, intermediate flanges), piston rod connectors (flexible coupling connectors, U-shaped joints, universal heads, piston rod extensions, special nuts for piston rods), modular sealing systems, locking units (clamping units), guiding units, industrial buffers, handling connection assemblies, magnetic proximity sensors, displacement measuring sensors.
Valves and valve systems: Single valves, mechanical valves, pneumatic valves, electronic valves, solenoid valves, two-position two-way directional control valves, two-position three-way directional control valves, two-position four-way directional control valves, two-position five-way directional control valves, three-position five-way directional control valves, valve islands, fieldbuses, electrical connection technologies (circular plugs, valve connectors, multi-pole plugs, cable junction boxes, bridge connectors), standard valves and valve systems, pressure regulating valves, manual pressure regulating valves, screw-in pressure regulating valves, precision pressure regulating valves, precision filter pressure regulating valves, relief valves, safety valves, flow control valves, one-way throttle valves, throttle valves, ball valves and globe valves, logic valves, check valves and non-return valves, quick exhaust valves
Compressed air treatment: Maintenance units and components, air treatment unit two-piece sets, air treatment unit three-piece sets, condensate separators, air distribution blocks, shut-off valves, filters, precision filters, activated carbon filters, spray lubricators, oil separators, oil mist lubricators, precision oil mist lubricators, oil injection units, oil injection valves, precision pressure regulating valves, precision filter pressure regulating valves, pressure regulating valves, filter pressure regulating valves, diaphragm dryers, pre-filters, pressure gauges, air cups, compressed air containers, greases and oils, lubricating oils, engine oils.
Vacuum technology: Ejectors, vacuum generators, compact vacuum generators, vacuum grippers, non-contact conveying systems, vacuum accessories (vacuum in-line filters, spare filters, vacuum butterfly filters, air cups, adapters, angle joints, flow valves, spring push rods, silencers, vacuum control devices), pneumatic grippers.
Sensors: Magnetic proximity sensors, displacement measurement sensors, electronic pressure sensors, mechanical pressure sensors, flow monitors, pneumatic proximity sensors, inductive proximity sensors, speed/timers, workpiece position detection devices, sensor mounting parts (sensor fixing devices, sensor holders), electrical connection technologies (circular plugs, circular socket connectors, valve connectors, cables with junction boxes).
Connection technologies: Pneumatic connection technologies, quick-connect fittings, threaded connectors with lock nuts, plastic hoses, plastic tube clamps, T-shaped clips for compressed air rails, hose clips for textile tubes, support sleeves, hose cutters, Y-shaped connections, T-shaped connections, X connections, straight-through connectors, elbows, quick tube connectors, rotor connections, connection accessories (sealed threads and connectors, air distribution blocks and air distribution block strips, seals), silencers, electrical connection technologies, valve connectors (junction boxes), circular plugs, multi-core plugs, contact bridges (bridge connectors, contact bridges, with cables).
AVENTICS Quick-connect Fitting QR2-S-RI1 Standard Series - 1823391658
Fitting type: Angle swivel fitting 1x, with hexagon socket structure, rotatable
Housing: Brass
Seal material: Acrylic resin
Compressed air connection: G 1/4
Compressed air interface 2 6
Compressed air interface 2 model: Quick-connect fitting
Compressed air interface model: External thread
Working pressure range: -0.95 ... 16 bar
Low/high ambient temperature: -20 ... 80 °C
Weight per piece: 0.028
The QR1 series (plastic) and the QR2 series (metal) cannot be combined.
Thread seal with a closed O-ring
AVENTICS Rotatable quick-connect plug QR2-S-RI1 Standard series - 1823391659
Tube fitting type: Angle swivel joint, 1x, with hexagon socket structure, rotatable
Housing: Brass
Seal material: Acrylic resin
Compressed air connection: G 1/4
Compressed air interface 2 8
Compressed air interface 2 model: Quick-connect fitting
Compressed air interface model: External thread
Working pressure range: -0.95 ... 16 bar
Low/high ambient temperature: -20 ... 80 °C
Weight per piece: 0.39kg
The QR1 series (plastic) and the QR2 series (metal) cannot be combined.
Thread seal with a closed O-ring
AVENTICS 2/5-way directional control valve, Series 581, Size 3 - 5813290650
ISO 5599-1 ISO 35/2 double coil Qn = 4800 l/min Compressed air interface - Outlet: Grounding plate manufactured according to standard ISO 5599-1 Electrical connection: Multi-core plug, EN 175301-803, Type A Manual control device: Locking type, push-button type
Standardization: ISO 5599-1
Size: ISO 3
Operating element: Double coil
Reversing principle: 5/2
Structural feature: Spool valve
Housing: Aluminum
Seal material: Acrylic resin
Protection class: IP65
Interface size: EN 175301-803, Type A
Type: Multi-core plug
Nominal flow rate Qn: 4800 l/min
Compressed air interface - Inlet: Grounding plate manufactured according to standard ISO 5599-1
Compressed air interface - Outlet: Grounding plate manufactured according to standard ISO 5599-1
Operating voltage: DC 24 V
Structural feature: Spool valve
Sealing principle: Soft seal
Combination principle (locking principle): Single base plate principle
Connection type: Base plate connection
Standards: ISO 5599-1, ISO 3
Control pressure (min/max): 1.5 ... 10 bar
Low/high ambient temperature: -15 ... 50 °C
Medium temperature range: -15 ... 50 °C
Medium: Compressed air
Particle size: max. 50 μm
Oil content in compressed air: 0 ... 5 mg/m3
Nominal flow rate Qn: 4800 l/min
Flow conductance coefficient C: 18.9 l/(s*bar)
Protection class: IP65 with interface
Compatibility catalog: 14
Duty cycle: 100 %
Switch-on time (model): 18 ms
Switch-off time (model): 18 ms
Mounting screws: With hexagon socket
Minimum tightening torque of bolts: 10 Nm
Weight: 1.14 kg
Do not exceed the minimum control pressure, otherwise it will cause faulty circuits and possible valve failures!
The pressure must be at least 15°C lower than the ambient and medium temperatures, and the maximum allowable temperature is 3°C.
The oil content of the compressed air must remain constant throughout the service life.
AVENTICS pressure regulator, Series NL6-RGS-0821302808
Operation: Mechanical
Component: Pressure regulator
Secondary discharge: With secondary exhaust
Pressure gauge: With pressure gauge
Locking type: Locking type
Housing: Aluminum die-casting
Seal material: Acrylic resin
Suitable for ATEX
Nominal flow rate Qn: 15000 l/min
Compressed air connection: G 1
Component: Pressure regulator
Installation position: Any
Certificate: Suitable for ATEX
Operating pressure range: 0.5 ... 20 bar
Low/high ambient temperature: -10 ... 60 °C
Medium temperature range: -10 ... 60 °C
Medium: Compressed air, neutral gas
Regulator model: Diaphragm pressure regulator, can be assembled into blocks
Adjustment function: With secondary exhaust
Adjustment range: Small/Large 0.5 ... 10 bar
Sealing method, sealing type: With lock
Pressure delivery: Single
Operation: Mechanical
Self-ventilation consumption qv max. 0.5 l/min
Weight: 1.64kg
Recommended primary filtration: 5 μm
The pressure must be at least 15°C lower than the ambient and medium temperature, and the allowable maximum temperature is 3°C.
Suitable for use in Zone 1, 2, 21, 22 Ex.
Operation mode: Mounting angle (fixed angle) 1821336017 / Locking piece 1827009593
Close the pressure gauge interface at the rear of the pressure regulating valve with a sealing plug, and keep the front open. Sealing plugs can be provided separately according to customer applications. Please order separately (see the attachment).
The change of the flow direction (from air supply to the left to air supply to the right) is done by the facility rotating 180° on the vertical axis. For detailed information, please refer to the operation manual.
Secondary exhaust (when the set pressure is ≤ 0.3 bar).
With back exhaust (> 3 bar).
