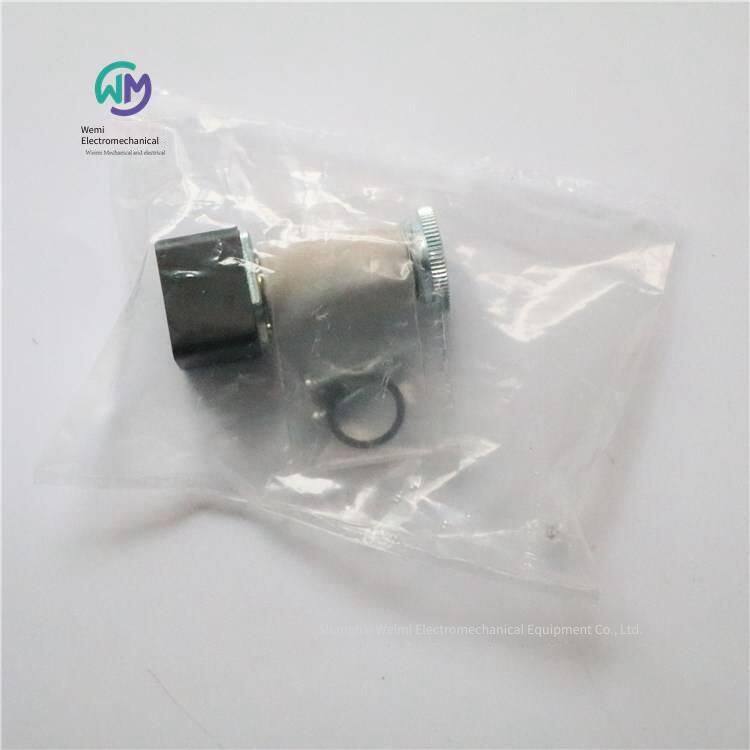

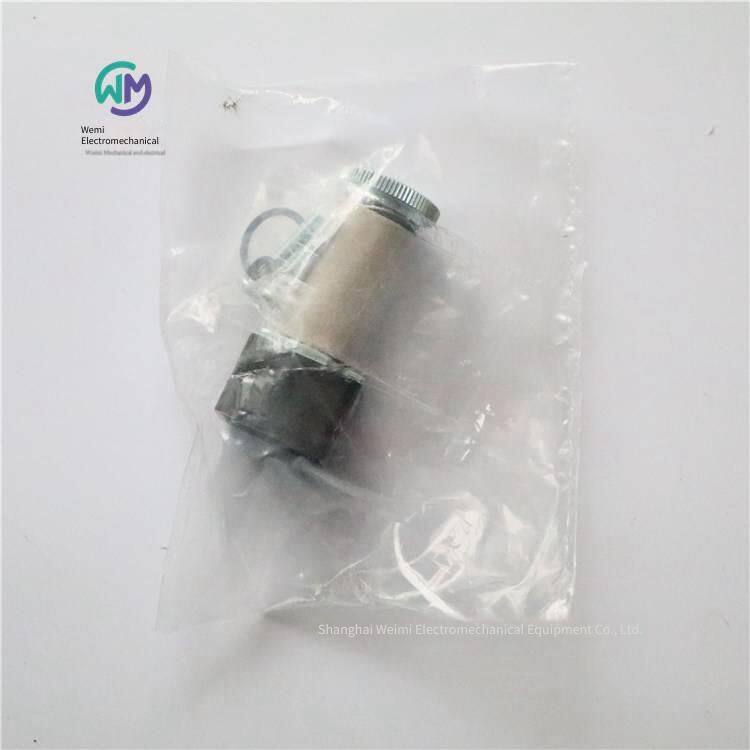

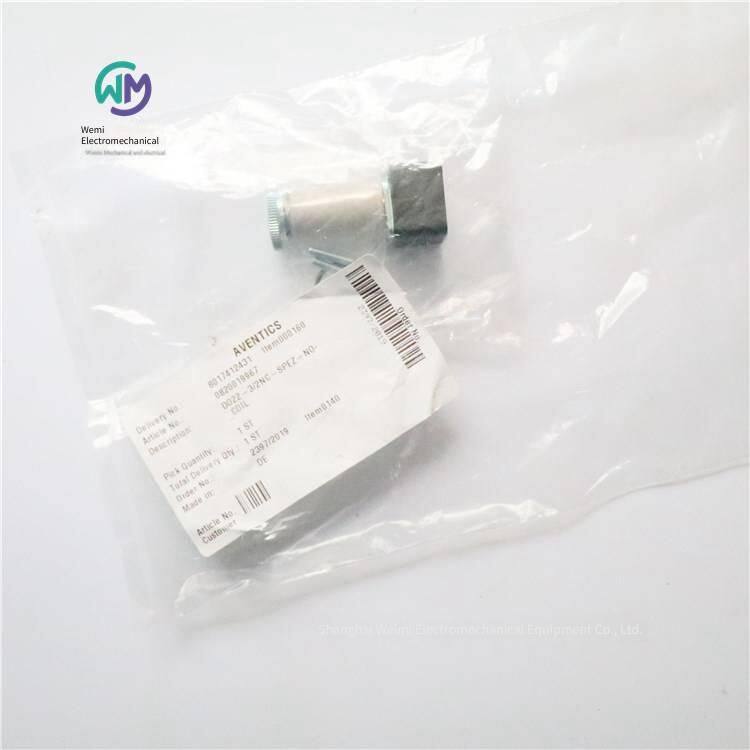

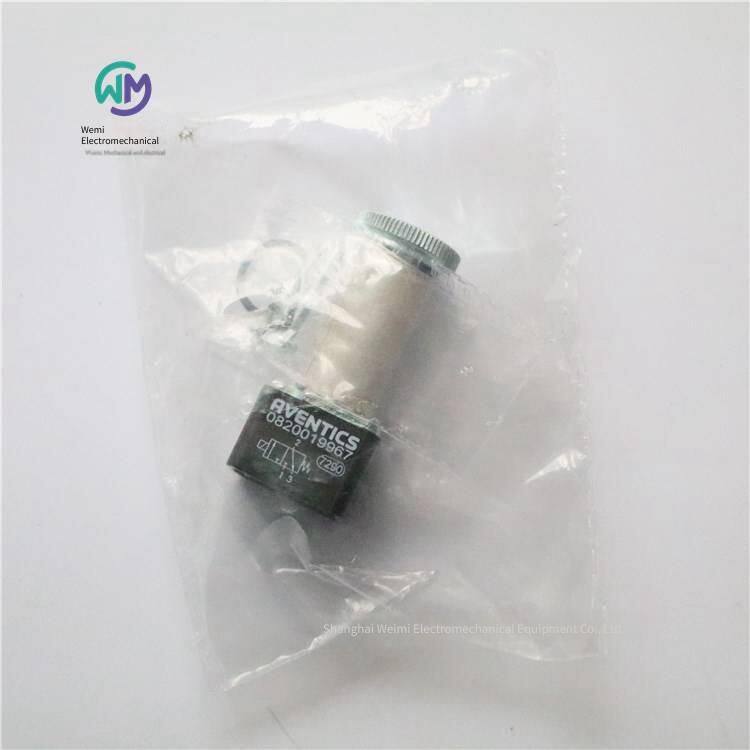

AVENTICS 2/3-way solenoid valve 0820019967, the main product of Shanghai Weimi Mechanical & Electrical Equipment Co., Ltd. Sales hotline: 13524123009; Contact person: Lei Qing; Product real-shot pictures, genuine products from the original factory, in-stock inventory, affordable price; Warmly welcome new and old customers to consult and purchase!
AVENTICS 2/3-way directional control valve, series DO22-0820019967
3/2
Plate valve with pipe connector
Electrical connection: Multi-core plug, ISO 6952, type B
Manual control device: None
With spring return
Suitable for ATEX
Reset type with spring return
Reversing principle 3/2
Structural feature: Poppet valve
Housing: Plastic
Seal material: Fluoro-rubber
Protection class: IP65
Interface size: ISO 6952, type B
Type: Multi-core plug
Qn 1-2 61 l/min
Qn 2-3 74 l/min
Operation: Electronic
Structural feature Poppet valve
Operation Electronic
Sealing principle Soft seal
Low / high ambient temperature -10 ... 50 °C
Medium temperature range -10 ... 50 °C
Medium Compressed air
Particle size max. 5 μm
Oil content in compressed air 0 ... 5 mg/m3
Nominal flow rate 1-2 See table
Nominal flow rate 2-3 See table
Protection class with interface IP65
Compatibility directory See table
Duty cycle 100 %
Fixing bolt M3
Do not exceed the small control pressure, otherwise it will cause faulty circuits and possible valve failures!
The pressure must be at least 15 °C lower than the ambient and medium temperatures, and the allowable temperature is 3 °C.
The oil content of the compressed air must remain constant throughout the service life.
AVENTICS Micro Cylinder, Series MNI-0822333508
Operating principle Double-acting
Cushioning Pneumatic
Adjustable
Magnetic pin With magnetic piston
Piston diameter 20 mm
Piston rod thread M8
Standardized ISO 6432
Stroke 200 mm
Seal material Acrylic rubber, Polyurethane
Dust seal Polyurethane
Corrosion resistance Corrosion-proof
Compressed air connection G 1/8
Compressed air connection type Internal thread
Standard ISO 6432
Compressed air connection Internal thread
Operating pressure range 1 ... 10 bar
Low / high ambient temperature -25 ... 80 °C
Medium temperature range -25 ... 80 °C
Medium Compressed air
Particle size max. 50 μm
Oil content in compressed air 0 ... 5 mg/m3
Pressure for determining piston thrust 6.3 bar
Cylinders certified by ATEX (marked II 2G Ex h IIB T4 Gb / II 2D Ex h IIIB T135°C Db) can be generated in the network configurator.
The operating temperature range of the ATEX-certified cylinder is -20 °C ... 50 °C.
The necessary fastening parts for the magnetic sensor
The pressure must be at least 15 °C lower than the ambient and medium temperatures, and the allowable temperature is 3 °C.
The oil content of the compressed air must remain constant throughout its entire service life.
AVENTICS short-stroke cylinder, series KHZ-0822010651
Operating principle: Double-acting
Buffering: Elastic
Magnetic pin: With magnetic piston
Piston diameter: 40 mm
Piston rod thread: M6
Stroke: 10 mm
Dust seal: Polyurethane
Compressed air connection: G 1/8
Compressed air interface type: Internal thread
Compressed air connection: Internal thread
Low/high ambient temperature: -25 ... 80 °C
Medium temperature range: -25 ... 80 °C
Medium: Compressed air
Particle size max.: 50 μm
Oil content in compressed air: 0 ... 5 mg/m3
Pressure for determining piston thrust: 6.3 bar
The pressure must be at least 15 °C lower than the ambient and medium temperatures, and the allowable temperature is 3 °C.
The oil content of the compressed air must remain constant throughout its entire service life.
AVENTICS profile cylinder complies with ISO 15552 standard, PRA series - 0822124010
Operating principle: Double-acting
Buffering: Pneumatic
Adjustable
Magnetic pin: With magnetic piston
Piston diameter: 80 mm
Piston rod thread: M20x1,5
Standard ISO 15552
Stroke 400 mm
Seal material Polyurethane
Dust seal Polyurethane
Optional in ATEX
Compressed air connection G 3/8
Compressed air interface type Internal thread
Standard ISO 15552
Certificate Optional in ATEX
Compressed air connection Internal thread
Working pressure range 1,5 ... 10 bar
Low / high ambient temperature -20 ... 80 °C
Medium temperature range -20 ... 80 °C
Medium Compressed air
Particle size max. 50 μm
Oil content in compressed air 0 ... 5 mg/m3
Pressure for determining piston thrust 6.3 bar
Cylinders certified by ATEX (marked II 2G Ex h IIB T4 Gb / II 2D Ex h IIIB T135°C Db) can be generated in the network configurator.
The operating temperature range of ATEX-certified cylinders is - 20 °C ... 50 °C.
The pressure must be at least 15 °C lower than the ambient and medium temperatures, and the allowable high temperature is 3 °C.
The oil content of the compressed air must remain constant throughout the service life.
AVENTICS Rotary Compact Module, Series RCM-SH-R412000374
Adjustable rotation angle max. 180 °
Adjustable rotation angle min. 0 °
Size RCM-20
Structural feature Double piston with rack
Buffering Hydraulic
Settings are determined
Magnetic pin with magnetic piston
Piston diameter: 20 mm
Housing: Aluminum
Seal material: Acrylic resin
Compressed air connection: M5
Working pressure range: 2 ... 8 bar
Low/high ambient temperature: 5 ... 60 °C
Medium temperature range: 5 ... 60 °C
Medium: Compressed air
Particle size max.: 5 μm
Oil content in compressed air: 0 ... 1 mg/m3
Buffering: Hydraulic setting determined
Theoretical torque: 6 bar
The pressure must be at least 15 °C lower than the ambient and medium temperature, and the allowable high temperature is 3 °C.
The oil content of compressed air must remain constant throughout the service life.
AVENTICS Rodless Cylinder, Series RTC-BV-R480141474
Guide: Integrated guide rod
Operating principle: Double-acting
Buffering: Pneumatic
Adjustable
Magnetic pin with magnetic piston
Piston diameter: 40 mm
Stroke: 600 mm
Seal material: Polyurethane
Compressed air connection: G 1/4
Working pressure range: 2 ... 8 bar
Low/high ambient temperature: -10 ... 60 °C
Medium: Compressed air
Particle size max.: 5 μm
Oil content in compressed air: 0 ... 1 mg/m3
Pressure for determining piston thrust: 6.3 bar
The pressure dew point must be at least 15 °C lower than the ambient and medium temperatures, and the allowable temperature is 3 °C.
AVENTICS Tie-Rod Cylinder ISO 15552, Series TRB-0822342008
Operating principle Double-acting
Cushioning Pneumatic
Adjustable
Magnetic pin With magnetic piston
Piston diameter 50 mm
Piston rod thread M16x1,5
Standardization ISO 15552
Stroke 250 mm
Seal material Polyurethane
Dust seal Polyurethane
Optional in ATEX
Compressed air connection G 1/4
Compressed air port type Internal thread
Standard ISO 15552
Certificate of conformity Optional in ATEX
Compressed air connection Internal thread
Operating pressure range 1,5 ... 10 bar
Low / high ambient temperature -20 ... 80 °C
Medium temperature range -20 ... 80 °C
Medium Compressed air
Particle size max. 50 μm
Oil content in compressed air 0 ... 5 mg/m3
Pressure for determining piston thrust 6.3 bar
Cylinders certified to ATEX (with marking II 2G Ex h IIB T4 Gb / II 2D Ex h IIIB T135°C Db) can be generated in the online configurator.
The operating temperature range for ATEX-certified cylinders is - 20 °C ... 50 °C.
The pressure must be at least 15 °C lower than the ambient and medium temperatures, and the allowable temperature is 3 °C.
The oil content of compressed air must remain constant throughout its entire service life.
AVENTICS Filter-Regulator, Series AS3-FRE-R412007184
Component: Filter-Regulator
Condensate removal: Semi-automatic, opens when pressure is lost
Secondary discharge: With secondary exhaust
Filter pore diameter: 5 μm
Locking type: Locking type
Housing: Polyamide
Air cup: Polycarbonate
Seal material: Acrylic resin
Suitable for ATEX
Nominal flow rate Qn: 5100 l/min
Compressed air connection: G 1/2
Structural features: A single unit, can be assembled into blocks
Component: Filter-Regulator
Installation position: Vertical
Certificate: Suitable for ATEX
Low / high ambient temperature: -10 ... 50 °C
Medium temperature range: -10 ... 50 °C
Medium: Compressed air, neutral gas
Nominal flow rate Qn: 5100 l/min
Regulator model: Diaphragm pressure regulator
Adjustment function: With secondary exhaust
Adjustment range (min/max): See table
Pressure delivery: Single
Capacity of the filter sump: 49 cm3
Filter element: Replaceable
Maximum achievable compressed air class according to ISO 8573-1:2010 standard: 6 : 7 : -
The pressure must be at least 15 °C lower than the ambient and medium temperature, and the allowable temperature is 3 °C.
Please note: Containers made of polycarbonate are susceptible to solvent attack.
Suitable for use in Zone 1, 2, 21, 22 Ex
The change in the flow direction (from air supply to the left to air supply to the right) is done by the facility rotating 180° on the vertical axis. Please refer to the operation manual for detailed information.
Due to the structural principle, it is also suitable for the separation of liquid oil or water
AVENTICS two-position three-way solenoid valve 0820019967
