AVENTICS Industrial Buffer 3702005000, the main product of Shanghai Weimi Mechanical & Electrical Equipment Co., Ltd. Sales hotline: 13524123009; Contact person: Lei Qing; Product real-shot pictures, original and genuine products, in-stock inventory, affordable prices; Warmly welcome new and old customers to consult and purchase!

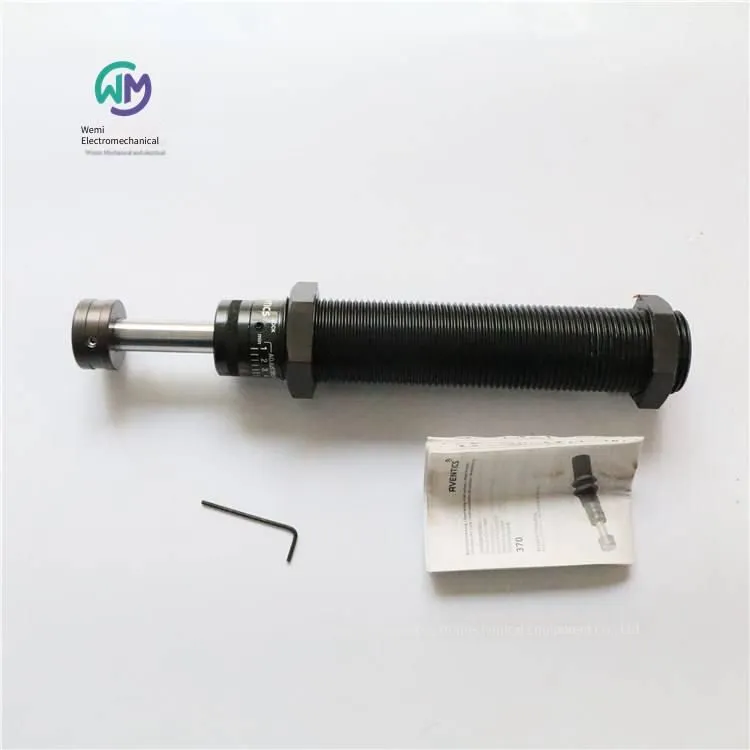

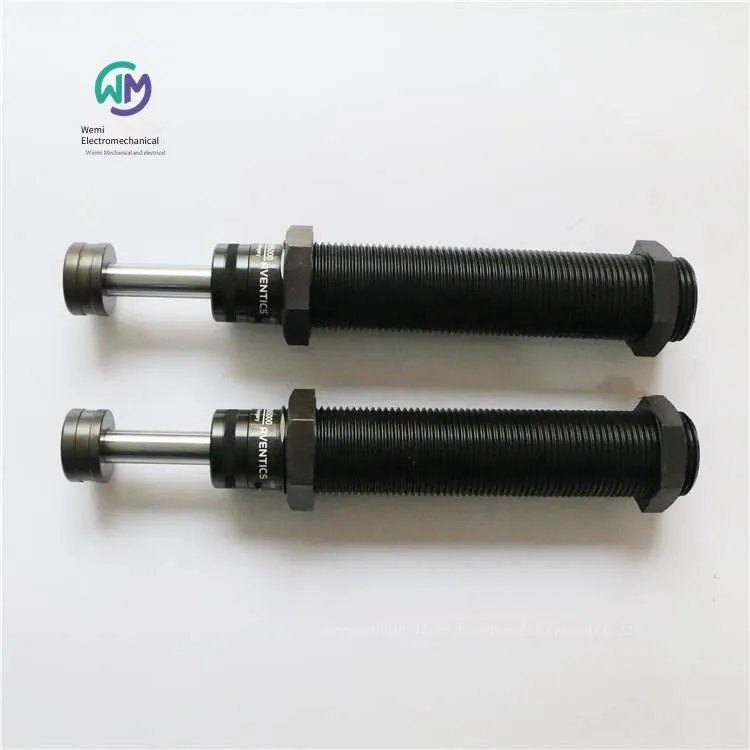

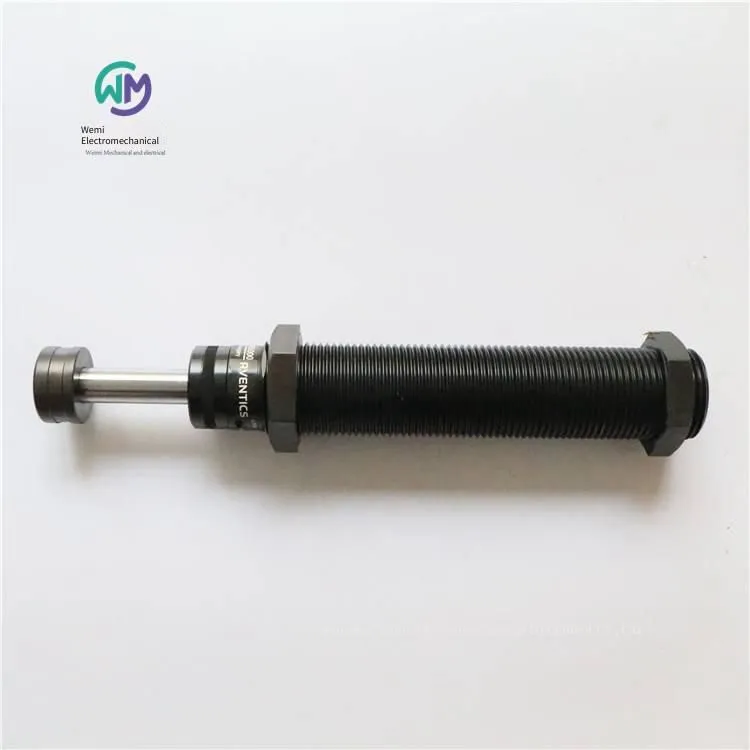

AVENTICS Industrial Buffer, Series 370 3702005000
370-MA-M042-0050-N
The AVENTICS Series 370 industrial shock absorbers can reliably reduce the moving mass, thereby increasing the process speed, product quality, service life of production facilities, and reducing operating noise.
Specifications
Type 370-MA
Fixing thread M42x3
Stroke 50 mm
Energy absorption/max. stroke 375 Nm
Energy absorption/max. per hour 126000 Nm
Buffer adjustable
Minimum medium temperature -10 °C
Maximum medium temperature 70 °C
Medium Engine oil
Minimum ambient temperature -10 °C
Maximum ambient temperature 70 °C
Effective weight me min. 50 kg
Effective weight me max. 5000 kg
Return spring force min. 50 N
Return spring force max. 90 N
Fixing method Lock nut
Weight 1.85 kg
Material Cylinder tube Steel
Material Piston rod Steel
Material Impact Steel
Material Lock nut Steel
Features
Rich product range
Higher energy absorption capacity and longer service life
Enhanced surface corrosion resistance
Integrated end stop device
AVENTICS Junction box, Valve connector, CON-VP Series - 1834484101
Multi-pin plug, 2+E, at a 90° bend, EN 175301-803 unshielded with yellow LED
Connection type Screw
Shielding Unshielded
Seal material Silicone rubber
Standardized circuit interface EN 175301-803
Protection class IP65
Connection type Screw
Minimum/maximum ambient temperature -40 ... 90 °C
Rated voltage 24V AC/DC
Protection level: IP65
Minimum torque for tightening bolts: 0.4 Nm
Weight: 0.03kg
AVENTICS junction box, plug, valve connector, CON - VP Series - 1834484048
Multi - pin plug, 2+E, at a 90° bend, EN 175301 - 803 unshielded
Connection type: Screw
Shielding: Unshielded
Seal material: Natural rubber / Butadiene rubber
Standardized circuit interface: EN 175301 - 803
Protection level: IP65
Connection type: Screw
Low / high ambient temperature: -40 ... 90 °C
Rated voltage
Protection level: IP65
Minimum torque for tightening bolts: 0.4 Nm
Weight: 0.03kg
The specified protection level only applies to the installed and inspected state.
AVENTICS junction box, valve connector, CON - VP Series - 1834484059
Multi - pin plug, 3+E, at a 90° bend, EN 175301 - 803 unshielded
Connection type: Screw
Shielding: Unshielded
Seal material: Natural rubber / Butadiene rubber
Standardized circuit interface: EN 175301 - 803
Protection level: IP65
Connection type: Screw
Low / high ambient temperature: -40 ... 90 °C
Rated voltage
Protection level: IP65
Minimum torque for tightening bolts: 0.4 Nm
Weight: 0.03kg
The specified protection level only applies to the installed and inspected state.
AVENTICS valve connector, CON - VP Series - 1834484103
Multi - pin plug, 2+E, at a 90° bend, EN 175301 - 803 unshielded with red LED
Connection type: Screw
Shielding: Unshielded
Seal material: Silicone rubber
Standardized circuit interface: EN 175301 - 803
Protection level: IP65
Connection type: Screw
Low / high ambient temperature: -40 ... 90 °C
Rated voltage: 230VAC
Protection class: IP65
Minimum tightening torque for bolts: 0.4 Nm
Weight: 0.025kg
AVENTICS valve connector, CON-VP series - 1834484107
Multi-pin plug, Type B industrial, 2+E, in a 90° bent angle, industrial standard, unshielded with yellow LED
Connection type: Screw
Shielding: Unshielded
Seal material: Silicone rubber
Standardized circuit interface: Industrial standard
Protection class: IP65
Connection type: Screw
Low/high ambient temperature: -25 ... 50 °C
Rated voltage: 24V AC/DC
Protection class: IP65
Minimum tightening torque for bolts: 0.4 Nm
Weight: 0.02 kg
For safety reasons, the valve connector must be installed in the specified center.
The specified protection class only applies to the installed and inspected state.
AVENTICS short-stroke cylinder, series KHZ-0822010731
Piston rod modification: Non-rotating
Operating principle: Double-acting
Buffering: Elastic
Piston diameter: 25 mm
Stroke: 10 mm
Dust seal: Polyurethane
Compressed air connection: G 1/8
Compressed air interface type: Internal thread
Compressed air connection: Internal thread
Low/high ambient temperature: -25 ... 80 °C
Medium temperature range: -25 ... 80 °C
Medium: Compressed air
Particle size: max. 50 μm
Oil content in compressed air: 0 ... 5 mg/m3
Pressure for determining piston thrust: 6.3 bar
Cylinder tube: Aluminum, anodized
Piston rod: Stainless steel
Piston: Acrylic rubber
Front cover: Brass, aluminum
Rear cover: Aluminum
Dust seal: Polyurethane
The pressure must be at least 15°C lower than the ambient and medium temperature, and the maximum allowable temperature is 3°C.
The oil content in the compressed air must remain constant throughout the service life.
AVENTICS Short-stroke Cylinder, Series KHZ-0822010863
Piston rod modification, non-rotating
Practical principle, double-acting
Buffering, elastic
Magnetic pin, with magnetic piston
Piston diameter 50 mm
Stroke 20 mm
Dust seal, polyurethane
Compressed air connection G 1/8
Compressed air interface type, internal thread
Compressed air connection, internal thread
Low / high ambient temperature -25 ... 80 °C
Medium temperature range -25 ... 80 °C
Medium, compressed air
Particle size max. 50 μm
Oil content in compressed air 0 ... 5 mg/m3
Pressure for determining piston thrust 6.3 bar
Cylinder tube, aluminum, anodized
Piston rod, stainless steel
Piston, acrylic rubber
Front cover, brass, aluminum
Rear cover, aluminum
Dust seal, polyurethane
The pressure must be at least 15°C lower than the ambient and medium temperature, and the allowable high temperature is 3°C.
The oil content of the compressed air must remain constant throughout the service life.
AVENTICS Sensor, Series ST6-R412022866
6 mm T-slot with cable, open cable end, 2-pin UL-certified reed type, direct installation for Series PRA, PRE, CCI, KPZ, SSI, GPC, CVI, indirect installation for Series TRB, ITS, CCL-IS, MNI, CSL-RD, RPC, ICS-D2, ICM, KHZ, TRR
Connection type, reed type
Switch logic circuit, normally open
Cable length 3 m
Enclosure, polyamide
Cable, with cable
CE certification, RoHS
Protection class IP65, IP67, IP69K
Core number, 2-pin
Type, open cable end
Groove width, 6 mm T-slot
For Series PRA, PRE, CCI, KPZ, SSI, GPC, CVI
Low / high ambient temperature -30 ... 80 °C
Protection class IP65 IP67 IP69K
Switch point accuracy ±0.1 mT
Rated current, on state
Quiescent current (no load)
Minimum / maximum operating voltage DC 10 ... 230 V DC
Minimum / maximum operating voltage AC 10 ... 230 V AC
Hysteresis ≥ 0.2 mT
Switch logic circuit Normally open
LED status display Yellow
Vibration resistance 10 - 55 Hz, 1 mm
Shock resistance 30 g / 11 ms
Cable length L 3 5 10 m
The 230V series has no cULus certification.
AVENTICS two-position five-way directional valve, series ST-R422002214
Locking type Non-lockable
Operating element Double coil
Reversing principle 5/2
Structural feature Spool valve
Mounting on mounting plate
Housing Stainless steel
Rated flow Qn 280 l/min
Compressed air interface Inlet G 1/8
Compressed air interface Outlet G 1/8
Compressed air interface type Internal thread
Operation Mechanical
Structural feature Spool valve
Operation Mechanical
Sealing method, sealing type Non-lockable
Reversing principle 5/2
Sealing principle Metal seal
Rated flow Qn 280 l/min
Working pressure range -0.95 ... 10 bar
Control pressure Minimum/maximum 2 ... 10 bar
Minimum / maximum ambient temperature -15 ... 80 °C
Medium temperature range -15 ... 80 °C
Medium Compressed air
Particle size max. 5 μm
Oil content in compressed air 5 ... 25 mg/m3
Mounting screw M4 with hexagon socket
Minimum tightening torque of bolts 2.5 Nm
Weight 0.23kg
Note: This product can only be operated with lubricated compressed air.
AVENTICS check valve, series NR01-5340981100
Structural form In-line installation
Valve structural form Poppet valve
Housing: Brass
Seal material: Acrylic resin
Qn 1-2 1050 l/min
Compressed air connection: G 1/4
Compressed air interface 2: G 1/4
Compressed air interface 2 model: Internal thread
Compressed air interface model: Internal thread
Structural feature: Poppet valve
Working pressure range: 0.5 ... 15 bar
Low / high ambient temperature: -10 ... 60 °C
Medium temperature range: -10 ... 60 °C
Medium: Compressed air
Weight: 0.168kg
AVENTICS Quick-connect fitting series with lock nut NU2-1823391000
Tube fitting type: 1-time angle swivel joint
Housing: Brass
Seal material: Polyvinyl chloride
Compressed air connection: G 1/8
Compressed air interface 2: φ 4
Compressed air interface 2 model: Quick-connect plug with lock nut
Compressed air interface model: External thread
Working pressure range: -0.95 ... 15 bar
Low / high ambient temperature: -10 ... 70 °C
Weight per piece: 0.034kg
AVENTICS Fitting series NU2-1823391002
1-time angle swivel joint with external thread G 1/4 and quick-connect plug with lock nut 4NU2-S-RW1
Tube fitting type: 1-time angle swivel joint
Housing: Brass
Seal material: Polyvinyl chloride
Compressed air connection: G 1/4
Compressed air interface 2: 4
Compressed air interface 2 model: Quick-connect plug with lock nut
Compressed air interface model: External thread
Working pressure range: -0.95 ... 15 bar
Low / high ambient temperature: -10 ... 70 °C
Weight per piece: 0.047kg
AVENTICS Trunnion bracket MT4, series CM1-1827003994
Piston diameter: 63 mm
Material: Aluminum (forged)
For series PRA
AVENTICS Industrial Buffer, Series SA1-MA-R412010325
Fixed Thread M25x1,5
Adjustable
Stroke 25 mm
Impact Material: Steel
Dust Seal: Polyurethane
Low/High Ambient Temperature -20 ... 80 °C
Medium: Engine Oil
Low/High Collision Speed 0.1 ... 6 m/s
Fixing: Lock Nut
Weight 0.29kg
Cylinder Tube: Steel, Salt Bath Nitrocarburized Steel, Black Oxide Treatment
Piston Rod: Stainless Steel, Polished and Hardened
Lock Nut: Steel, Salt Bath Nitrocarburized Steel, Black Oxide Treatment
Fixing Ring: Steel, Hardened and Black Oxide Treatment
Dust Seal: Polyurethane
AVENTICS Micro Cylinder, Series MNI-5226634250
ISO 6432 φ 25 mm Interface G 1/8 Double-acting with Magnetic Piston Buffer, Elastic Polymer Bushing in Suspension Fixing Device, Piston Rod with External Thread
Operating Principle: Double-acting
Buffer: Elastic
Magnetic Pin: With Magnetic Piston
Piston Diameter 25 mm
Piston Rod Thread M10x1,25
Standardization: ISO 6432
Stroke 25 mm
Seal Material: Acrylic Resin, Polyurethane
Dust Seal: Polyurethane
Compressed Air Connection G 1/8
Compressed Air Interface Type: Internal Thread
Standard: ISO 6432
Compressed Air Connection: Internal Thread
Working Pressure Range 1 ... 10 bar
Low/High Ambient Temperature -25 ... 80 °C
Medium Temperature Range -25 ... 80 °C
Medium: Compressed Air
Particle Size max. 50 μm
Oil Content in Compressed Air 0 ... 5 mg/m3
Pressure for Determining Piston Thrust 6.3 bar
Weight 0.3kg
Cylinder Tube: Stainless Steel
Piston Rod: Stainless Steel
Piston: Brass, Aluminum
Front Cover: Aluminum, Anodized
Rear Cover: Aluminum, Anodized
Sealing: Acrylic resin, Polyurethane
Locking ring nut: Steel, galvanized
Special nut for piston rod: Steel, galvanized
Dust seal: Polyurethane
The pressure must be at least 15°C lower than the ambient and medium temperature, and the allowable maximum temperature is 3°C.
The oil content of the compressed air must remain constant throughout its service life.
Fastening parts required for magnetic sensors
AVENTICS Profile Cylinder R480061491
PRA-DA-040-0300-0-2-2-1-1-1-BAS
The AVENTICS PRA series (ISO 15552) cylinders feature a compact design with integrated sensor slots. The PRA series (ISO 15552) cylinders can be used in various industries, including general automation technology, machine and system construction, as well as special industry applications.
PRA series profile cylinders - PRA series
Piston diameter: 040 (Piston diameter 40)
Stroke: 0300 (Stroke unit: mm)
Thread: 0 ISO thread
Buffering: 2 Pneumatic buffering
Piston: 2 Piston with magnetic ring
Piston rod: 1 Single
Seals: 1 Seals - Standard PUR (-20°C to 80°C)
Scraper: 1 Scraper - Standard PUR
Anti-corrosion: 1 Standard
Piston rod extension: 0 Without piston rod extension
ATEX: 000 Without ATEX
Trunnion mounting: 3 Variable position, replaceable
Positioning trunnion support: 185
End cap: 0 End cap without surface treatment
Position
Front port position: 0 0° (12h)
Rear port position: 0 0° (12h)
Accessories
Piston rod support: 000 Without support
Mounted on the front cover: 000 Not mounted on the front cover
No mounting direction: 00
Mounted on the rear cover: 000 Not mounted on the rear cover
Rear mounting direction: 00 No mounting
Reverse bearing: 000 Without reverse bearing
Guiding device: 000 Without guiding device and locking element
Type 000 sensor without sensor
Sensor position: 00 No sensor position
Front cover accessories: 000 Without accessories
Rear cover accessories: 000 Without accessories
Spare parts:
Piston rod R480962719 PISTON ROD 040-0300-0-2-1-1-1
Pipe R480964278 TUBE PRA-040-0300-0-1-1
Trunnion mounting part 1827003992 CM1-MT4-040-AL-FO-AN
Maintenance kit (after 2014) R413000899 SPARE PART KIT PRA/TRB-040-ST
AVENTICS Compact Cylinder, Series KPZ-0822390603
NFE 49004 16 mm interface, M5 double-acting with magnetic piston buffer, elastic piston rod, non-twistable, with front plate, optional continuous and optional heat-resistant
Piston rod modification, non-twistable, with front plate, optional continuous
Principle of use: Double-acting
Buffer: Elastic
Magnetic pin: With magnetic piston
Piston diameter: 16 mm
Standardization: NFE 49004
Stroke: 20 mm
Seal material: Nitrile-butadiene rubber
Dust seal: Polyurethane
Compressed air connection: M5
Compressed air interface type: Internal thread
Temperature resistance: Optional heat-resistant
Standard: NFE 49004
Compressed air connection: Internal thread
Low/high ambient temperature: -20 ... 80 °C
Medium temperature range: -20 ... 80 °C
Medium: Compressed air
Particle size: max. 50 μm
Oil content in compressed air: 0 ... 5 mg/m3
Pressure for determining piston thrust: 6.3 bar
The pressure must be at least 15°C lower than the ambient and medium temperature, and the allowable high temperature is 3°C.
The oil content of the compressed air must remain constant throughout the service life.
The material of the dust seal and seal for the heat-resistant model (ambient temperature range: -10 °C ... 120 °C) is fluororubber.
AVENTICS 2/3-way directional control valve, Series AP-0820408002
Reversing principle: 3/2
Structural feature: Poppet valve
Roller
Housing: Aluminum
Seal material: Acrylic resin
Qn 1-2: 190 l/min
Qn 2-3: 150 l/min
Compressed air interface: Inlet M5
Compressed air interface: Outlet M5
Compressed air interface model: Internal thread
Operation: Mechanical
Structural feature: Poppet valve
Operation: Mechanical
Reversing principle: 3/2
Working pressure range: 0 ... 10 bar
Low / high ambient temperature: -30 ... 80 °C
Medium temperature range: -30 ... 80 °C
Medium: Compressed air
Particle size: max. 5 μm
Oil content in compressed air: 0 ... 5 mg/m3
Weight: 0.05kg
AVENTICS Micro Cylinder, Series MNI-0822333505
ISO 6432 φ 20 mm interface G 1/8, Double-acting type with magnetic piston buffer, Pneumatic, Adjustable integrated hook-shaped mounting part, Piston rod with external thread, Optional in ATEX
Practical principle: Double-acting type
Buffer: Pneumatic
Adjustable
Magnetic pin: With magnetic piston
Piston diameter: 20 mm
Piston rod thread: M8
Standardized: ISO 6432
Stroke: 100 mm
Seal material: Acrylic resin, Polyurethane
Dust seal: Polyurethane
Compressed air connection: G 1/8
Compressed air interface model: Internal thread
Standard: ISO 6432
Compressed air connection: Internal thread
Working pressure range: 1 ... 10 bar
Low / high ambient temperature: -25 ... 80 °C
Medium temperature range: -25 ... 80 °C
Medium: Compressed air
Particle size: max. 50 μm
Oil content in compressed air: 0 ... 5 mg/m3
Pressure for determining piston thrust: 6.3 bar
Weight: 0.25kg
Cylinder tube: Stainless steel
Piston rod: Stainless steel
Piston: Brass, Aluminum
Front cover plate: Aluminum, Anodized
Rear cover: Aluminum, Anodized
Seal: Acrylic resin, Polyurethane
Locking ring nut: Steel, Galvanized
Special nut for piston rod: Steel, Galvanized
Dust seal: Polyurethane
The pressure must be at least 15°C lower than the ambient and medium temperatures, and the allowable high temperature is 3°C.
The oil content of compressed air must remain constant throughout its entire service life.
Cylinders certified by ATEX (marked II 2G Ex h IIB T4 Gb / II 2D Ex h IIIB T135°C Db_X) can be generated in the network configurator.
The operating temperature range of ATEX-certified cylinders is -20 °C ... 50 °C.
Fastening parts required for magnetic sensors
AVENTICS profile cylinders comply with ISO 15552 standard, PRA series - 0822121003
ISO 15552 φ 40 mm interface G 1/4 double-acting with magnetic piston buffer, pneumatic, adjustable piston rod, external thread, optional in ATEX
Practical principle: Double-acting
Buffer: Pneumatic
Adjustable
Magnetic pin with magnetic piston
Piston diameter: 40 mm
Piston rod thread: M12x1,25
Standardized to ISO 15552
Stroke: 80 mm
Seal material: Polyurethane
Dust seal: Polyurethane
Optional in ATEX
Compressed air connection: G 1/4
Compressed air interface type: Internal thread
Standard: ISO 15552
Certificate of conformity: Optional in ATEX
Compressed air connection: Internal thread
Working pressure range: 1.5 ... 10 bar
Low/high ambient temperature: -20 ... 80 °C
Medium temperature range: -20 ... 80 °C
Medium: Compressed air
Particle size: max. 50 μm
Oil content in compressed air: 0 ... 5 mg/m3
Pressure for determining piston thrust: 6.3 bar
Cylinder tube: Aluminum, anodized
Piston rod: Stainless steel
Front cover: Aluminum - die-cast
Rear cover: Aluminum - die-cast
Seal: Polyurethane
Special nut for piston rod: Steel, galvanized
Dust seal: Polyurethane
The pressure must be at least 15°C lower than the ambient and medium temperatures, and the allowable high temperature is 3°C.
The oil content of compressed air must remain constant throughout its entire service life.
Cylinders certified by ATEX (marked II 2G Ex h IIB T4 Gb / II 2D Ex h IIIB T135°C Db_X) can be generated in the network configurator.
The operating temperature range of the ATEX-certified cylinder is -20 °C ... 50 °C.
AVENTICS short-stroke cylinder, series KHZ-0822406001
φ 8 mm interface, M5 single-acting, without compression return buffer, elastic piston rod, internal thread
Application principle: single-acting, without compression return
Buffer: elastic
Piston diameter: 8 mm
Stroke: 4 mm
Compressed air connection: M5
Compressed air interface type: internal thread
Compressed air connection: internal thread
Low/high ambient temperature: -25 ... 80 °C
Medium temperature range: -25 ... 80 °C
Medium: compressed air
Particle size: max. 50 μm
Oil content in compressed air: 0 ... 5 mg/m3
Pressure for determining piston thrust: 6.3 bar
Weight: 0.017 kg
Cylinder tube: aluminum, anodized
Piston rod: stainless steel
Piston: acrylic rubber
Front cover: brass, aluminum
Rear cover: aluminum
The pressure must be at least 15°C lower than the ambient and medium temperatures, and the allowable maximum temperature is 3°C.
The oil content of the compressed air must remain constant throughout the service life.
Piston for material 0822406310: polyurethane
AVENTICS short-stroke cylinder, series KHZ-0822406332
φ25 mm interface, G 1/8 single-acting, without compression return buffer, elastic piston rod, internal thread
Application principle: single-acting, without compression return
Buffer: elastic
Piston diameter: 25 mm
Piston rod thread: M5
Stroke: 25 mm
Compressed air connection: G 1/8
Compressed air interface type: internal thread
Compressed air connection: internal thread
Low/high ambient temperature: -25 ... 80 °C
Medium temperature range: -25 ... 80 °C
Medium: compressed air
Particle size: max. 50 μm
Oil content in compressed air: 0 ... 5 mg/m3
Pressure for determining piston thrust: 6.3 bar
Weight 0.218 kg
Cylinder tube: Aluminum, anodized
Piston rod: Stainless steel
Piston: Acrylic rubber
Front cover plate: Brass, aluminum
Rear cover: Aluminum
The pressure must be at least 15°C lower than the ambient and medium temperatures, and the maximum allowable temperature is 3°C.
The oil content of the compressed air must remain constant throughout the entire service life.
Piston for material 0822406310: Polyurethane
AVENTICS short-stroke cylinder, series KHZ-0822406350
φ40 mm interface G 1/8, single-acting, no compression return, buffered, elastic piston rod, internal thread
Practical principle: Single-acting, no compression return
Buffering: Elastic
Piston diameter: 40 mm
Piston rod thread: M6
Stroke: 5 mm
Compressed air connection: G 1/8
Compressed air interface type: Internal thread
Compressed air connection: Internal thread
Minimum/maximum ambient temperature: -25 ... 80 °C
Medium temperature range: -25 ... 80 °C
Medium: Compressed air
Particle size: max. 50 μm
Oil content in compressed air: 0 ... 5 mg/m3
Pressure for determining piston thrust: 6.3 bar
Weight: 0.225 kg
Cylinder tube: Aluminum, anodized
Piston rod: Stainless steel
Piston: Acrylic rubber
Front cover plate: Brass, aluminum
Rear cover: Aluminum
The pressure must be at least 15°C lower than the ambient and medium temperatures, and the maximum allowable temperature is 3°C.
The oil content of the compressed air must remain constant throughout the entire service life.
Piston for material 0822406310: Polyurethane
AVENTICS short-stroke cylinder, series KHZ-0822406371
φ63 mm interface G 1/8, single-acting, no compression return, buffered, elastic piston rod, internal thread
Practical principle: Single-acting, no compression return
Buffering: Elastic
Piston diameter: 63 mm
Piston rod thread: M8
Stroke: 10 mm
Compressed air connection: G 1/8
Compressed air interface model: Internal thread
Compressed air connection: Internal thread
Low / high ambient temperature: -25 ... 80 °C
Medium temperature range: -25 ... 80 °C
Medium: Compressed air
Particle size: max. 50 μm
Oil content in compressed air: 0 ... 5 mg/m3
Pressure for determining piston thrust: 6.3 bar
Weight: 0.458 kg
Cylinder tube: Aluminum, anodized
Piston rod: Stainless steel
Piston: Acrylic rubber
Front cover plate: Brass, aluminum
Rear cover: Aluminum
The pressure must be at least 15°C lower than the ambient and medium temperatures, and the allowable high temperature is 3°C.
The oil content of compressed air must remain constant throughout the service life.
For the piston of material 0822406310: Polyurethane
AVENTICS mounting plate, series AS2-MBR-...-W01-R412006368
Seal material: Acrylic resin
Material: Steel
Low / high ambient temperature: -10 ... 50 °C
Weight: 0.065 kg
To install the fixing plate W01, the rear cover of the maintenance unit must be removed.
AVENTICS short-stroke cylinder, series KHZ-0822010627
φ 20 mm interface M5 double-acting with magnetic piston buffer, elastic piston rod, internal thread
Operating principle: Double-acting
Buffer: Elastic
Magnetic pin: With magnetic piston
Piston diameter: 20 mm
Piston rod thread: M5
Stroke: 50 mm
Dust seal: Polyurethane
Compressed air connection: M5
Compressed air interface model: Internal thread
Compressed air connection: Internal thread
Low / high ambient temperature: -25 ... 80 °C
Medium temperature range: -25 ... 80 °C
Medium: Compressed air
Particle size: max. 50 μm
Oil content in compressed air: 0 ... 5 mg/m3
Pressure for determining piston thrust: 6.3 bar
Material
Cylinder tube: Aluminum, anodized
Piston rod: Stainless steel
Piston Acrylic rubber
Front cover Brass, Aluminum
Rear cover Aluminum
Dust seal Polyurethane
The pressure must be at least 15°C lower than the ambient and medium temperature, and the maximum allowable temperature is 3°C.
The oil content of the compressed air must remain constant throughout the service life.
AVENTICS Short-stroke cylinder, Series KHZ-0822010642
Practical principle Double-acting
Buffering Elastic
Magnetic pin With magnetic piston
Piston diameter 32 mm
Piston rod thread M6
Stroke 15 mm
Dust seal Polyurethane
Compressed air connection G 1/8
Compressed air interface type Internal thread
Compressed air connection Internal thread
Minimum / Maximum ambient temperature -25 ... 80 °C
Medium temperature range -25 ... 80 °C
Medium Compressed air
Particle size max. 50 μm
Oil content in compressed air 0 ... 5 mg/m3
Pressure for determining piston thrust 6.3 bar
Materials
Cylinder tube Aluminum, Anodized
Piston rod Stainless steel
Piston Acrylic rubber
Front cover Brass, Aluminum
Rear cover Aluminum
Dust seal Polyurethane
The pressure must be at least 15°C lower than the ambient and medium temperature, and the maximum allowable temperature is 3°C.
The oil content of the compressed air must remain constant throughout the service life.
AVENTICS Industrial buffer 3702005000
Send Inquiry to This Supplier
You May Also Like
-
Main Engine Ahead Starting Control Solenoid Valve 3723522220US$ 384.62 - 396.92MOQ: 1 Piece
-
Rexroth Dc220v Solenoid Valve 4we10d33/cg220n9k4/vUS$ 438.46 - 446.15MOQ: 1 Piece
-
Aventics Air Source Shut - off Valve 0821300913US$ 53.85 - 55.38MOQ: 1 Piece
-
Rexroth Proportional Relief Valve 0811402016 Dbetx-10/315g24-8nz4mUS$ 369.23 - 384.62MOQ: 1 Piece
-
Duplomatic Gear Pump Gp20140r95b20nUS$ 353.85 - 369.23MOQ: 1 Unit
-
Rexroth Proportional Cartridge Valve 0811402622 Fesxe40ca-1x/500lk0b1mUS$ 2769.23 - 2846.15MOQ: 1 Piece
-
Italian Duplomatic Gear Pump Gp20113r97f20nUS$ 369.23 - 376.92MOQ: 1 Unit
-
Duplomatic Proportional Enlarged Version Ueik-11/51-24US$ 569.23 - 584.62MOQ: 1 Piece
-
Duplomatic Throttle Valve Ers4m-sb/40US$ 243.08 - 246.15MOQ: 1 Piece
-
Rexroth Four-way Servo Valve 4ws2em10-52/75b11et315k8dvUS$ 3615.38 - 3661.54MOQ: 1 Piece
