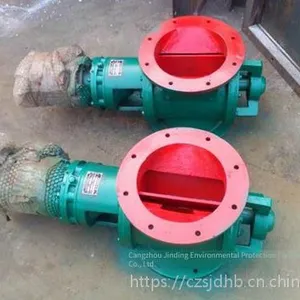

Type Yjd-b Star Discharge Valve, Cangzhou Jinding Environmental Protection

Type Yjd-b Star Discharge Valve, Cangzhou Jinding Environmental Protection thumbnail-1
Type Yjd-b Star Discharge Valve, Cangzhou Jinding Environmental Protection photo-1
US$ 400 - 5000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2012
Factory Size:
3,000-5,000 square meters
Contact Supplier Request Quote Chat Now
Cangzhou Jinding Environmental Protection Equipment Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

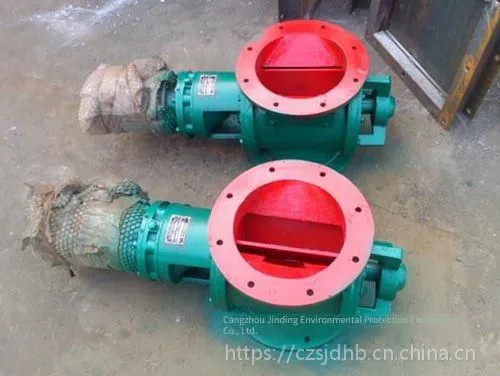

YJD-B Type Star Discharger

YJD-B Type Star DischargerAlso known as rotary feeder and air lock, it consists of a rotor with several blades rotating in a cylindrical casing. The materials falling from the upper hopper fill the spaces between the blades and are discharged as the blades rotate.



YJD-B Type Star Discharger is composed of various accessories such as cast iron casing, cast iron front cover, cast iron rear cover, cast iron rotor, cycloidal pin gear reducer, bearings, and transmission shafts. It is mainly used for ash discharge in the environmental protection industry and is also widely used in industries such as metallurgy, chemical engineering, grain, and food.



YJD-B Type Star Discharger is commonly used in pneumatic conveying systems. For pressure or negative pressure output systems, the star discharger can supply materials to the conveying pipe evenly and continuously to ensure a stable gas-solid ratio in the pneumatic conveying pipe, thus enabling normal operation of the pneumatic conveying. At the same time, it can isolate the upper and lower air pressures of the discharger to achieve the air locking function. Therefore, the star discharger is an important and commonly used component in pneumatic conveying systems.



YJD-B Type Star Discharger Performance Advantages and Features



1. This product has high processing accuracy and air locking function. It can be used as a powder quantitative feeder in crushing and grading systems, as a discharger in separation and dust collection systems, or in pressure or suction pneumatic conveying systems.



2. It is equipped with a pressure balancing device and can be used in positive and negative pressure conveying systems.



3、It can be made of various materials such as cast iron, cast steel, and stainless steel. The flange opening can have various structural forms such as square or round to meet different needs of users.



4、Non-standard discharge valves and non-standard stainless steel discharge valves can be customized according to your requirements.



YJD-B Type Star Discharge ValveThe preparations before installation and operation are as follows:



1、The upper and lower flanges of the entire star discharge valve must be firmly connected, and the whole machine should be in a horizontal state.



2、Check all fasteners to ensure reliable connection, and the machine(including the motor) should have good grounding.



3、The entire star feeder must be kept clean, especially there should be no foreign objects in the housing.



4、Check the wiring of the motor to make it ready for startup.



Professionally produced by Cangzhou Jinding Environmental Protection Equipment Co., Ltd.YJD-BType Star Dischargercan be professionally customized according to customer requirements.Welcome new and old customers to call for consultation. Consultation phone numbers: Mr. Ren 18713052490 (Hebei), Mr. Zhao 13393396766 (Shandong). Company website:Email:czsjdhb@163.com












Product Tags: Dust removal accessories , Discharger , Ash discharge valve
