Help CenterBmw/pt-160, Bmw/pt-120 Industrial Park Street Light Energy Saver, Voltage Stabilization and Regulation Remote Monitoring System
Related Products
-
Zlb3000-sq-30/3 Zlb3000-sq-40/3 Landscape Lighting Renovation Energy-saving Voltage Stabilization DeviceUS$ 1600 - 1615.38MOQ: 1 Set -
Instruction Manual for Eyhg-80kva and Eyhg-100kva Voltage Step-down, Voltage Stabilization and Dimming Devices for Hospital Street LightsUS$ 153.54 - 153.69MOQ: 1 Unit
-
Thlxd-zm-80a Intelligent Lighting Energy-saving Regulation Device, Low-frequency Communication Color and Dimming ControllerUS$ 138.46 - 153.69MOQ: 1 Unit
-
Intelligent Street Lamp Lighting Voltage Stabilizing and Power-saving Device Ktjsq-3/80a Remote Light Control System Street Lamp ControllerUS$ 153.54 - 153.69MOQ: 1 Unit
-
Thlxd-zm-60kw Integrated Voltage-regulating Circuit Lighting Energy-saving Control System for Industrial Parks, Street Lamp Voltage-regulating ControllerUS$ 600 - 615.23MOQ: 1 Piece

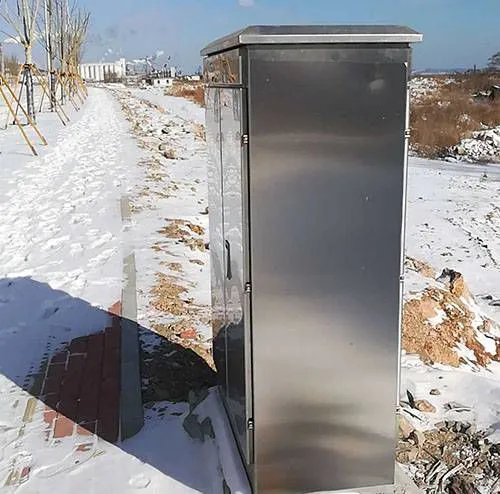

BMW/PT-160 BMW/PT-120 Industrial Park Street Lamp Energy Saver, Voltage Stabilization and Regulation Remote Monitoring System series currently has two types. Indoor type: Installed at the lower end of the indoor lighting control cabinet; Outdoor type: Can be installed according to user requirements and placed in a stainless-steel cabinet with a protection level of IP54. It is widely used in public lighting environments such as municipal roads, highways, bridges, tunnels, gardens, docks, scenic lights, sports squares, amusement places, advertising light boxes, etc. Applicable lamp types: All gas-discharge lighting lamps such as high-pressure sodium lamps, low-pressure sodium lamps, metal halide lamps, high-pressure lamps, fluorescent lamps, etc. In the road lighting system, the road lighting control system is adopted. By means of controlling voltage fluctuations, it overcomes the influence of voltage fluctuations on road lighting and the service life of lighting products to achieve better lighting and energy-saving effects. In indoor lighting control, intelligent automatic control systems such as voice control, light control, and infrared control are mainly used to reduce lighting power consumption and extend the service life of lighting products. Zhejiang Juchuan Electrical Technology Co., Ltd. O57727877837.
Product Design Standards for Street Lamp Voltage Stabilization Remote Monitoring Energy-Saving System
JB8749-1998 General Technical Requirements for Voltage Regulators
GB1094-2013 Power Transformers
GB/T6451-2008 Technical Parameters and Requirements for Three-Phase Oil-Immersed Power Transformers
GB/T17468—1998 Guidelines for the Selection of Power Transformers
GB10230—2007 On-Load Tap-Changers
GB/T1058—1989 Guidelines for the Application of On-Load Tap-Changers
DL/T572-2010 Operating Regulations for Power Transformers
Industrial park street lamp energy saverParameter indicators:
Parameter indicators |
Single-phase/Three-phase |
||
Input voltage range |
190V~270V/330V~467V |
Cabinet protection level |
According to customer requirements |
Output energy-saving phase voltage |
190-230V |
Insulation resistance |
＞5M |
Frequency |
50/60HZ |
Withstand voltage strength |
Can withstand 2000V for 1min |
Voltage adjustment method |
Contactless, stepless voltage regulation |
Continuous overload capacity |
1.2 times |
Voltage stabilization accuracy |
±1% |
Short-time overload capacity |
1.5 times |
Output voltage waveform |
Sine wave |
Nominal power-saving rate |
0 - 55% or more |
Operating environment temperature |
-40℃~45℃ |
Connection method |
Connected in series in the circuit |
*Allowable temperature rise |
70℃ |
Design service life |
15 years |
BMW/PT-160 BMW/PT-120 Industrial Park Street Lamp Power Saver, Voltage Regulation and Remote Monitoring System Product Advantages
1. Extend the service life of the electric light source.
2. It does not cause any harmonic pollution to the power grid, optimizes the power grid, and expands the capacitor margin.
3. Filter current fluctuations and surges, reduce reactive power loss, and optimize various operating indicators of the power grid and lighting equipment.
4. Reduce the operating temperature of the lamps, promote the saving of cooling energy, and extend the service life of the lamps by 30%.
5. Low-risk return on investment, significantly reduce operating costs
6. Good cost - performance ratio, with a system service life of 100,000 hours.
7. Users can recover the investment cost of energy - saving equipment in about 6 to 12 months.
8. After recovering the cost of energy - saving equipment, it can create long - term profits with remarkable economic benefits.
The usage method of the industrial park street lamp energy saver is as follows:
1. Before use, check whether the power voltage regulation and stabilization device is damaged. Mainly check the shell, ammeter, switch, indicator light, button, terminal block, etc. It can be used normally only after confirming that there is no damage.
2. Plug the input end of the power voltage regulation and stabilization device into the power strip, and install a fuse that meets the equipment power to ensure electrical safety.
3. Connect the power supply of the lighting equipment to the output end of the device. Remember to check the applicable voltage of the electrical appliance clearly and never connect it incorrectly. 4. Turn on the power switch of the power voltage regulation and stabilization device. When the working indicator light and the delay indicator light are on, then observe whether the indicator light is normally pointing to about the output voltage, and then turn on the power switch of the lighting equipment, which means that this power voltage regulation and stabilization device can automatically adjust the voltage and may supply power normally.
