Help CenterZlb3000-sq-30/3 Zlb3000-sq-40/3 Landscape Lighting Renovation Energy-saving Voltage Stabilization Device
Related Products
-
Instruction Manual for Eyhg-80kva and Eyhg-100kva Voltage Step-down, Voltage Stabilization and Dimming Devices for Hospital Street LightsUS$ 153.54 - 153.69MOQ: 1 Unit -
Thlxd-zm-80a Intelligent Lighting Energy-saving Regulation Device, Low-frequency Communication Color and Dimming ControllerUS$ 138.46 - 153.69MOQ: 1 Unit
-
Intelligent Street Lamp Lighting Voltage Stabilizing and Power-saving Device Ktjsq-3/80a Remote Light Control System Street Lamp ControllerUS$ 153.54 - 153.69MOQ: 1 Unit
-
Thlxd-zm-60kw Integrated Voltage-regulating Circuit Lighting Energy-saving Control System for Industrial Parks, Street Lamp Voltage-regulating ControllerUS$ 600 - 615.23MOQ: 1 Piece
-
Dr420-lc, Dr620-lc, Dr820-lc 4-channel Switch Controller for Landscape Intelligent LightingUS$ 153.85 - 169.23MOQ: 1 Set
ZLB3000-SQ-30/3 ZLB3000-SQ-40/3 Landscape lighting renovation energy-saving voltage stabilizer is equipped with a unique astronomical time control, which automatically simulates the local sunshine law and intelligently controls the start and stop time of lighting every day. There is no need to manually correct the lighting working time due to seasonal changes. On-site, data such as lighting current, voltage, power factor, and electricity metering, as well as real-time operation and control of lighting, can be observed through the LCD touch screen, which makes it more convenient for staff to operate and inspect on the spot. It also provides RS232 or RS485 interfaces to realize remote transmission and control of lighting data.
Product specifications: ZLB3000-SQ-30/3, ZLB3000-SQ-40/3, ZLB3000-SQ-30/3, ZLB3000-SQ-40/3, ZLB3000-SQ-30/3, ZLB3000-SQ-40/3, ZLB3000-SQ-30/3, ZLB3000-SQ-40/3, ZLB3000-SQ-30/3, ZLB3000-SQ-40/3, ZLB3000-SQ-30/3, ZLB3000-SQ-40/3

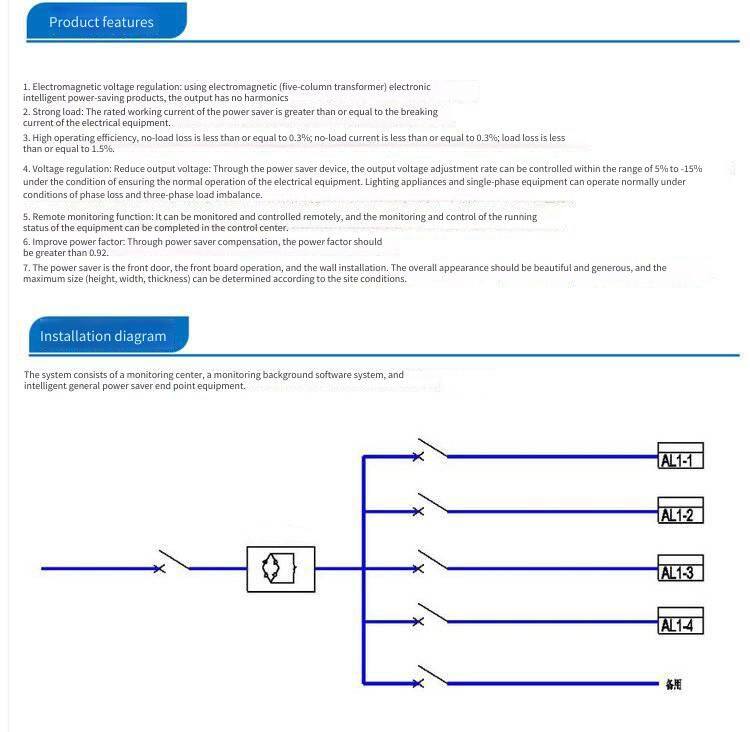

Functional characteristics of landscape lighting renovation energy-saving voltage stabilizer:
No harmonic distortion in output;
Aging of resistors, relays, motors, etc.
The lighting power-saving control cabinet dynamically tracks the input voltage and automatically adjusts the power-saving gear to make the lamps work under constant voltage to ensure the normal operation of the lamps and achieve energy-saving effects.
The intelligent street lamp power saver dynamically tracks the input voltage and automatically adjusts the power-saving gear to make the lamps work under constant voltage to ensure the normal operation of the lamps and achieve energy-saving effects.
It can automatically detect the actual situation and the automatic power-saving rate.
It has RS-485 or RS-232 interfaces for computer and remote automatic control;
Technical parameters of ZLB3000-SQ-30/3 ZLB3000-SQ-40/3 landscape lighting renovation energy-saving voltage stabilizer
●Operating voltage: AC~220V, Overall power consumption: ≤12W
●2 channels for switch lighting control, 8 channels for thyristor dimming,
●The maximum single-channel load of the switch channel is 1kW, the maximum single-channel load of the dimming channel is 1kW, and the overall power is less than 5kW
● Can be directly connected to the wall panel for independent lighting control.
● 13 kinds of custom lighting effects can be programmed through the panel buttons, and online copying is supported.
● Supports DMX512 and can be controlled using a DMX512 encoder.
● RS485 industrial transmission control.
The energy-saving voltage-stabilizing device for landscape lighting renovation in lighting can be selected in four specifications: 4-channel, 6-channel, 8-channel, and 12-channel. It uses CAN bus terminal blocks to connect to the network. It can control AC loads without additional power supply. The provided programmability has strong adaptability to possible changes. When the lighting control relationship needs to be changed for some reason, you only need to make modifications in it without re-laying cables. The channels are equipped with infrared sensors, which automatically turn on the lights when someone enters and turn them off with a delay after the person leaves. At the same time, monitoring is provided, and relevant lighting can be turned on or off according to specific conditions. Automatic and manual switching control is provided, and it can be switched from automatic induction control to on-site manual control as needed. It can control lighting, electric curtains, sunshading equipment, electric windows, etc. in smart buildings, villas, and apartments, as well as air conditioners, heating equipment, and other end electrical equipment. Main advantages: High energy-saving efficiency, flexible functions, easy to expand, low-voltage control, safe and reliable. Smart lighting includes: smart panels, smart lighting modules (switching, dimming, and dimming ones are further divided into incandescent lamps, fluorescent lamps, LED lamps, etc.), illuminance sensors, infrared control, etc.
Pre-installation inspection steps for ZLB3000-SQ-30/3 and ZLB3000-SQ-40/3 energy-saving voltage-stabilizing devices for landscape lighting renovation

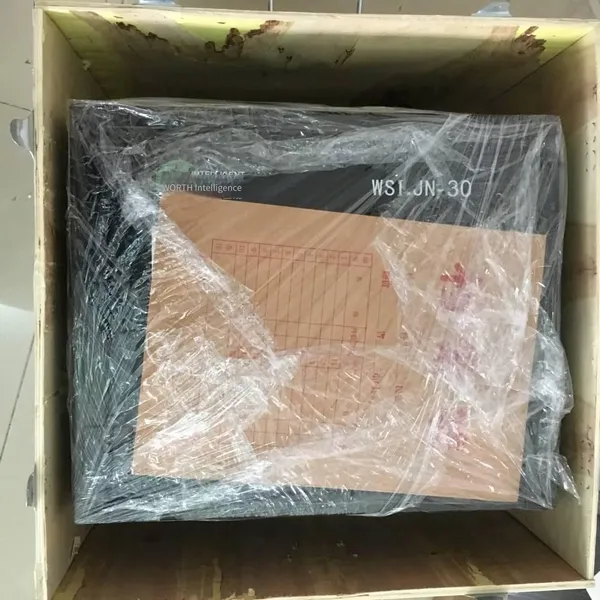

After receiving the voltage stabilizer (cabinet), users should first conduct an unpacking inspection. Mainly check whether the components are damaged and whether the wires
are broken, detached, or loose. All screw positions should be tightened again, and check whether the randomly attached accessories are
complete.
3.2 Installation conditions for the energy-saving voltage-stabilizing device for landscape lighting renovation
1) Altitude: No more than 2000m;
2) Temperature: The maximum air temperature is not higher than +40℃ and not lower than -5℃, and the maximum daily average temperature is +35℃;
3) Relative humidity: When the maximum air temperature is +40℃, the relative humidity does not exceed 50%. At lower temperatures, a higher relative humidity is allowed.
4) Pollution level: Class 3;
5) Installation: The surrounding medium has no explosive or flammable hazards, no gases sufficient to damage insulation and corrode metals, and no conductive dust.
