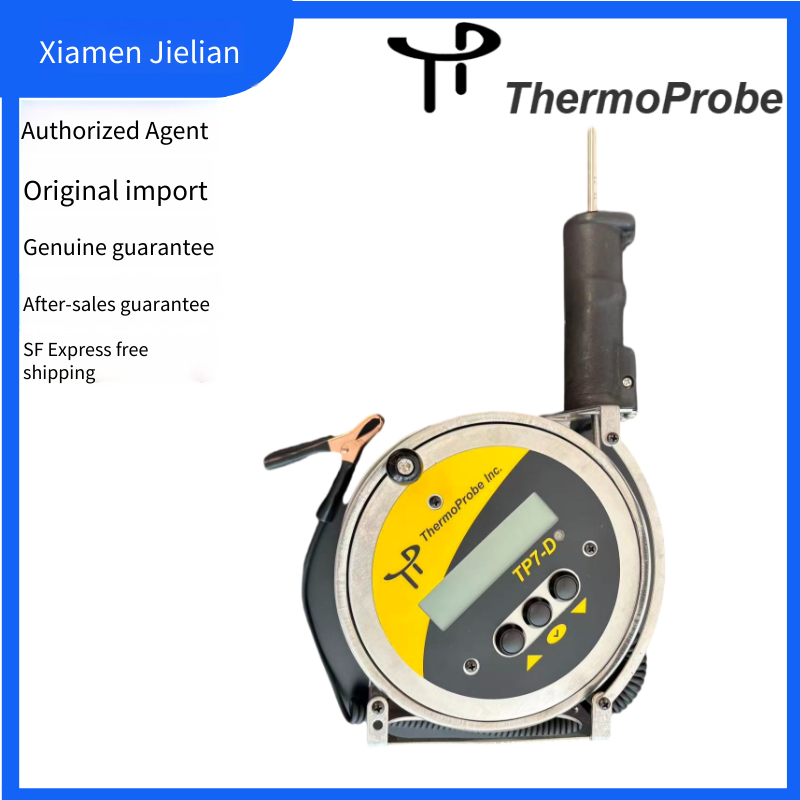

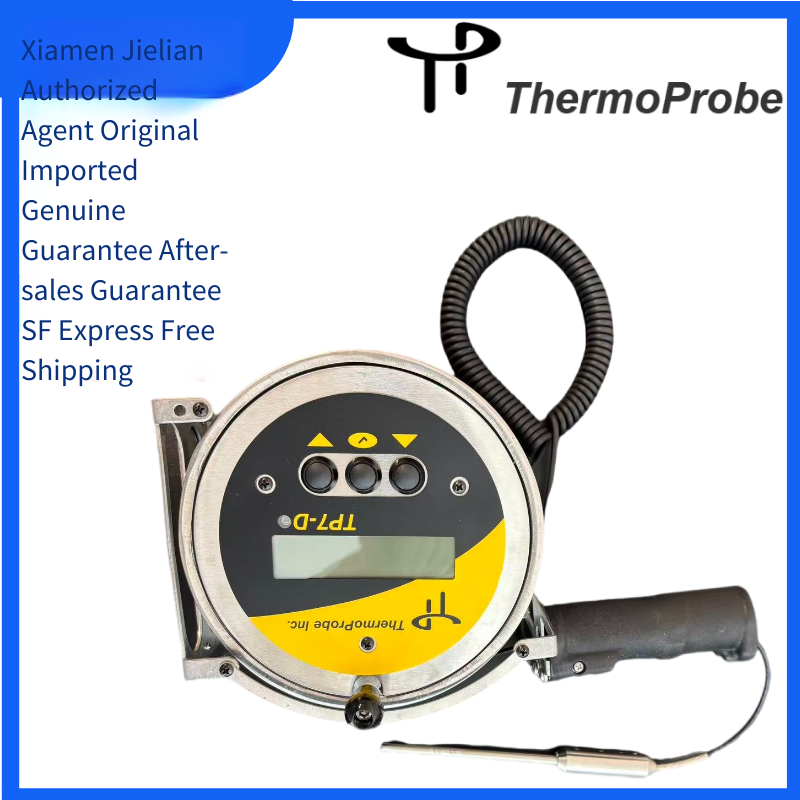

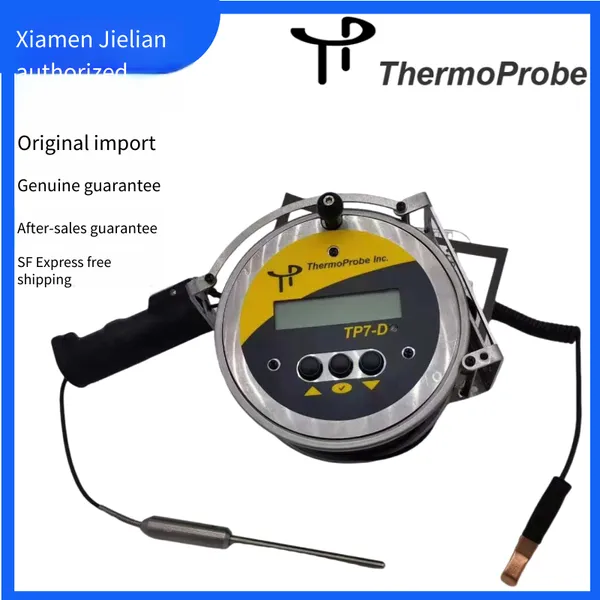

Explosion-proof Portable Electronic Digital Thermometer with Digital DisplayTP7-D ThermoProbe
The TP7-D petroleum measuring thermometer, sold by Xiamen Jielian Instrument & Equipment Technology Co., Ltd. as an agent, is designed and tested to meet international intrinsic safety explosion-proof standards and is suitable for Zone 0 in flammable and explosive environments.
The TP7-D features durable stainless steel and plastic components and is ergonomically designed. The non-stick surface cable is easy to clean, making the TP7-D highly suitable for heavy liquid products such as asphalt. Like previous models, the TP7-D uses a durable thin-film RTD sensor, which provides reliable temperature measurement, an automatic backlight suitable for low-light conditions, and a new motherboard with higher precision. The surface now has a larger display with 1/2-inch (13 mm) alphanumeric characters and raised buttons for easy operation with gloves. The middle button is for simple on/off operation. The intuitive menu allows users to record readings, select Celsius or Fahrenheit units, display resolution, and perform calibration. Icons on the display help users check temperature stability, battery status, and perform auxiliary functions. Easily replaceable AA batteries can power the device for up to 200 hours.
The TP7-D offers a variety of probe configurations, with an allowable cable length of up to 165 feet (50 meters), making it an ideal choice for many tank gauging applications.

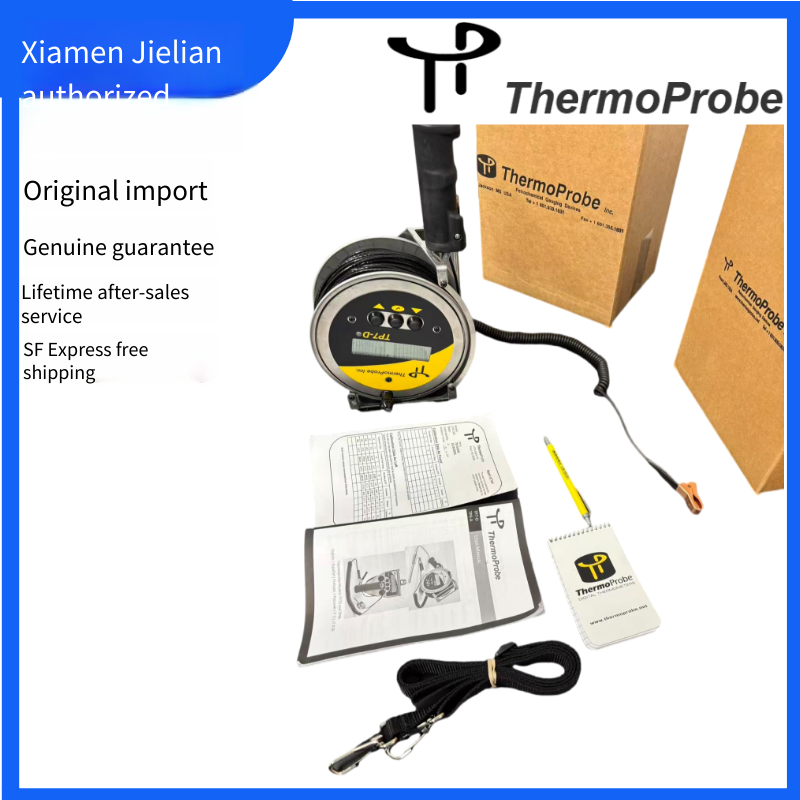

A one-year warranty, a NIST-traceable 4-point calibration report, and an operation manual are provided, along with lifetime service.
Temperature:
Resolution: 0.01°C
Range: -40°F to 400°F (-40°C to 204°C)
Note: Standard calibration does not provide full-range accuracy.
Calibration accuracy:
±0.2°F from 32 to 200°F (±0.1°C from 0 to 100°C)
±0.5°F from 200 to 400°F (±0.3°C from 100 to 200°C)
Customizable calibration points and ranges are available.
4-point NIST-traceable test report
Long-term drift of no more than 0.05% per year
Complies with API requirements
Features:
1/2-inch (13 mm) LCD display
Switchable units between °C or °F
Resolution of 0.1 or 0.01
Low battery and fault indication
Calibration adjustment via panel buttons.
Automatically turn off after 20 minutes.
Store and display 10 recorded readings, average, low and high readings.
Arrows indicating temperature increase/decrease.
Recommended ambient temperature range: 32°F to 112°F (0°C to 44°C)
Construction:
Probe: 304 stainless steel, sealant, coaxial cable, aramid fiber and PFA cable sheath
Enclosure: Stainless steel, robust panel-mounted buttons, static-dissipative plastic handle
Body dimensions: 10“L x 4.5”H x 6“W (24.5 x 12 x 14cm)
Weight: lbs (2 kg) - Probe assembly with 75' standard weight
Battery:
2 AA alkaline batteries; Battery life is approximately 200 hours
Battery operating temperature range is -4 to 130°F (-20 to 54°C)
Note: If the ambient temperature is extremely low or high, the battery may not provide sufficient power.
Typical applications:
Enclosed transfer, hazardous locations, intrinsic safety, inventory counting, process detection, storage tanks, pipelines, barges, ships, rail tank cars, tank trucks
Materials:
Gasoline, diesel, asphalt, liquid sulfur, petrochemical products, viscous, corrosive, acids, chemicals, alkalis, molasses, syrup, distilled spirits, aviation fuel
Recommended operations:
API 7.2, International Safety Guide for Tankers and Terminals, API 4 and other recognized procedures and standards.
