Conductivity Meter 1153A, EMCEE, USA Portable Digital Handheld
Xiamen Jielian Instrument & Equipment Technology Co., Ltd. is the authorized distributor of the EMCEE Conductivity Meter Model 1153A from the USA. This is a portable digital conductivity meter. The following is a detailed introduction:
(ASTM Standard Test Method D2624)
l Continuous standard conductivity range: 0 to 2,000 picoseconds per meter (pS/m)
l Other conductivity ranges available (2,000 to 2 picoseconds per meter)
l LED indicator lights up during the automatic test cycle (3 seconds)
l Measures and displays temperature (Celsius and Fahrenheit)
l Data storage (non-volatile) until the next test cycle
l Sealed design
l Displays operating status in text
l Automatic over-range and low battery indication
l Single-button operation
l Digital LCD display
l Powered by 3 standard lithium batteries
l Certified by Underwriters Laboratories (UL) in the USA, Underwriters Laboratories (UL) in Canada, and European Underwriters Laboratories (LCIE). It has an intrinsically safe design and is suitable for hazardous environments
Applications
The Model 1153 digital conductivity meter can measure the conductivity of fluids in conductivity units (CU), which is defined as picoseconds per meter, complying with ASTM D 2624 standards. The Model 1153 conductivity meter features a robust electromechanical design, making it suitable for both laboratory and field applications. This instrument was initially designed and developed for safety reasons to measure the conductivity of hydrocarbon fuels (especially aviation kerosene). Additionally, multiple preamplifier versions are available to measure various fluids, meeting a wide range of application requirements.
Safety
Hydrocarbon fuels typically have low conductivity, making them prone to generating static charges. Static charges are more likely to be generated when the fuel is pumped through a filter at high speed. Due to the relatively low conductivity, static charges are not easily dissipated and can persist for a long time. This situation may lead to explosions and/or fires. Since conductivity is related to temperature, it is crucial to record the fuel temperature during measurement.
Process Control
In addition to safety considerations, monitoring the conductivity of fluids can also be used for process control. At different stages of production, the addition and mixing of various components can be monitored to ensure they are correct. These applications are not limited to hydrocarbons but also extend to other products, such as paints, solvents, inks, and other non-organic substances.
Working Principle
The EMCEE Model 1153 conductivity meter consists of an electronic component and an aluminum probe. This probe is similar to a capacitor with concentric electrodes and is immersed in the liquid until it reaches a set of holes near the electronic component. During the reverse cycle, a relatively small direct current flows through the liquid between the electrodes. The current is amplified in the electronic component and displayed on the liquid crystal display in units of picoSiemens per meter (pS/m). This data is then stored in non-volatile memory until the next reading.
Specifications:
Range: 0 – 2000 pS/m
Resolution: +/- 1 (0-2k pS/m)
Accuracy: 2% of the reading
Calibration: Built-in source, field-adjustable
Control: Single button
Display: 5-digit liquid crystal display
Safety grounding: Banana plug on the electronic component
Power supply: Battery, 3 pieces, 3-volt lithium batteries
Operating temperature range: 32° to 165°F (0° to 75°C)

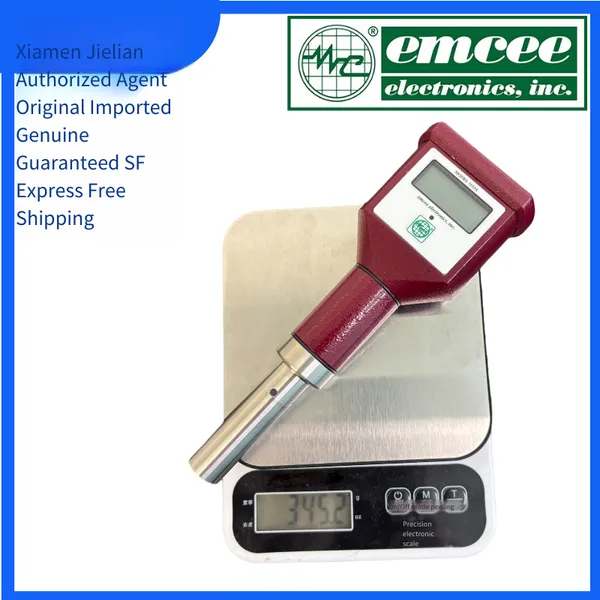

Dimensions: Length: 7.5 inches, Width: 2.25 inches, Depth: 1.7 inches, Probe diameter: 0.75 inches, Weight: 8.2 ounces (0.23kg)

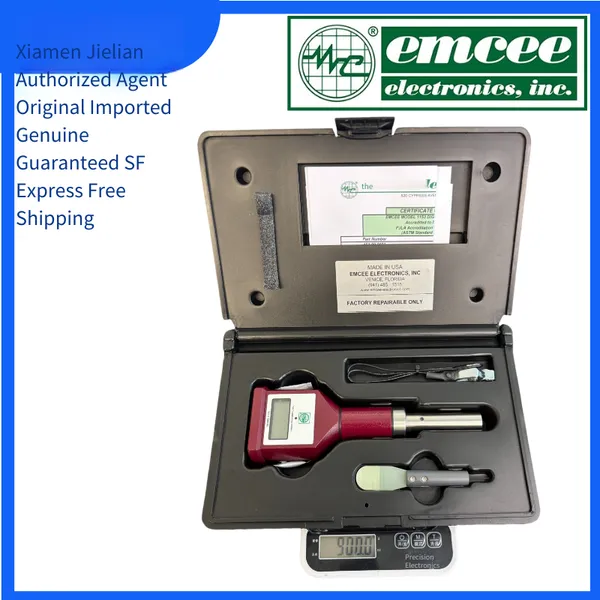

Carrying case: Hard, solvent-resistant molded plastic
Application Areas:
Petrochemical industry: Used to measure the conductivity of hydrocarbon fuels, especially jet fuel, and monitor its conductivity to ensure safety. It can also be used for monitoring cleaning water, etc.
Electroplating and metal processing industry: Can be used for evaluating the performance of electroplating solutions, monitoring metal surface treatment, etc.
Power industry: Used for monitoring cooling water in power stations, detecting insulating oil, etc.
153-00-0006 |
MODEL 1153 DCM 0-2,000PS/M |
|
153-00-0007 |
MODEL 1153 DCM 0-20,000PS/M |
|
153-00-0008 |
MODEL 1153 DCM 0-2,000PS/CM |
|
153-00-0009 |
MODEL 1153 DCM 0-20,000PS/CM |
|
153-00-0010 |
MODEL 1153 DCM 0-100,000PS/CM |
|
153-11-0000 |
50 FT. CABLE REEL |
|
153-12-0000 |
100 FT. CABLE REEL |
|
153-20-0001 |
5 ML fuel |
SM.STAINLESS STEEL SAMPLE FUEL CONTAINER |
001-90-5601 |
BATTERY REMOVAL TOOL |
|
001-90-9347 |
GROUND CABLE |
|
001-90-7340 |
BLACK CARRYING CASE |
|
153-90-9801 |
CU BOX FOR 153-00-0006 ( 10 PS/M LOW ) |
|
153-90-9802 |
CU BOX FOR 153-00-0006 ( 10 PS/CM HIGH ) |
|
153-90-9807 |
CU BOX FOR 153-00-0007 ( 100 PS/M LOW ) |
|
153-90-9803 |
CU BOX FOR 153-00-0007 ( 100 PS/CM HIGH ) |
|
153-90-9802 |
CU BOX FOR 153-00-0008 ( 10 PS/CM LOW ) |
|
153-90-9804 |
CU BOX FOR 153-00-0008 ( 1,000 PS/CM HIGH ) |
|
153-90-9803 |
CU BOX FOR 153-00-0009 ( 100 PS/CM LOW ) |
|
153-90-9805 |
CU BOX FOR 153-00-0009 ( 10,000 PS/CM HIGH ) |
|
153-90-9803 |
CU BOX FOR 153-00-0010 ( 100 PS/CM LOW ) |
|
153-90-9806 |
CU BOX FOR 153-00-0010 ( 50,000 PS/CM HIGH ) |
