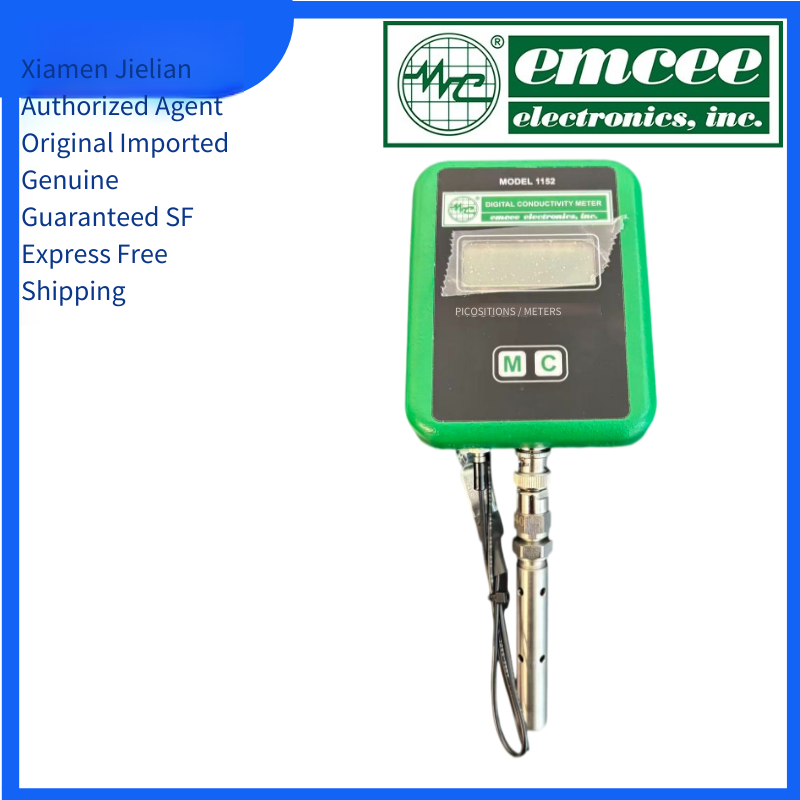

Conductivity Meter, Portable, Handheld, Digital Display, Precise, Sensor Electrode Probe 1152, EMCEE, USA
The EMCEE 1152 conductivity meter, sold by Xiamen Jielian Instrument & Equipment Technology Co., Ltd. as an agent, is a portable digital conductivity meter designed specifically for measuring the conductivity of liquids. It is widely used in fields such as petrochemical, aviation, and laboratories.
The following is a detailed introduction to the instrument:
Product Features

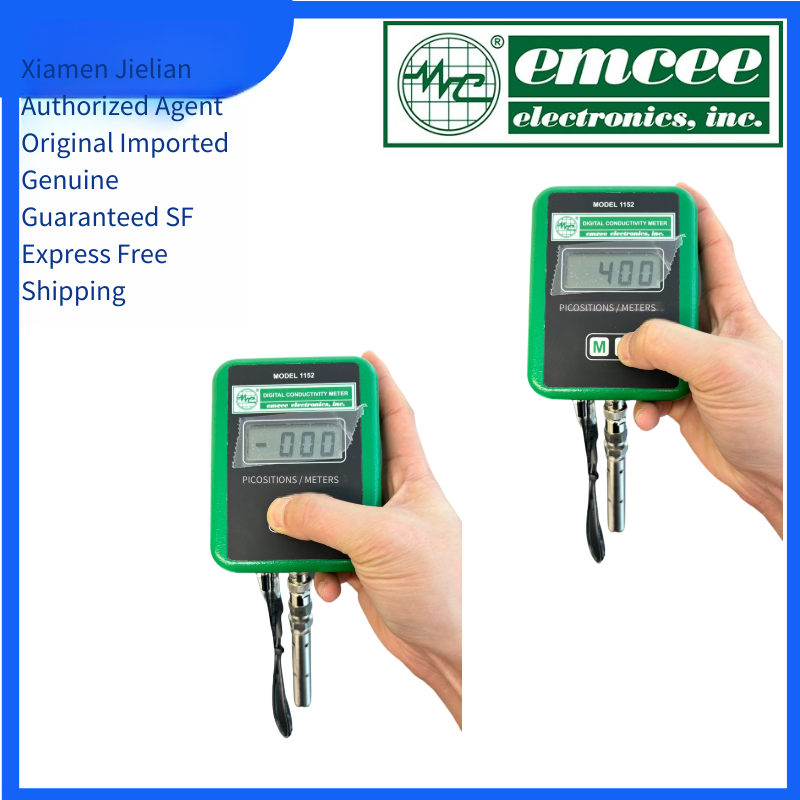

Digital Display and Convenient Operation: It adopts a large digital LCD screen and is easy to operate. Only two buttons are needed to complete measurement and calibration operations.
Automatic Calibration Function: It has an internal automatic calibration function and can be adjusted on-site to ensure the accuracy of measurement results.

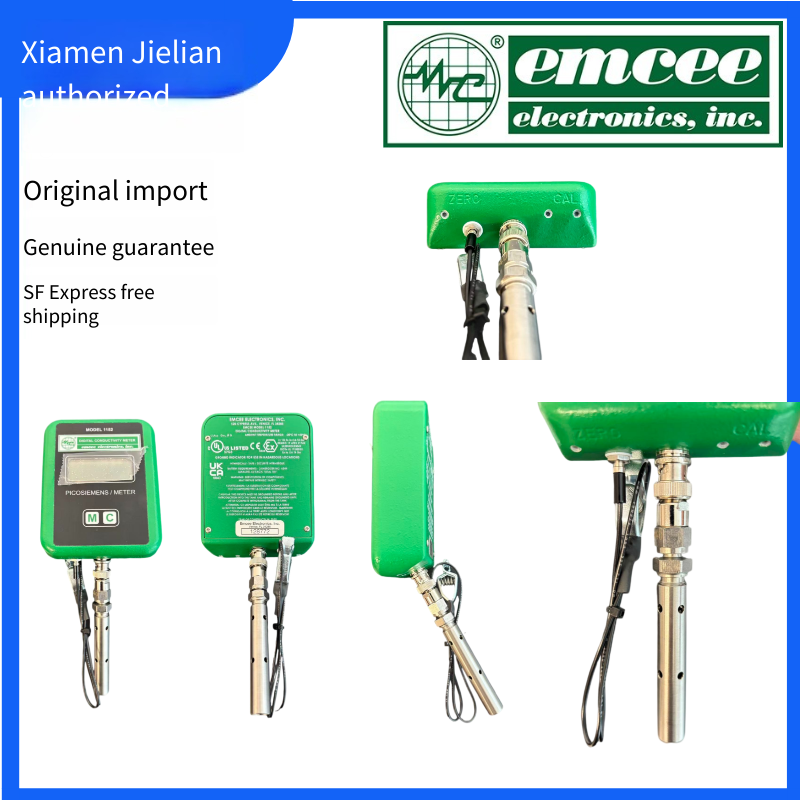

Sturdy and Durable Design: The electronic components are installed in a sturdy cast aluminum housing coated with a solvent-resistant paint. It is equipped with a detachable stainless steel probe, suitable for use in harsh industrial environments.
Intrinsically Safe Design: It has passed safety certifications from institutions such as Underwriters Laboratories (UL) in the USA, Canadian Standards Association (CSA), and LCIE, and can be used in hazardous environments.

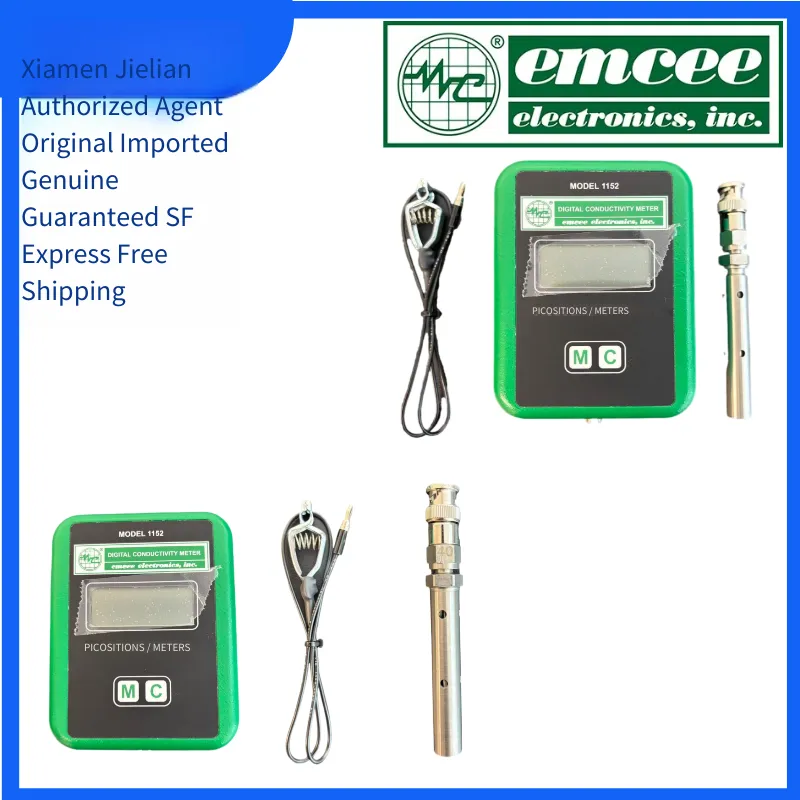

Portability and Long Battery Life: The main unit weighs only 1.2 kg. With a detachable 3-meter cable and a stainless steel probe, it can be easily packed into a portable case. It is powered by 3 alkaline batteries and has a battery life of up to 200 hours.
Technical Parameters
Measurement Range: 0 to 1999 pS/m.
Resolution: 1 pS/m.
Accuracy: 2% of the reading ± 1 pS/m.
Display: 3½-digit LCD screen.
Power Supply: 3 6-volt alkaline batteries.
Application Fields
Petrochemical: Measure the conductivity of hydrocarbon fuels (such as jet fuel, diesel, etc.) to evaluate their electrostatic accumulation and explosion risks.
Aviation: Ensure that the conductivity of aviation fuel meets safety standards to prevent fires and explosions caused by static electricity.
Laboratory: Used for high-precision conductivity measurement to support scientific research and quality control.
Industrial Process Control: Monitor the conductivity of fluids during the production process to ensure product quality and production safety.
Working Principle
The instrument consists of electronic components and a detachable stainless steel probe. The probe is similar to a capacitor with concentric electrodes. When immersed in the fluid, it measures the conductivity through a weak direct current between the electrodes and displays the result on the LCD screen.
The EMCEE 1152 conductivity meter from the USA has become the standard configuration from laboratories to production lines in industries such as chemical, energy, and aviation due to its high precision, portability, and reliability.
152-00-0010 |
MODEL 1152 DIGITAL CONDUCTIVITY METER X1 |
|
152-00-0011 |
MODEL 1152 DIGITAL CONDUCTIVITY METER X10 |
|
152-00-0012 |
MODEL 1152 DIGITAL CONDUCTIVITY METER X100 |
|
152-00-0013 |
MODEL 1152 DIGITAL CONDUCTIVITY METER X1,000 |
|
152-00-0014 |
MODEL 1152 DIGITAL CONDUCTIVITY METER X10,000 |
|
001-90-9347 |
GROUND CABLE ( SAME AS MODEL 1153) |
|
152-90-9904 |
CU SUBSTITUTION BOX (X1) , 100/500 PS/M |
|
152-90-9905 |
CU SUBSTITUTION BOX (X10) , 1000/5000 PS/M |
|
152-90-9906 |
CU SUBSTITUTION BOX (X100) , 10,000/50,000 PS/M |
|
152-90-9907 |
CU SUBSTITUTION BOX (X1,000) , 100,000/500,000 PS/M |
|
152-90-9908 |
CU SUBSTITUTION BOX (X10,000) , 1,000,000/5,000,000 PS/M |
|
152-90-9910 |
CU SUBSTITUTION BOX , 10/50 PS/M |
|
152-09-0000 |
PROBE SUB-ASSEMBLY |
|
152-09-0001 |
PROBE CLEANING KIT ( FOR MODEL 1152 & 1153 DCM) |
|
001-90-7102 |

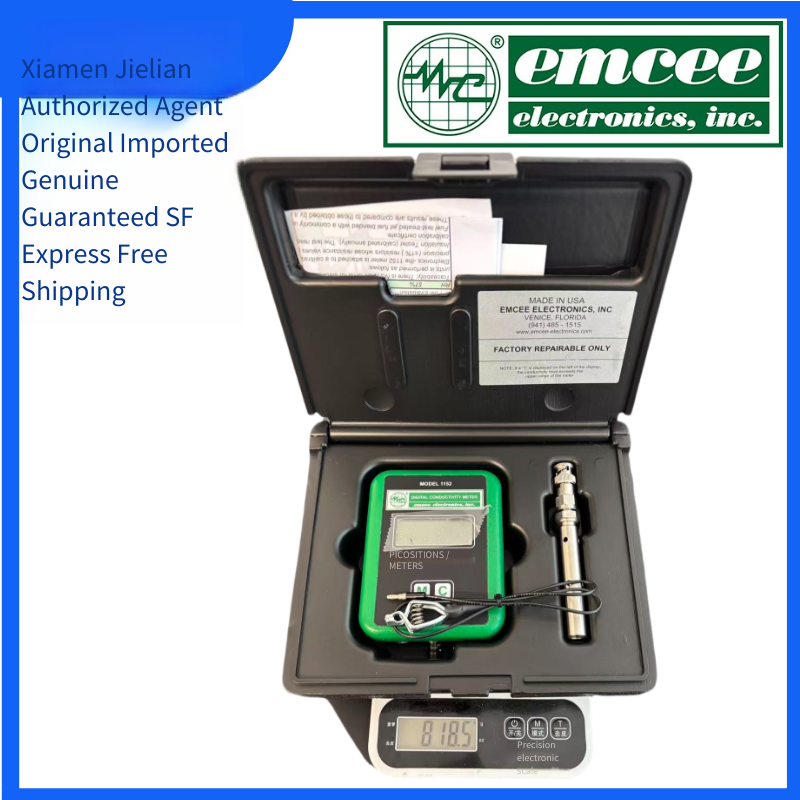

BLACK MOLDED CARRYING CASE |
|
001-90-7903 |
PROBE CENTERING WASHER |
|
900-99-6251 |
STAINLESS STEEL SCREWS (SOLD W/001-90-7903) |
|
001-90-9110 |
20 FT. TRIAX CABLE WITH CONNECTORS |
|
001-90-9111 |
15 FT. TRIAX CABLE WITH CONNECTORS |
|
001-90-9112 |
25 FT. TRIAX CABLE WITH CONNECTORS |
|
001-90-9113 |
10 FT. TRIAX CABLE WITH CONNECTORS |
|
001-90-9114 |
5 FT. TRIAX CABLE WITH CONNECTORS |
|
152-06-0003 |
50 FT. CABLE REEL W/WEIGHT |
|
152-06-0004 |
100 FT. CABLE REEL W/WEIGHT |
|
001-90-9313 |
CABLE REEL GROUND LEAD |
|
001-90-9314 |
CABLE, 12" BLACK 1866-12-103 BK H.H |
|
152-25-0000 |
3.5ML |
SM.STAINLESS STEEL SAMPLE FUEL CONTAINER |
152-26-0000 |
250ML |
LG.STAINLESS STEEL CONTAINER |
001-90-4711 |
ADAPTOR FOR ABOVE CONTAINERS |
