ThermoProbe P9CASE_GSKT_MOLDED TP9 Case Gasket (TP9 TP9-A Silicone Gasket) [Thermometer Repair]
Product Overview

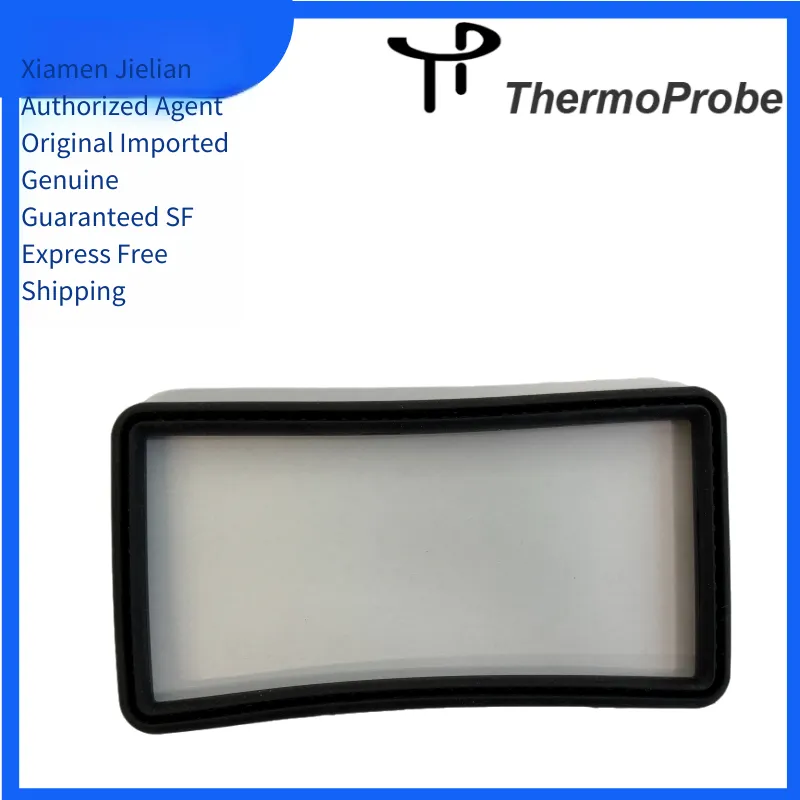

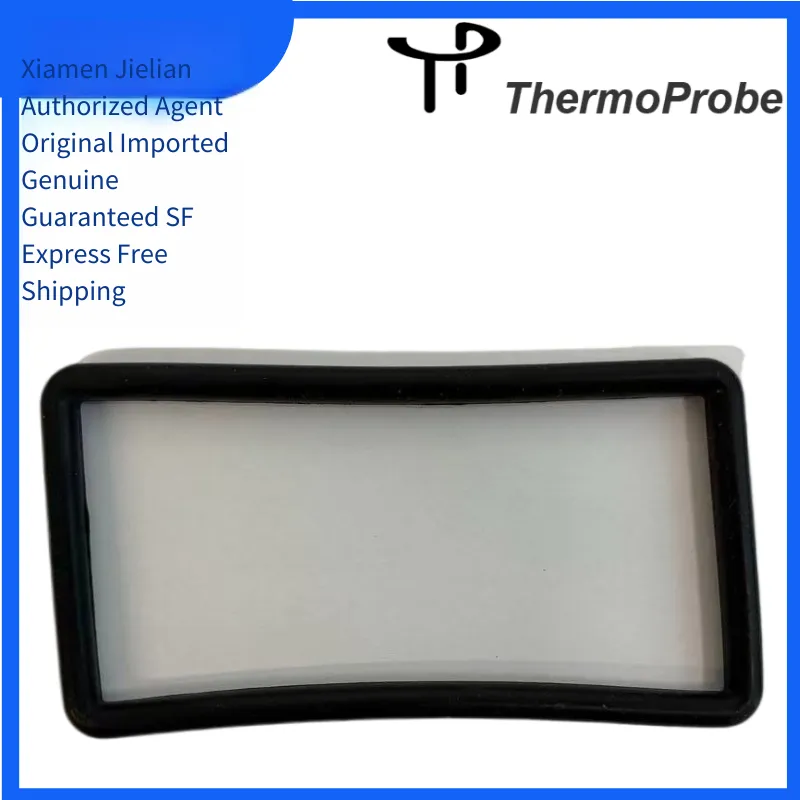

Xiamen Jielian Instrument & Equipment Technology Co., Ltd. distributes the P9CASE_GSKT_MOLDED, which is a dedicated replacement gasket for the chassis of the TP9 series of portable explosion-proof petroleum thermometers produced by ThermoProbe. It is manufactured using a molded process.
This gasket is a key accessory to ensure the intrinsically safe explosion-proof performance and environmental sealing of the TP9 equipment in hazardous environments.
Product Specifications
Item |
Content |
Model |
P9CASE_GSKT_MOLDED |
Product Name |
TP9 Case Gasket (TP9 Chassis Gasket) |
Product Type |
Accessory or Replacement Part |
Manufacturing Process |
Molded |
Reference Price |
100 |
Supply Cycle |
In Stock |
Applicable Equipment |
ThermoProbe TP9, TP9-A and other series of intrinsically safe petroleum measuring thermometers |
Functions and Purposes
1. Explosion-proof Safety Guarantee Maintain the intrinsically safe enclosure seal of the TP9 equipment's housing.
Ensure the effectiveness of the explosion-proof certification of the equipment in Zone 0 hazardous areas (where explosive gas atmospheres are continuously present).
Prevent external flammable gases or vapors from entering the equipment. 2. Environmental Protection Dust and water proof: Cooperate with the stainless-steel housing to prevent the intrusion of petroleum products, dust, and moisture.
Chemical corrosion protection: Resist the corrosion of petroleum vapor and acidic/alkaline chemical products
Temperature adaptation: Adapt to the industrial environment temperature range from -40°C to +204°C. 3. Structural matching molding design: Precisely match the slot structure of the TP9 stainless steel chassis
Material matching: Usually made of silicone or similar elastomeric materials, corresponding to the original "Molded Silicone seal" of the equipment and matching the equipment structure
The structure composition of the TP9 series host shell suitable for this gasket:
Component |
Material |
Description |
Main body shell |
Stainless Steel |
Core structural part |
Probe bracket |
Acetal/Delrin |
Static dissipative plastic material |
Front panel |
PVC |
Covers the display window and operation buttons |
Gasket |
Molded silicone/elastomer |
That is, the replacement part of P9CASE_GSKT_MOLDED |
Fastener |
Stainless Steel |
Shell fixing screws |
Comparison of related accessories
Model |
Name |
Difference description |
|||
P9CASE_GSKT_MOLDED |
TP9 Case Gasket (this product) |
The molded gasket for the entire chassis, used for sealing the main body shell |
P7DGSKT |
TP7-D Faceplate Gasket |
Faceplate gasket for model TP7-D (front panel only) |
P7GSKT |
Faceplate Gasket, TP7/TP7C |
Faceplate gasket for models TP7/TP7C |
|||
P9WIN |
TP9 Overlay with switches |
TP9 overlay panel with switches (front panel overlay) |
|||
P9CASE |
TP9 Enclosure |
Complete chassis enclosure for TP9 |
Application scenarios
Mainly used for the maintenance of the following petroleum metering equipment: Custody Transfers
Tank Gauging
Temperature measurement of pipelines, ships, railway tank cars, and oil tankers
Measurement, maintenance, and replacement instructions for high-viscosity petrochemical products such as asphalt, molten sulfur, and syrup
When to replace: When the sealing performance of the equipment enclosure declines and water vapor or dust enters
The gasket is aged, deformed, or damaged
When the equipment undergoes major maintenance or the chassis enclosure is replaced (used in conjunction with P9CASE) Precautions for replacement:
Professional maintenance: It is recommended to be replaced by professional personnel to ensure that the explosion-proof performance is not affected
Recalibration: After replacing the probe assembly, the equipment may need to be recalibrated
Follow the standards: Maintenance should follow IEC/EN 60079-19 (Equipment maintenance standard for explosive gas atmospheres)
Original accessories: Original ThermoProbe accessories must be used to maintain the validity of the explosion-proof certification (ATEX/IECEx) Ordering information Model: P9CASE_GSKT_MOLDED
Package contents: Molded gasket for TP9 chassis (single)
Recommended combination: If a complete enclosure maintenance is required, you can order this product together with accessories such as P9CASE (chassis enclosure) and P9BACKPLATE (back panel). This product is a key maintenance accessory for the TP9 series explosion-proof thermometers that operate in harsh petrochemical environments for a long time. Regular replacement can ensure that the equipment continuously meets the requirements of intrinsic safety explosion-proof.
