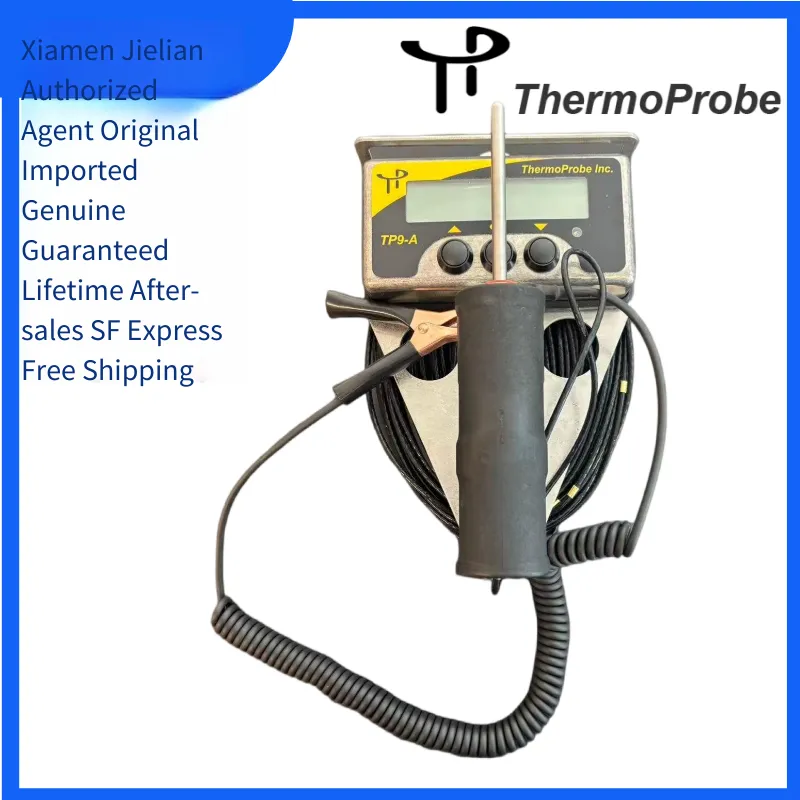

Explosion-proof, Electronic, Portable, Digital, and Digital Display ThermometerTP9-A ThermoProbe
ThermoProbe TP9-A, which is sold by Xiamen Jielian Instrument & Equipment Technology Co., Ltd., is a portable explosion-proof intrinsically safe petroleum measuring thermometer designed for flammable and explosive environments and complies with international intrinsically safe explosion-proof standards. The following is its detailed introduction:
Technical Parameters
Temperature range: -40°F to 400°F (-40°C to 204°C).
Calibration accuracy:
±0.2°F from 32 to 200°F (±0.1°C from 0 to 100°C).
±0.5°F from 200 to 400°F (±0.3°C from 100 to 200°C).
Resolution: 0.01 degree.
Long-term drift: No more than 0.05%/year.
Battery: Two AA alkaline batteries. The battery life is about 200 hours, and the operating temperature range is -4°F to 130°F (-20°C to 54°C).
Features
Display: 1/2 inch (13 mm) LCD display with automatic backlight function for easy data reading in low-light conditions.
Operation interface: Raised button design for easy operation while wearing gloves. The middle button is for simple on/off operation.
Unit switching: Users can easily switch between Celsius (°C) or Fahrenheit (°F) units through the panel buttons.
Data recording: It can store and display 10 recorded readings, including average, minimum, and maximum values.
Automatic shutdown: Automatically shuts down after 20 minutes to save power.
Explosion-proof design: Suitable for flammable and explosive environments such as Zone 0, and has passed international (IECEx), European (ATEX), and Eurasian (TR TS) safety certifications.
Construction

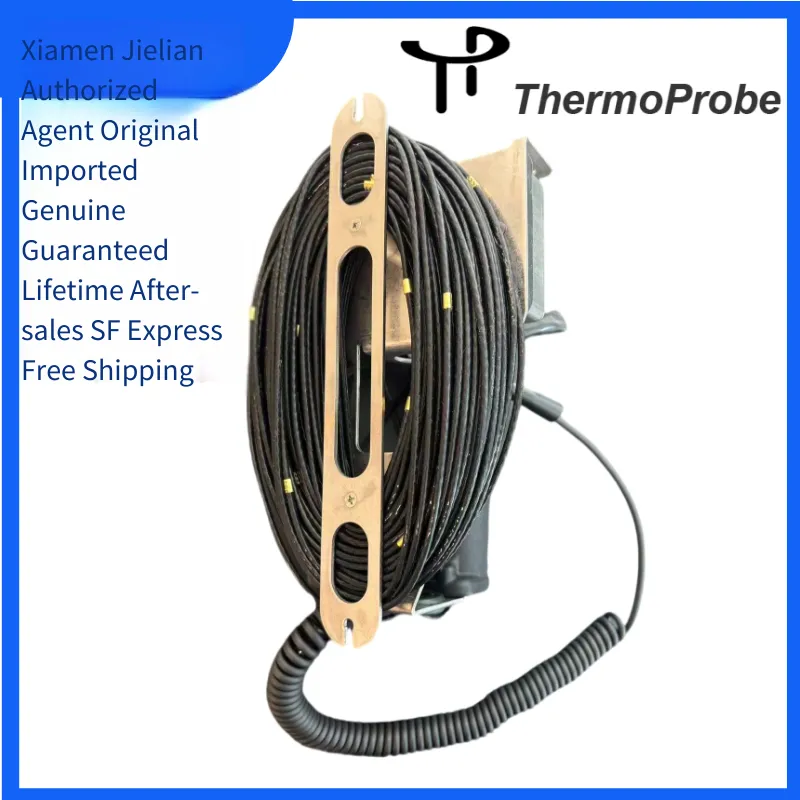

Probe: 304 stainless steel, sealant, coaxial cable, aramid fiber, and PFA cable sheath. The cable length can reach 165 feet (50 meters).
Shell: Stainless steel with sturdy panel-mounted buttons and an electrostatic dissipative plastic handle.
Main body dimensions: 10"L x 4.5"H x 6"W (24.5 x 12 x 14 cm).
Weight: 3.1 pounds (1.4 kilograms) with a 75-foot standard-weight probe assembly.
Application Scenarios
TP9-A is suitable for various petroleum and related fields, including:
Tank gauging: Measuring the temperature of petroleum products in storage tanks.
Pipeline transportation: Real-time monitoring of temperature changes of petroleum in pipelines.
Marine transportation: Suitable for oil tankers and barges, it can work normally even in harsh marine environments.
Rail tank cars and road tankers: Help staff understand the temperature status of petroleum during transportation in real time.
Material applicability
TP9-A can measure a variety of materials, including gasoline, diesel, asphalt, liquid sulfur, petrochemical products, viscous liquids, corrosive liquids, acids, chemicals, alkalis, molasses, syrup, distilled spirits, and aviation fuel.
Other information

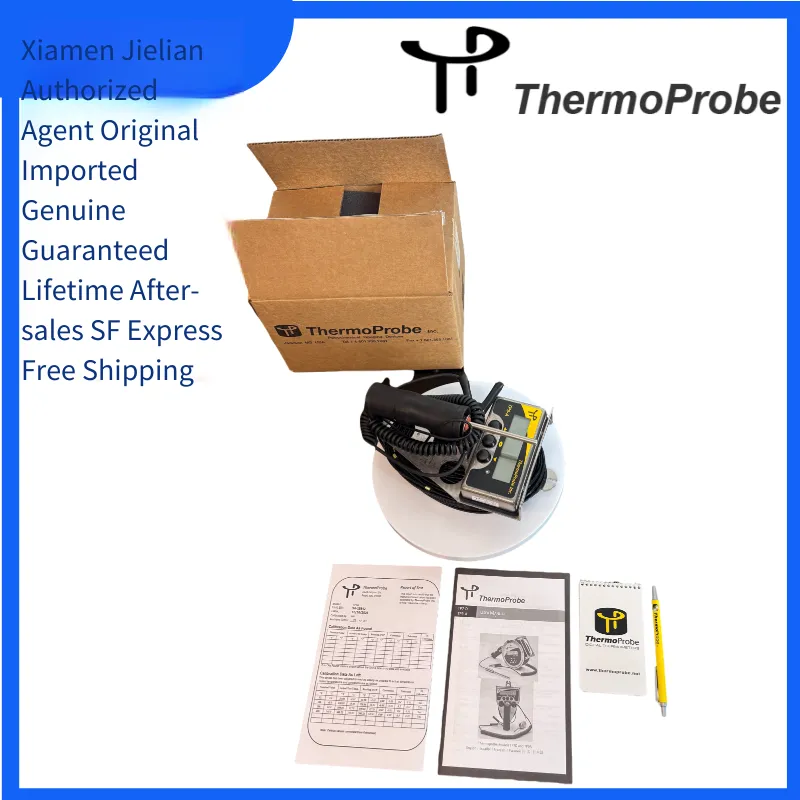

Warranty and service: Provide a one-year warranty, NIST-traceable 4-point calibration report, and operation manual, and offer lifetime service.
Environmental adaptability: The recommended operating environment temperature range is 32°F to 112°F (0°C to 44°C).
TP9A-075-SW-SM TP9-A Thermometer, 75 feet (23m) cable, Standard Weight Probe, Brass Markers at 5 feet intervals, ATEX/IECEx Certification (Ex ia IIB T4 Ga), Ambient temperature range -20°C to +40°C
