ThermoProbe P9AWIN TP9-A Overlay (TP9-A Protective Panel) [Thermometer Repair]
Product Overview
P9AWIN, distributed by Xiamen Jielian Instrument & Equipment Technology Co., Ltd., is a dedicated front panel overlay replacement part for the TP9-A portable explosion-proof petroleum thermometer produced by ThermoProbe.
This product is used to replace the worn, aged, or damaged front panel film on the TP9-A device, restoring the clarity of the device's operation interface and its protective performance.
Product Specifications
Item |
Content |
Model |
P9AWIN |
Product Name |
TP9-A Overlay (TP9-A Overlay) |
Product Type |
Accessory or Replacement Part |
Price |
400 |
Supply Cycle |
In Stock |
Applicable Equipment: TP9-A Technical Features
This overlay is specially designed for the TP9-A digital thermometer, which is an upgraded version of the TP9 series. The main features are as follows:
Parameter Item |
Specification |
Safety Certification |
ATEX & IECEx (Ex ia IIB T4 Ga) - Zone 0 Intrinsically Safe and Explosion-proof |
Temperature Range |
-40°F to 400°F (-40°C to 204°C) |
Accuracy |
±0.2°F (32-200°F) / ±0.5°F (200-400°F) |
Resolution |
0.01° |
Display |
1/2 inch (13mm) large character LCD with automatic backlight |
Housing material |
Stainless steel + Electrostatic dissipative plastic probe holder + PVC panel (where the overlay is located) |
Battery |
2 AA alkaline batteries, about 200 hours of battery life |
Overlay characteristics |
Sealed industrial quality overlay, raised buttons for easy operation with gloves |
Differences from related accessories
Model |
Name |
Difference description |
P9AWIN |
TP9-A Overlay (this product) |
Front panel overlay specially designed for the TP9-A model |
P9WIN |
TP9 Overlay with switches |
Overlay with switches for the TP9 standard version, the structure may be slightly different |
P9CASE_GSKT_MOLDED |
TP9 Case Gasket |
Chassis gasket for sealing the main housing (not the front panel) |
P9CASE |
TP9 Enclosure |
Complete chassis housing |
P9BACKPLATE |
TP9 Back Plate |
Device back plate |
Design Features
Based on the design of TP9-A, this overlay has the following features: Raised button design: The buttons on the overlay are designed to be raised, making them easy to use with gloves.
Sealed industrial-grade quality: It adopts a sealed industrial quality overlay to ensure reliability in hazardous environments.
Hidden calibration interfaces for TP7, TP7-C, and TP9: There are usually hidden calibration button positions under the overlay for equipment calibration and adjustment.
Icon printing: Functional icons are printed to help users identify temperature stability, battery status, and menu item application scenarios.
It is mainly used for the maintenance of the following petroleum metering equipment: Custody Transfers
Tank Gauging
Temperature measurement of pipelines, ships, railway tankers, and oil tankers
Petrochemical products: Maintenance and replacement instructions for high-viscosity liquids such as gasoline, diesel, asphalt, molten sulfur, and syrup
When to replace: The front panel film is worn, scratched, or the markings are blurred.
The button markings are unclear, affecting operation.
The sealing performance decreases due to overlay aging. Replacement precautions: Model matching: Ensure to use P9AWIN (specific for TP9-A), not P9WIN (standard version of TP9).
Recalibration: After replacing the probe assembly, the equipment needs to be recalibrated.
Follow the standards: Maintenance should follow IEC/EN 60079-19 (Equipment maintenance standard for explosive gas environments).
Original parts: It is recommended to use ThermoProbe original parts to maintain the validity of the explosion-proof certification. Ordering information Model: P9AWIN

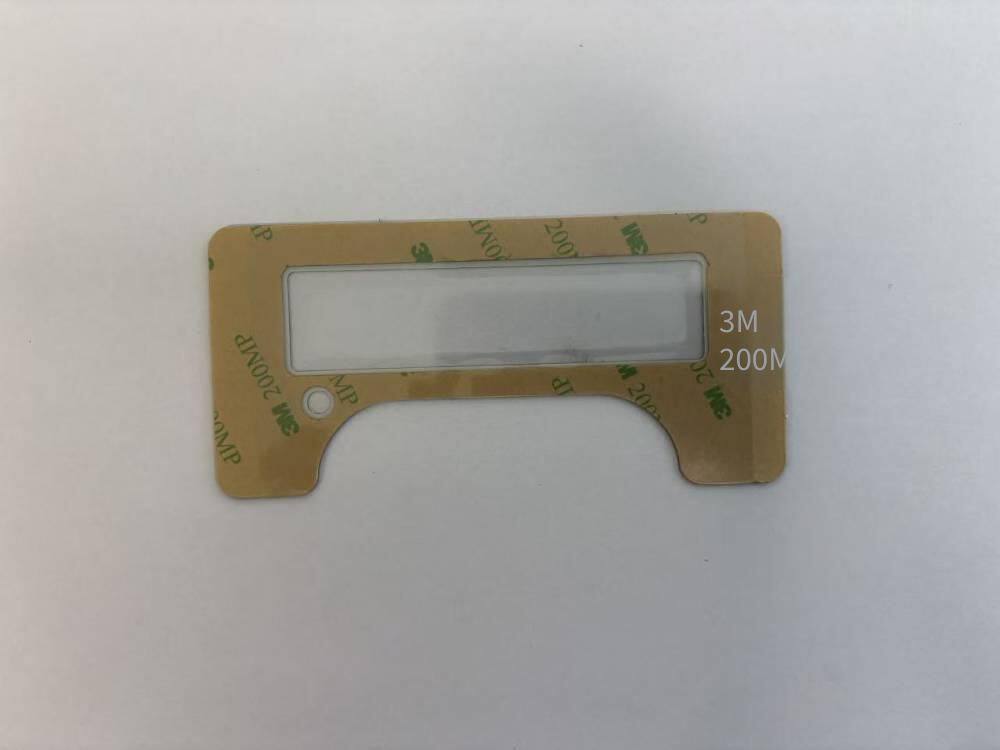

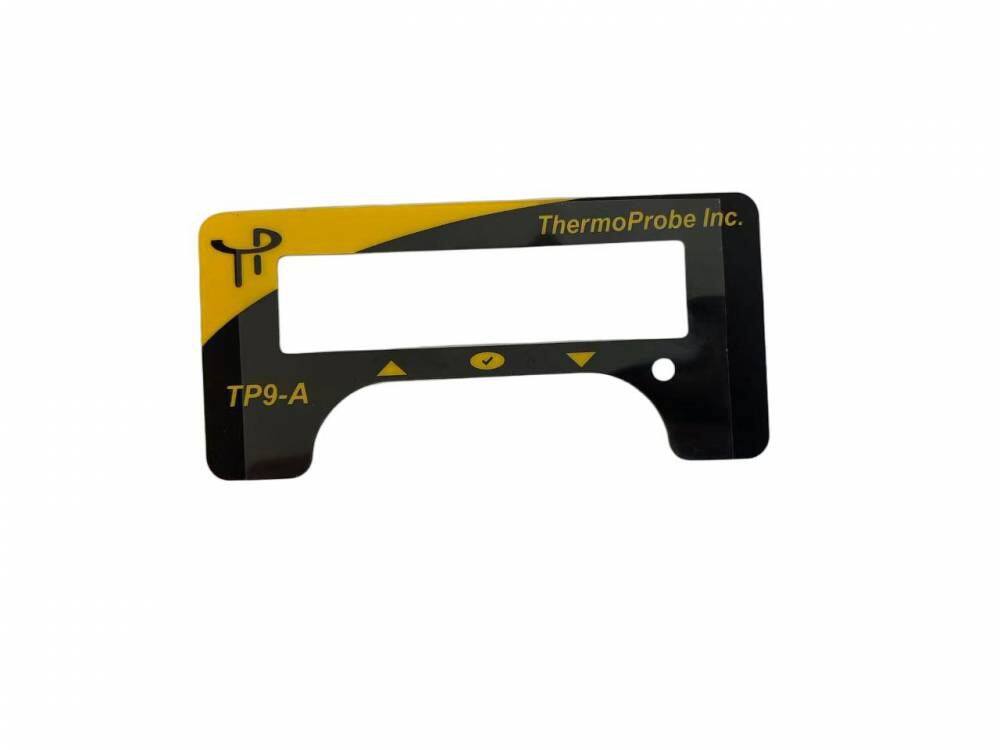

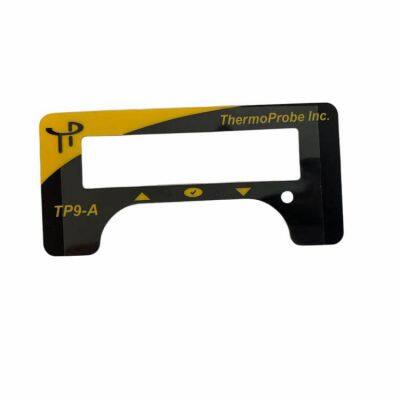

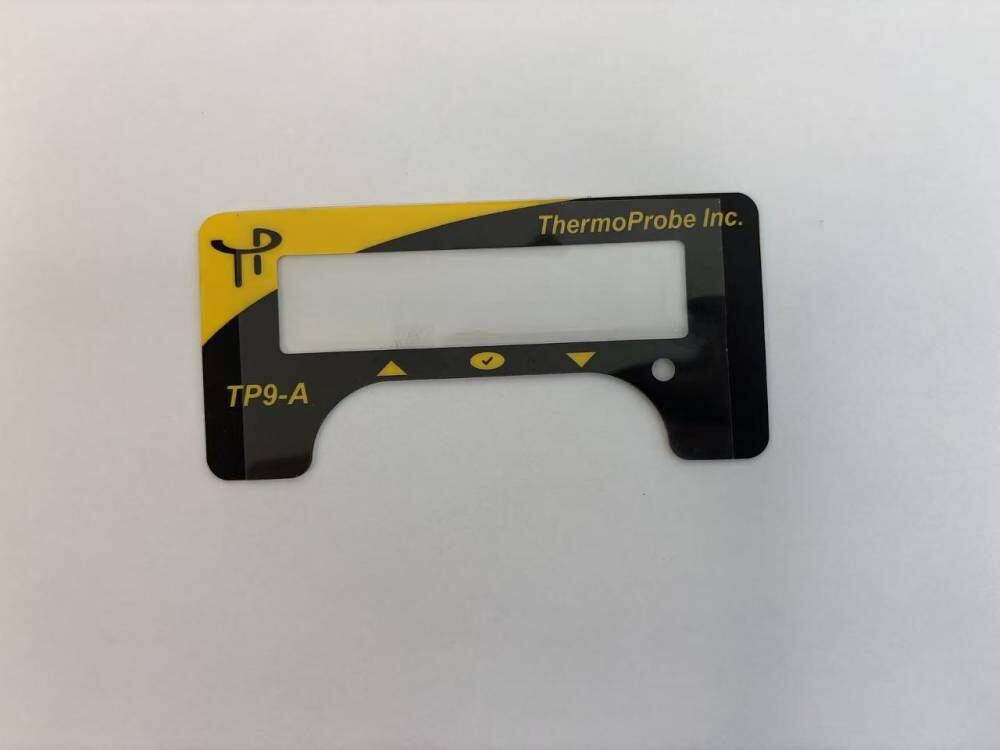

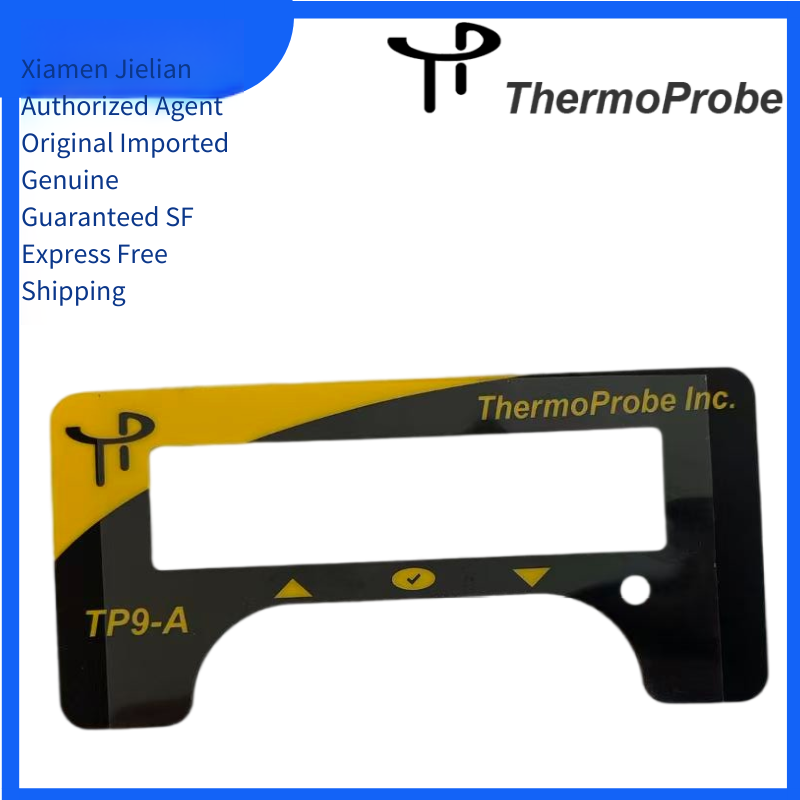

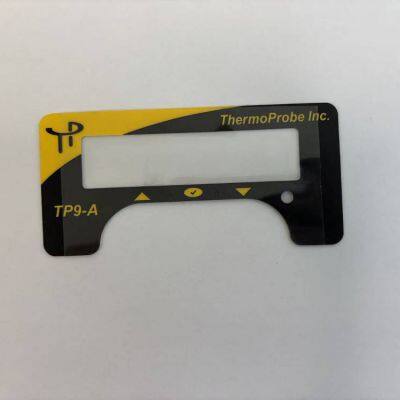

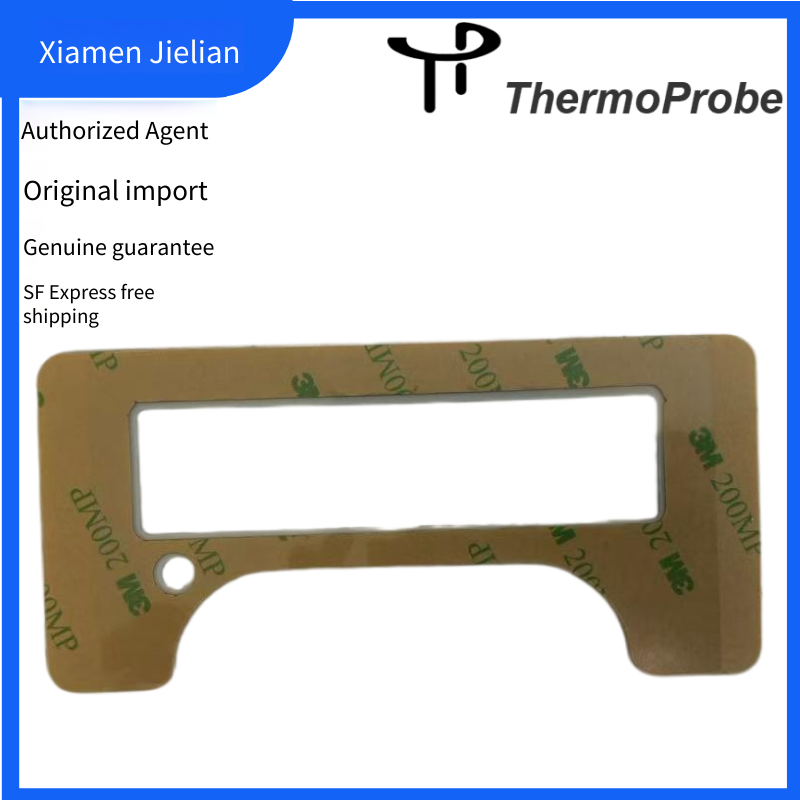

Package contents: TP9-A front panel overlay (including printed markings and button patterns)
Recommended combination: If the housing seal is aging, it is recommended to order P9CASE_GSKT_MOLDED (chassis gasket) at the same time to ensure the overall sealing performance. This product is a key maintenance accessory for the TP9-A series explosion-proof thermometers after long-term use in harsh petrochemical environments. Regular replacement can ensure the clarity of the equipment operation interface and the reliability of the button functions.
