I. Product Overview
The wind speed sensor adopts a traditional three-cup structure, with the cups made of high-quality polymer carbon fiber composite material featuring high strength and excellent wind resistance. The built-in signal processing unit inside the cups can output corresponding signals according to user requirements. This product boasts a wide measuring range, good linearity, strong lightning resistance, easy observation, as well as high stability and reliability. It can be widely applied in meteorology, oceanography, environmental monitoring, airports, ports, laboratories, industry, agriculture, transportation and other fields.
II. Technical Specifications
Item |
Specification |
Starting Wind Speed |
0.5 m/s |
Measuring Range |
0~70 m/s |
Measuring Accuracy |
(0.3+0.03V) m/s |
Resolution |
0.1 m/s |
Weight |
0.27 kg |
Maximum Rotation Radius |
90 mm |
Operating Environment |
Temperature: -40~+55℃, Humidity: 0~100% RH |
Power Supply |
DC 5V, DC 12V (optional) |
Output |
Pulse signal (4-20mA, RS485 and other signals available with a transmitter) |
III. Functional Features
The wind speed sensor consists of a housing, wind cups and a circuit module. It is compact and lightweight for easy carrying and assembly, and the three-cup design can effectively capture external environmental data.
This cup-type anemometer is mainly made of high-quality polymer carbon fiber, featuring excellent corrosion resistance. It ensures no rusting during long-term use, and the smooth internal bearing system guarantees the accuracy of data collection.
The sensor boasts a compact size, convenient carrying and quick installation, as well as an exquisite appearance. It also has the advantages of high measurement accuracy, a wide measuring range, good stability, low power consumption, reliable data performance, a long signal transmission distance, strong anti-interference capability and multiple signal output modes.

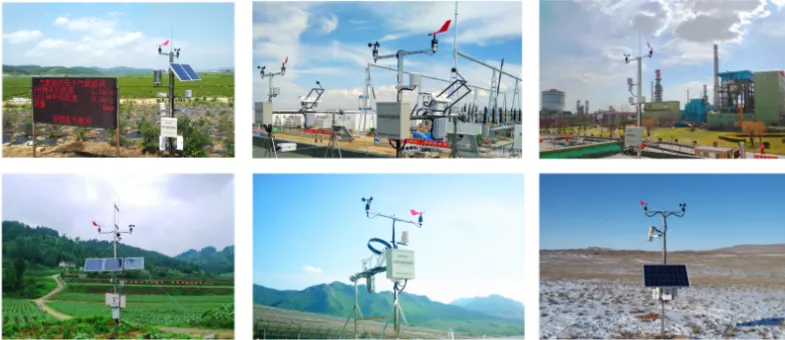

IV. Application Scope
This wind speed meter is widely applicable to greenhouses, environmental protection, meteorological stations, ships, docks, heavy machinery, cranes, ports, cable cars and all other places where wind speed measurement is required.
