1. Overview
The CO/VI expandable multi-gas detector is designed for on-line data collection of VI, CO, CO₂, NO, NO₂, H₂S, CH₄, etc., in tunnels.It provides a reliable basis for tunnel ventilation and road traffic control, and can real-time monitor multiple gas concentrations, visibility, air temperature and humidity inside the tunnel.
The measurement of CO, CO₂, NO, NO₂, H₂S and CH₄ adopts infrared principle and electrochemical principle.Visibility measurement uses the infrared scattering principle, measuring visibility by detecting light wave attenuation.Air temperature and humidity are measured by gap-type and capacitive sensing principles.
It is suitable for emission control and filter control, ensuring optimal air quality in tunnels.
II. Product Features
1. Mean time between failures (MTBF) ≥ 50,000 hours.
2. The device is equipped with status indication, fault alarm and data storage functions, facilitating commissioning and maintenance.
3. Zero-point compensation function and multiple output modes.
4. The analysis module can display measurement curves.
III. Technical Specifications
Measurement Range |
VIS: K = 0～35×10⁻³/m CO:0～300 ppm NO:0～200 ppm NO₂：0～10 ppm (optional) |
Measurement Accuracy |
VIS: ±1×10⁻⁴/m CO:±1 ppm NO:±0.1 ppm NO₂：±0.04 ppm |
Ingress Protection |
IP68 |
Output Interface |
Analog signal: 4～20 mA,or digital signal: RS232/RS485 (optional) |
Power Supply: |
AC220V or DC12V |
Operating Temperature: |
-40℃～+80℃ |
Operating Humidity: |
0～100% RH, non-condensing |
Status Indication: |
LED status indicator |
Alarm Function: |
Audible and visual alarm, alarm threshold adjustable |
Response Time: |
≤30 seconds |

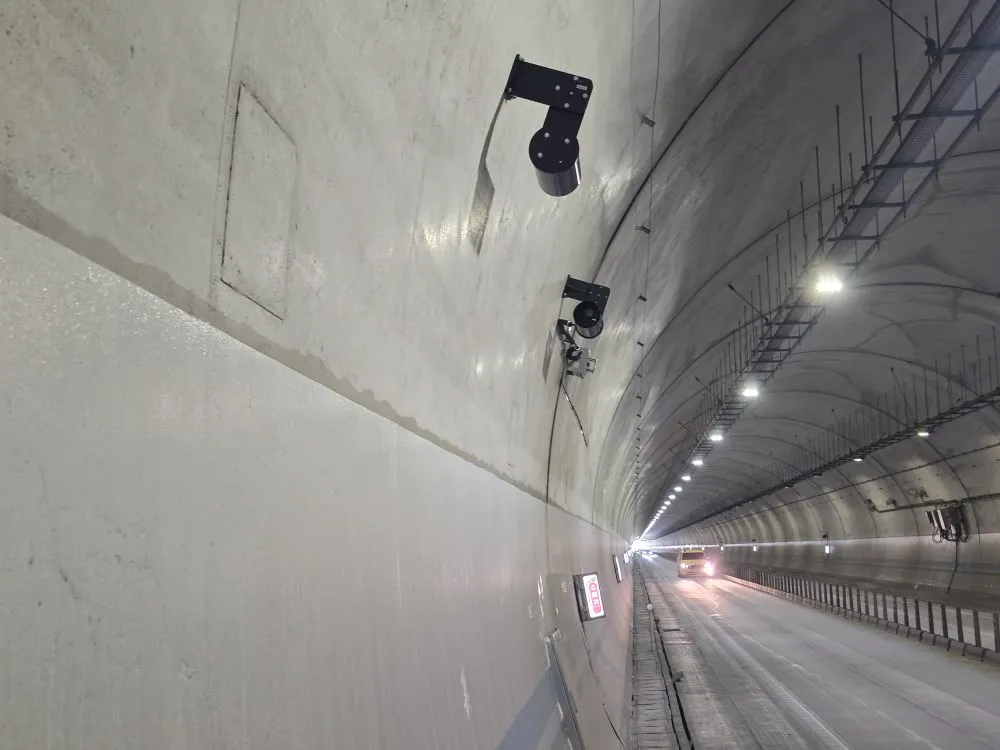

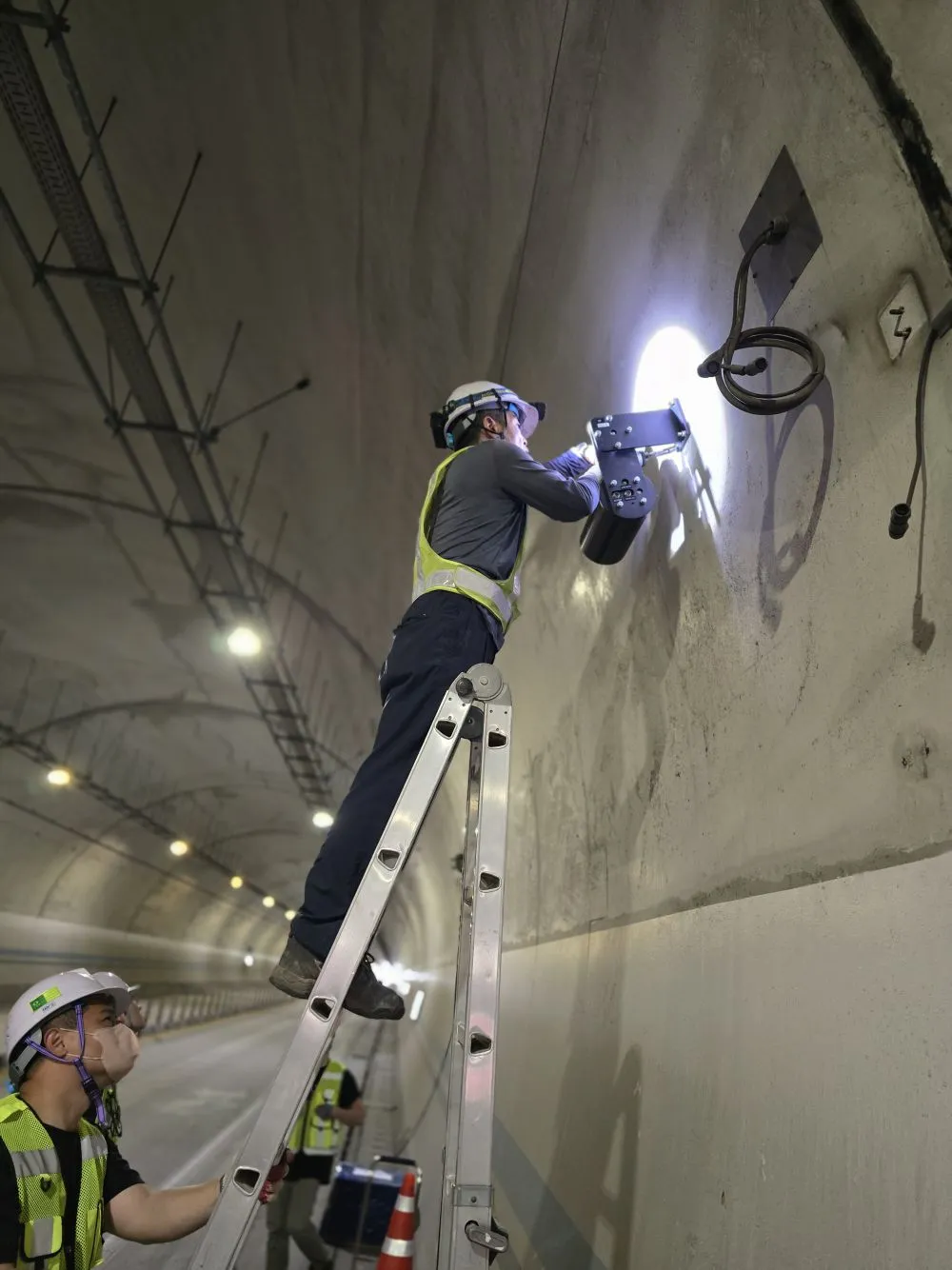

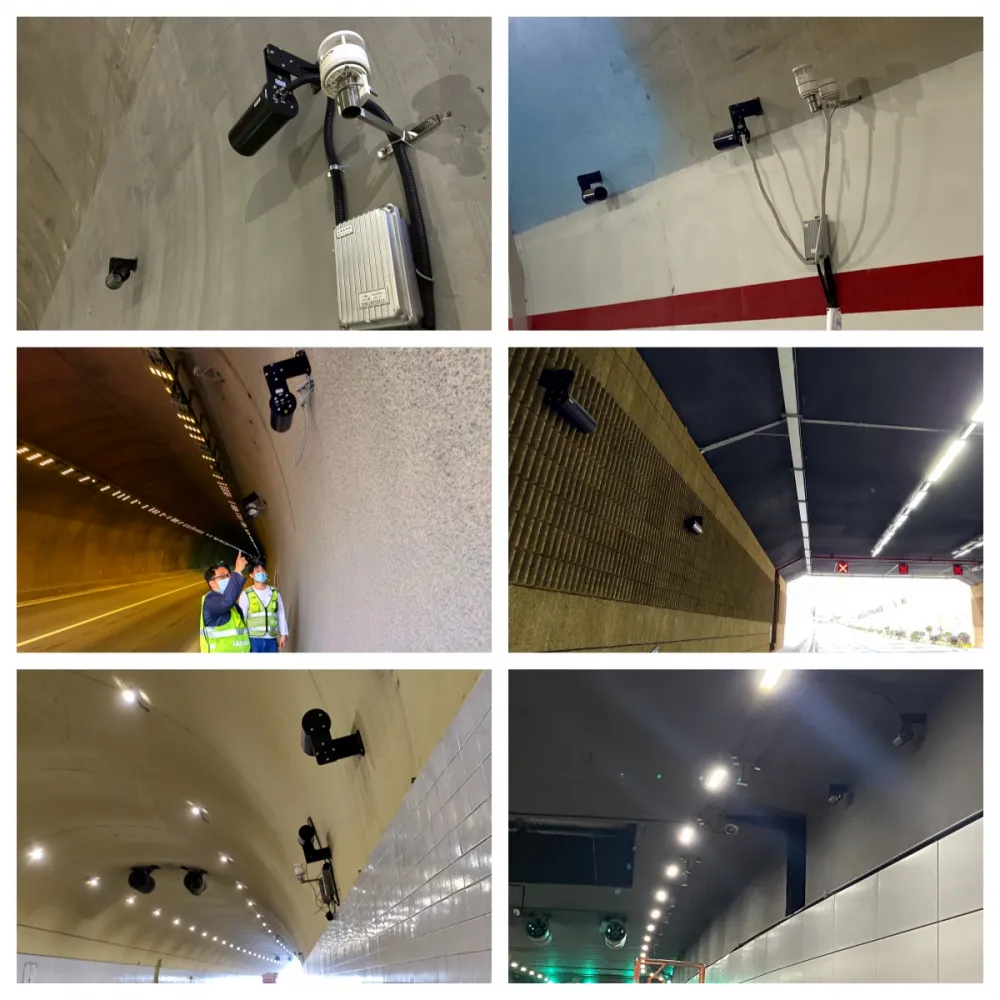

IV. On-site Case
For more information, please contact me.
