1.Product

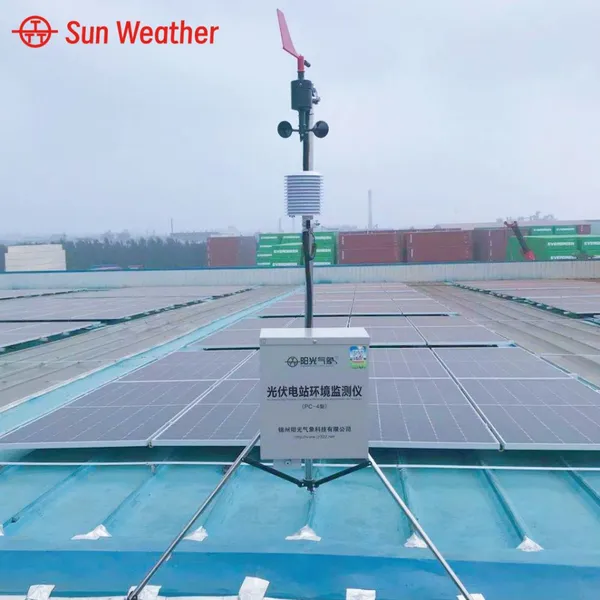

The PC-4 Type model is a new distributed environmental monitoring device specifically designed and manufactured for solar energy assessment and solar monitoring systems in photovoltaic power plants. It boasts high measurement accuracy, ease of installation, and user-friendly operation, allowing for the collection of various environmental parameters: solar radiation (horizontal/slope), environmental temperature, environmental humidity, solar panel temperature, wind speed, wind direction, atmospheric pressure. Monitoring elements can be flexibly adjusted based on user needs.
Note: This product is a collection of multiple sensors. The types of measurement sensors can be customized and can be matched in any way. The price of the product also depends on the measurement parameters you need. If you want to ask for a quotation, please tell me what needs to be measured. Parameters, voltage, output mode, thank you!
2.Options
1)Free Software platform for data management.
2)Download data through RS232 communication interface or through the software platform.
3)Multiple communication options are available. Support standard RS232/485/USB communication, compatible with the standard MODBUS communication protocol. Remote wireless communication can also be achieved through GPRS/RJ45/wifi.
4)It can be connected to a PV environmental monitoring station receiving server via various communication methods, including wired connection, local area network (LAN) connection, fiber optic connection, GPRS mobile communication, and digital transmission radio.
5)Multiple power supply options: AC & DC power sources, solar panels, automotive power supply.
6)Power outage protection function: When AC power is cut off, the system automatically switches to battery power, ensuring uninterrupted operation for more than 72 hours.
7)Monitoring elements can be flexibly adjusted based on user requirements.
8)Supports the expansion of USB storage for unlimited data storage based on observation requirements.
3.Performance
1)ES-9S Wind Speed Sensor utilizes a traditional three-cup structure to measure wind speed.
2)EC-9X Wind Direction Sensor is designed in the shape of a wind vane to measure wind direction.
3)The slope pyranometer could be adjusted to different angles, mainly measuring solar panel backplane temperature.

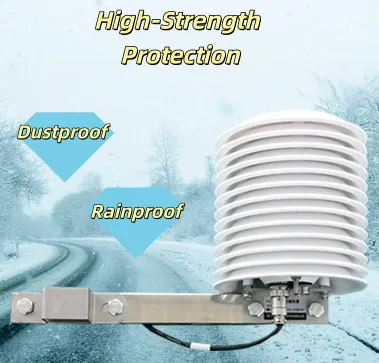

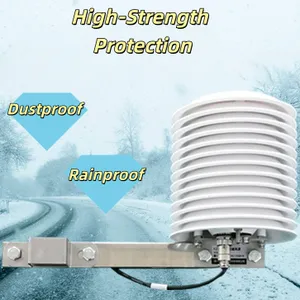

4)PTS-3 Environmental Temperature and Humidity Sensor measures environmental temperature and environmental humidity. Its output could be analog or digital.
4.Technical specifications
Performance
Measurement Performance
5.Feature
1)Equipped with a built-in large-capacity data storage, allowing for continuous storage of hourly data for over three months.
2)The overall weight of the core component is less than 5 kilograms. Easy to carry.
3)Stainless steel lightweight metal brackets and outdoor protective enclosures. Portable anti-vibration structure. Fully automated work in harsh conditions and in all climate zones.
4)Undergoes complete calibration in a multifunctional wind tunnel before leaving the factory. This wind tunnel is capable of accurately calibrating various wind speeds, including gentle breezes below 1m/s and strong winds exceeding 30m/s.

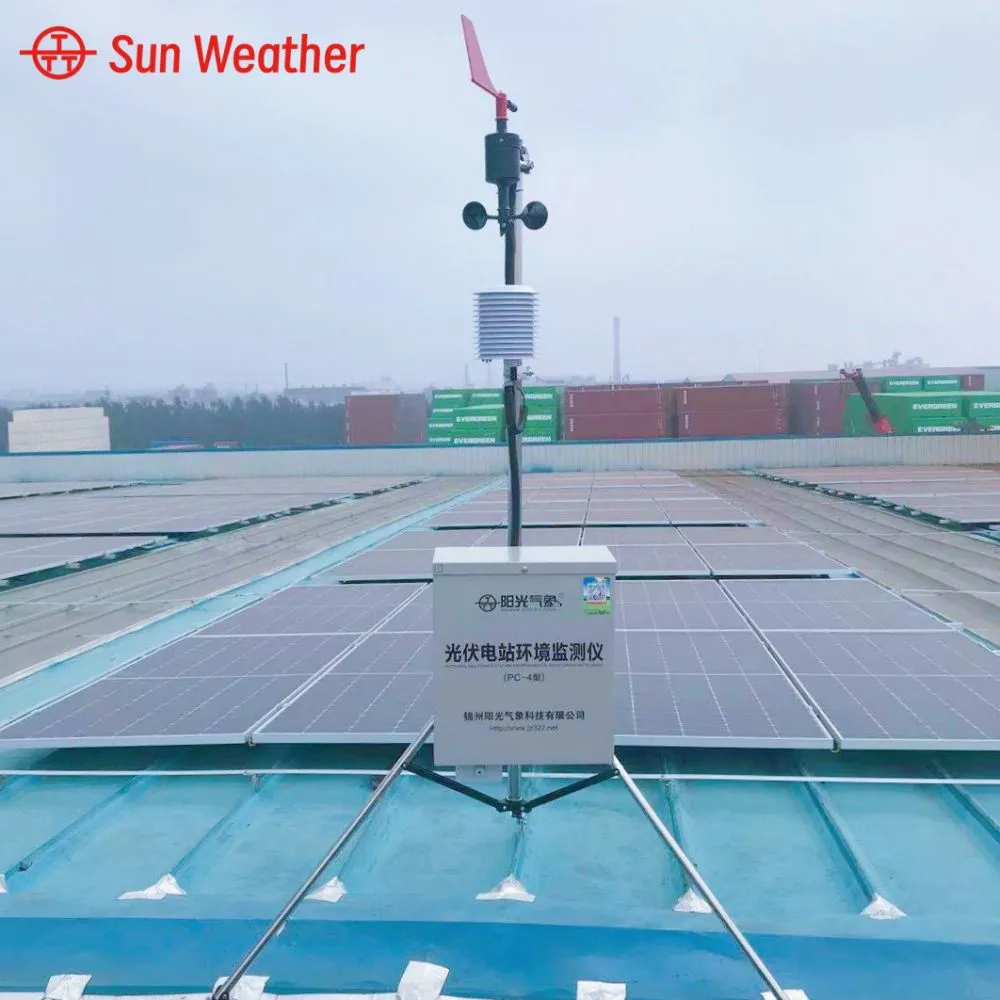

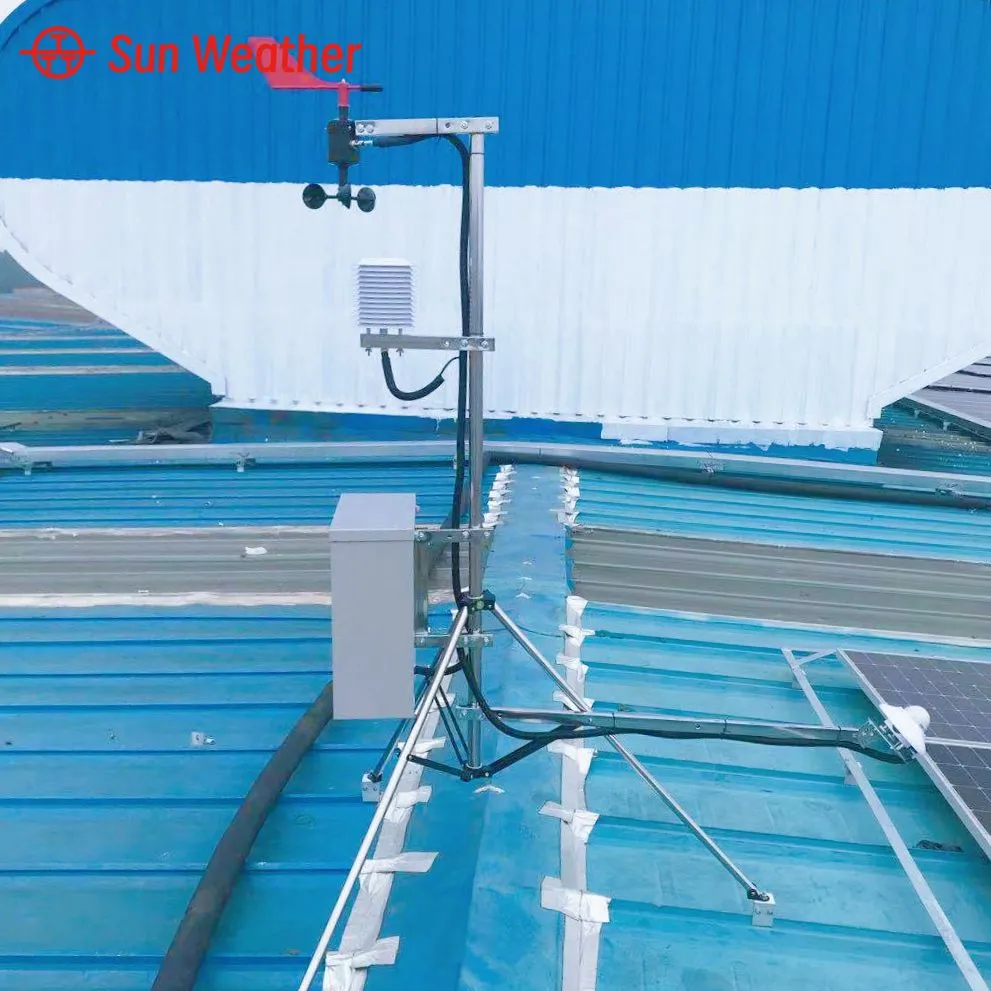

6.Application Case
For more information, please contact me.
