TB0-ZW Series
Scientific Research & Development, Processing & Manufacturing

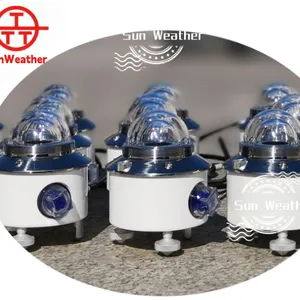

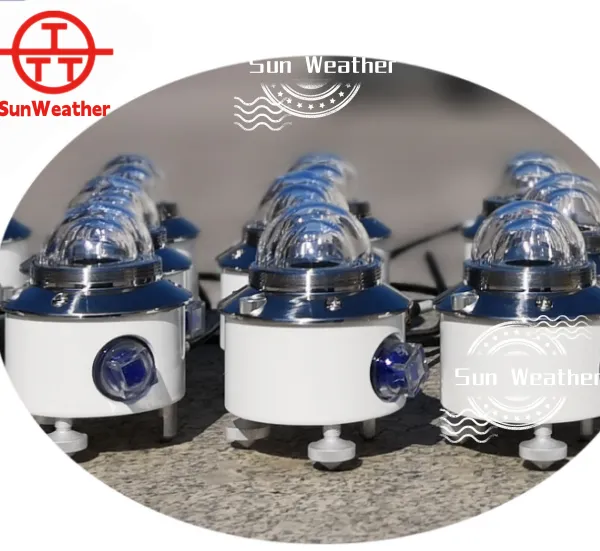

The TBQ-ZW Ultraviolet Radiometer is a precision instrument developed by our company to meet the requirements of solar radiation testing, designed for measuring solar ultraviolet radiation at UVA, UVB, and UVAB wavelengths.
The UV Series Ultraviolet Radiometers can be used either as sensors connected to automatic weather stations, or as standalone instruments in conjunction with trackers and recorders.
I. Product Advantages
Moisture-proof and corrosion-resistant design
Detachable desiccant cartridge
Desiccant can be replaced at any time
Suitable for indoor and outdoor use
Meets various customer needs
II. Accurate Measurement
Built-in temperature compensation device
Reduces the impact of ambient temperature on the radiometer
Filter with special process coating
High cosine responsivity
III. Simple Structure
Easy to install
Adopts double-layer hemispherical quartz glass cover
Suitable for various harsh environments
High bearing capacity and small volume
High-quality aviation connector and waterproof cable
IV. Technical Parameters
Spectral Range |
280～400nm (UVAB) 320～400nm (UVA) 280～320nm (UVB) |
Signal Range |
0～500W/m² |
Output Signal |
0～20mV (RS485/RS232/4～20mA, etc. available with transmitter) |
Sensitivity |
|
Response Time |
≤30 seconds (99%) |
Internal Resistance |
Approx. 350Ω |
Annual Stability |
≤±2% |
Cosine Response |
≤4% (at solar altitude angle of 30°) |
Non-linearity |
±2% |
Temperature Error |
±2% |
Operating Ambient Temperature |
-40℃～+80℃ |
Operating Ambient Humidity |
0%～100%RH |
Weight |
Approx. 0.5kg |
Base Diameter |
Φ150mm |
Quartz Glass Cover |
Φ52mm |
Height |
110mm |
