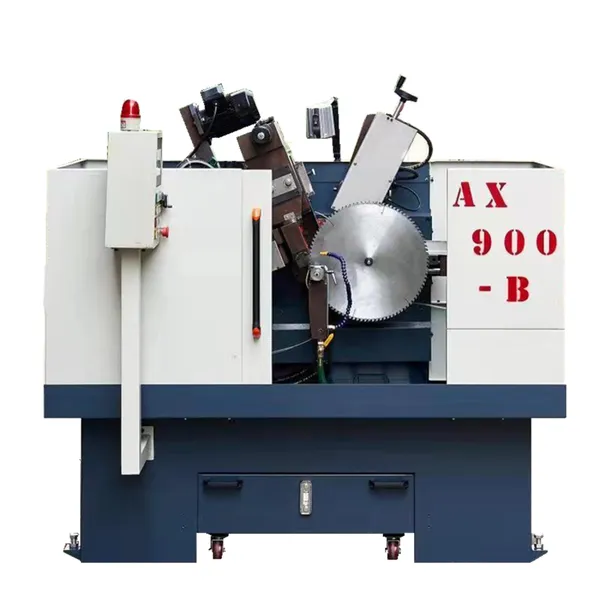

Basic parameters of AX900-B Aoxiang fully automatic alloy circular saw blade tooth grinding machine
Model |
AX900-B |
Brand |
Aoxiang |
Type |
Alloy circular saw blade grinding machine |
Layout form |
Vertical |
Installation form |
Floor-mounted |
Target object |
Alloy circular saw blade |
Body color |
White + Dark grey |
Machine tool weight |
990kg |
Control form |
CNC |
Grindable tooth profile |
All tooth profiles |
Processing precision |
Precision |
Number of teeth to be ground |
999 |
Overall dimensions |
1800*1280*1780 (mm) |
Touch screen size |
7 inches |
Minimum grinding size |
80mm |
Grinding size |
800mm |
Total motor power |
1.5kw |
Grinding wheel speed |
5200rpm |
Feed motor power |
0.75kw |
Bore diameter of the saw blade that can be ground |
φ20、φ22、φ25.4、φ30、φ40、φ50 |
Specification of the rake angle grinding wheel |
125*32*10(3)*1 |
Rear angle grinding wheel specification |
125*32*5*6 |
Coolant tank capacity |
80L |
Grinding accuracy |
0.01mm-0.03mm |
Voltage setting |
380v |
Tooth pitch |
7-200mm |
Feeding speed |
20-30 teeth/minute |
Language |
Simplified Chinese/English |
Forward speed of grinding wheel sharpening |
Speed adjustable |
Grinding wheel grinding stroke |
0-28mm (Equipped with water cooling device) |
Can grind the tip and left and right helical tooth angles |
Left 45° - Right 45° |
Can grind the left and right helical tooth angles of the tooth surface |
Left 15° - Right 15° |
Frame |
Steel plate sheet metal frame |
Whole machine power |
Independent hydraulic system (30KG/CM2) |
