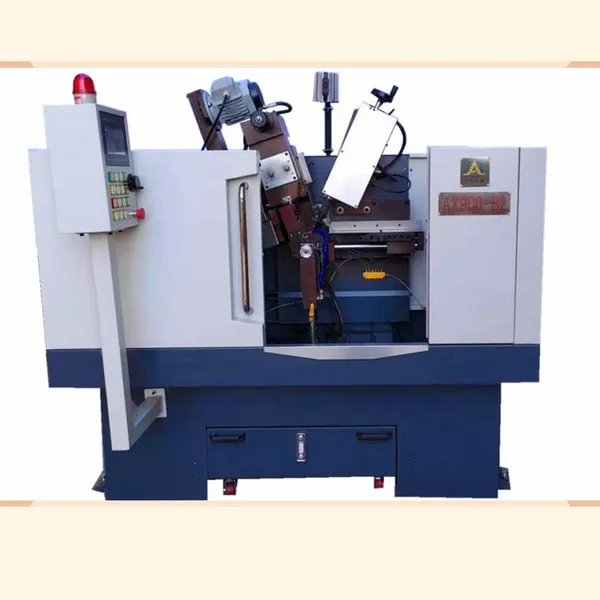

Basic parameters of AX900-B2 Aoxiang fully automatic alloy circular saw blade tooth grinding machine
Model | AX900-B2 | Brand | Aoxiang |
Type | Alloy circular saw blade grinder | Layout form | Vertical |
Installation form | Floor-mounted | Target object | Alloy circular saw blade |
Body color | White + Dark Gray | Machine Tool Weight | 930kg |
Control Form | PLC | Grindable Tooth Profile | All Tooth Profiles |
Processing Precision | Precision | Number of Teeth to be Ground | 999 |
Overall Dimensions | 1280*1800*1850 (mm) | Touch Screen Size | 7 inches |
Minimum grinding size | 80mm | Grinding size | 800mm |
Main motor power | 1.5kw | Grinding wheel speed | 5200rpm |
Feed motor power | 750w | Bore diameter of the saw blade that can be ground | φ20、φ22、φ25.4、φ30、φ40、φ50 |
Specification of the front angle grinding wheel | 125*32*10(3)*1 | Rear angle grinding wheel specification | 125*32*5*6 |
Coolant tank capacity | 80L | Grinding accuracy | 0.03mm-0.05mm |
Voltage setting | 380V/50HZ | Tooth pitch | 7-150mm |
Feeding speed | 18-25 teeth/minute | Language | Simplified Chinese/English |
Forward speed of grinding wheel sharpening | Stepless speed regulation | Grinding wheel sharpening stroke | 0-28mm (Equipped with water cooling device) |
Sharpenable tooth tip and left/right helical tooth angles | 3°/45° | Sharpenable left/right helical tooth angles on tooth surface | 3°/15° |
Tooth tip sharpening angle | 6°/30° | Tooth surface sharpening angle | +30°/-5° |
Grinding wheel control method | Servo motor | Action drive | Hydraulic and Servo Hybrid |
Frame | Steel Plate Sheet Metal Frame | Overall Machine Power | Independent Hydraulic System (30KG/CM2) |
