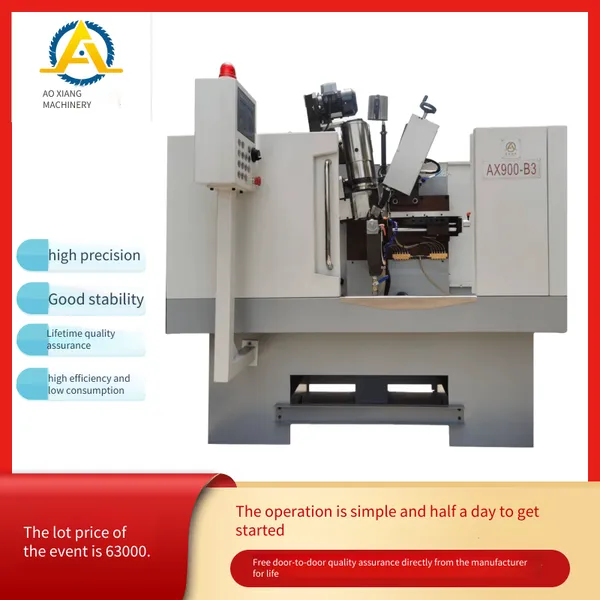

Foshan Aoxiang Machinery Direct Sales Woodworking Aluminum Saw Blade Tooth Grinding Machine Cnc Knife Grinding Machine
US$ 8153.85
≥1 Unit
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Foshan, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cnc Large Saw Blade Gear Grinding Machine, Large Saw Blade Gear Grinding Machine, Ax1600-b3US$ 18153.85 - 21230.77MOQ: 1 Unit -
Ax800-b6 Cnc Gear Grinding Machine, Fully Automatic Alloy Saw Blade Repair Machine, High-efficiency Dull Saw Blade Regenerative Grinding EquipmentUS$ 10276.92 - 10738.46MOQ: 1 Unit
-
Automatic Carbide Circular Saw Blade Gear Grinding Machine Parts Repair, Gear Grinding Machine Parts Sales, High - End and StylishUS$ 10.15 - 15.38MOQ: 1 Set
-
Supply of Aoxiang Ax900-b2 Fully Automatic Alloy Circular Saw Blade Tooth Grinding MachineUS$ 8923.08 - 9692.31MOQ: 1 Unit
-
Direct Sales From Foshan - Ax900-b2 Automatic Gear Grinding Machine, Fully Automatic Saw Blade Sharpening Machine, Automatic Woodworking Saw Grinding MachineUS$ -MOQ: 0 Unit
The fully automatic alloy saw blade tooth grinding machine is a mechanical device for grinding alloy circular saw blades. It can grind and shape various tooth profiles such as flat teeth, triangular teeth, high-low teeth, trapezoidal teeth,, combined teeth, left-right teeth, left-flat right teeth and so on included in the rake angle and clearance angle of the alloy saw blade. It is one of the most advanced saw blade grinding equipment in the current market.
Technical Parameters
| Grinding Outer Diameter: φ80 - φ800mm Saw Blade Inner Diameter: φ10 - φ80mm Number of Grinding Teeth: 1 - 999 teeth Tooth Pitch: 7 - 100mm Saw Blade Thickness: 8mm Rake Angle Grinding: -10° to +40° Tooth Surface Swing Angle: Left 15° to Right 15° Clearance Angle Grinding: 6 - 45° Tooth Tip Swing Angle: Left 45° to Right 45° Grinding Stroke: 1 - 28mm (stepless speed change) Working Speed: 18 - 30 teeth/min Grinding Wheel Outer Diameter: φ125mm Grinding Wheel Inner Diameter: φ32mm Grinding Wheel Rotation Speed: 5800/min Cooling Device: 50kl/min Total Electric Power: 1.64kw Machine Net Weight: 980kg Packing Gross Weight: 1180kg Machine Body Dimensions: 1700×1450×1750mm
|
