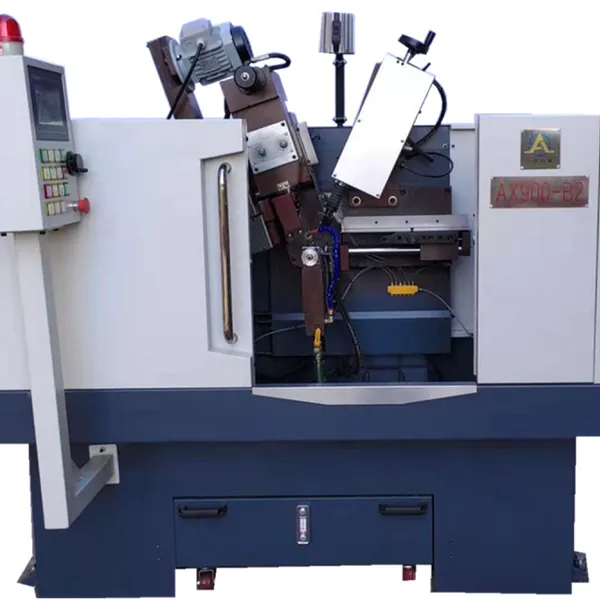

Basic parameters of AX900-B2 Aoxiang fully automatic alloy circular saw blade tooth grinding machine
Model |
AX900-B2 |
Brand |
Aoxiang |
Type |
Alloy circular saw blade grinding machine |
Layout form |
Vertical |
Installation form |
Floor-mounted |
Target of action |
Alloy circular saw blade |
Body color |
White + Dark gray |
Machine tool weight |
930kg |
Control form |
PLC |
Sharpenable tooth profile |
All tooth profiles |
Processing precision |
Precise |
Number of teeth to be sharpened |
999 |
Overall dimensions |
1280*1800*1850 (mm) |
Touch screen size |
7 inches |
Minimum grinding size |
80mm |
Grinding size |
800mm |
Main motor power |
1.5kw |
Grinding wheel speed |
5200rpm |
Feed motor power |
750w |
Bore diameter of saw blade that can be ground |
φ20、φ22、φ25.4、φ30、φ40、φ50 |
Specification of front angle grinding wheel |
125*32*10(3)*1 |
Back angle grinding wheel specification |
125*32*5*6 |
Coolant tank capacity |
80L |
Dressing accuracy |
0.03mm - 0.05mm |
Voltage setting |
380V/50HZ |
Tooth pitch |
7 - 150mm |
Feeding speed |
18 - 25 teeth/minute |
Language |
Simplified Chinese/English |
Forward speed of grinding wheel sharpening |
Infinitely variable speed adjustment |
Grinding wheel sharpening stroke |
0-28mm (Equipped with water cooling device) |
Sharpenable angles of tooth tip and left/right helical teeth |
3°/45° |
Sharpenable angles of left/right helical teeth on tooth surface |
3°/15° |
Sharpening angle of tooth tip |
6°/30° |
Sharpening angle of tooth surface |
+30°/-5° |
Control mode of grinding wheel |
Servo motor |
Motion Drive |
Hydraulic and Servo Hybrid |
Frame |
Steel Plate Sheet Metal Frame |
Overall Machine Power |
Independent Hydraulic System (30KG/CM2) |
