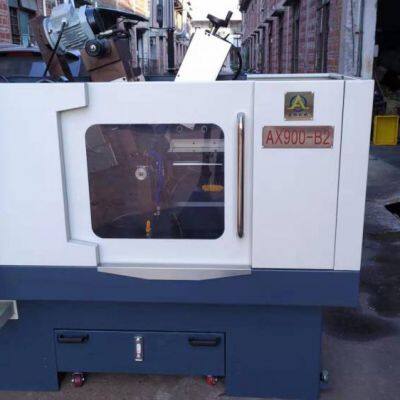

Help CenterSupply of Aoxiang Ax900 - B2, Servo Motor - Controlled, Fully Automatic Alloy Circular Saw Blade Tooth Grinding Machine
Related Products
-
Foshan Aoxiang Ax1600-b3 Fully Automatic Large-scale Carbide Circular Saw Blade Tooth Grinding Machine, Automatic Saw Blade Grinding Machine, Capable of Grinding 1600mm Large Saw BladesUS$ 18153.85 - 21230.77MOQ: 1 Unit -
Aoxiang Ax900-b3 High-precision and High-stability Fully Automatic Alloy Circular Saw Blade Tooth Grinding MachineUS$ 8153.85 - 8923.08MOQ: 1 Unit
-
Cnc Saw Blade Tooth Grinding Machine, Fully Automatic Carbide Circular Saw Blade Grinding MachineUS$ 8923.08 - 9692.31MOQ: 1 Unit
-
Saw Blade Tooth Grinder Directly Sold by the ManufacturerUS$ 9538.46 - 9692.31MOQ: 1 Unit
-
Foshan Aoxiang Machinery Direct Sales Woodworking Aluminum Saw Blade Tooth Grinding Machine Cnc Knife Grinding MachineUS$ 8153.85MOQ: 1 Unit

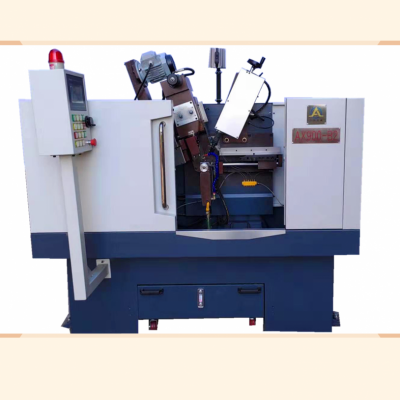

Basic parameters of AX900-B2 Aoxiang automatic alloy circular saw blade tooth grinding machine
Model |
AX900-B2 |
Brand |
Aoxiang |
Type |
Alloy circular saw blade grinder |
Layout form |
Vertical |
Installation form |
Floor-standing |
Object of action |
Alloy circular saw blade |
Body color |
White + Dark Grey |
Machine Tool Weight |
930kg |

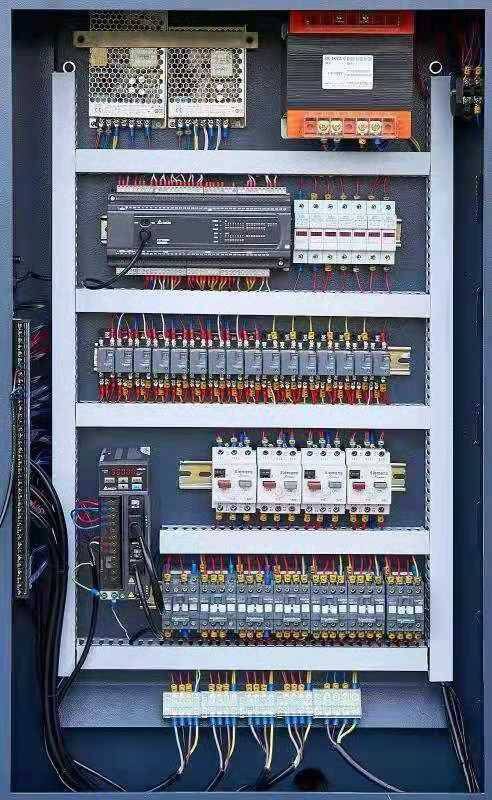

Control Form |
PLC |
Grindable Tooth Profile |
All Tooth Profiles |
Processing Precision |
Precision |
Number of Teeth to be Ground |
999 |
Overall Dimensions |
1280*1800*1850 (mm) |
Touch Screen Size |
7 inches |
Minimum grinding size |
80mm |
Grinding size |
800mm |
Main motor power |
1.5kw |
Grinding wheel speed |
5200rpm |
Feed motor power |
750w |
Aperture of saw blade that can be ground |
φ20、φ22、φ25.4、φ30、φ40、φ50 |
Specification of rake angle grinding wheel |
125*32*10(3)*1 |
Rear angle grinding wheel specification |
125*32*5*6 |
Coolant tank capacity |
80L |
Grinding accuracy |
0.03mm - 0.05mm |
Voltage setting |
380V/50HZ |
Tooth pitch |
7 - 150mm |
Feeding speed |
18 - 25 teeth/minute |
Language |
Simplified Chinese/English |
Forward speed of grinding wheel sharpening |
Stepless speed regulation |
Grinding wheel sharpening stroke |
0-28mm (Equipped with water cooling device) |
Sharpenable tooth tip and left/right helical tooth angles |
3°/45° |
Sharpenable left/right helical tooth angles of tooth surface |
3°/15° |
Tooth tip sharpening angle |
6°/30° |
Tooth surface sharpening angle |
+30°/-5° |
Grinding wheel control mode |
Servo motor |
Action drive |
Hydraulic and servo hybrid |
Rack |
Steel plate sheet metal rack |
Whole machine power |

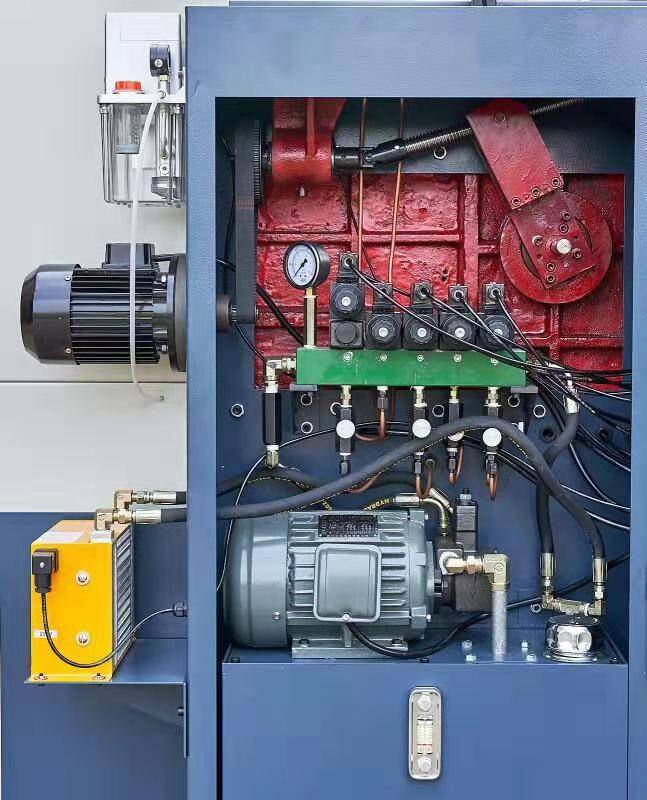

Independent hydraulic system (30KG/CM2) |
