Help CenterThree-axis Cnc Aoxiang Alloy Cold Saw Tooth Grinding Machine
Related Products
-
New Alloy Saw Blade Tooth Grinding Machine Ax900-b2, Third-generation MachineUS$ 9461.54 - 9692.31MOQ: 1 Unit -
Aoxiang Fully Automatic Cnc Alloy and Cold Saw Tooth Grinding Machine Ax800-b6US$ 19384.62 - 19692.31MOQ: 1 Unit
-
Cnc Fully Automatic Alloy Saw Blade Tooth Grinding Machine Ax900-b2US$ -MOQ: 0 Unit
-
Fully Automatic Metal Cold Saw U-shaped Tooth Grinding Machine, Custom-made Chamfering Machines Are AcceptedUS$ 13076.92 - 13538.46MOQ: 1 Unit
-
Foshan Aoxiang Ax1600-b3 Fully Automatic Large-scale Cemented Carbide Circular Saw Blade Tooth Grinding Machine, Automatic Saw Blade Grinding Machine, Capable of Grinding 1600mm Large Saw BladesUS$ 16153.85 - 18153.85MOQ: 1 Unit

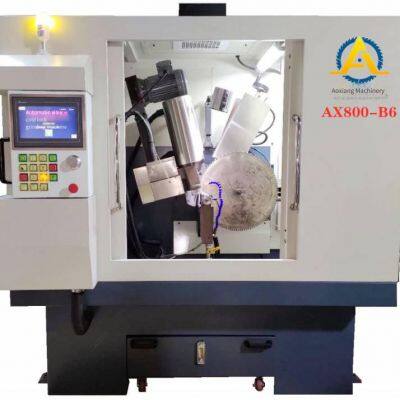

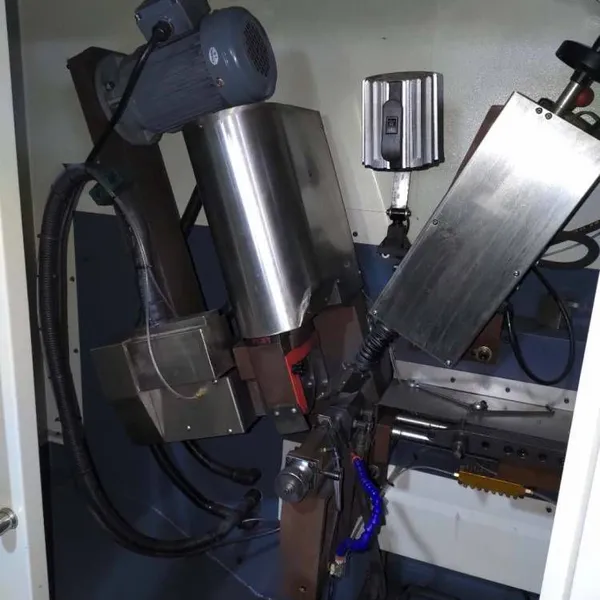

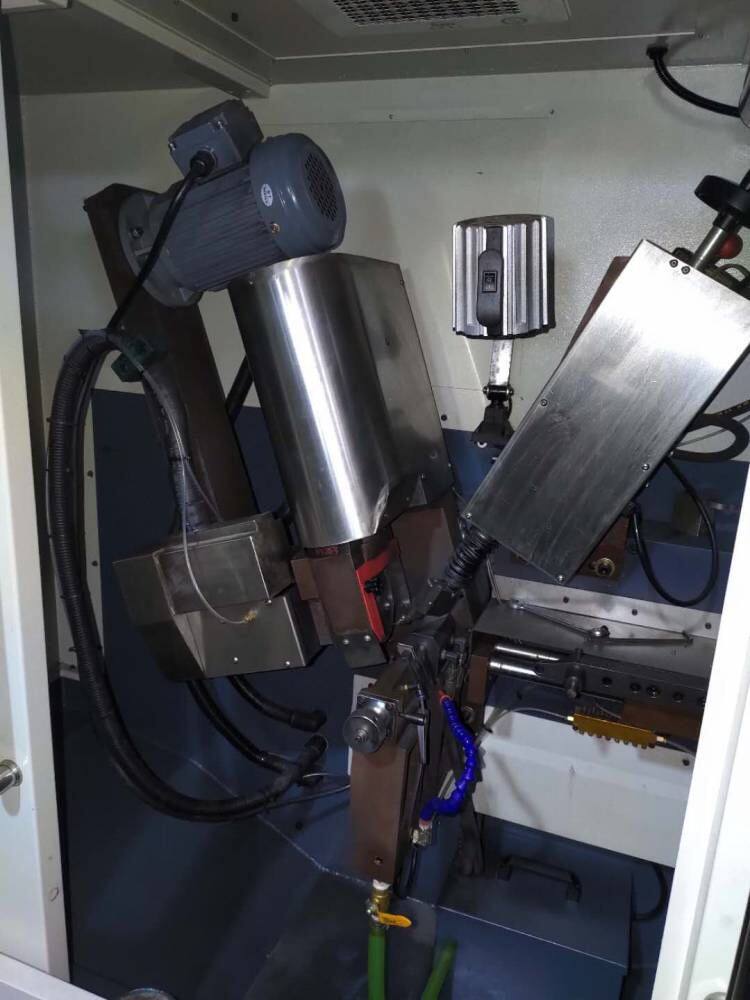

Aoxiang's new generation of AX800-B6 alloy saw blade tooth grinding machine has undergone a revolutionary transformation in function. The appearance adopts a fully enclosed design. It uses three high-precision servo motors with values to control the forward and backward movement of the precision grinding head, the left, right and middle swing angles, the feed of the grinding wheel and other actions. In addition to fully meeting the requirements of wood saw blades and aluminum saw blades for the grinding of the front and rear angles, it can also grind and shape the U-shaped tooth surface, negative angle, chamfer and rear angle of cold saw blades. The grinding outer diameter accuracy is within 0.02mm, and the accuracy retention is long, the performance is stable, and the operation and maintenance are simple and cost-effective. There is also a high-precision slotting machine for cold saw blades supporting it.
For detailed information, please add Aoxiang Machinery's WeChat (WX), or visit our company in person for on - site inspection.
AX800-B6 equipment parameters
Grinding object | Alloy circular saw blade | Tooth surface swing angle | Left3-15 degrees to right3-15 degrees |
Grinding outer diameter | 80-800mm | Tooth tip swing angle | Left3-45 degrees to right3-45 degrees |
Saw blade inner diameter | 12-80mm | Grinding wheel speed | 4800 rpm/ min |
Number of grinding teeth | 1-999 teeth | Sharpening stroke | 1-28mm (Servo stepless speed change) |
Tooth Pitch | 7-90mm | WorkingEfficiency | 20Teeth/Minute |
Saw Blade Thickness | 1-6mm | Grinding Wheel Outer Diameter | 125mm |
Rake Angle Grinding | -15to40Degrees | Grinding Wheel Inner Diameter | 32mm |
Back angle grinding | 8-40 degrees | Cooling device | 50kl/min |
Driving mode | Servo +Hydraulic | Grinding accuracy | 0.01mm-0.03mm |
Total electric power | 2.59kw | Net weight of the machine | 1080kg |
Gross weight in packing | 1280kg | Fuselage dimensions | 1800×1850×1280mm |
