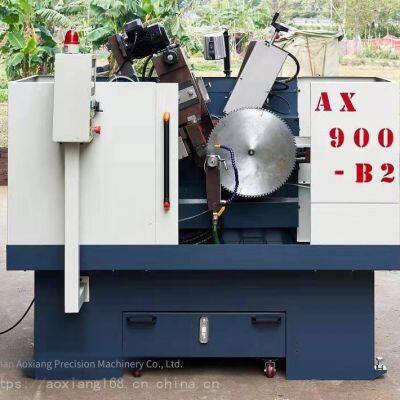

Automatic alloy saw blade tooth grinding machineAX900-B2 model introduction

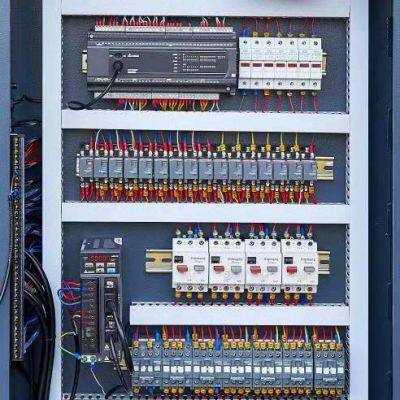

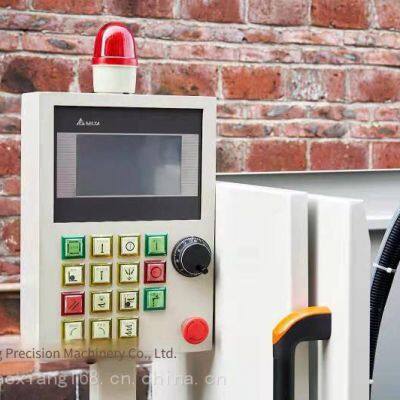

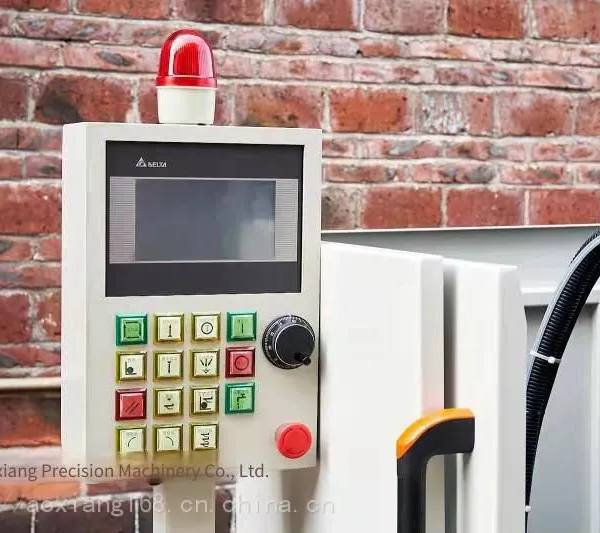

The automatic alloy saw blade tooth grinding machineAX900-B2 model is a mechanical equipment for regrinding and recycling alloy circular saw blades. It is also a necessary equipment for producing new saw blades. It can grind all tooth shapes including the rake angle and clearance angle of alloy circular saw blades with a diameter between100mm and700mm. A single machine can grind30 - 50 alloy saw blades in8 hours a day. It is a commonly used equipment for saw blade users and saw blade manufacturers.PLC control, color touch screen display. The feed system uses a precision servo motor. A precision electronic handwheel is used to adjust the grinding wheel. Flat and ladder teeth can be ground in one pass, and the same tooth can be reground2 - 3 times. The grinding head is ofa professionally customized type. The grinding accuracy can be controlled within0.03mm. It is easy to operate and learn. There is no need for unlocking and locking buttons. The system automatically locks according to the operation requirements and adds a grinding wheel wear compensation function. On the premise of grinding the saw blade sharp, it can also fully extend the service life of the saw blade. Each blade can be reused20 - 30 times. It has been used by companies including Guangzhou Oppein, Zhaoqing Asia Aluminum, Zhongshan Ouli Furniture, Shandong Binzhou Wanshida,Guilin Longteng Wood Industry,Guilin Yuxiang Wood Industry, Hailin Nature Wood Industry, Jiangxi Ganzhou Hongshan Wood Industry, Anhui Lu'an Guanzhong Wood Industry,Shandong Heze Ailun Furnitureand other users' high praise.
Technical parameters
| Grinding outer diameter: φ80 - φ810mm Saw blade inner diameter: φ12 - φ80mm Grinding tooth number: 1 - 999 teeth Tooth pitch: 7 - 100mm Saw blade thickness: 8mm Main rake angle grinding: -10° to +40° Tooth surface swing angle: -15° to +15° Rear angle grinding: 6 - 45° Tooth tip swing angle: -45° to +45° Grinding stroke: 1 - 28mm (stepless speed change) Working speed: 18 - 30 teeth/min Grinding wheel outer diameter: φ125mm Grinding wheel inner diameter: φ32mm Grinding wheel rotation speed: 5800/min Cooling device: 50kl/min Total electric power: 1.64kw Machine net weight: 980kg Packing gross weight: 1180kg Machine body size: 1800×1280×1780mm
|
