Three-axis CNC Aoxiang Alloy Cold Saw Blade Tooth Grinding Machine

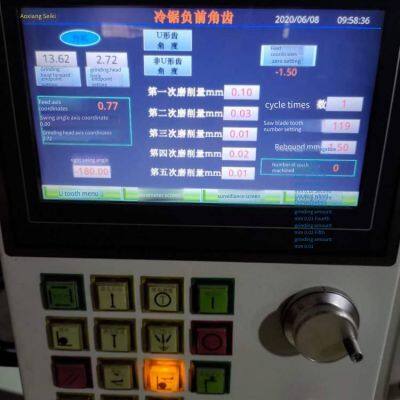

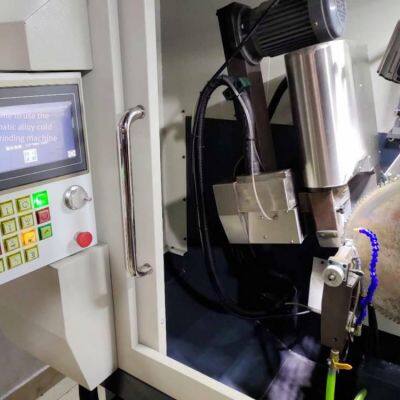

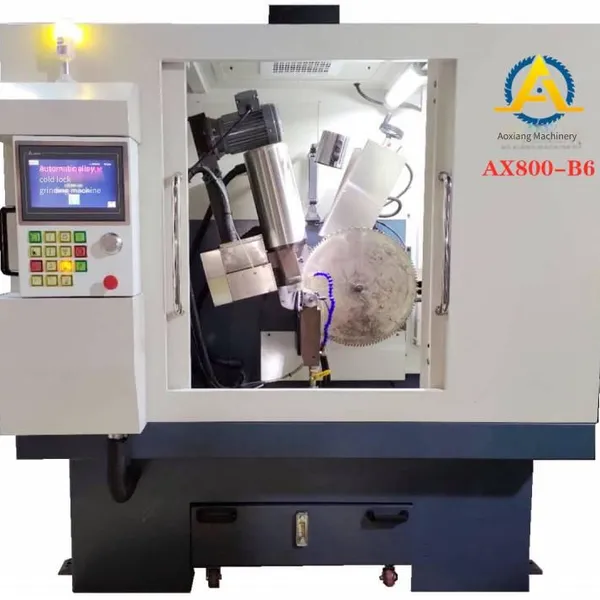

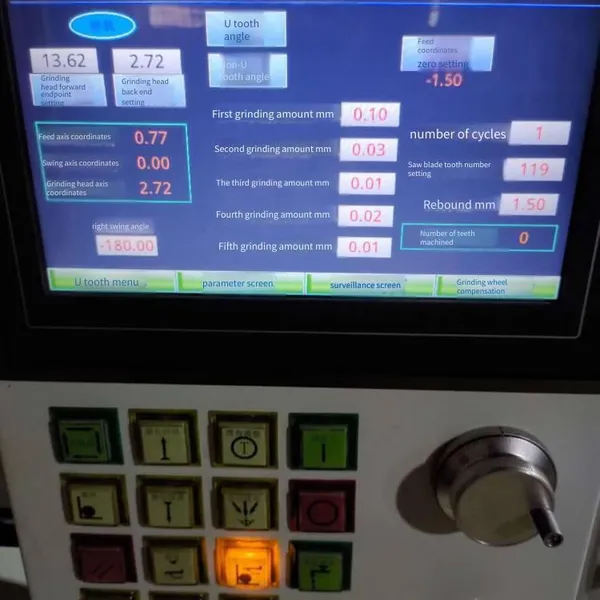

The new generation AX800-B6 alloy saw blade tooth grinding machine of Aoxiang has undergone a revolutionary transformation in terms of functions. It features a fully enclosed appearance and utilizes three high-precision servo motors with encoders to control the forward and backward movement of the precision grinding head, the left, right and middle swing angles, and the feed of the grinding wheel. In addition to fully meeting the requirements for grinding the front and rear angles of wood saw blades and aluminum saw blades, it can also grind and shape the U-shaped tooth surface, negative angle, chamfer and rear angle of cold saw blades. The grinding outer diameter accuracy is within 0.02mm, and the accuracy retention is long. It has stable performance, and is simple and cost - effective to operate and maintain. There is also a high - precision slotting machine for cold saw blades as a supporting product.
For detailed information, please add the WeChat of Foshan Aoxiang Precision Machinery Co., Ltd., or visit our company in person for on - site inspection.
AX800 - B6 Equipment Parameters
Grinding Object | Alloy Circular Saw Blade | Tooth Surface Swing Angle | Left3 - 15 degrees to Right3 - 15 degrees |
Grinding outer diameter | 80-800mm | Tooth tip swing angle | Left3-45 degrees to right3-45 degrees |
Saw blade inner diameter | 12-80mm | Grinding wheel speed | 5200 revolutions/ minute |
Grinding teeth number | 1-999 teeth | Sharpening stroke | 1-28mm(ServoStepless speed change) |
Tooth Pitch | 7-90mm | WorkingEfficiency | 20Teeth/Minute |
Saw Blade Thickness | 1-6mm | Grinding Wheel Outer Diameter | 125mm |
Rake Angle Grinding | -15to 40Degrees | Grinding Wheel Inner Diameter | 32mm |
Back angle grinding | 8-40 degrees | Cooling device | 50kl/min |
Driving mode | Servo +Hydraulic | Grinding accuracy | 0.01mm-0.03mm |
Total electric power | 2.59kw | Machine net weight | 1080kg |
Gross weight per packing case | 1280kg | Body dimensions | 1800×1850×1280mm |
