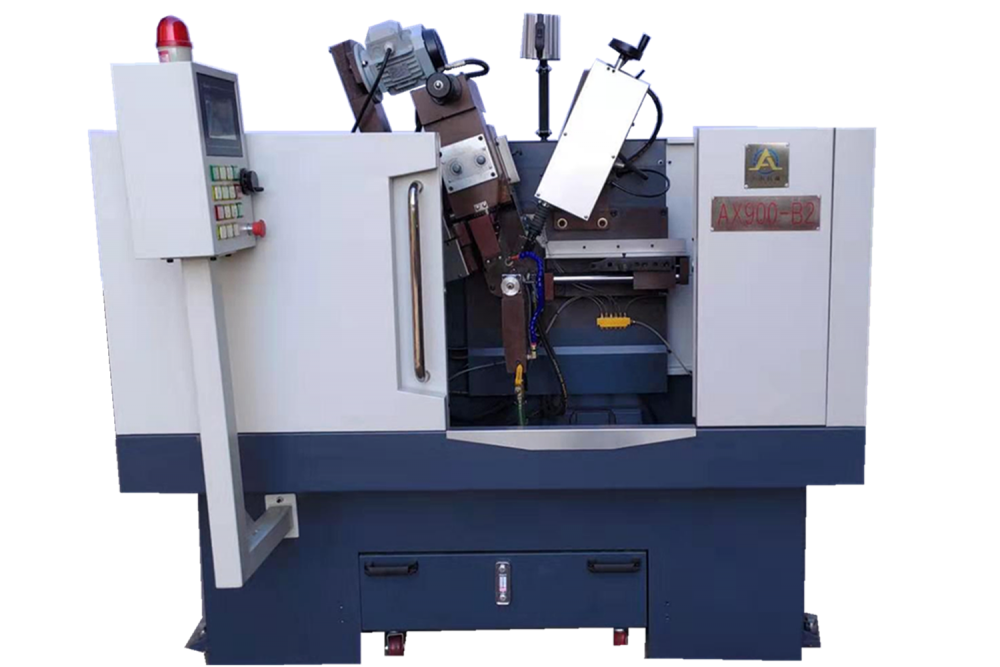

New modelIntroduction to the basic configuration of Model AX900-B2
The new fully automatic alloy circular saw blade front and rear angle grinding machine of Model AX900-B2,PLCcontrolsystem uses the Model DVP60ES200T produced by Delta Electronics, Inc. of TaiwanDVP60ES200Ttype,Color touch screenselects the Model DOP-107BV produced by Delta Electronics, Inc. of TaiwanDOP-1107BVtype, the feed systemServoMotorAdoptProduced by Delta Electronics, Inc. from TaiwanECMA-C20604RCmodel,DriverSelectProduced by Delta Electronics, Inc. from TaiwanASD-B2-0421-Bmodel. The grinding wheelGrinding headSelect the model specially customized by the manufacturer.Electrical appliancesMost of the parts are imported Schneider electrical appliances. Use a precisionElectronic handwheelManually adjust the positioning of the grinding wheel.The flat ladder teeth can be ground at one time, and the same teeth can be ground repeatedly2-3times, Grindingprecision can be controlledat0.02mm-0.04mmbetween. It is easy to operate and learn. There is no need for unlocking and locking buttons. The system automaticallyclicksto lock.
The power supply of this model isThree-phase 380V, 50HZ, (the other colored wire isGrounding wire). The machine runs in the way of PLC control, touch screen display, hydraulic drive, and the full set of Delta controlmakes the matching more stable. The hydraulic system usesTaiwanYUTANProduced by the company24VSolenoid valve, equipped with380V1.5KWSpecial hydraulic motor and20L Special variableHydraulic pump,All oil cylinders are custom-made by professional factories,And equipped with hydraulicCoolingSystem to ensure balanced hydraulic operation.MotorUses high-quality products from Guangdong ProvinceShengfaMotor,Strictfactoryqualityinspection,striving to minimize after-sales service to zero,so thatcustomers can be more at ease!
Basic parameters of AX900-B2 Aoxiang Automatic Alloy Circular Saw Blade Tooth Grinding Machine
Model | AX900-B2 | Brand | Aoxiang |
Type | Alloy circular saw blade grinder | Layout form | Vertical |
Installation form | Floor-mounted | Object of action | Alloy circular saw blade |
Machine body color | White + Dark gray | Machine tool weight | 930kg |
Control form | PLC | Sharpenable tooth profile | All tooth profiles |
Processing precision | Precision | Number of teeth for grinding | 999 |
Overall dimensions | 1800*1280*1780 (mm) | Touch screen size | 7 inches |
Minimum grinding size | 80mm | Grinding size | 800mm |
Main motor power | 1.5kw | Grinding wheel speed | 5200rpm |
Feed motor power | 750w | Sharpenable saw blade aperture | φ20、φ22、φ25.4、φ30、φ40、φ50 |
Front angle grinding wheel specification | 125*32*10(3)*1 | Rear angle grinding wheel specification | 125*32*5*6 |
Coolant tank capacity | 80L | Sharpening accuracy | 0.03mm-0.05mm |
Voltage setting | 380V/50HZ | Tooth pitch | 7-150mm |
Feeding speed | 18-25 teeth/minute | Language | Simplified Chinese/English |
Forward speed of grinding wheel sharpening | Adjustable speed | Grinding wheel sharpening stroke | 0-28mm (Equipped with water cooling device) |
Sharpenable angles of tooth tip and left/right helical teeth | 3°/45° | Sharpenable angles of left/right helical teeth on tooth surface | 3°/15° |
Tooth tip sharpening angle | 6°/30° | Tooth surface grinding angle | +30°/-5° |
Grinding wheel control method | Servo motor | Action drive | Hydraulic and servo hybrid |
Frame | Steel plate sheet metal frame | Whole machine power | Independent hydraulic system (30KG/CM2) |
